Hybrid Vehicle Transaxle Unit: Components

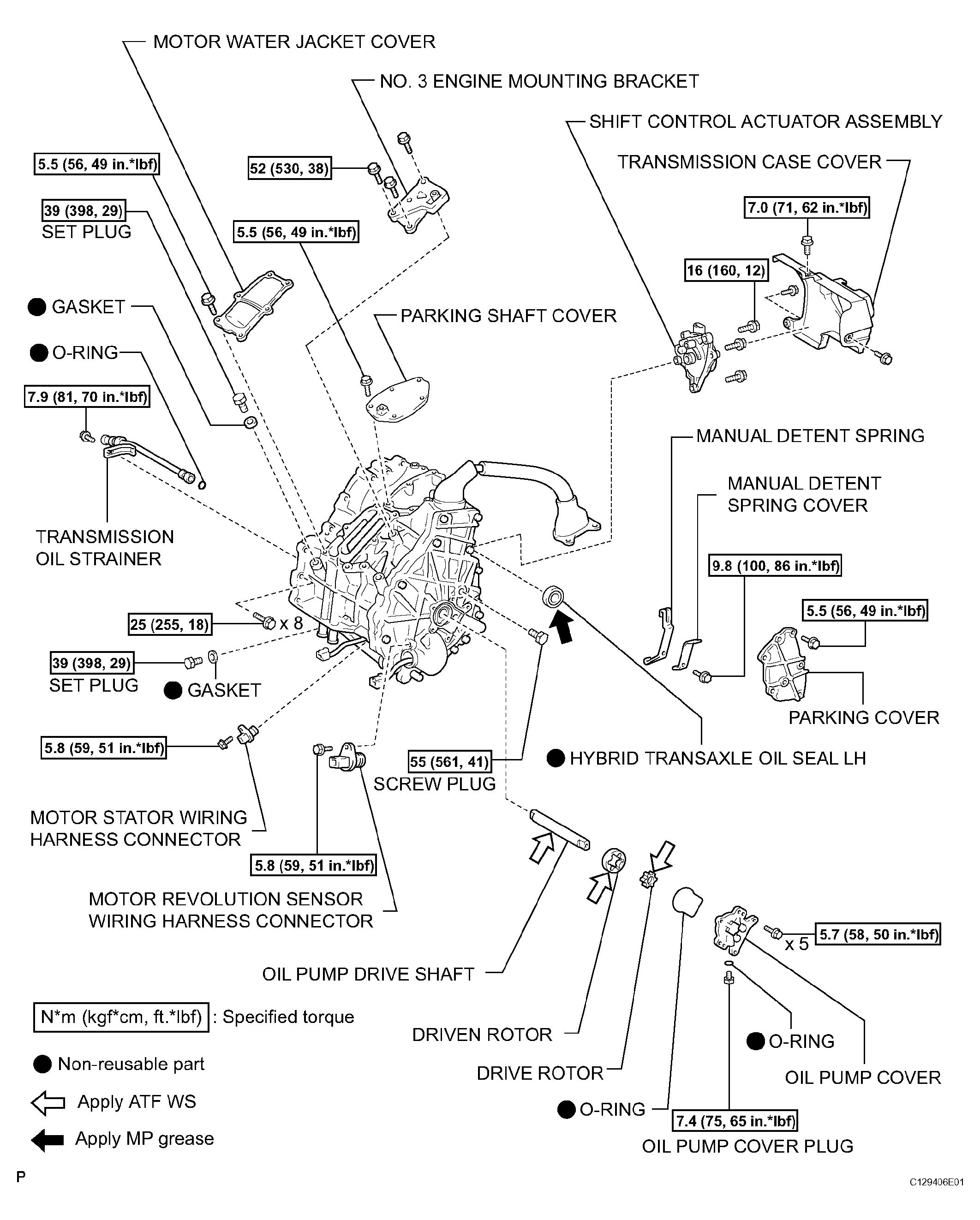

Fig 1: Hybrid Vehicle Transaxle Unit Components With Torque Specification (1 Of 2)
G04474137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

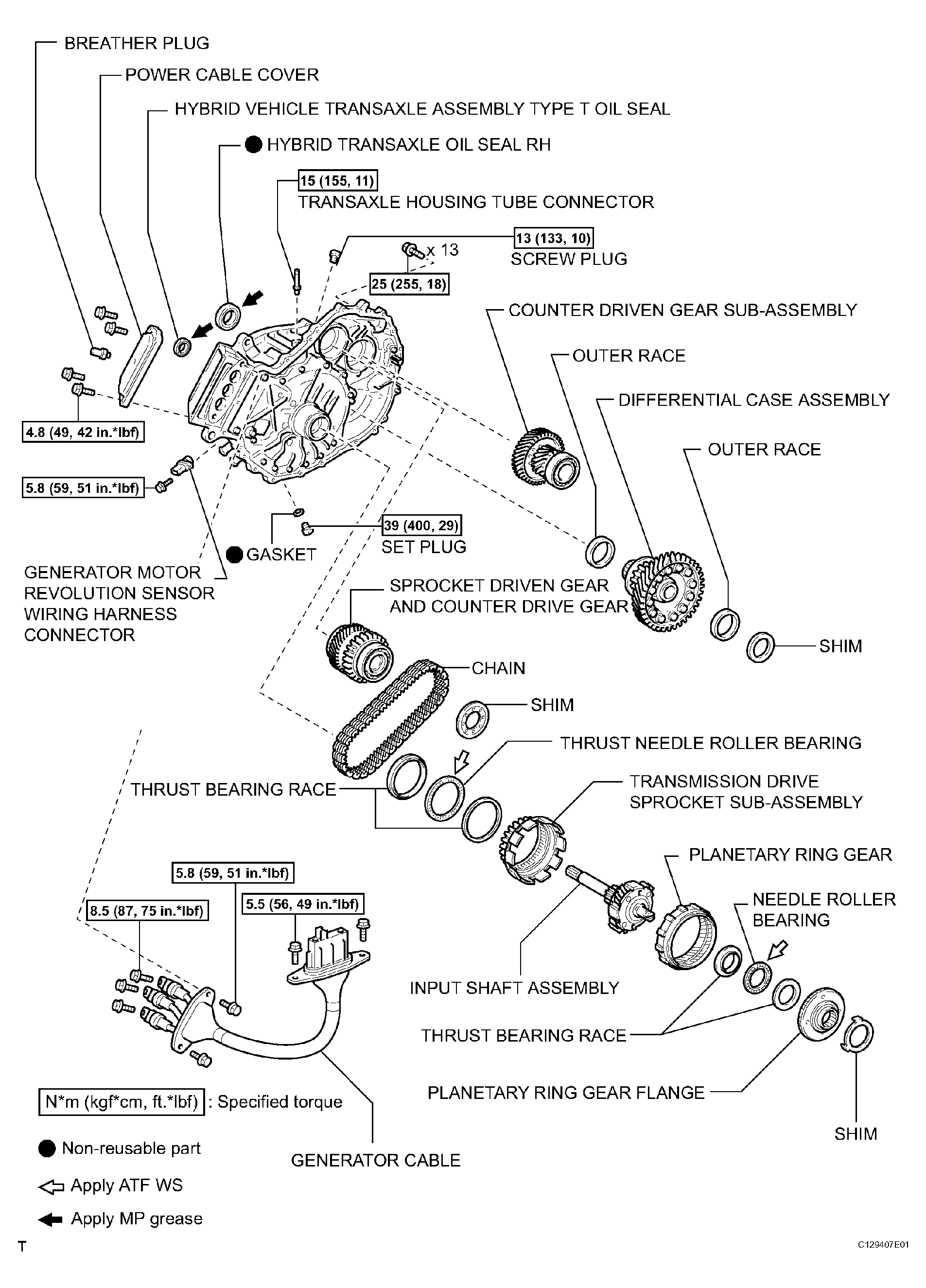

Fig 2: Hybrid Vehicle Transaxle Unit Components With Torque Specification (2 Of 2)
G04474138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
