Shift Control Actuator: Installation

INSTALL SHIFT CONTROL ACTUATOR ASSEMBLY
1. Apply a small amount of ATF WS to the O-ring.

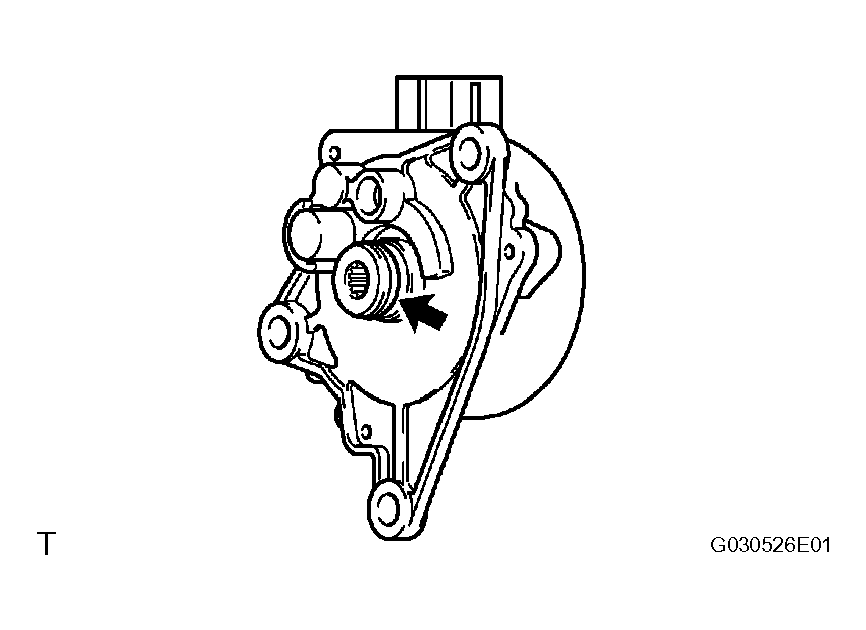

  Fig 1: Identifying Shift Control Actuator Assembly O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the shift control actuator to the hybrid vehicle transaxle with the 3 bolts.
  Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)

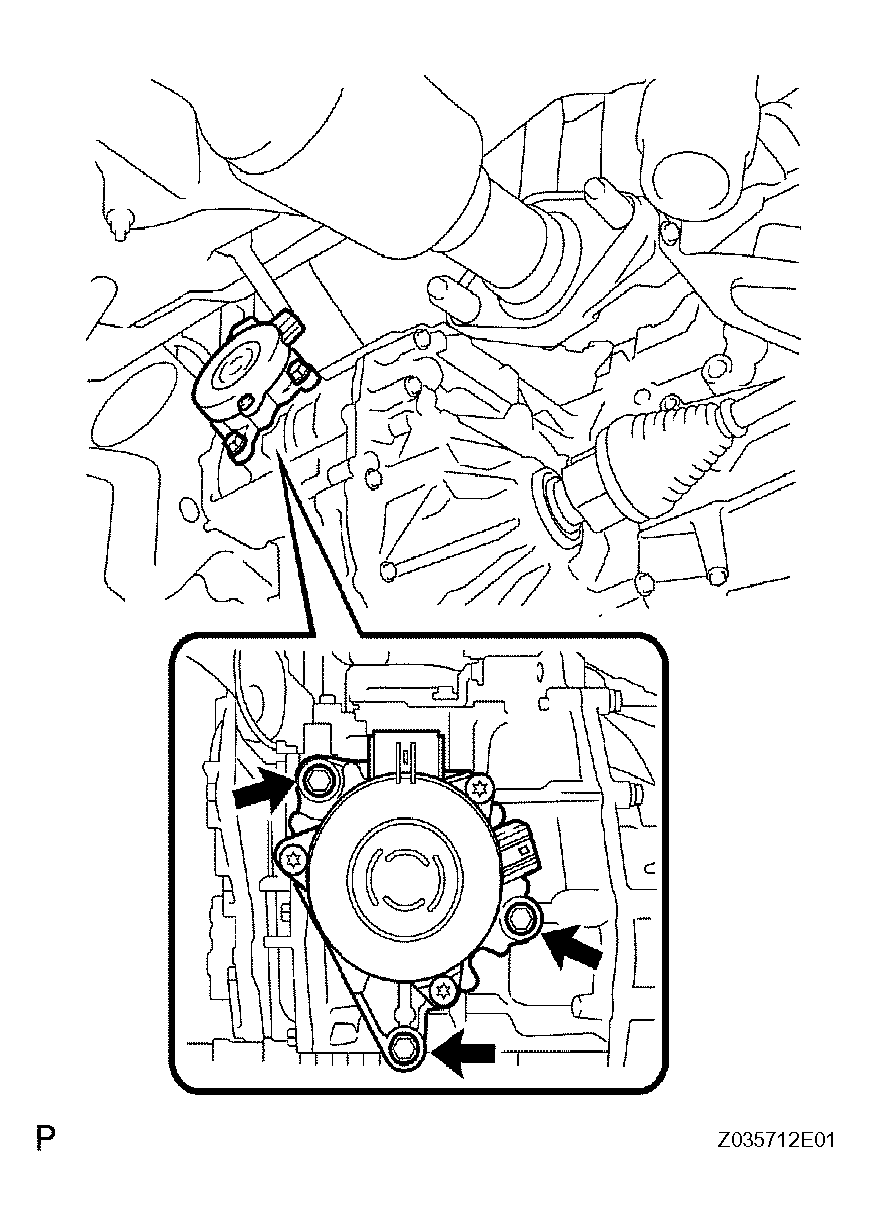

  Fig 2: Installing Shift Control Actuator To Hybrid Vehicle Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the transmission case cover to the hybrid vehicle transaxle with the 3 bolts.
  Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)
4. Connect the connector.

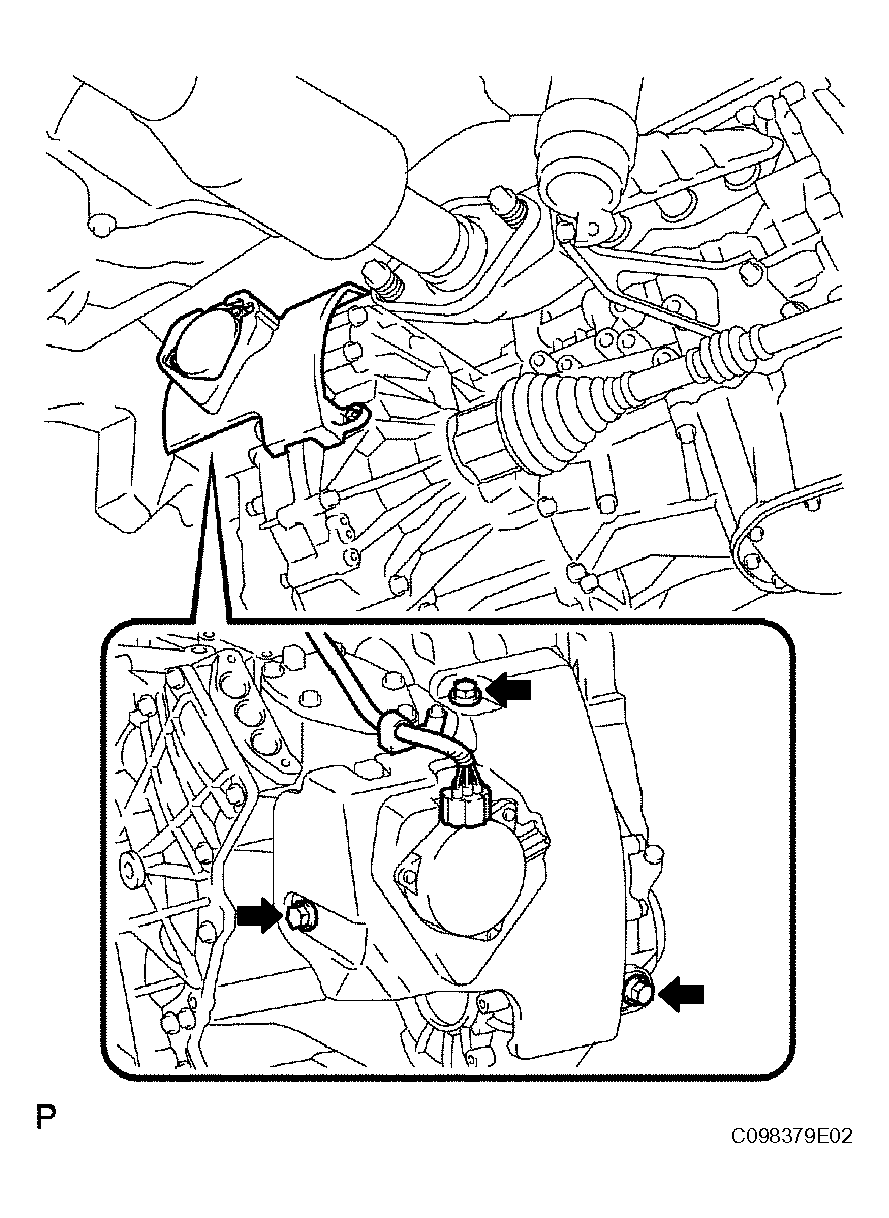

  Fig 3: Installing Transmission Case Cover To Hybrid Vehicle Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
