On-Vehicle Inspection

  1. INSPECT CIRCUIT OPENING RELAY
    1. Continuity inspection.
      1. Using an ohmmeter, check for continuity between each terminal.
        CIRCUIT OPENING RELAY

        Between terminal Specified condition
        1 - 2 Continuity
        3 - 5 No continuity
        Continuity
        (Voltage applied terminals 1 and 2)

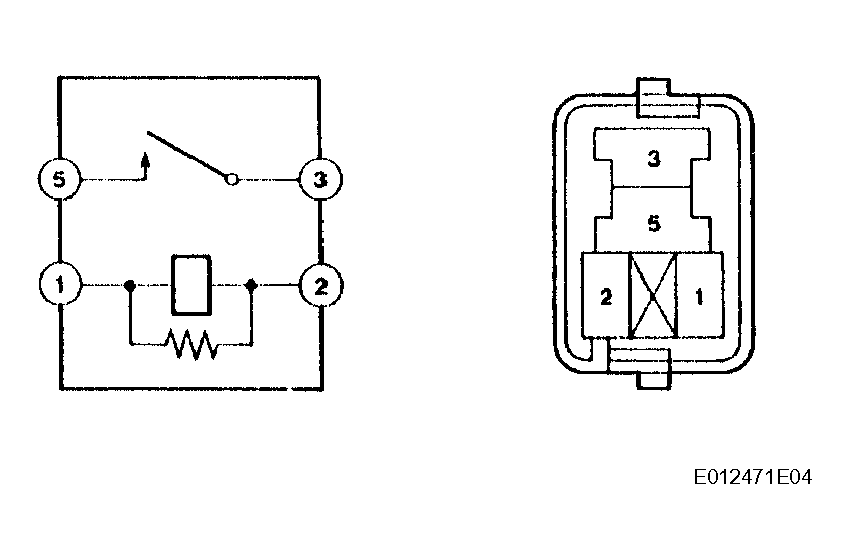

        Fig 1: Inspecting Circuit Opening Relay
        G04493882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
