Knock Sensor: Components

Fig 1: Identifying Knock Sensor Components And Replacements (1 Of 4)
G04493866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

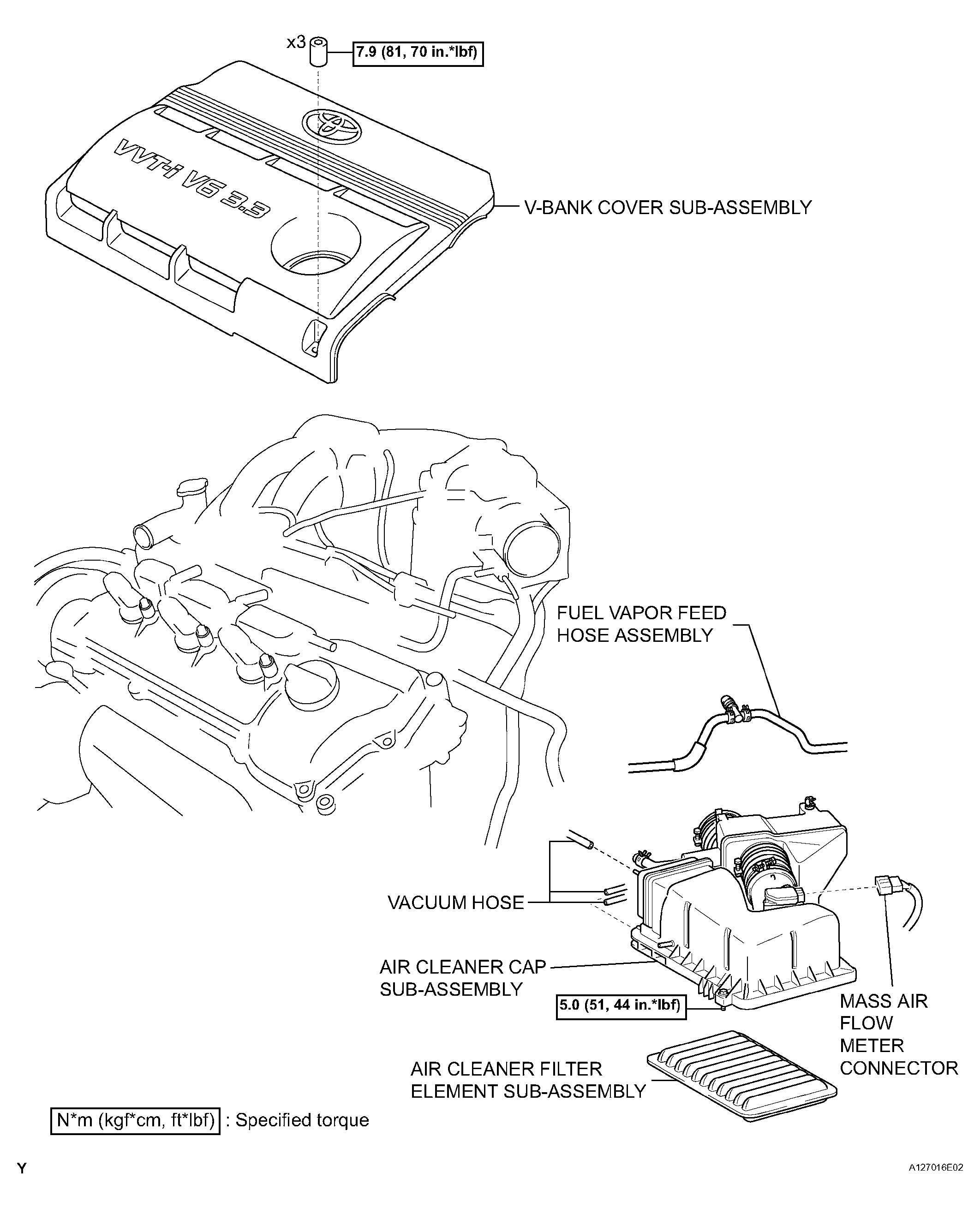

Fig 2: Identifying Engine Components And Replacements (2 Of 4)
G04493867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

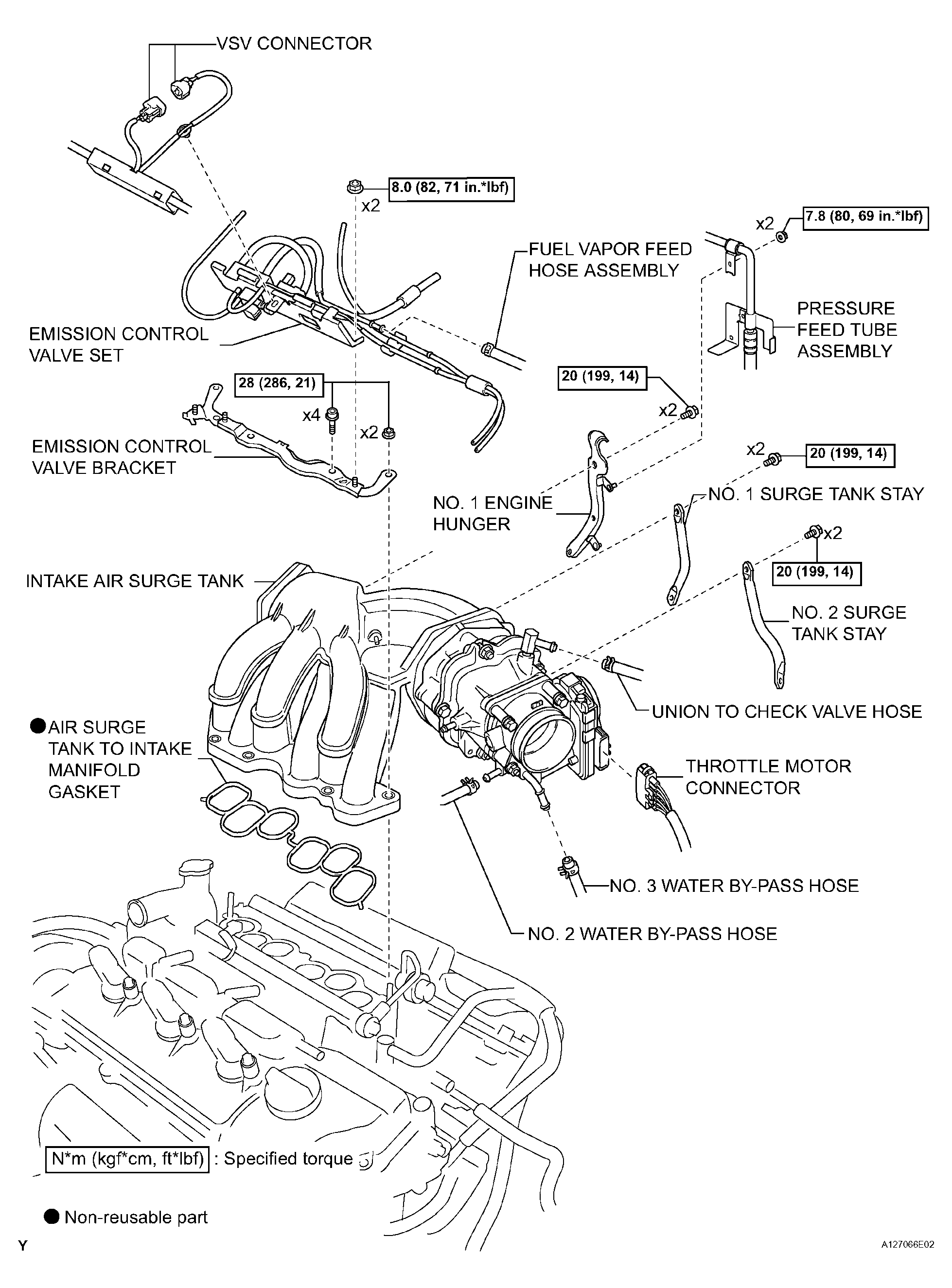

Fig 3: Identifying Engine Components And Replacements (3 Of 4)
G04493868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

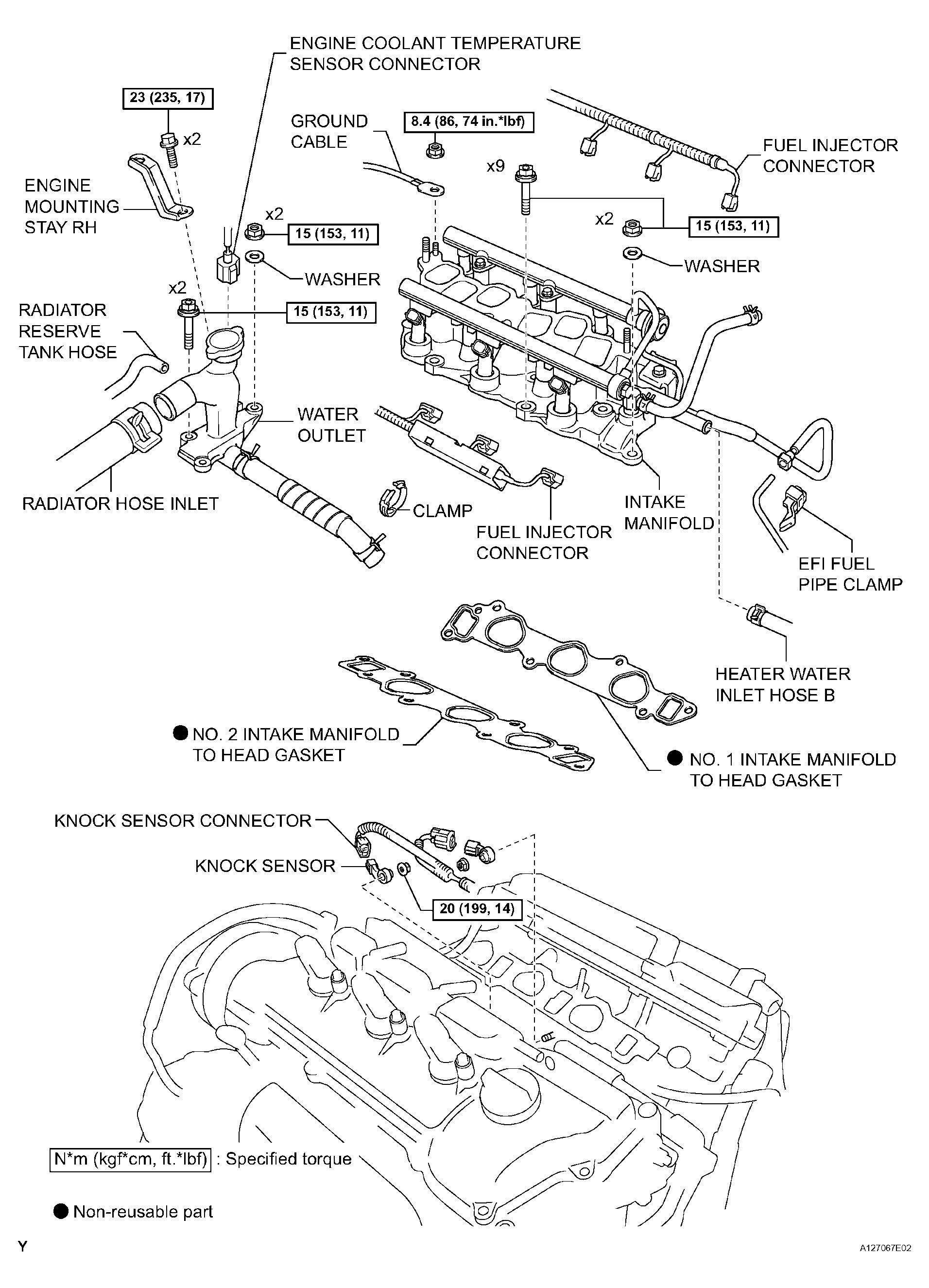

Fig 4: Identifying Engine Components And Replacements (4 Of 4)
G04493869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
