Knock Sensor: Inspection

INSPECT KNOCK SENSOR
1. Continuity inspection.
  1. Using an ohmmeter, measure the resistance between the terminals.
    Standard Resistance: 120 to 280 kΩ at 20°C (68°F)

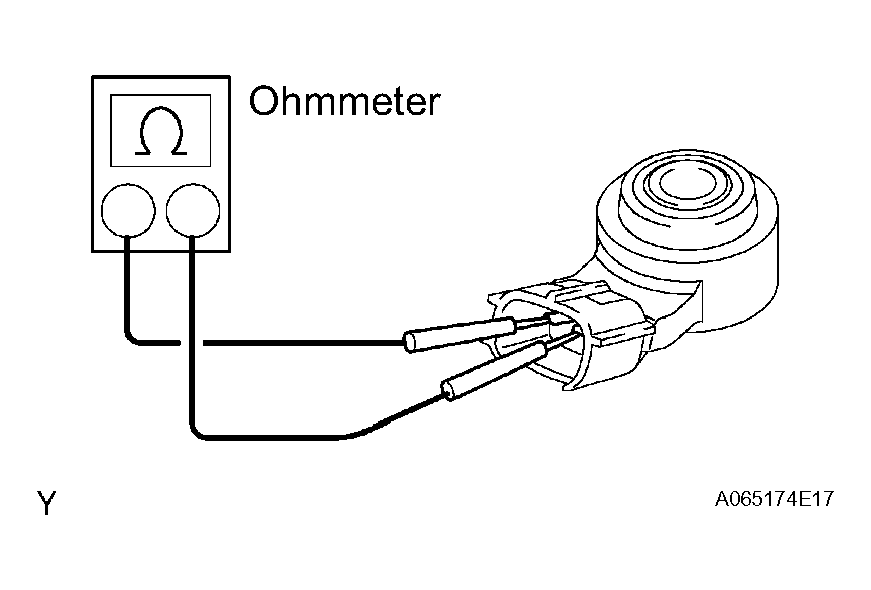

    Fig 1: Inspecting Knock Sensor
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    If the resistance is not specified, replace the sensor.
