Inspection Procedure
HINT:
Read freeze frame data. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
- CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0441, P0442, P0446 AND/OR P0456)
Result
ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0441, P0442, P0446 AND/OR P0456)Display (DTC output) Proceed to Only P0441, P0442, P0446 and/or P0456 A P0451, P0452 and P453 B HINT:
If any other DTCs besides P0441, P0442, P0446 and/or P0456 are output, perform the troubleshooting for those DTCs first (reference: P0451, P0452, P0453 are vapor pressure sensor malfunctions).
B: GO TO DIAGNOSTIC TROUBLE CODE CHART
A: GO TO NEXT STEP
- CHECK CURRENT DTC AND PENDING DTC
- Check current DTCs. Select the intelligent tester menus: DIAGNOSIS, ENHANCED OBD II, DTC INFO and CURRENT DTCS.
- Check pending DTCs. Select the intelligent tester menus: DIAGNOSIS, ENHANCED OBD II, DTC INFO and PENDING DTCS.
Result
CURRENT DTC AND PENDING DTCCurrent DTC Pending DTC Conclusion Set Set System has been malfunctioning. Problem can be specified. Set - System was malfunctioning in previous driving cycle. Problem may be specified. - Set System is malfunctioning. This is intermittent problem and caused by fuel tank cap loosening. Otherwise, this problem may be difficult to eliminate. HINT:
- The ECM stores the current DTC and illuminates the MIL when an emission-related component is malfunctioning in 2 consecutive driving cycles (2 trips). The MIL is turned OFF, if the component is functioning normally in 3 consecutive driving cycles. The ECM erases the current DTC, if the component is functioning normally in 40 consecutive driving cycles.
- The ECM stores the pending DTC, if the component is malfunctioning in present driving cycle (1 trip).
- The ECM erases the pending DTC, if the component is functioning normally in the next driving cycle.
- PREDICT POSSIBLE MALFUNCTION AREA
- Predict a possible malfunctioning area using the matrix
.
EVAP DTC Matrix
PREDICT POSSIBLE MALFUNCTION AREA (1 OF 2)Malfunction Area DTCs EVAP VSV stuck closed P0441, P0446, P0455 EVAP VSV stuck open P0441 EVAP small leak (0.04 inch) P0442 CCV stuck closed P0446 CCV stuck open P0441, P0446, P0455 FTP sensor malfunction P0451 FTP sensor low output P0452 FTP sensor high output P0453 Gross leak P0441, P0455 EVAP small leak (0.02 inch) P0442, P0456 PREDICT POSSIBLE MALFUNCTION AREA (2 OF 2)DTCs Suspected Malfunction Area P0441 only EVAP VSV stuck open P0446 only CCV (vent valve) stuck open P0442 and/or P0456 Small leak
- Predict a possible malfunctioning area using the matrix
.

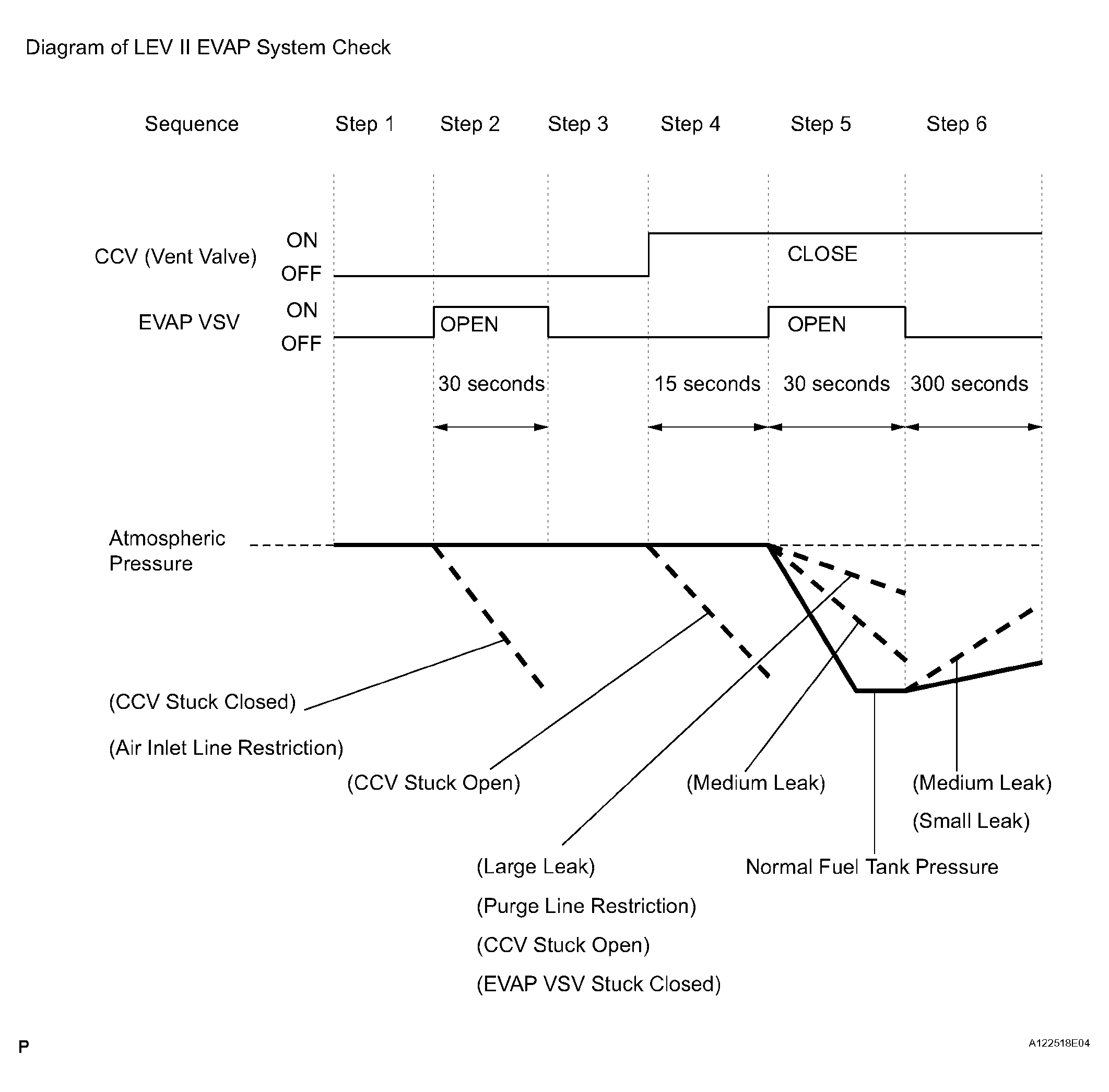

- PERFORM EVAP SYSTEM CHECK NOTE: The EVAP system check can be used for confirmation after the EVAP system repair. Check DTCs after performing the EVAP system check. If no pending DTC is set, the EVAP system is functioning normally and the repair is completed.
- Select the "mmHg" unit. Select the intelligent tester menus: DIAGNOSIS, SETUP, UNIT CONVERSION and VAPOR PRESS.
- Allow the engine to idle.
- Perform the EVAP system check to find a malfunction area. Select the intelligent tester menus: DIAGNOSIS, ENHANCED OBD II, SYSTEM CHECK and LEV II SYS CHECK.
- Read NOTICE and press ENTER.
HINT:
The EVAP system check is most accurate when the following conditions are being set:
- Atmospheric pressure is 762 mmHg (sea level).
- The engine coolant and intake air temperatures are 4 to 35°C (40 to 90°F).
- The fuel tank level is 1/4 to 3/4 full.

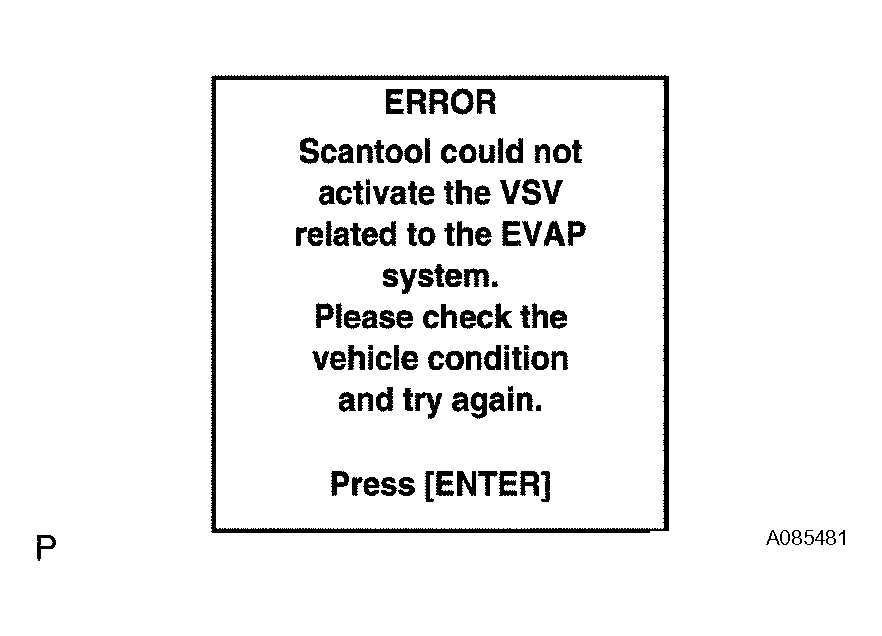

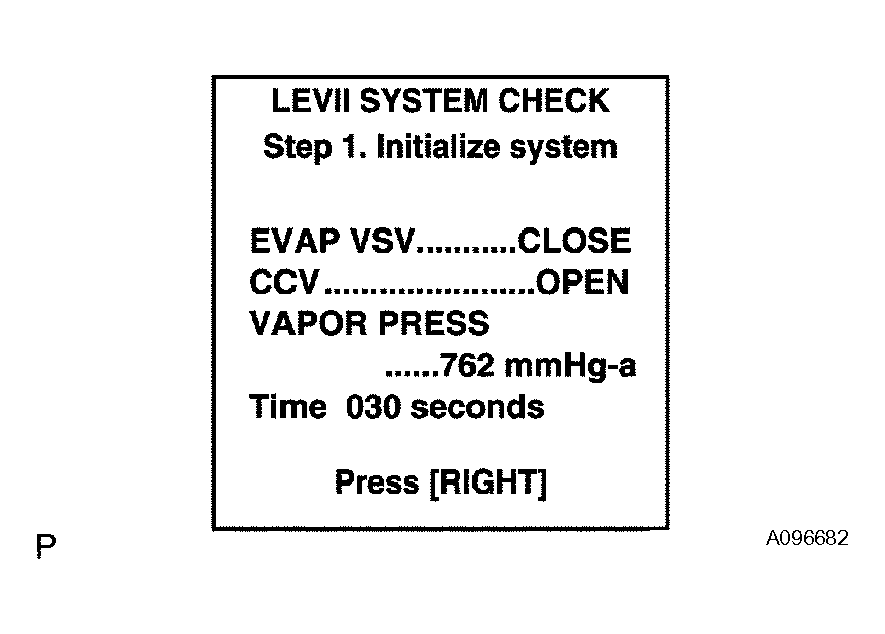

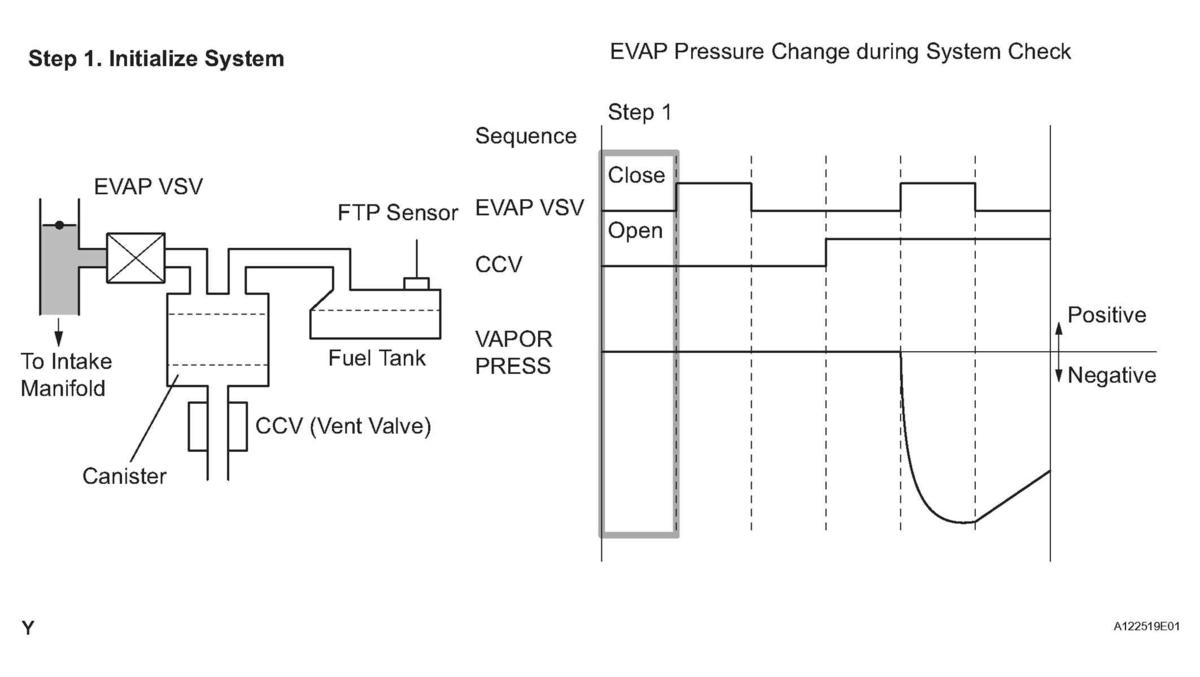

- PERFORM EVAP SYSTEM CHECK STEP 1 (INITIALIZE SYSTEM)
- Perform step 1 in Fig 2.
- Wait for 30 seconds.

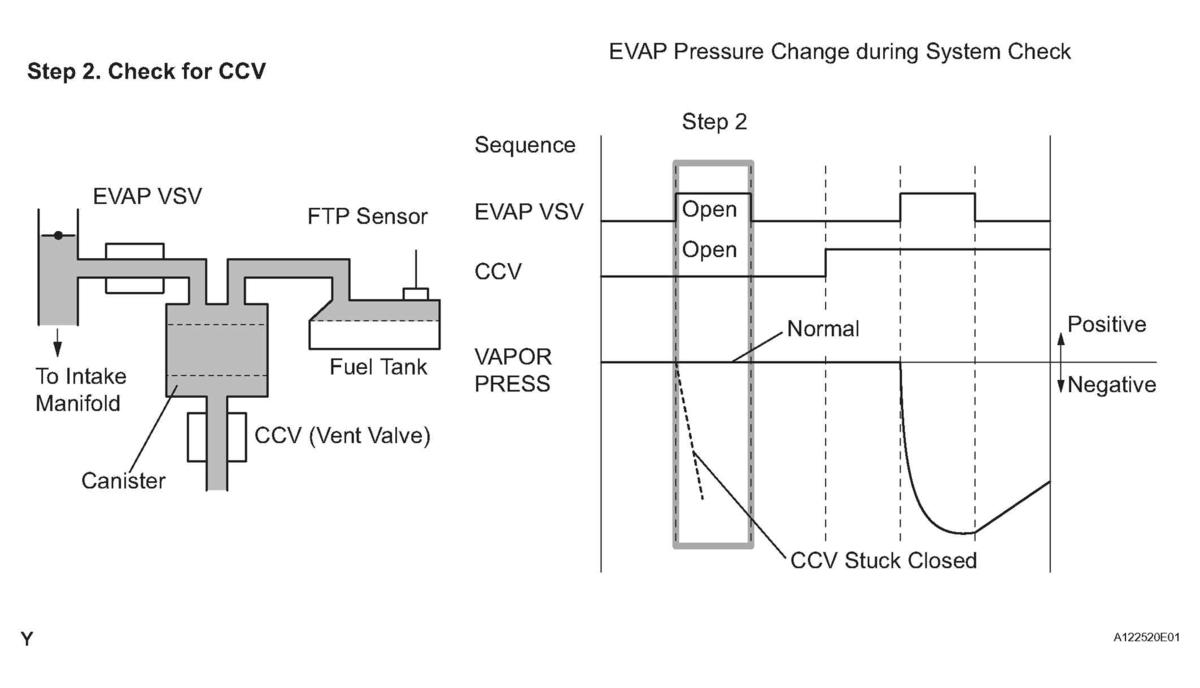

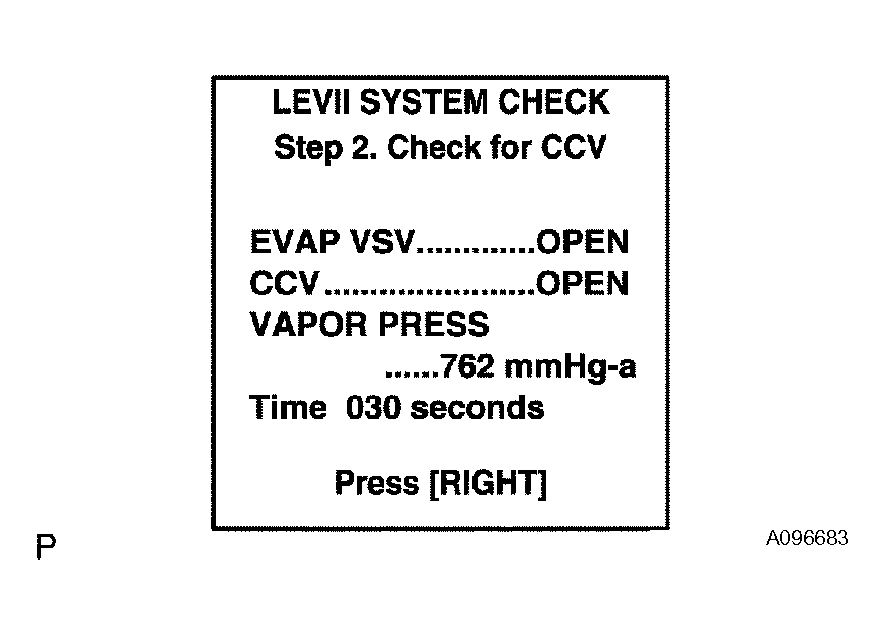

- PERFORM EVAP SYSTEM CHECK STEP 2 (CHECK FOR CCV)
- Press RIGHT to go to step 2 in Fig 4.
- Wait for 30 seconds and check VAPOR PRESS (EVAP pressure).
Result
VAPOR PRESS (EVAP PRESSURE)VAPOR PRESS Conclusion Proceed to Higher than 752 mmHg-a (-10 mmHgg) Trouble area has not been found yet OK Lower than 752 mmHg-a (-10 mmHgg) Following problems are suspected: - Air inlet line restriction
- Canister filter restriction
- CCV (vent valve) stuck closed
NG HINT:
In this step, the intake manifold pressure (vacuum) is applied to the EVAP system. However, the fuel tank pressure does not drop due to the CCV (vent valve) open.
NG: Go to step 11
OK: GO TO NEXT STEP

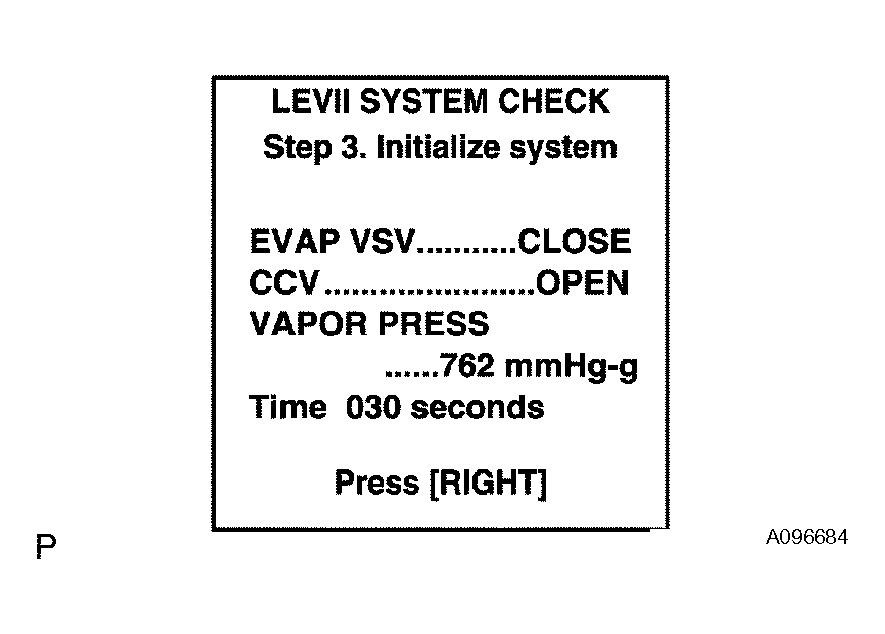

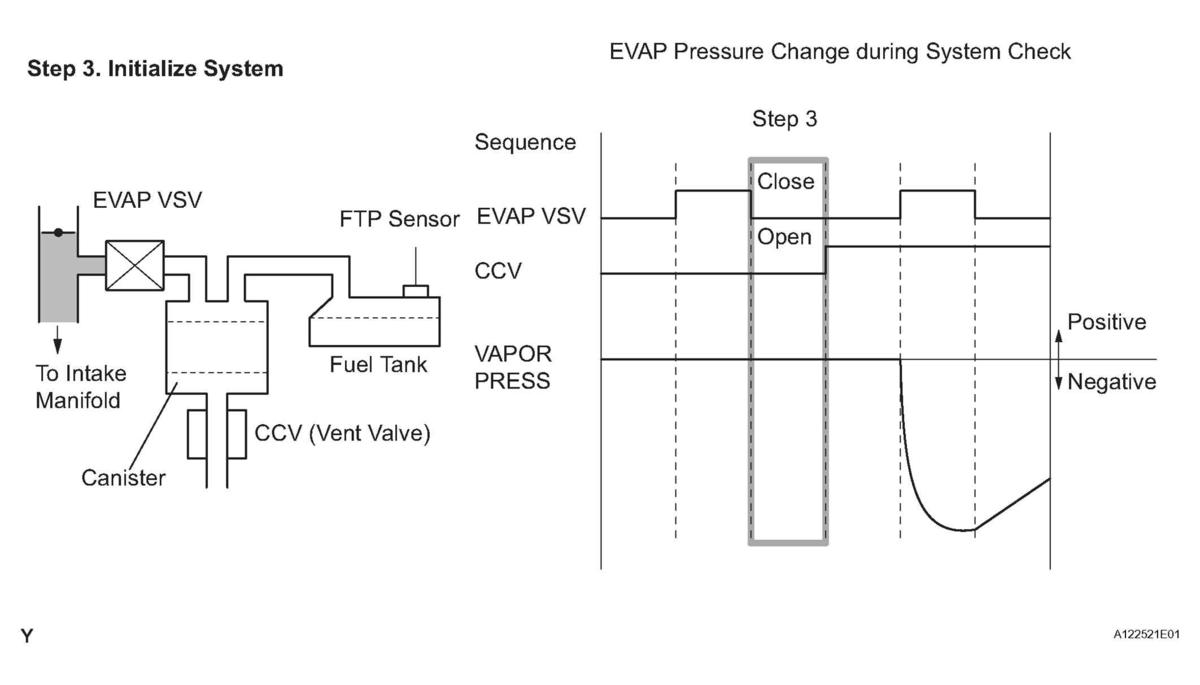

- PERFORM EVAP SYSTEM CHECK STEP 3 (INITIALIZE SYSTEM)
- Press RIGHT to go to step 3 in Fig 6.
- Wait for 30 seconds.

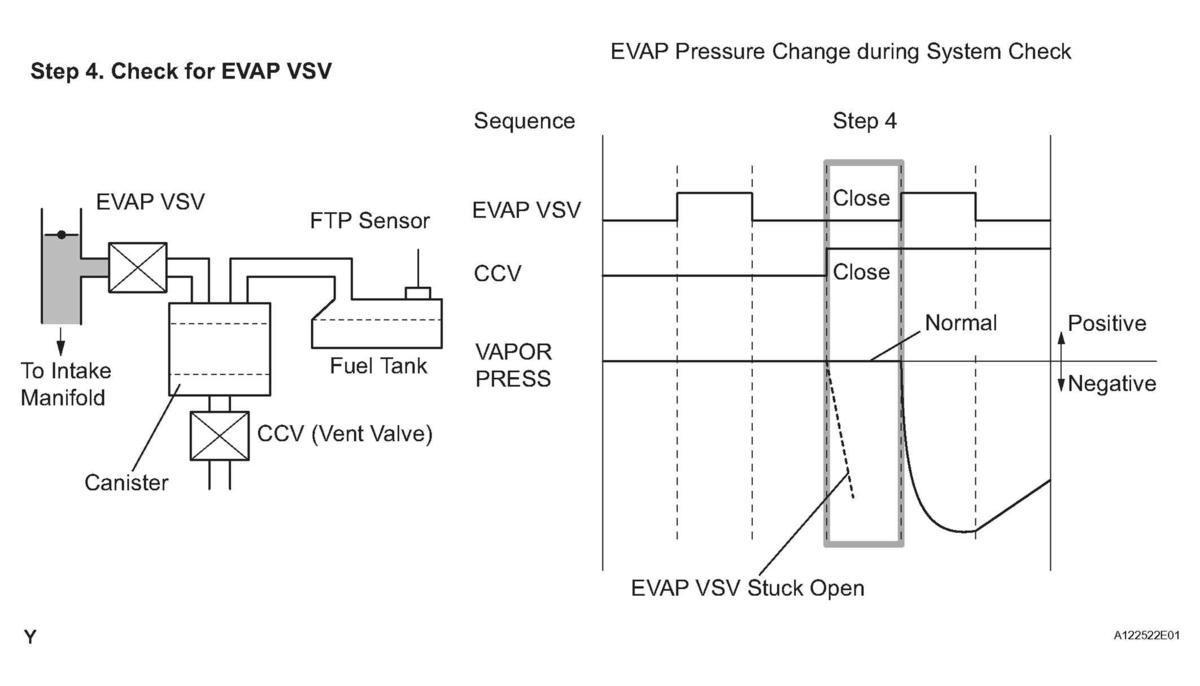

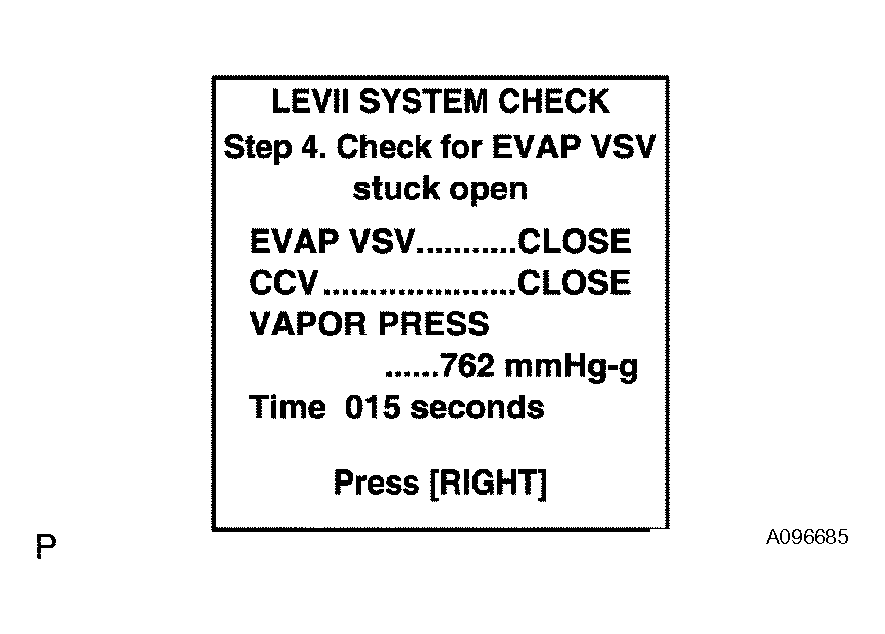

- PERFORM EVAP SYSTEM CHECK STEP 4 (CHECK FOR EVAP VSV STUCK OPEN)
- Press RIGHT to go to step 4 in Fig 8.
- Wait for 15 seconds and check VAPOR PRESS (EVAP pressure).
Result
VAPOR PRESS (EVAP PRESSURE)VAPOR PRESS Conclusion Proceed to Higher than 758 mmHg-a (-4 mmHg-g) Trouble area has not been found yet OK Lower than 758 mmHg-a (-4 mmHg-g) EVAP VSV stuck open NG Go to step 14
NG: Go to step 14
OK: GO TO NEXT STEP

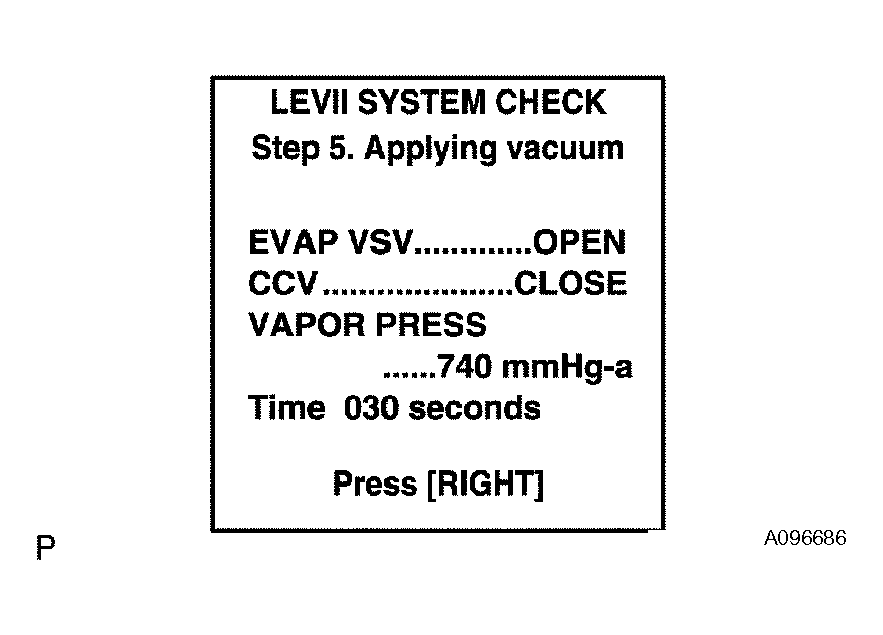

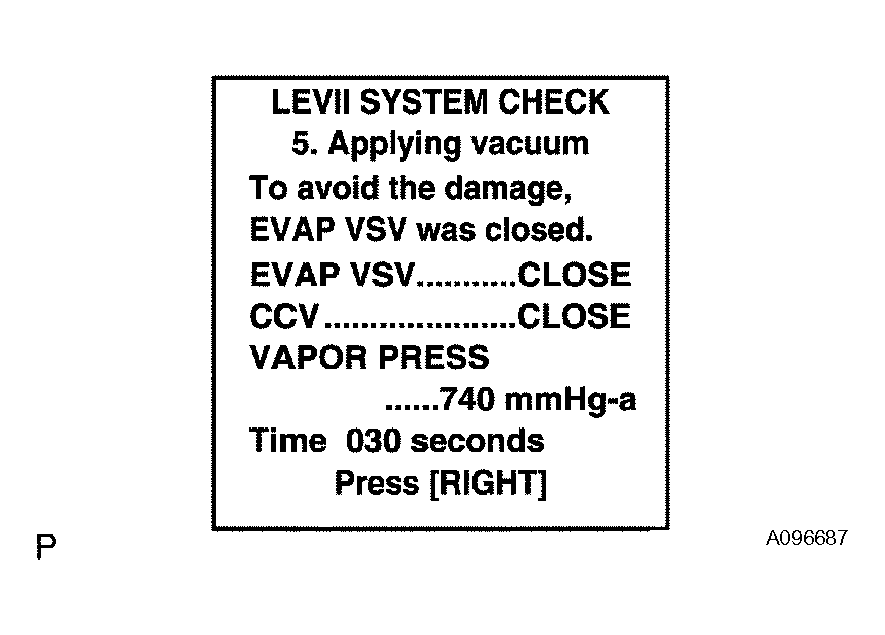

- PERFORM EVAP SYSTEM CHECK STEP 5 (APPLYING VACUUM)
- Press RIGHT to go to step 5 in Fig 10.
- Wait for 30 seconds and check VAPOR PRESS (EVAP pressure).
- If the pressure is lower than 740 mmHg-a (-22 mmHgg), the intelligent tester closes the EVAP VSV.
- If the pressure is lower than 735 mmHg-a (-27 mmHgg), the intelligent tester cancels the EVAP system check.
Result
VAPOR PRESSVAPOR PRESS Conclusion Proceed to Lower than 748 mmHg-a (-14 mmHgg) Trouble area has not been found yet. A 756 to 768 mmHg-a (- 6 to 6 mmHg-g) Following problems are suspected: - Fuel tank cap loosening
- Gross leak
- EVAP VSV stuck closed
- CCV (vent valve) stuck open
- Purge line blockage between fuel tank and canister
B 748 to 755 mmHg-a (- 14 to -7 mmHg-g) Medium leak C
B: Go to step 15
C: Go to step 18
A: GO TO NEXT STEP

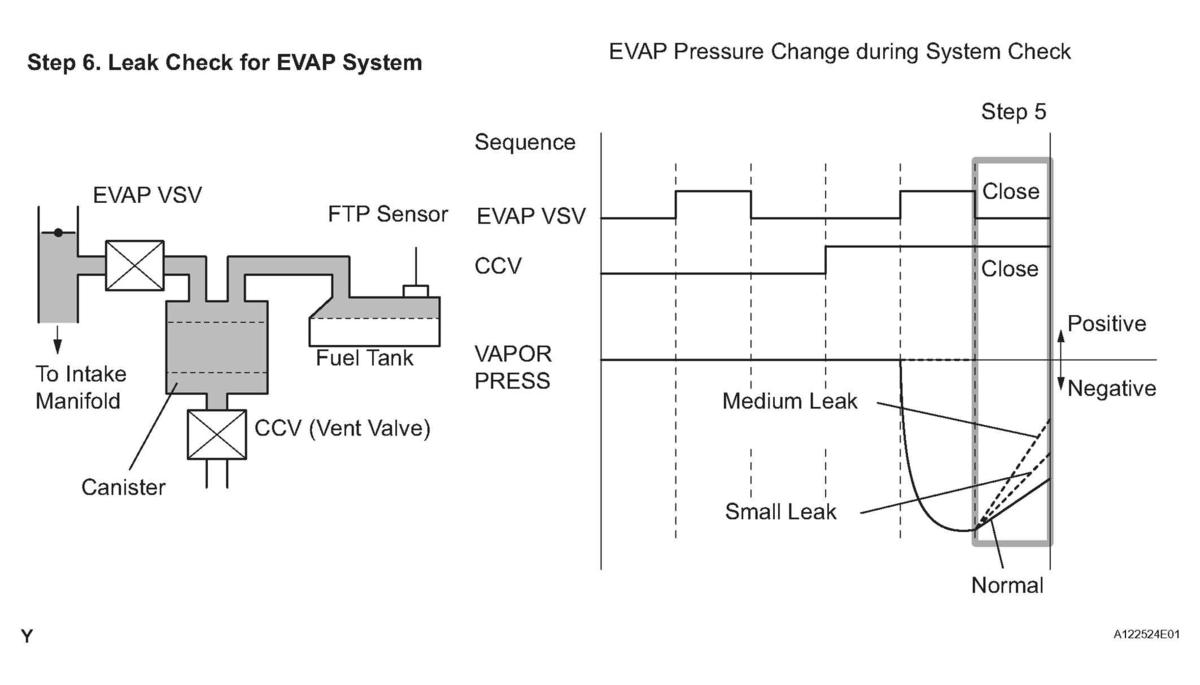

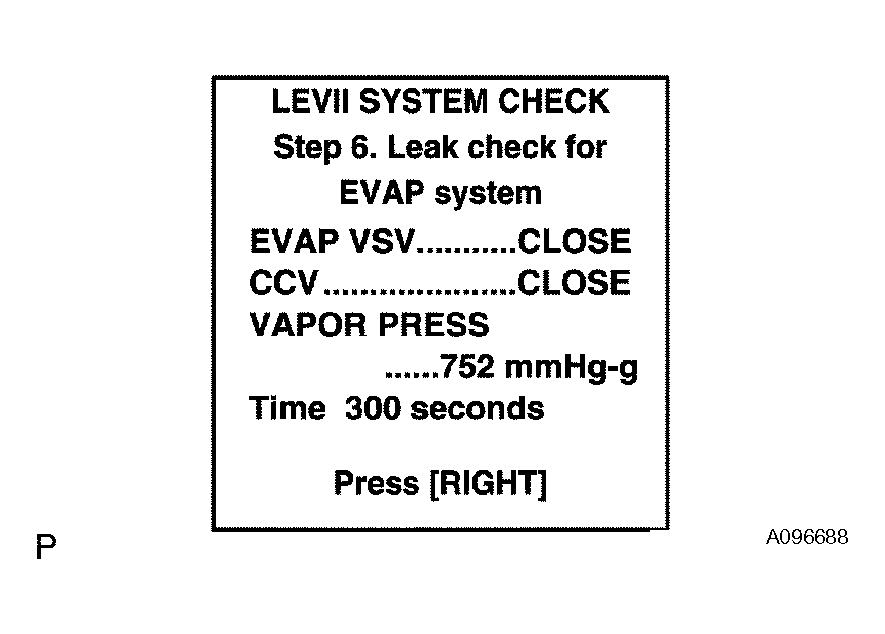

- PERFORM EVAP SYSTEM CHECK STEP 6 (LEAK CHECK FOR EVAP SYSTEM)
- Press RIGHT to go to step 6 in Fig 14 when the VAPOR PRESS (EVAP pressure) is lower than 742 mmHg-a (-20 mmHgg).
- Wait for 300 seconds and check VAPOR PRESS (EVAP pressure).
Result
VAPOR PRESS (EVAP PRESSURE)VAPOR PRESS Conclusion Proceed to Less than 758 mmHg-a (-4 mmHg-g) EVAP system is functioning normally OK Higher than 758 mmHg-a (-4 mmHg-g) Leakage NG
OK: Go to step 40
NG: Go to step 18
- CHECK CCV
- Turn the ignition switch OFF.
- Turn the ignition switch ON.
- Switch the CCV (vent valve) ON and OFF using the intelligent tester. Select the intelligent tester menus: DIAGNOSIS, ENHANCED OBD II, ACTIVE TEST and CAN CTRL VSV.
- Touch the CCV and check the operation during switching the CCV.
Result
CCVCCV (Vent Valve) Conclusion Proceed to CCV is operated CCV is functioning normally. OK CCV is not operated CCV is malfunctioning. NG
NG: Go to step 25
OK: GO TO NEXT STEP

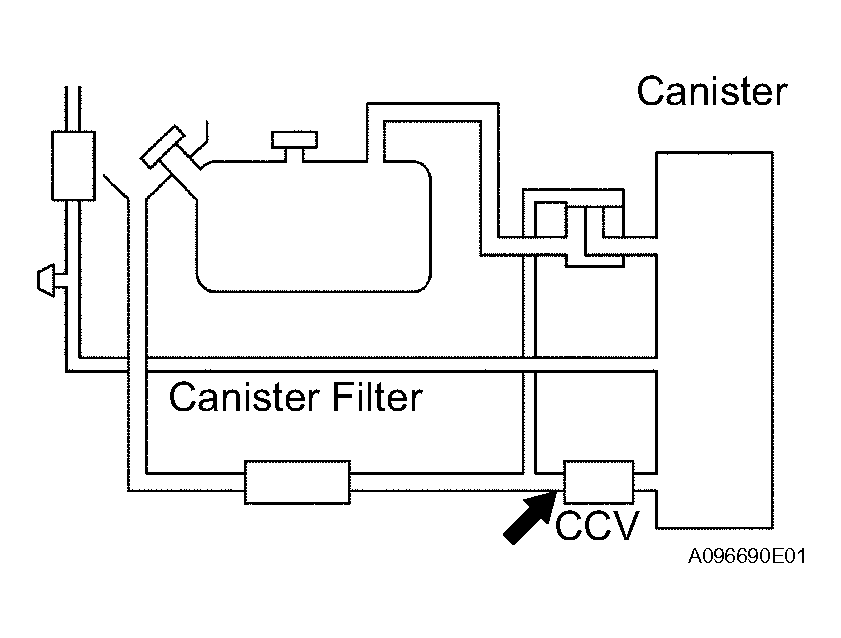

- CHECK AIR INLET LINE RESTRICTION
- Disconnect the air inlet line from the CCV.
- Remove and reinstall the fuel tank cap to release the fuel tank pressure.
- Allow the engine to idle.
- Perform step 2 in Fig 18 of the EVAP system check.
- Wait for 30 seconds and check VAPOR PRESS (EVAP pressure).
Result
VAPOR PRESS (EVAP PRESSURE)VAPOR PRESS Conclusion Proceed to Higher than 752 mmHg-a (-10 mmHgg) Blockage in canister filter A Lower than 752 mmHg-a (-10 mmHgg) Blockage in CCV (vent valve) or canister B - Reconnect the air inlet line to the CCV.
B: Go to step 13
A: REPLACE CANISTER FILTER
- CHECK CANISTER BLOCKAGE
- Turn the ignition switch OFF.

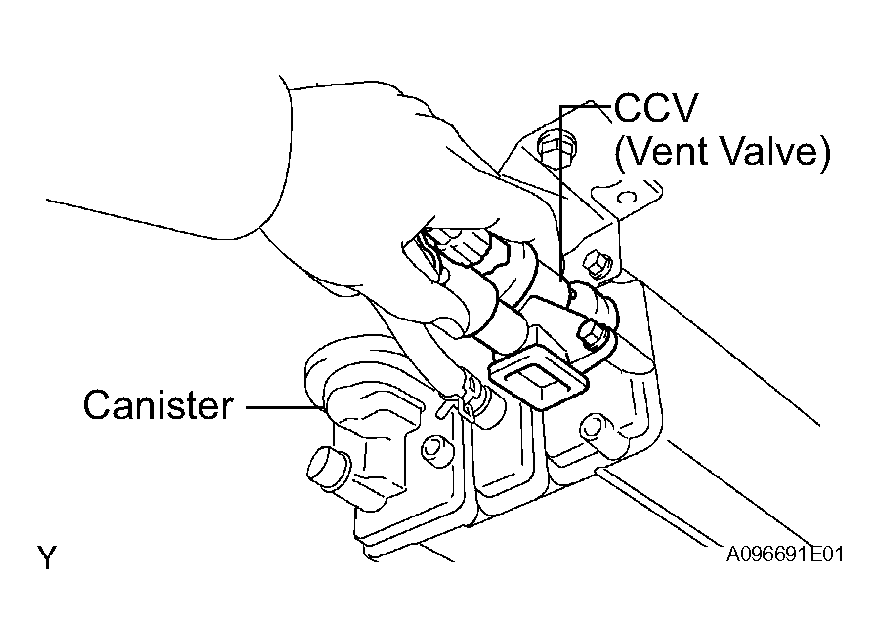

- Remove the CCV from the canister.
- Remove and reinstall the fuel tank cap to release the fuel tank pressure.
- Allow the engine to idle.
- Perform step 2 in Fig 20 of the EVAP system check.
- Wait for 30 seconds and check VAPOR PRESS (EVAP pressure).
Result
VAPOR PRESS (EVAP PRESSURE)VAPOR PRESS Conclusion Proceed to Higher than 752 mmHg-a (-10 mmHgg) CCV (vent valve) stuck closed A Lower than 752 mmHg-a (-10 mmHgg) Blockage in canister B - Reinstall the CCV.
B: CHECK AND REPLACE CHARCOAL CANISTER ASSEMBLY
A: REPLACE CCV (VENT VALVE)

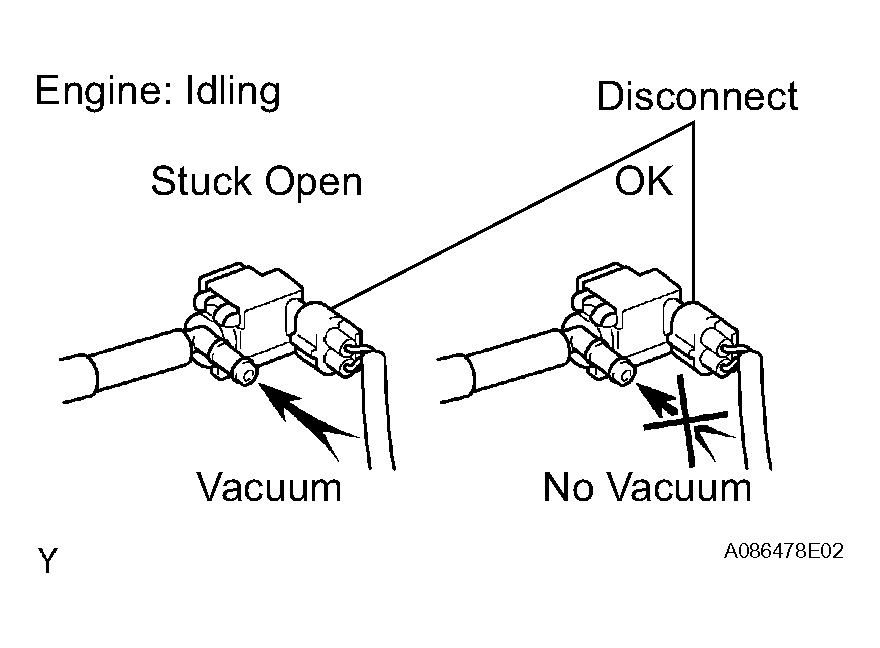

- CHECK EVAP VSV (FOR EVAP VSV STUCK OPEN)
- Turn the ignition switch OFF.
- Disconnect the purge hose of the canister from the EVAP VSV.
- Disconnect the EVAP VSV connector.
- Allow the engine to idle.
- Touch the EVAP VSV port to check the vacuum.
Result
EVAP VSV (FOR EVAP VSV STUCK OPEN)EVAP VSV Conclusion Proceed to Vacuum is applied. EVAP VSV is malfunctioning. A No vacuum is applied. Electrical circuit of EVAP VSV is malfunctioning. B - Reconnect the purge hose of the canister.
- Reconnect the EVAP VSV connector.
B: Go to step 29
A: REPLACE EVAP VSV
- CHECK FUEL TANK CAP ASSEMBLY
- Remove the fuel tank cap and reinstall it until a few click sound is heard.
- Clear the DTCs.
- Check pending DTCs after the EVAP system check. If no pending DTC is set, the DTC(s) was set due to the fuel tank cap loosening.
If necessary, replace the fuel tank cap.
NG: Go to step 16
OK: REPAIR COMPLETED

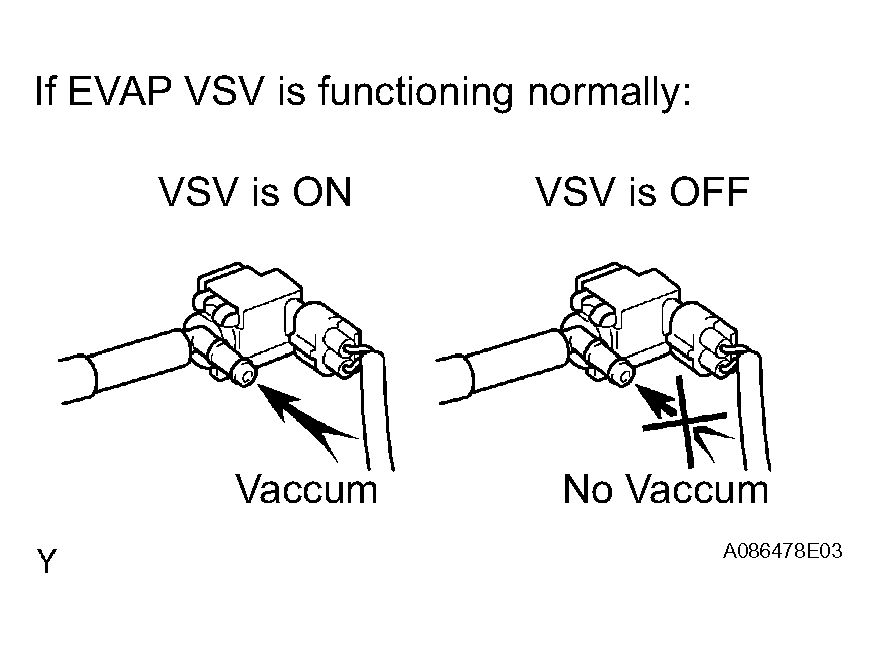

- CHECK EVAP VSV (FOR EVAP VSV STUCK CLOSED)
- Disconnect the purge hose of the canister from the EVAP VSV.
- Allow the engine to idle.
- Switch the EVAP VSV ON and OFF using the intelligent tester. Select the intelligent tester menus: DIAGNOSIS, ENHANCED OBD II, ACTIVE TEST and EVAP VSV.
- Touch the EVAP VSV port to check the vacuum.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Result
EVAP VSV (FOR EVAP VSV STUCK CLOSED)EVAP VSV Conclusion Proceed to Vacuum is applied when EVAP VSV is ON. No vacuum is applied when EVAP VSV is OFF. EVAP VSV is functioning normally. OK No vacuum is applied when EVAP VSV is ON. Electrical circuit of EVAP VSV is malfunctioning. NG HINT:
The EVAP VSV can be tested with the EVAP Test Equipment (go to step 39).
- Reconnect the purge hose of the canister.
NG: Go to step 31
OK: GO TO NEXT STEP

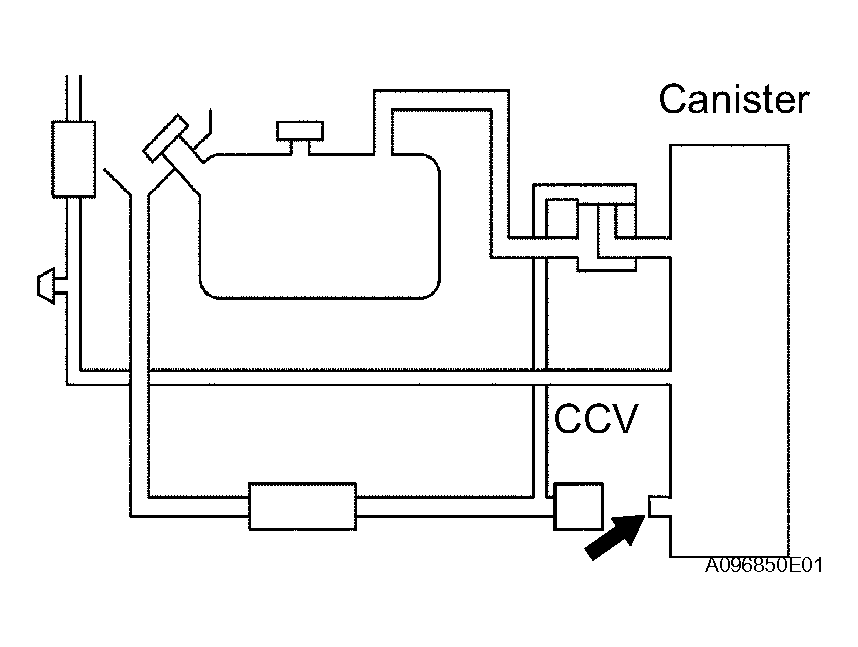

- CHECK CCV (FOR CCV STUCK OPEN)
- Turn the ignition switch OFF.
- Remove the CCV (vent valve) and plug the canister.
- Allow the engine to idle.
- Apply vacuum to the EVAP system with the EVAP system check. Perform step 5 "Applying Vacuum" in Fig 24.
- Wait for 30 seconds and check the VAPOR PRESS (EVAP pressure).
Result
VAPOR PRESS (EVAP PRESSURE)VAPOR PRESS Conclusion Proceed to Lower than 747 mmHg-a (-15 mmHg-g) CCV (vent valve) stuck open A Higher than 747 mmHg-a (-15 mmHg-g) Blockage in canister
Blockage in purge line (Fuel tank - Canister)
Blockage in purge line (Fuel tank - EVAP VSV)B - Reinstall the CCV (vent valve).
A: Go to step 24
B: Go to step 20
- CHECK FUEL TANK CAP ASSEMBLY
- Remove the fuel tank cap and reinstall it until a few click sound is heard.
- Clear the DTCs.
- Check pending DTCs after the EVAP system check. If no pending DTC is set, the DTC(s) was set due to the fuel tank cap loosening.
If necessary, replace the fuel tank cap.
NG: Go to step 19
OK: REPAIR COMPLETED

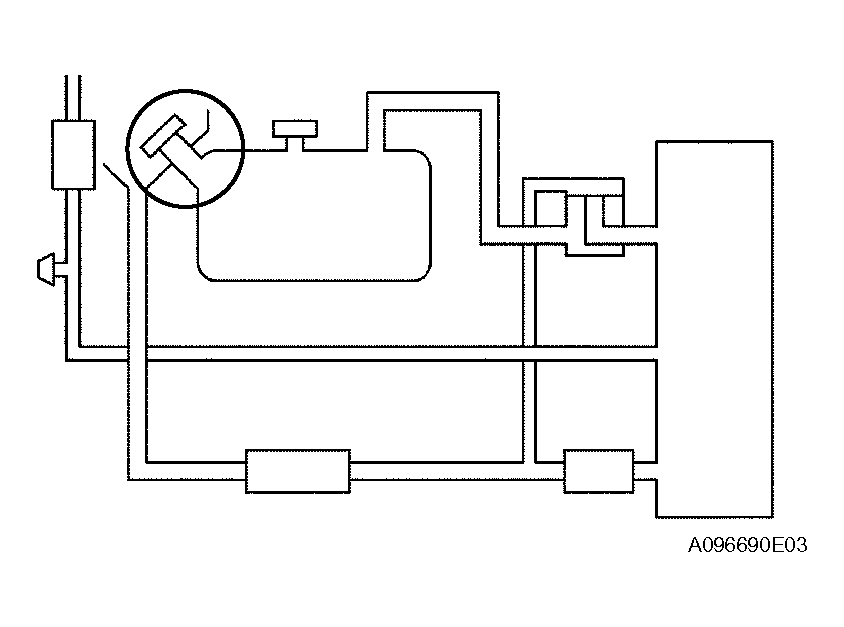

- CHECK FILLER NECK DAMAGE
- Remove the fuel tank cap.
- Visually inspect the filler neck for damage.
- Reinstall the fuel tank cap.
HINT:
A leak point may be found with the EVAP Test Equipment (go to step 36).
NG: REPLACE FUEL TANK INLET PIPE SUBASSEMBLY
OK: GO TO NEXT STEP

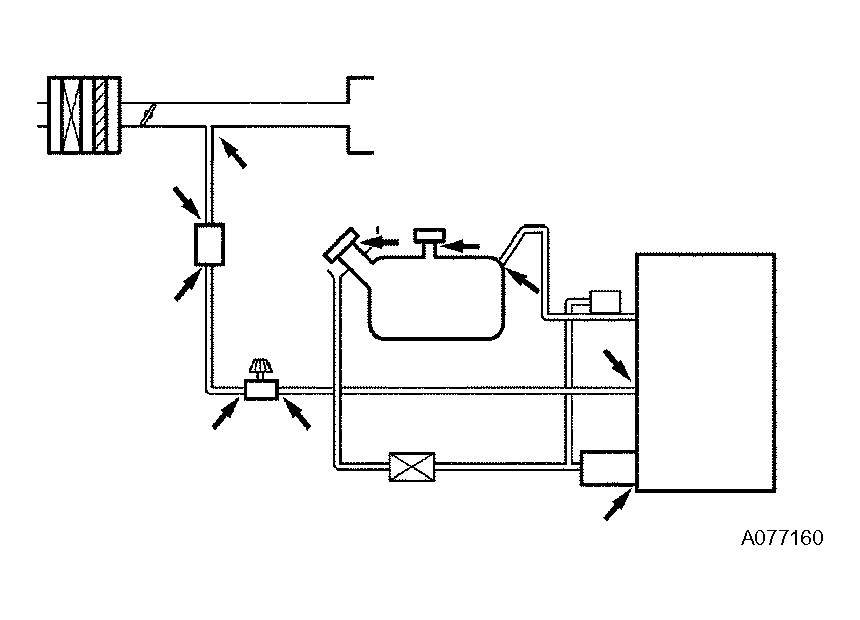

- CHECK PURGE LINE (CANISTER - FUEL TANK)
- Check that the pipes and hoses are connected correctly.
- Check that the pipes and hoses are not loose or disconnected.
- Check the pipes and hoses have no damage or blockage.
NG: REPLACE PURGE HOSE
OK: GO TO NEXT STEP
- CHECK PURGE LINE (CANISTER - EVAP VSV)
- Check that the pipes and hoses are connected correctly.
- Check that the pipes and hoses are not loose or disconnected.
- Check the pipes and hoses have no damage or blockage.
NG: REPLACE PURGE HOSE
OK: GO TO NEXT STEP
- INSPECT CANISTER
NG: REPLACE CANISTER
OK: GO TO NEXT STEP
- INSPECT FUEL TANK ASSEMBLY
- Check that the fuel tank has no damage.
- Check the fuel inlet pipe has no damage.
- Check leakage from the fuel pump unit
OK: Go to step 40
NG: REPAIR OR REPLACE DEFECTIVE OR DAMAGED PARTS
- CHECK CCV
- Stop the engine and turn the ignition switch ON.
- Switch the CCV (vent valve) ON and OFF using the intelligent tester. Select the intelligent tester menus: DIAGNOSIS, ENHANCED OBD II, ACTIVE TEST and CAN CTRL VSV.
- Touch the CCV and check the operation during switching the CCV.
Result
CCVCCV (Vent Valve) Conclusion Proceed to CCV is operated Electrical circuit of CCV is functioning normally. A CCV is not operated Electrical circuit of CCV is malfunctioning. B
B: Go to step 26
A: GO TO NEXT STEP

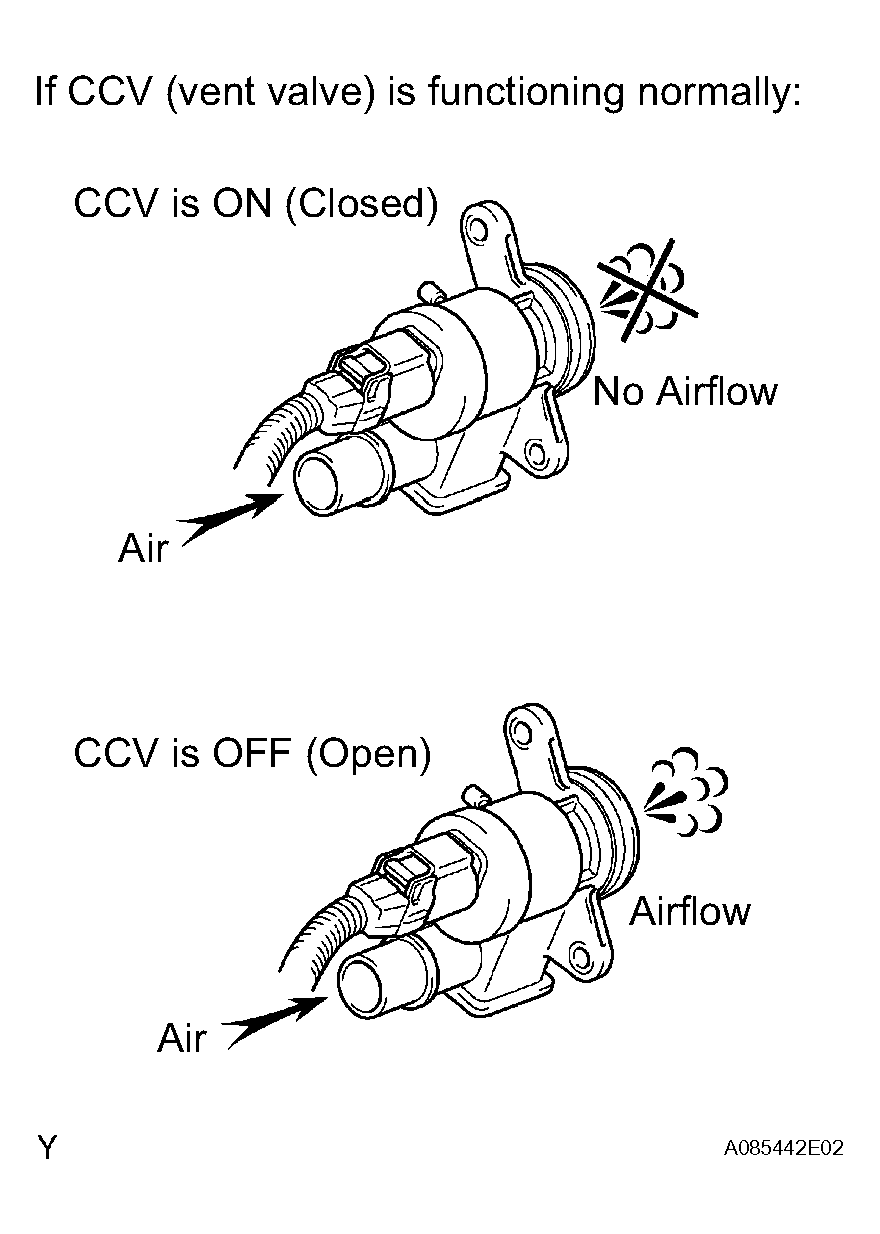

- CHECK CCV
- Turn the ignition switch OFF.
- Remove the CCV (vent valve).
- Connect the CCV connector.
- Turn the ignition switch ON.
- Switch the CCV ON and OFF using the intelligent tester. Select the intelligent tester menus: DIAGNOSIS, ENHANCED OBD II, ACTIVE TEST and CAN CTRL VSV.
- Apply air to the CCV port using an air gun and check the airflow.
Result
CCV (VENT VALVE)CCV (Vent Valve) Conclusion Proceed to Air flows when CCV is OFF (open).
Air does not flows when CCV is ON (close).CCV is functioning normally.
Electrical circuit of CCV is malfunctioning.A Air flows when CCV is ON (close).
Air does not flows when CCV is OFF (open).CCV is malfunctioning. B - Reinstall the CCV (vent valve).
B: REPLACE CCV
A: GO TO NEXT STEP

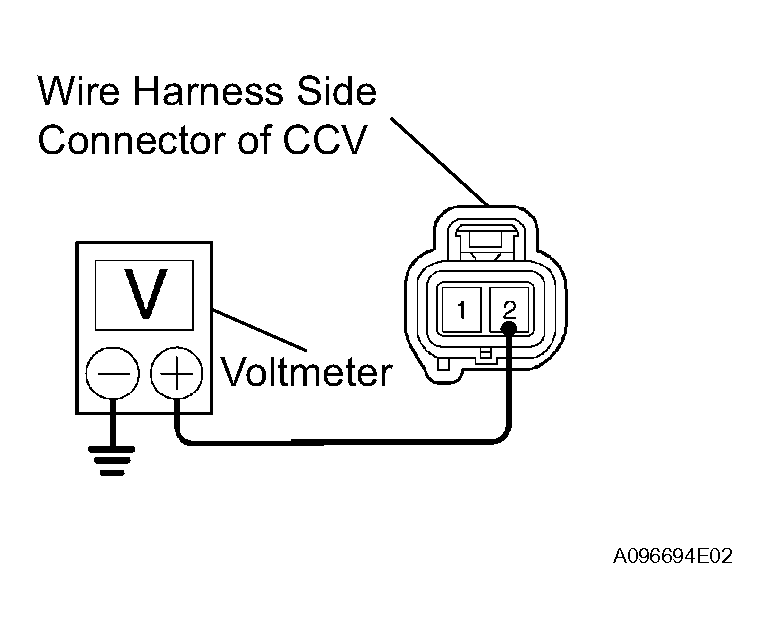

- CHECK HARNESS AND CONNECTOR (CCV - POWER SOURCE)
- Turn the ignition switch OFF.
- Disconnect the CCV connector.
- Turn the ignition switch ON.
- Measure the voltage between terminal 2 of the wire harness side connector and body ground.
Result
CCV - POWER SOURCEVoltage Conclusion Proceed to Battery voltage Wire harness (CCV - Power source) is OK. OK 0 to 3 V Wire harness (CCV - Power source) has short circuit. NG - Reconnect the CCV connector.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: GO TO NEXT STEP

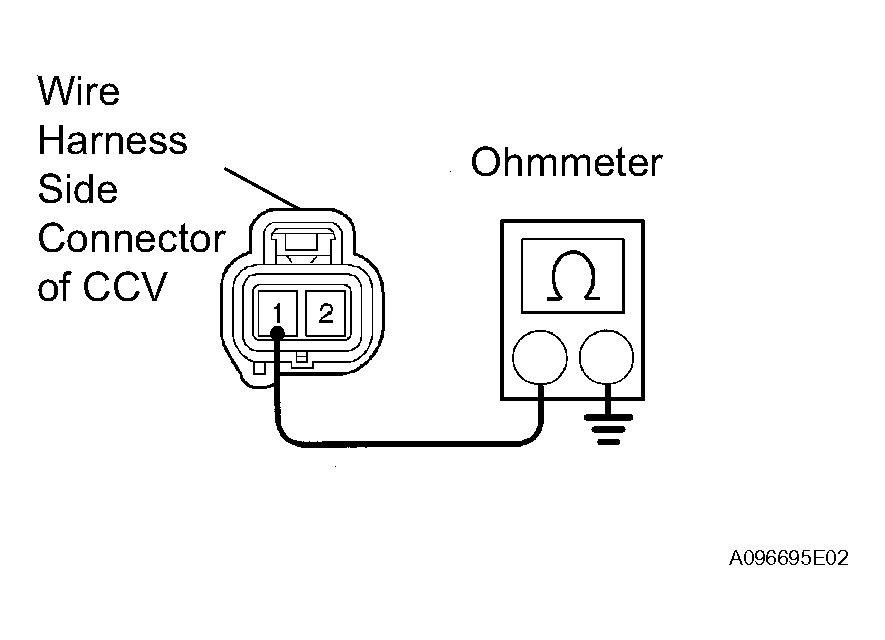

- CHECK HARNESS AND CONNECTOR (CCV - ECM)
- Switch the CCV using the intelligent tester. Select the intelligent tester menus: DIAGNOSIS, ENHANCED OBD II, ACTIVE TEST and CAN CTRL VSV.
- Measure the resistance between terminal 1 of the wire harness side connector and body ground.
Result
CCV - ECMResistance Conclusion Proceed to More than 10 kΩ when CCV is OFF.
Less than 10 Ω when CCV is ON.ECM and wire harness (CCV - ECM) are OK. CCV is malfunctioning. OK No change Either of wire harness (CCV - ECM) or ECM is malfunctioning. NG
NG: Go to step 28
OK: REPLACE CCV

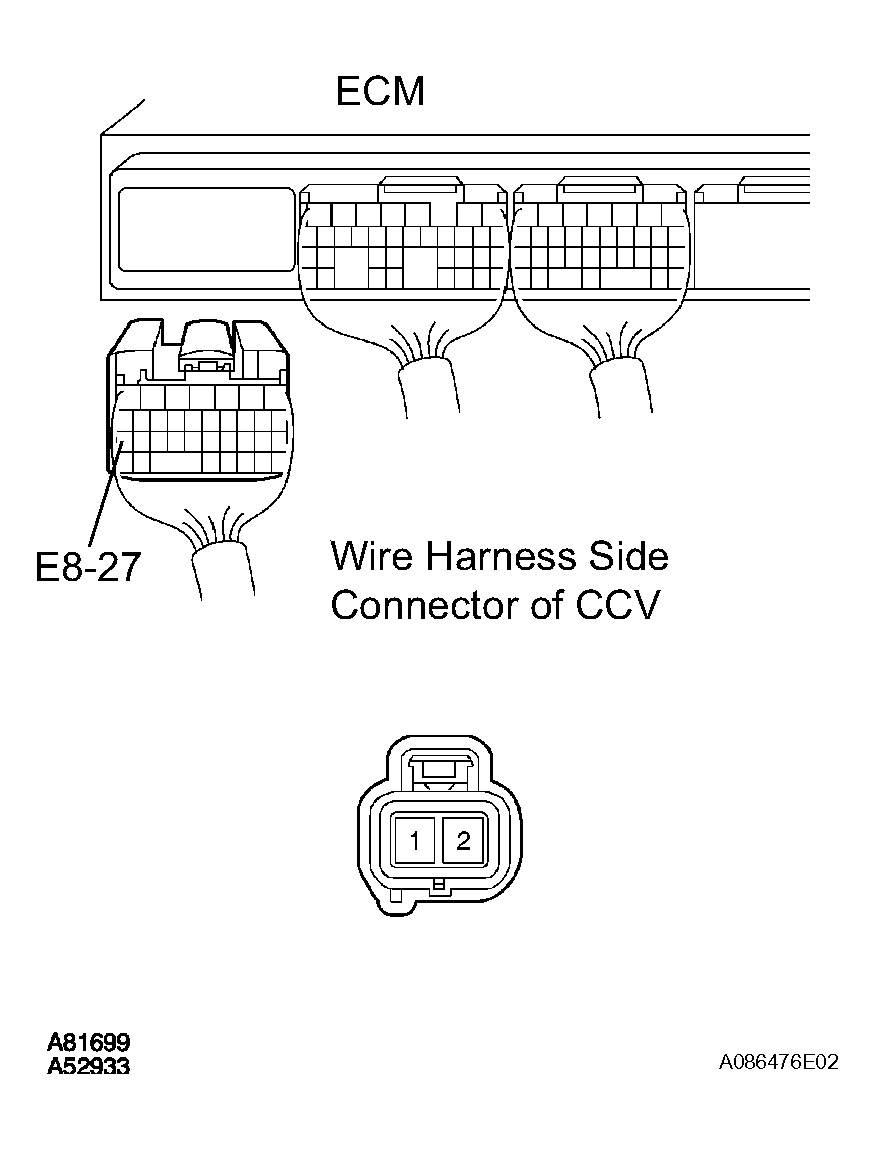

- CHECK HARNESS AND CONNECTOR (CCV - ECM)
- Check the wire harness between the ECM and CCV.
- Turn the ignition switch OFF.

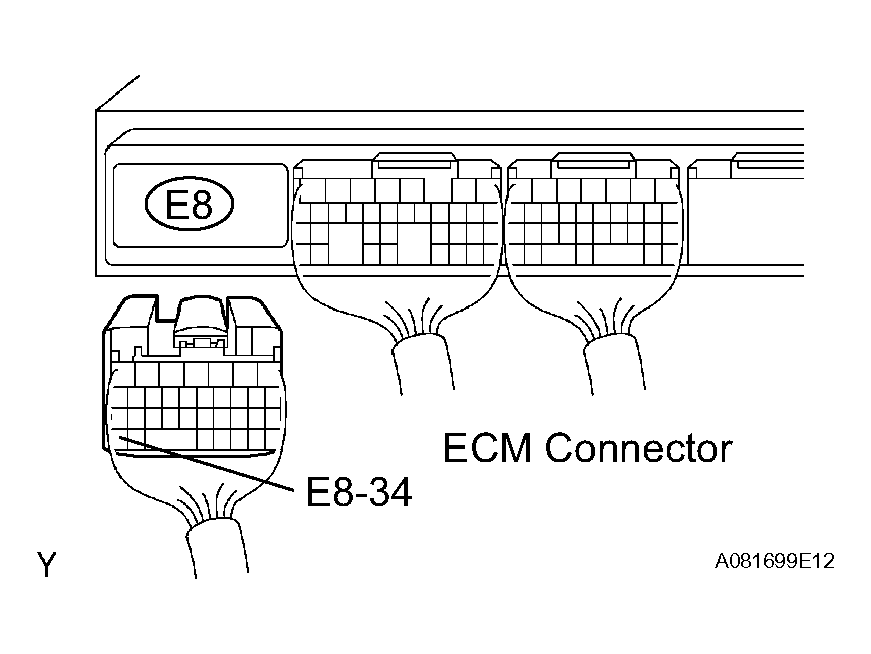

- Disconnect the E8 ECM connector.
- Disconnect the CCV connector.
- Check the resistance.
Standard resistance
CCV - ECMTester Connection Specified Condition 1 (CCV) - E8-27 (ECM) Less than 10 Ω 1 (CCV) - Body ground More than 10 kΩ - Reconnect the ECM connector.
- Reconnect the CCV connector.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE ECM

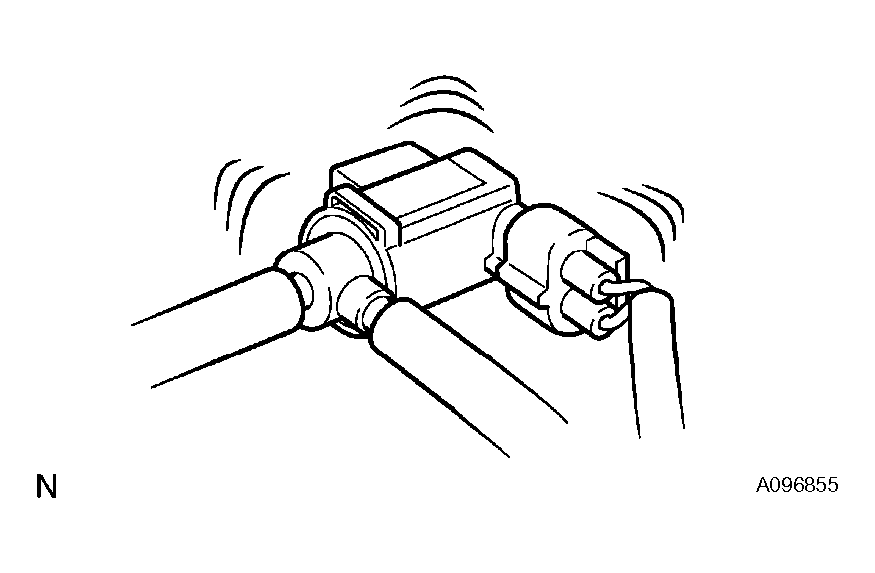

- CHECK EVAP VSV
- Turn the ignition switch ON.
- Switch the EVAP VSV ON and OFF using the intelligent tester. Select the intelligent tester menus: DIAGNOSIS, ENHANCED OBD II, ACTIVE TEST and EVAP VSV (Alone).
- Listen to click sounds to check the EVAP VSV operation.
Result
EVAP VSVEVAP VSV Conclusion Proceed to Operated Electrical circuit of EVAP VSV is functioning normally. OK Not operated Electrical circuit of EVAP VSV is malfunctioning. NG
NG: Go to step 32
OK: GO TO NEXT STEP

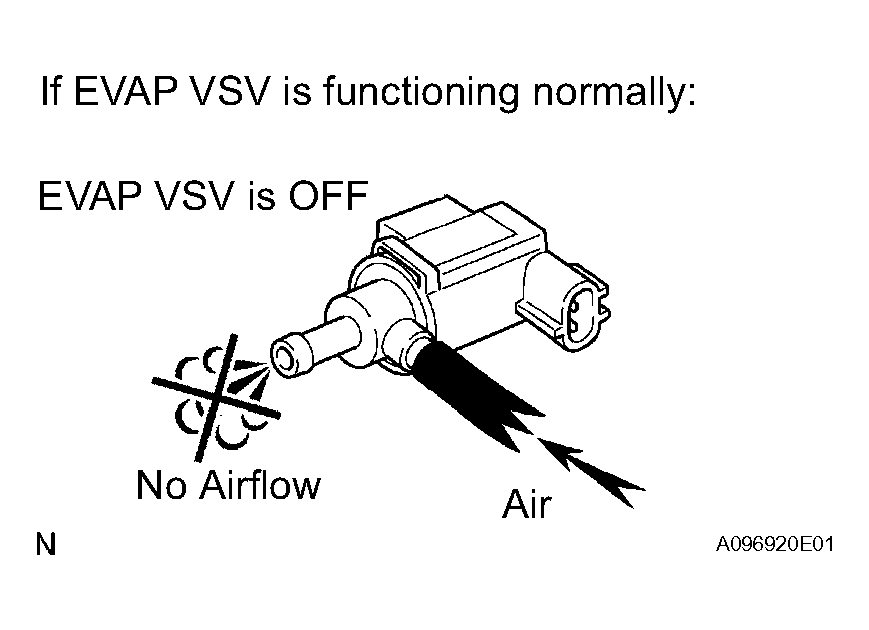

- CHECK EVAP VSV
- Disconnect the purge hose of the canister from the EVAP VSV.
- Start the engine.
- Switch the EVAP VSV ON and OFF using the intelligent tester. Select the intelligent tester menus: DIAGNOSIS, ENHANCED OBD II, ACTIVE TEST and EVAP VSV.
- Touch the EVAP VSV port to check the vacuum.
Result

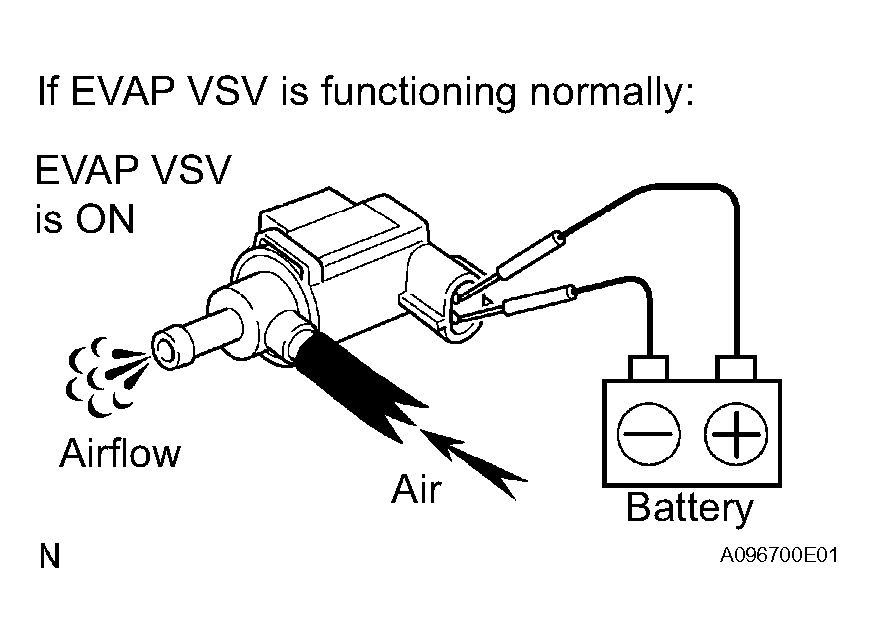

EVAP VSVEVAP VSV Conclusion Proceed to Vacuum is applied when EVAP VSV is ON.
No vacuum is applied when EVAP VSV is OFF.EVAP VSV is functioning normally. OK No vacuum is applied when EVAP VSV is ON. Electrical circuit of EVAP VSV is malfunctioning. NG HINT:
The EVAP VSV can be tested with the EVAP Test Equipment (go to step 39).
- Reconnect the purge hose of the canister.
NG: Go to step 32
OK: GO TO NEXT STEP
- CHECK PURGE LINE (EVAP VSV - THROTTLE BODY)
- Check that the vacuum hoses are connected correctly.
- Check that the vacuum hoses are not loose or disconnected.
- Check the vacuum hoses and tubes for cracks, holes, damage, or blockage.
NG: REPLACE PURGE HOSE
OK: REPLACE EVAP VSV

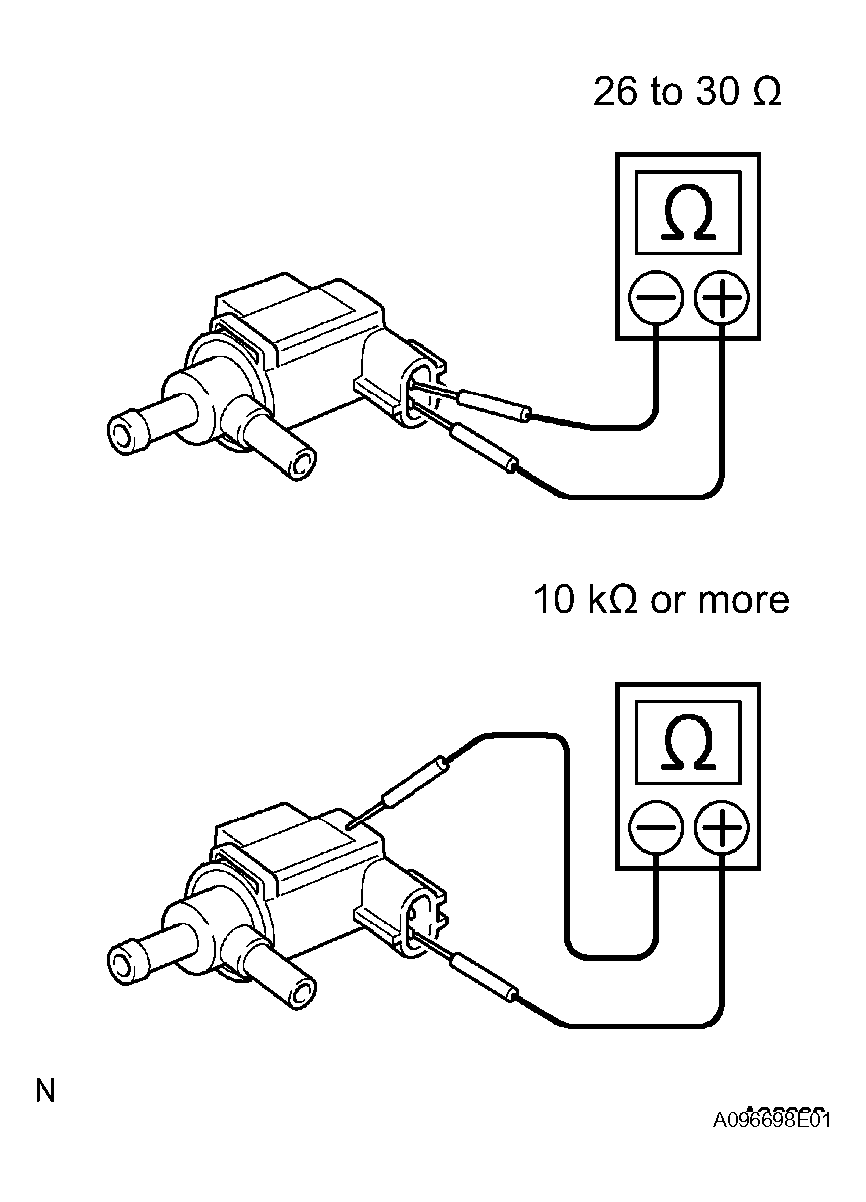

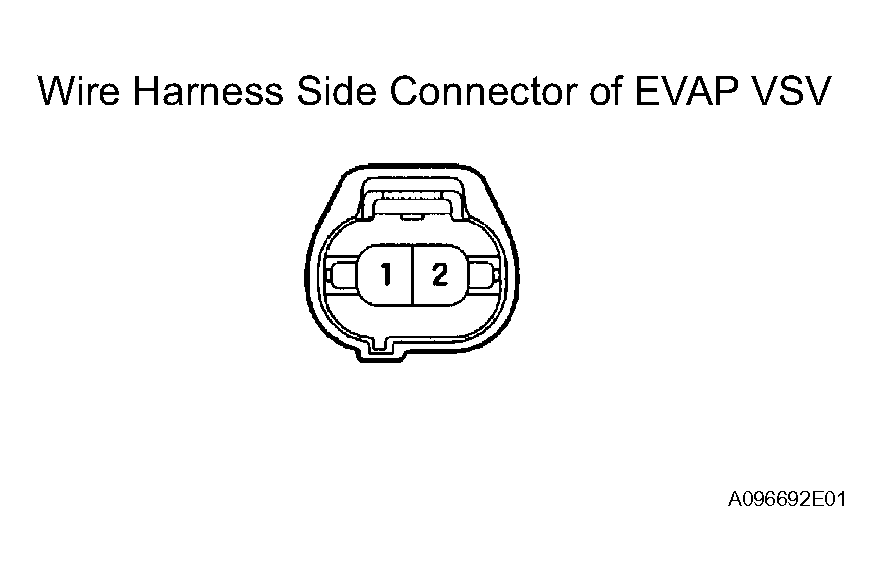

- INSPECT EVAP VSV
- Turn the ignition switch OFF.
- Disconnect the EVAP VSV connector.
- Measure the resistance of the EVAP VSV.
Standard resistance
EVAP VSVTester Connection Specified Condition Between terminals 26 to 30 Ω at 20°C (68°F) Each terminal - Body ground 10 kΩ or more - Reconnect the EVAP VSV connector.
NG: REPLACE EVAP VSV
OK: GO TO NEXT STEP
- INSPECT EVAP VSV
- Remove the EVAP VSV.
- Apply air to the EVAP VSV using an air gun, check the airflow.
- Apply the battery positive voltage across the terminals.
- Apply air to the EVAP VSV using an air gun, check the airflow.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Result
EVAP VSVEVAP VSV Conclusion Proceed to Air does not flow when EVAP VSV is OFF.
Air flows when EVAP VSV is ON.EVAP VSV is functioning normally. OK Air flows when EVAP VSV is OFF.
Air does not flow when EVAP VSV is ON.EVAP VSV is malfunctioning. NG - Reinstall the EVAP VSV.
NG: REPLACE EVAP VSV
OK: GO TO NEXT STEP
- CHECK HARNESS AND CONNECTOR (EVAP VSV - POWER SOURCE)
- Turn the ignition switch ON.
- Measure the voltage between the terminal 1 of the wire harness side connector and body ground.
Result
EVAP VSV - POWER SOURCEVoltage Conclusion Proceed to Battery voltage Wire harness (EVAP VSV - Power source) is OK. OK 0 to 3 V Wire harness (EVAP VSV - Power source) has short circuit. NG
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: GO TO NEXT STEP
- CHECK WIRE HARNESS (EVAP VSV - ECM)
- Turn the ignition switch OFF.
- Disconnect the E8 ECM connector.
- Turn the ignition switch ON.
- Measure the voltage between the terminal 34 of the wire harness side connector and body ground.
Result
EVAP VSV - ECMVoltage Conclusion Proceed to Battery voltage Wire harness (EVAP VSV - ECM) is OK. OK 0 to 3 V Wire harness (EVAP VSV - ECM) has short circuit. NG - Reconnect the ECM connector.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE ECM
- CHECK FUEL TANK CAP ASSEMBLY
- Connect the fuel tank cap to the gas cap adaptor.
- Connect the pressure hose from the pump to the gas cap adaptor.
- Plug the gas cap adaptor port.
- Turn the pump ON and pressurize the gas cap adaptor by 24 to 28 mmHg. If the pressure does not reach 24 mmHg within 45 seconds, stop the pump. The fuel tank cap is malfunctioning.
- Turn the pump OFF and seal the pressure line to maintain the pressure.
- Measure the pressure change for 2 minutes. If the pressure drops to lower than 15 mmHg, the fuel tank cap is malfunctioning.
Standard: The fuel tank cap keeps the pressure that is 15 mmHg or higher.
NG: REPLACE FUEL TANK CAP ASSEMBLY
OK: GO TO NEXT STEP
- CHECK LEAK NOTE: Do not apply a pressure of higher than 35 mmHg to the EVAP system. The EVAP system will be damaged.
- Connect the pressure line from the pump to the EVAP service port.
- Turn the ignition switch ON but do not start the engine.
- Turn the CCV (vent valve) ON (close) using the intelligent tester. Select the intelligent tester menus: DIAGNOSIS, ENHANCED OBD II, ACTIVE TEST and CAN CTRL VSV.
- Turn the pump ON and pressurize the EVAP system by 24 to 28 mmHg.
- Turn the pump OFF and seal the pressure line to maintain the pressure. If the pressure does not reach 24 mmHg within 45 seconds, stop the pump. A leakage is in the EVAP system. If the system has a small leak, a whistling sound may be heard.
- Measure the pressure change for 2 minutes. If the pressure drops to lower than 15 mmHg, a leakage is in the EVAP system.
Standard: The EVAP system keeps the pressure that is 15 mmHg or higher.
NG: Go to step 38
OK: NO LEAKAGE IN EVAP SYSTEM
- LOOK FOR LEAK POINT
- Apply the soapy water on suspected components.
- Turn the CCV (vent valve) ON (close) using the intelligent tester. Select the intelligent tester menus: DIAGNOSIS, ENHANCED OBD II, ACTIVE TEST and CAN CTRL VSV.
- Turn the pump ON and pressurize the EVAP system by 24 to 28 mmHg.
- Turn the pump OFF and seal the pressure line to maintain the pressure. If the pressure does not reach 24 mmHg within 45 seconds, stop the pump.

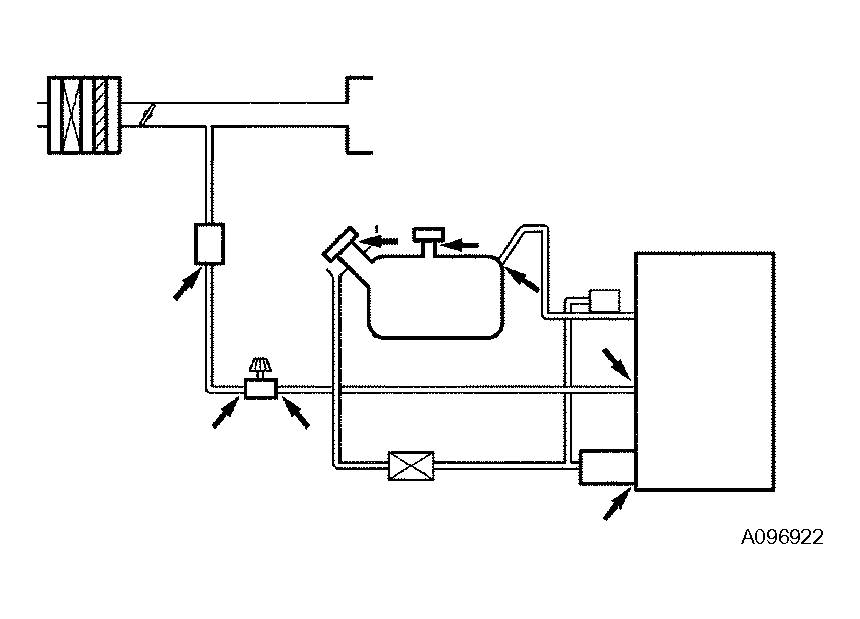

- Check bubbles to find the leak point:
- EVAP service port
- Canister
- Hose connections/Lines
- Fuel cap
- Fuel filler neck
- Purge line
- EVAP VSV
- CCV (vent valve)
- Fuel pump sending unit
- Repair or replace the leak component.
- Perform the EVAP system check to confirm no leaks.
NEXT: Go to step 4
- CHECK EVAP VSV

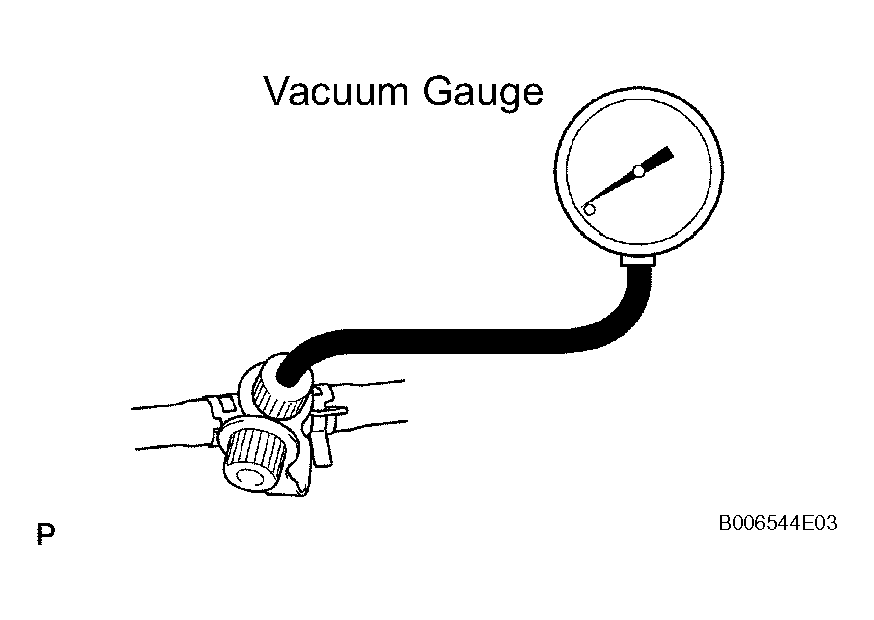

- Connect the vacuum gauge to the EVAP service port.
- Start the engine.
- Switch the EVAP VSV ON using the intelligent tester. Select the intelligent tester menus: DIAGNOSIS, ENHANCED OBD II, ACTIVE TEST and EVAP VSV.
- Check the vacuum when switching the EVAP VSV. If the vacuum gauge indicates negative value when the EVAP VSV is ON, the EVAP VSV is functioning normally.
OK: The vacuum gauge indicates negative value when the EVAP VSV is ON.
OK: Go to step 17
NG: Go to step 31
- Connect the vacuum gauge to the EVAP service port.
- CHECK MONITOR STATUS AND DTC
- Clear DTCs (See DTC CHECK/CLEAR ).
- Perform a drive pattern test (See READINESS MONITOR DRIVE PATTERN ).
- Check that the monitor result is PASS.
- Confirm no pending DTC.
NEXT: REPAIR COMPLETED
