VC Output Circuit: Wiring Diagram

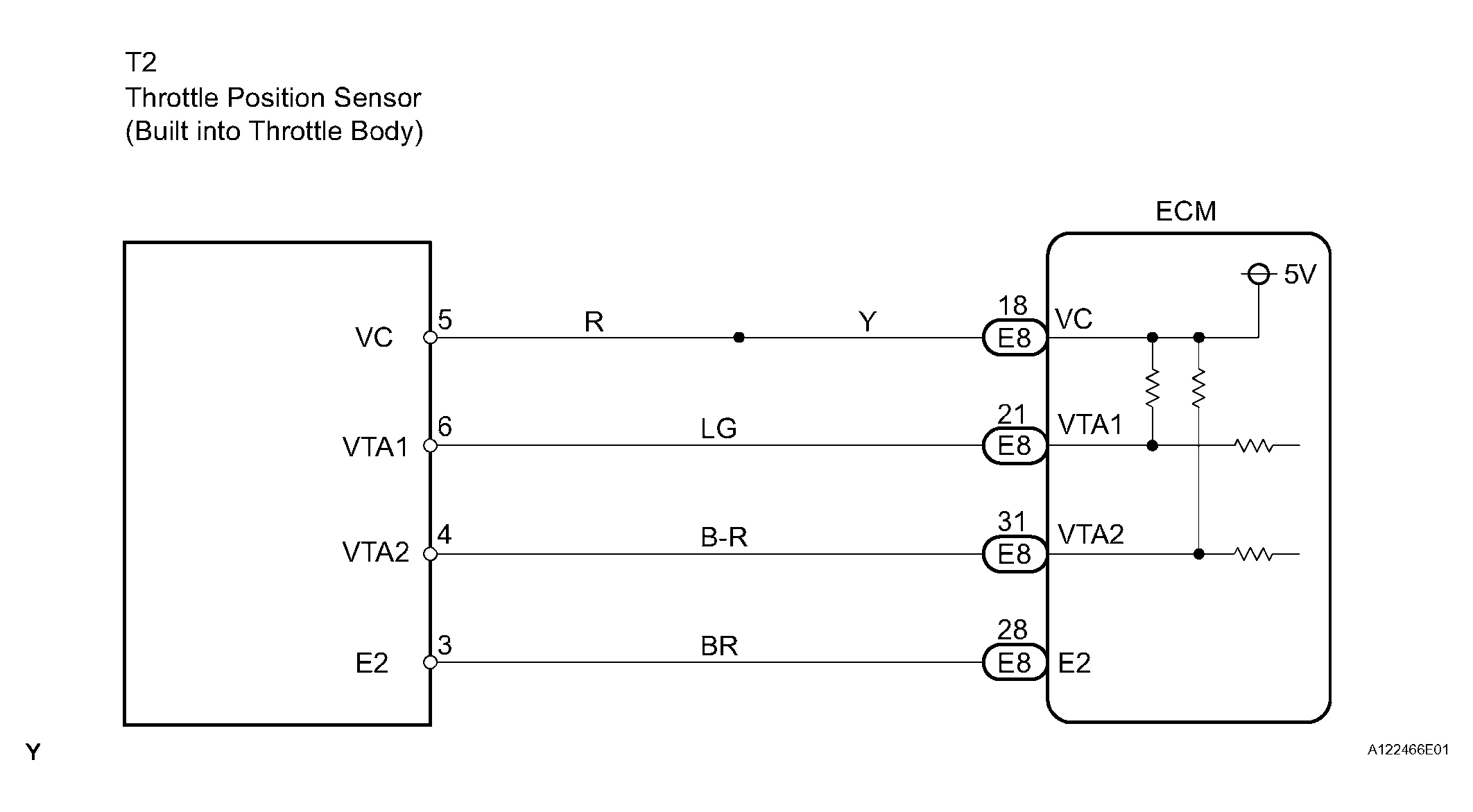

Wiring diagram of the throttle position sensor system.

Fig 1: Throttle Position Sensor System - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

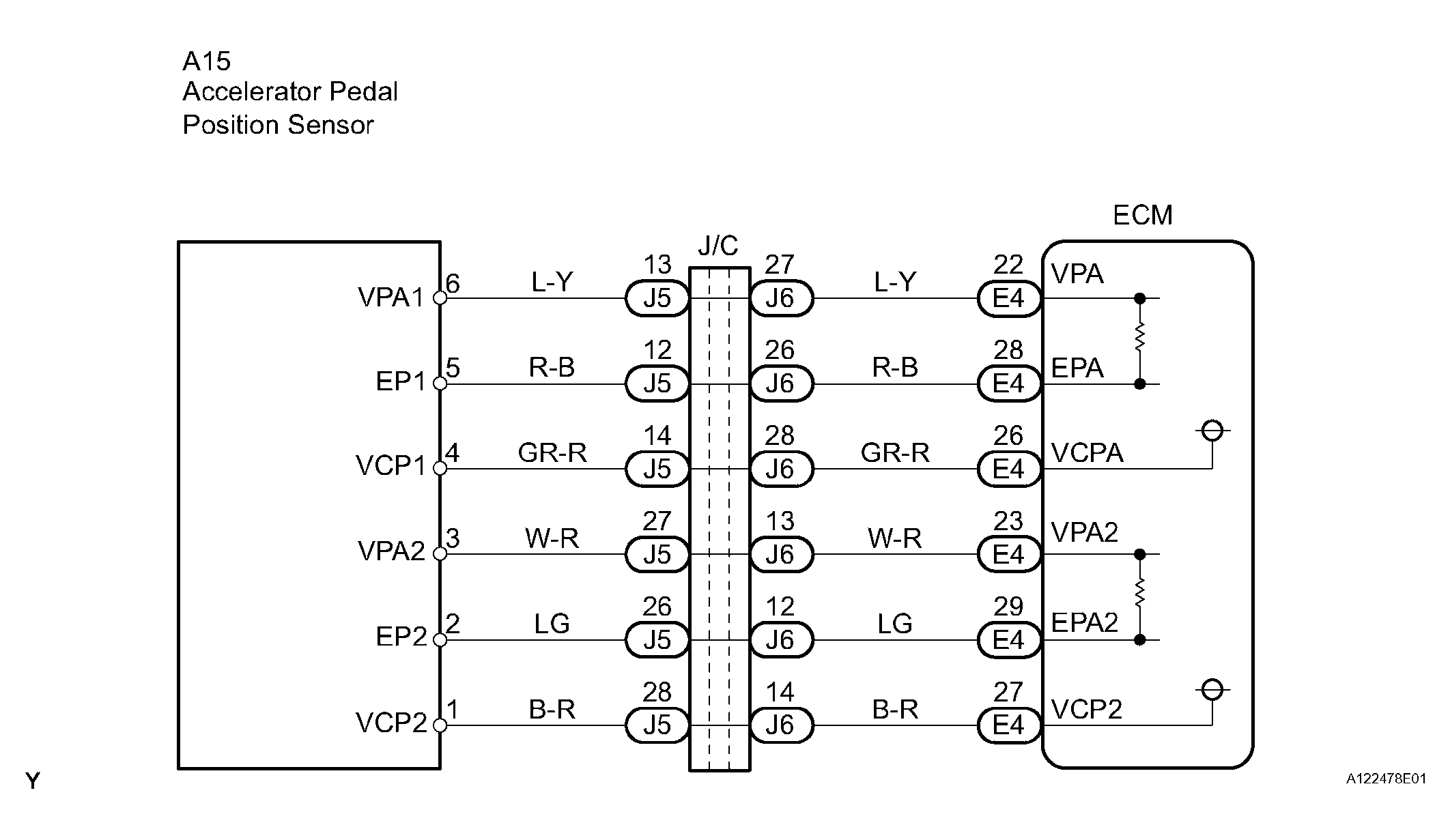

Wiring diagram of the accelerator pedal position sensor system.

Fig 2: Accelerator Pedal Position Sensor System - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

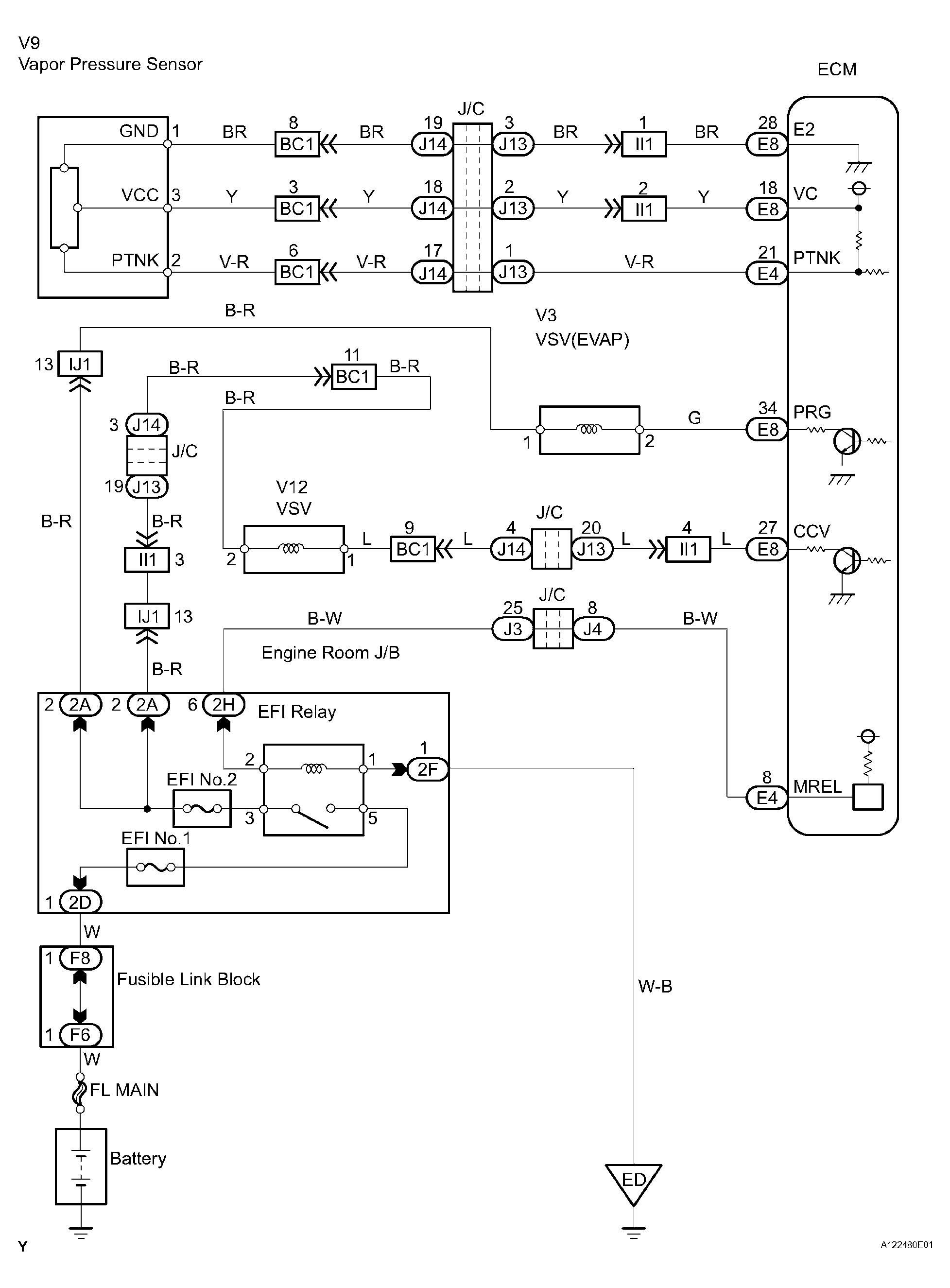

Wiring diagram of the vapor pressure sensor system.

Fig 3: Vapor Pressure Sensor System - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
