Throttle Body: Removal

DRAIN ENGINE COOLANT (See REPLACEMENT )
REMOVE V-BANK COVER SUB-ASSEMBLY
1. Using a socket hexagon wrench 5, remove the 3 nuts.
2. Remove the V-bank cover.

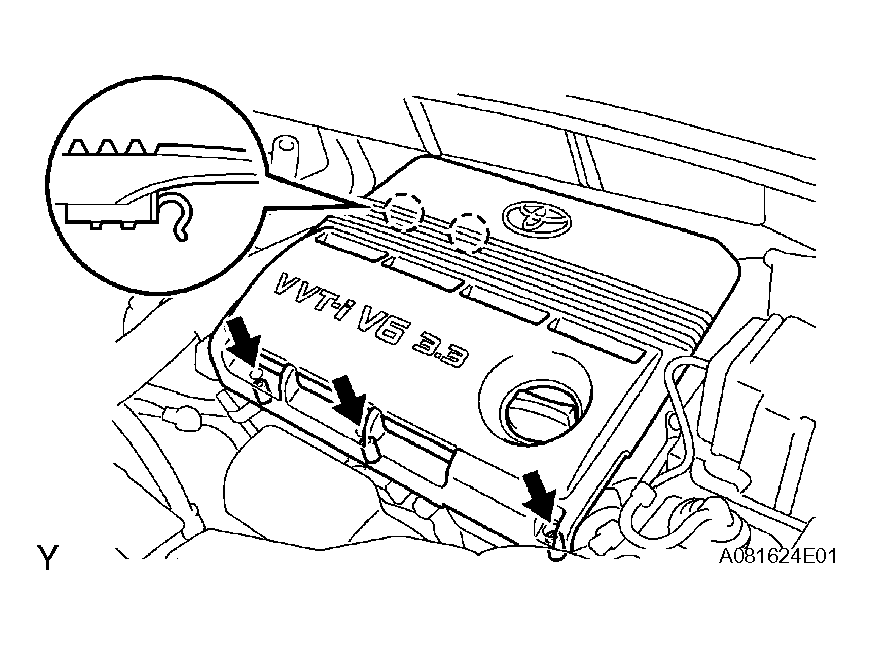

  Fig 1: Removing V-Bank Cover Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR CLEANER CAP SUB-ASSEMBLY
1. Disconnect the mass air flow meter connector.
2. Disconnect the 3 vacuum hoses.
3. Remove the fuel vapor feed hose from the 2 hose clamps.
4. Disconnect the ventilation hose.
5. Loosen the 2 air cleaner cap bolts.
6. Loosen the hose clamp bolt and remove the air cleaner cap together with the No. 1 air cleaner hose.
7. Remove the air cleaner filter element.

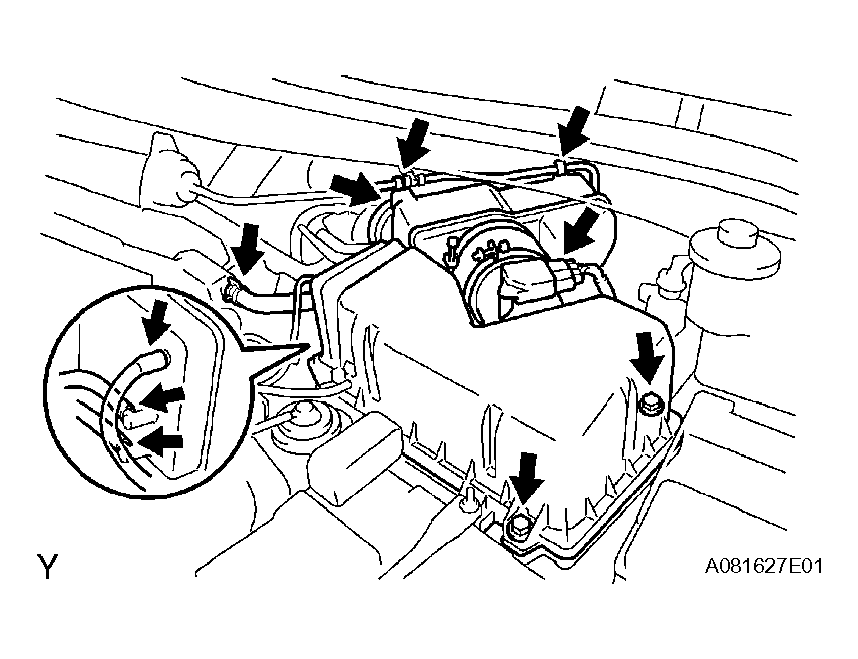

  Fig 2: Removing Air Cleaner Cap Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE THROTTLE BODY ASSEMBLY
1. Disconnect the throttle motor connector.

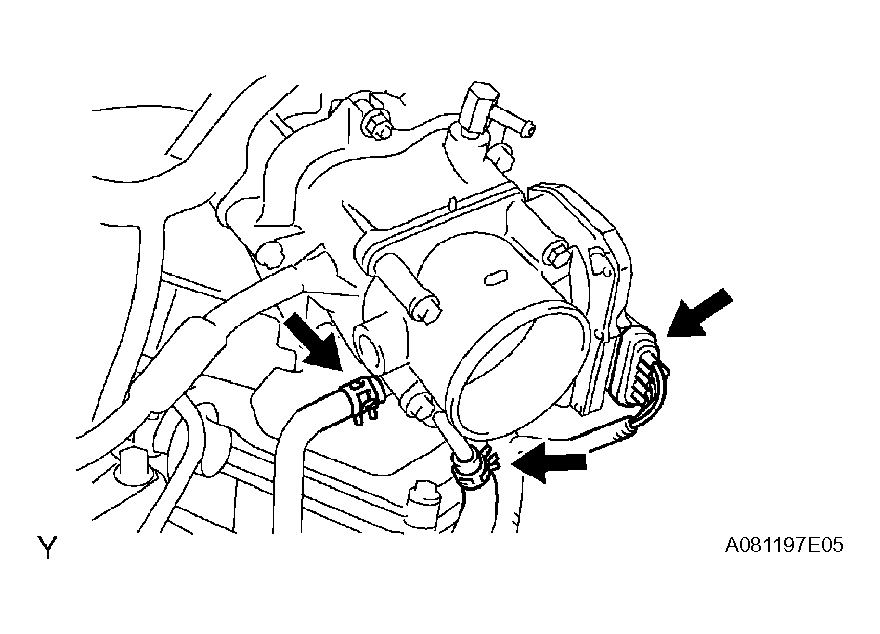

  Fig 3: Disconnecting Throttle Motor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the No. 2 water by-pass hose.
3. Disconnect the No. 3 water by-pass hose.
4. Remove the 2 bolts, the 2 nuts and the throttle body.

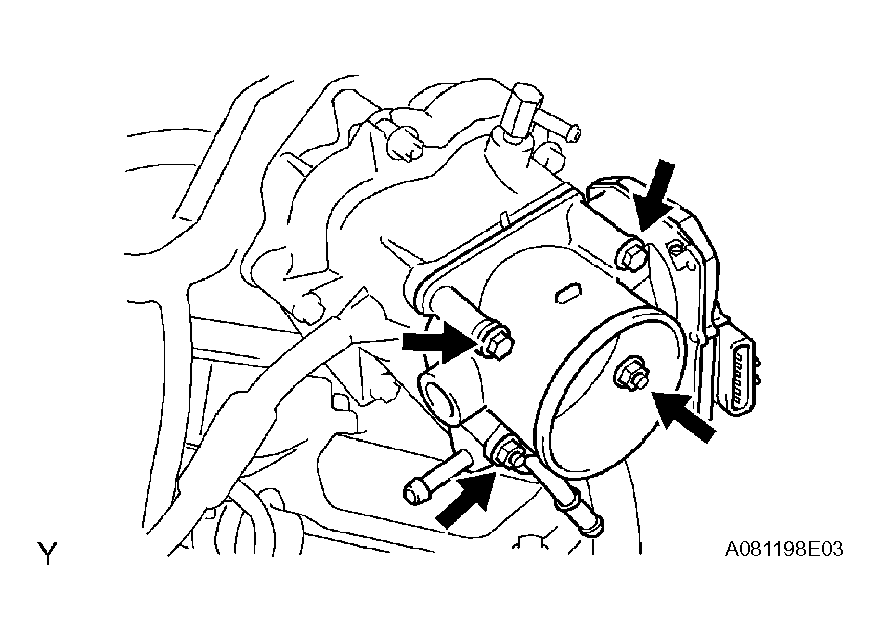

  Fig 4: Removing Throttle Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the gasket from the intake air connector.
