VVT Sensor: Removal

  1. REMOVE NO. 2 AIR CLEANER INLET (See  REMOVAL  )
  2. REMOVE AIR CLEANER ASSEMBLY (See  REMOVAL  )
  3. REMOVE VVT SENSOR
    1. Disconnect the 2 VVT sensor connectors.
    2. Remove the 2 bolts and the 2 VVT sensors.

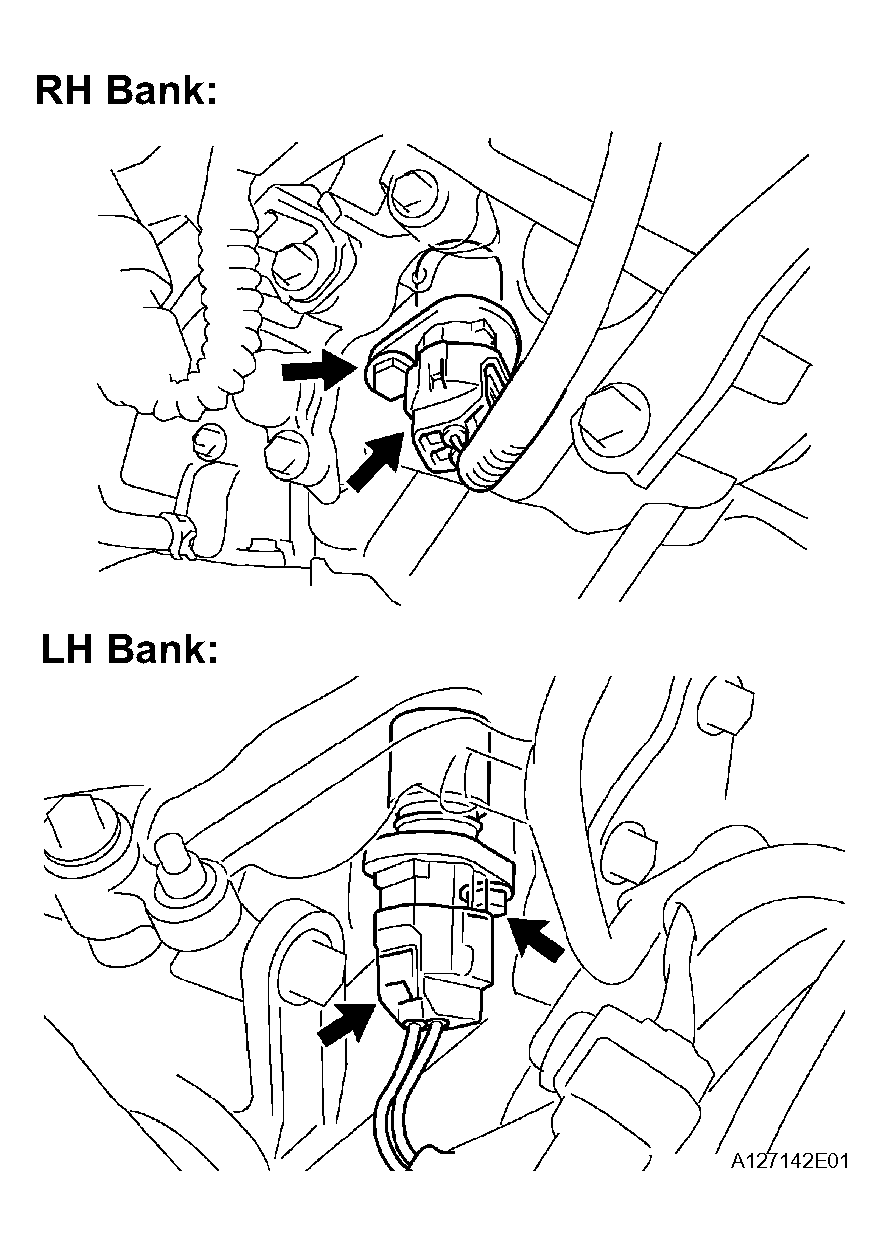

      Fig 1: Removing VVT Sensor
      G04493855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
