3MZ-FE Fuel: SST
3MZ-FE FUEL - SPECIAL SERVICE TOOL
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

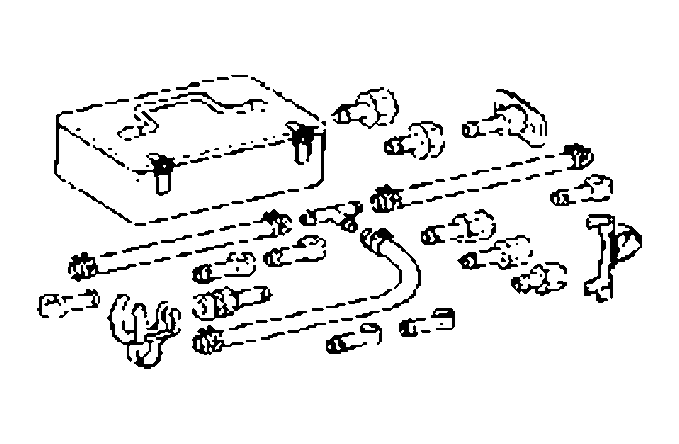

09268-41047 |
Injection Measuring Tool Set |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

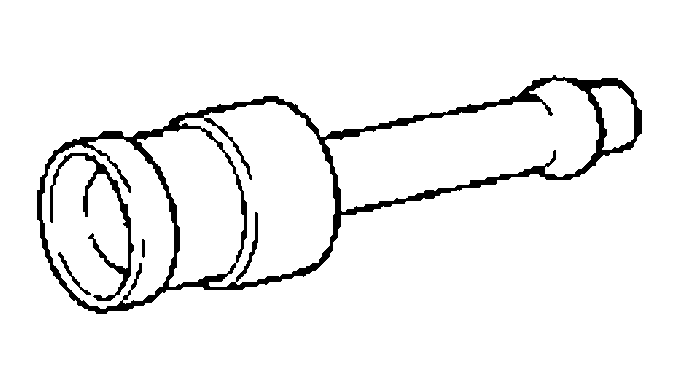

(09268-41110) |
Adaptor |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(09268-41300) |

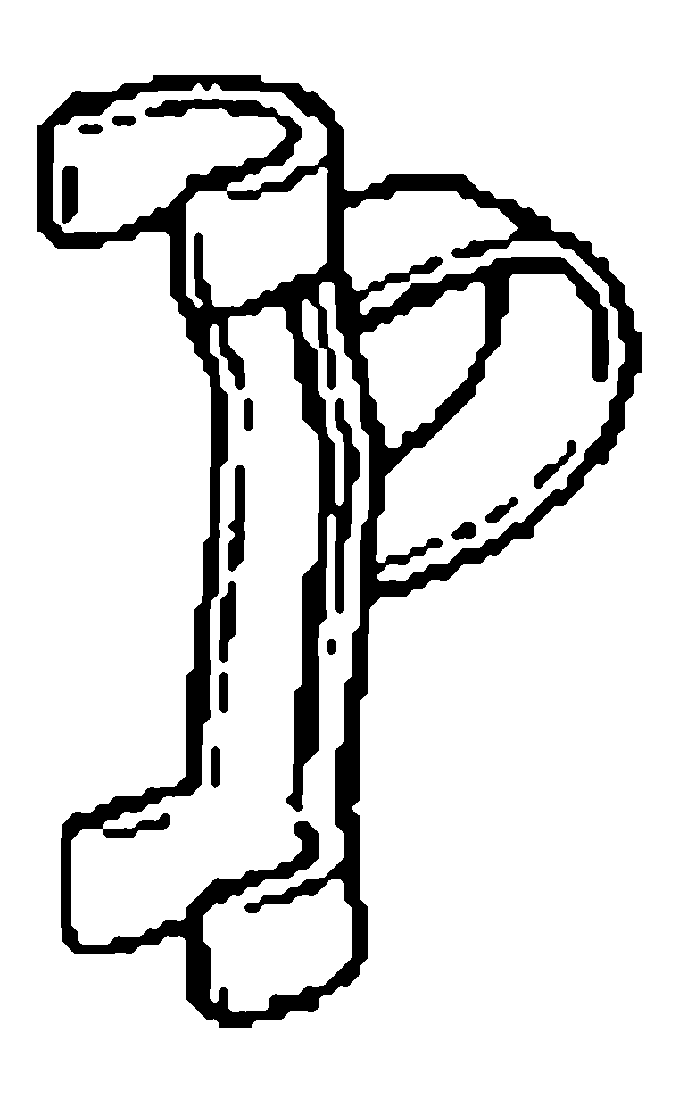

Clamp |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(95336-08070) |

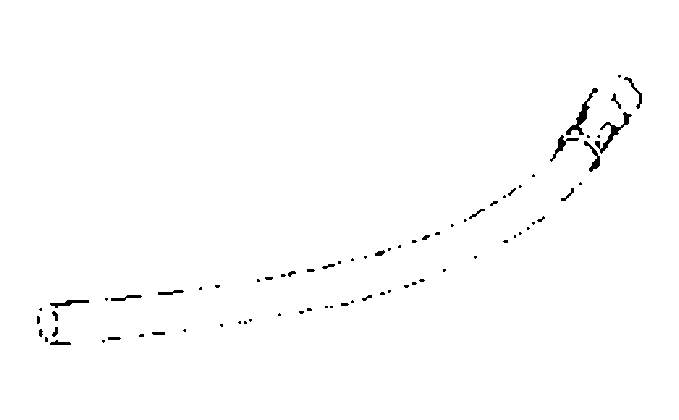

Hose |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

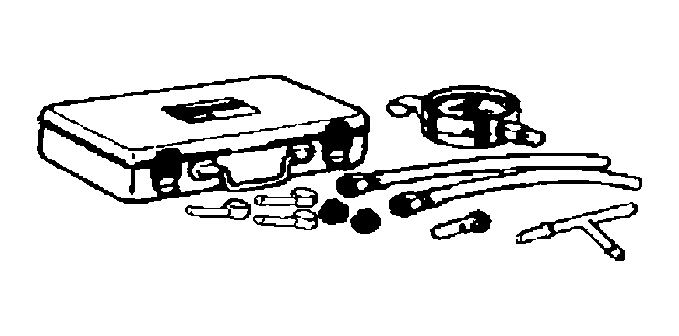

09268-45014 |
EFI Fuel Pressure Gauge |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

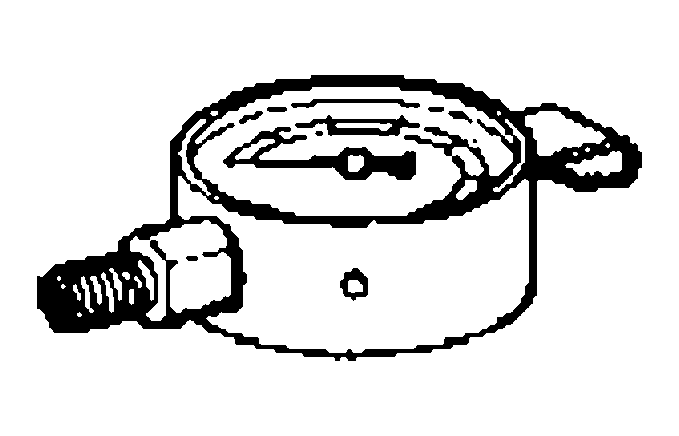

(09268-41200) |
Gauge |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(09268-41220) |

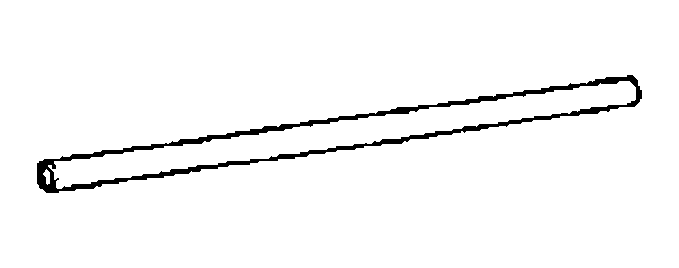

Hose |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(09268-41250) |

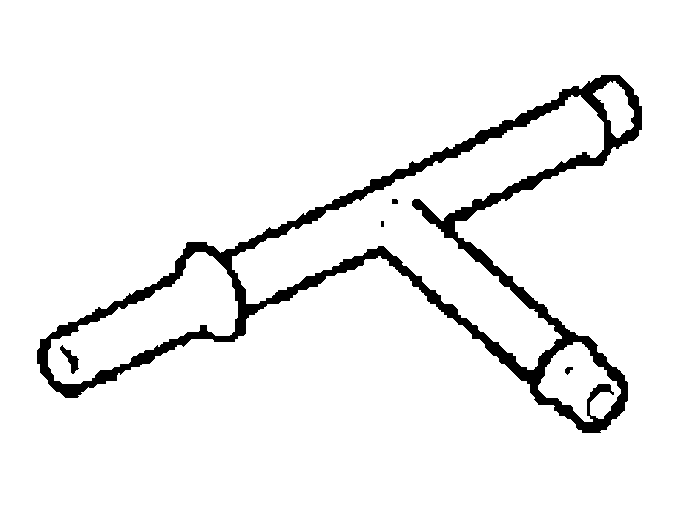

T Joint |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
09808-14020 |

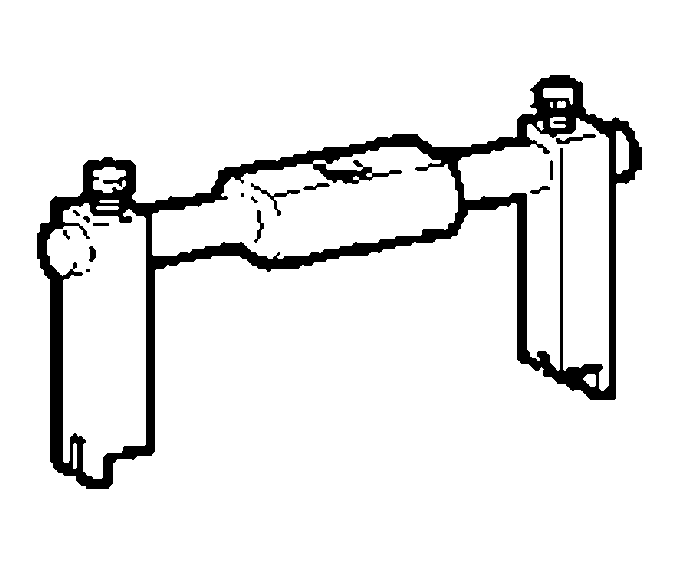

Retainer Tool, Fuel Pump |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(09808-01410) |

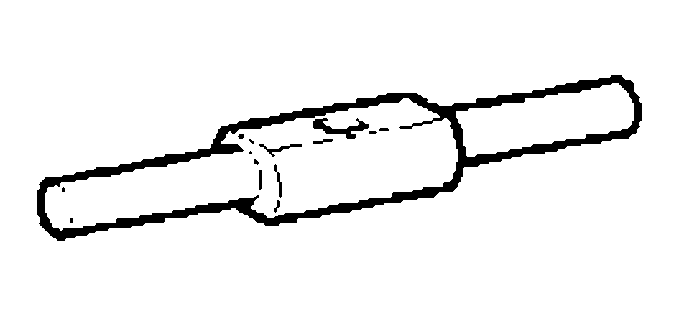

Holder |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(09808-01420) |

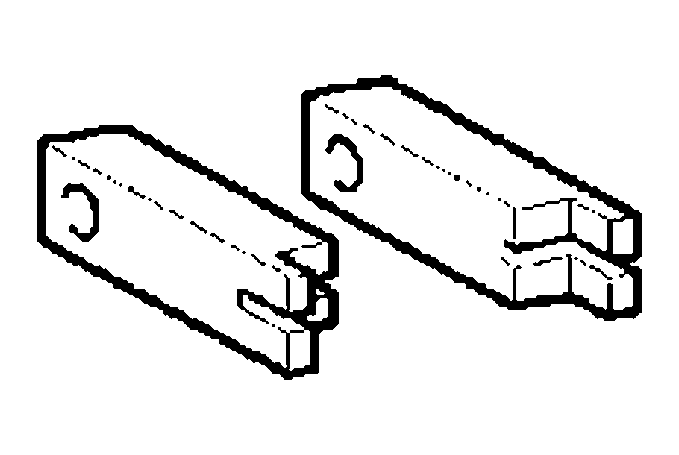

Claw |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(09808-01430) |

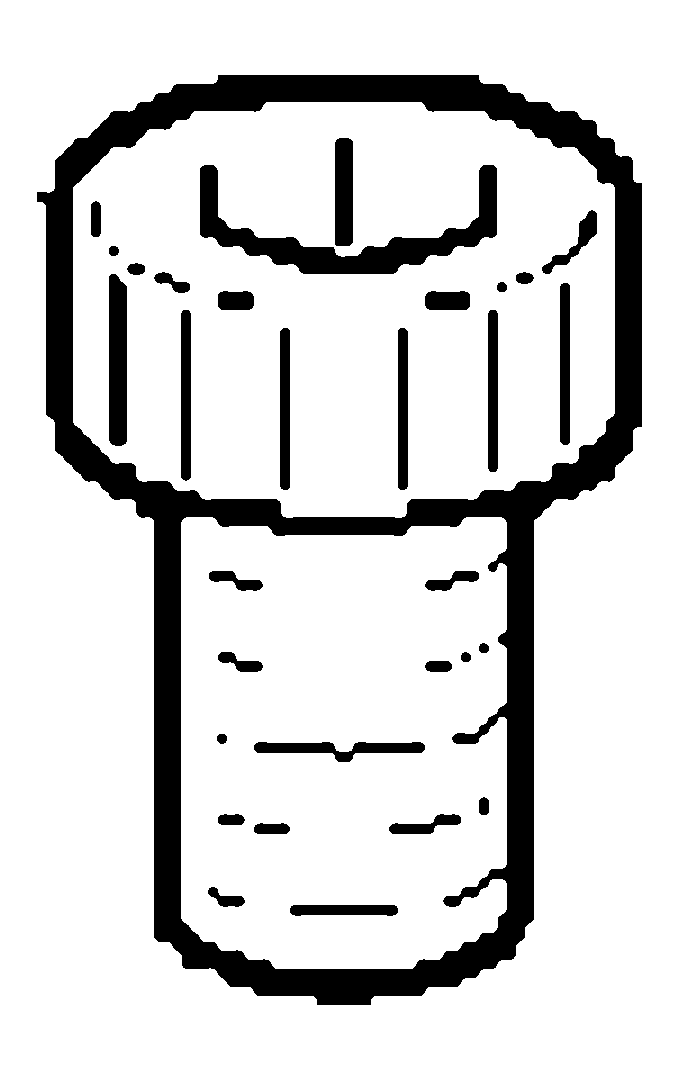

Bolt |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

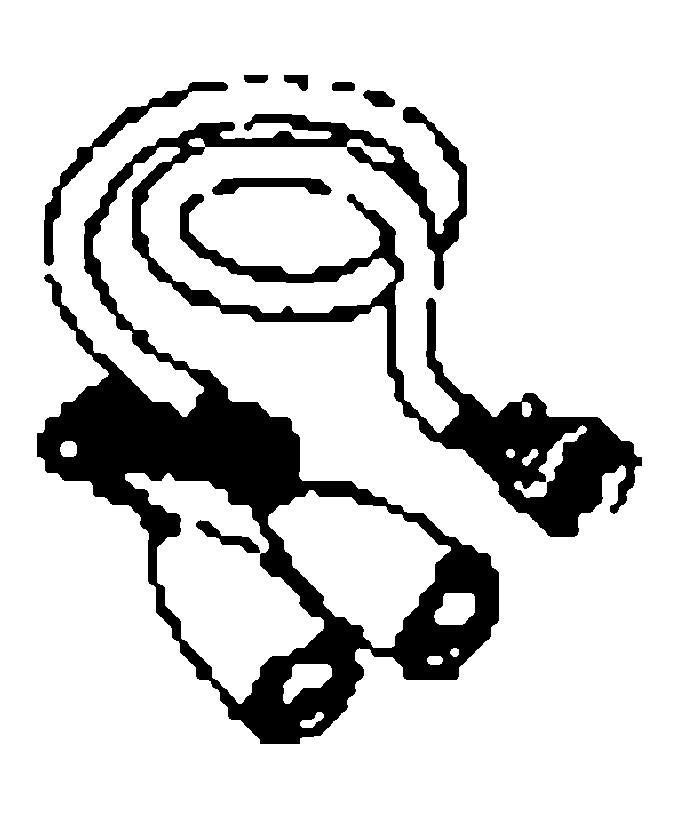

09842-30070 |
Wire F EFI Inspection |
