Supplemental Restraint System: SST

SUPPLEMENTAL RESTRAINT SYSTEM - SPECIAL SERVICE TOOL

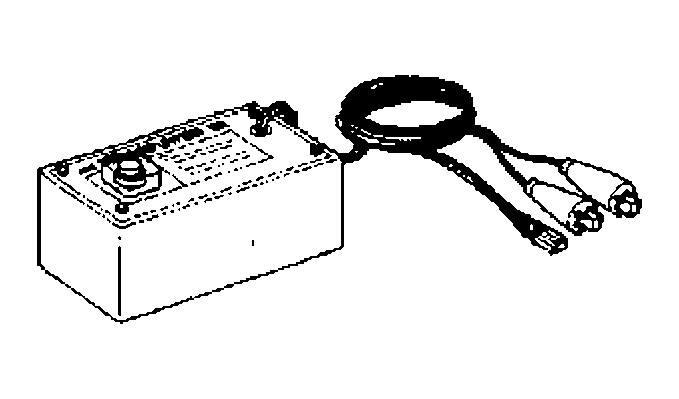

G04493386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00700 SRS Airbag Deployment Tool

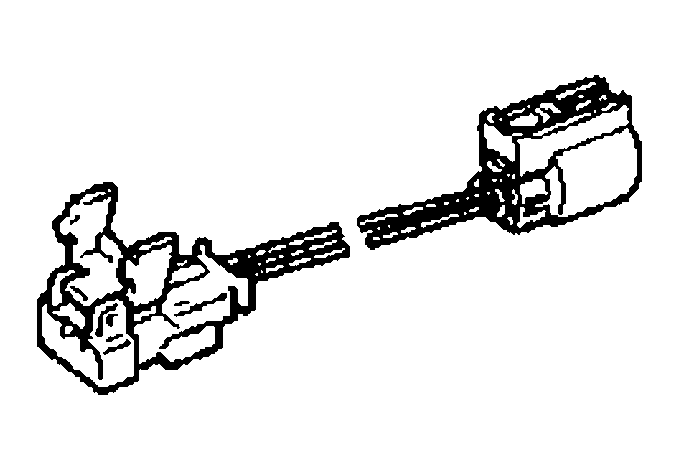

G04493387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00750 Airbag Deployment Wire Sub-harness No.3
G04493388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00780 Airbag Deployment Wire Sub-harness No.6

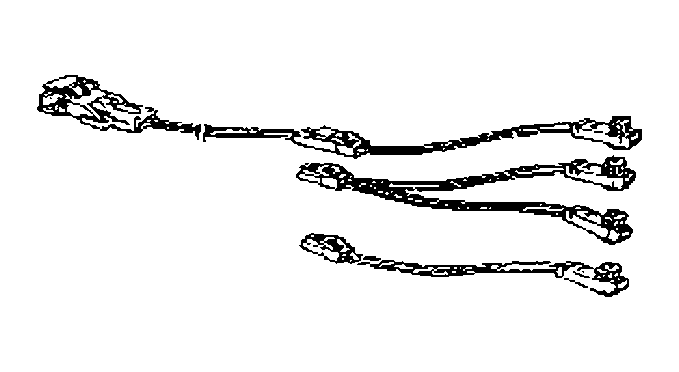

G04493389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00802 Airbag Deployment Wire Sub-Harness No. 8

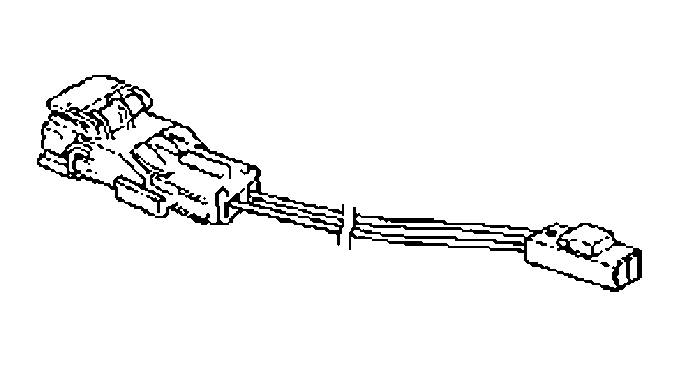

G04493390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-10801) Wire A

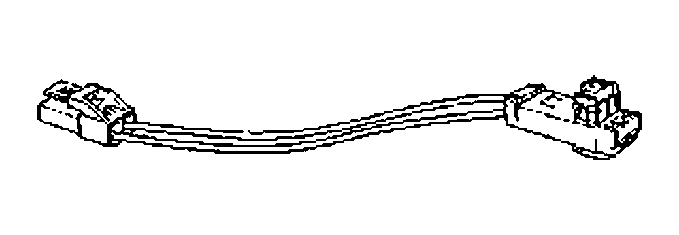

G04493391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-20801) Wire B

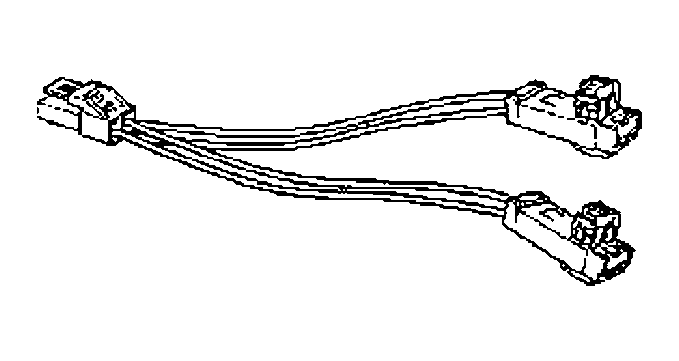

G04493392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-30801) Wire C

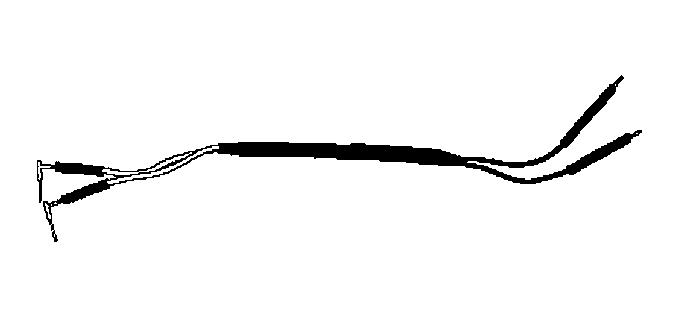

G04493393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09843-18060 SRS Check Wire
