Fuel Injector, Intake Manifold: Components

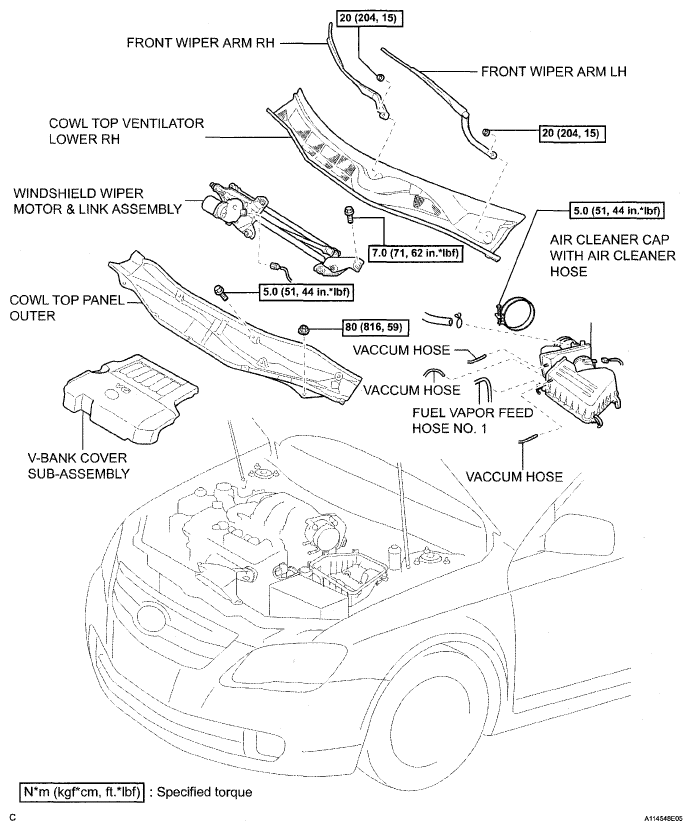

Fig 1: Fuel Injector Replacement Components With Torque Specifications (1 Of 3)
G04997015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

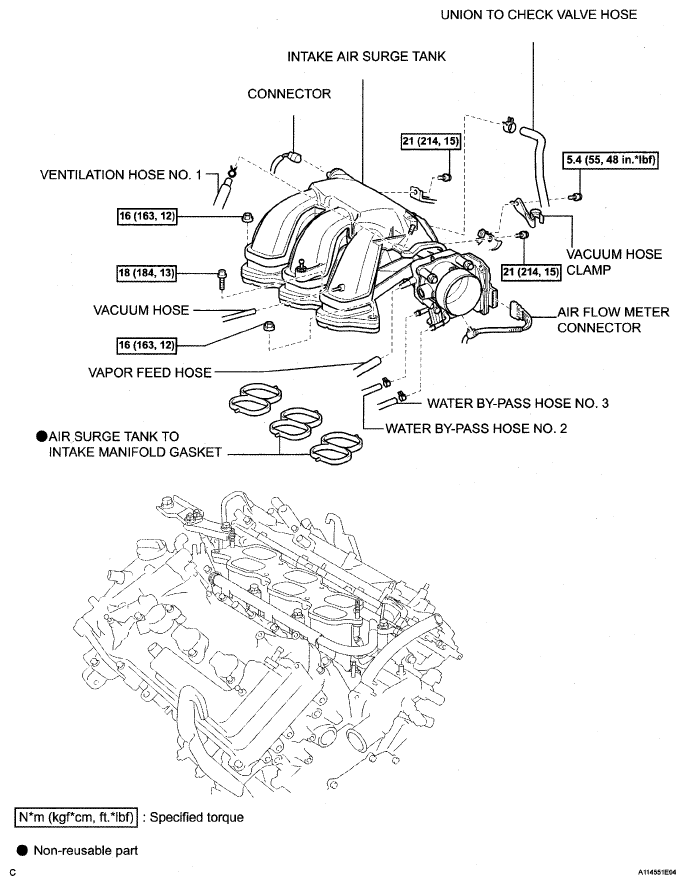

Fig 2: Fuel Injector Replacement Components With Torque Specifications (2 Of 3)
G04997016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

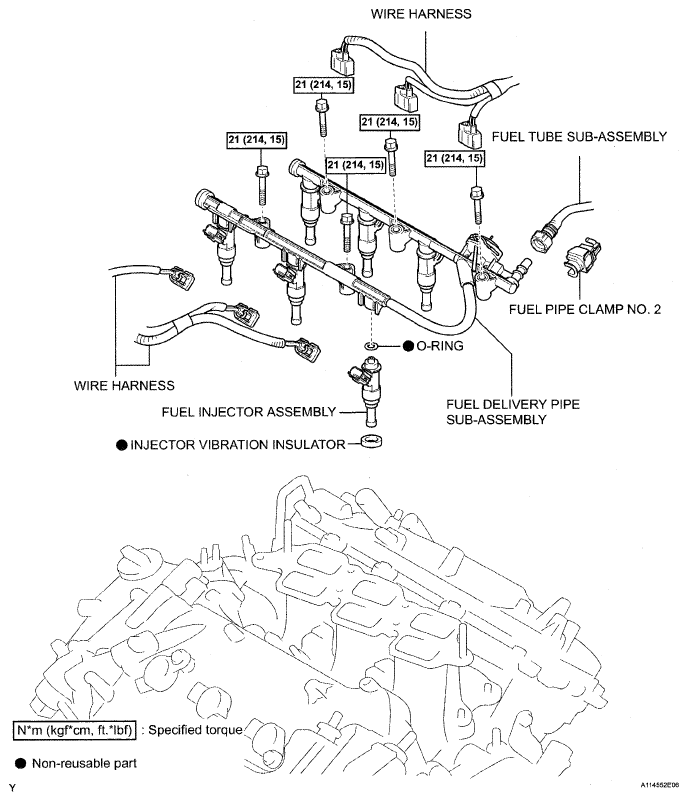

Fig 3: Fuel Injector Replacement Components With Torque Specifications (3 Of 3)
G04997017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
