Customize Parameters

HINT:

The following can be customized.

NOTE:

After confirming whether the items of the customer's request are applicable or not for the customized items, perform the customize operation.
Be sure to record the current value before customizing.
In case of performing the troubleshooting, pay attention as there is a possibility that the function is OFF by customizing. (Example: In case of the symptom in which "The wireless operation does not function" is displayed, check that the wireless operation is not OFF by customizing, then perform the troubleshooting.)

AIR CONDITIONING SYSTEM

AIR CONDITIONER

AIR CONDITIONER SPECIFICATION

DISPLAY (ITEM)	DEFAULT	CONTENTS	SETTING
SET TEMP SHIFT (Set Temperature Shift)	NORMAL	To control with the shifted temperature against the display temperature.	+2C / +1C / NORMAL / -1C / -2C
AIR INLET MODE (Air Inlet Mode)	AUTO	In case of turning the A/C ON when you desire to make the compartment cool down quickly, this is the function to change the mode automatically to RECIRCULATED mode.	MANUAL / AUTO
COMPRESSOR MODE (Compressor Mode)	AUTO	Function to turn the A/C ON automatically by pressing the AUTO button when the blower is ON and the A/C is OFF.	MANUAL / AUTO
COMPRS / DEF OPER (Compressor / Air Inlet DEF Operation)	LINK	Function to turn the A/C ON automatically linking with the FRONT DEF button when A/C OFF.	NORMAL / LINK
EVAP CTRL (Evaporator Control)	AUTO	Function to set the evaporator control to the AUTOMATIC position (AUTO) to save power or the coldest position (MANUAL) to dehumidify the air and to prevent the windows fogging up.	MANUAL / AUTO
BUTTON PRS BUZ (Button Press Buzzer)	ON	Function to sound a buzzer when a button is pressed.	OFF / ON
FOOT / EF MODE (Foot / DEF auto mode)	ON	Function to turn the air flow from FOOT / DEF ON automatically when AUTO MODE is ON.	OFF / ON
AUTO BLOW UP (Foot / DEF automatic blow up function)	ON	Function to switch the blower level automatically when the defroster is ON.	OFF / ON
AMBIENT TMP SFT (Ambient Temperature Shift)	NORMAL	To control with the shifted ambient temperature against the display ambient temperature.	+3C / +2C / +1C / NORMAL / -1C / -2C / -3C
FOOT AIR LEAK (Foot Air Leak)	ON	Function to cut off the airstream felt underfoot while the vehicle is moving.	OFF / ON

THEFT DETERRENT SYSTEM

THEFT DETERRENT SYSTEM REFERENCE CHART

DISPLAY (ITEM)	DEFAULT	CONTENTS	SETTING
PASSIVE MODE	OFF	For vehicles with the smart key system, PASSIVE MODE is the function that sets the theft deterrent system 30 seconds after the driver's door is closed from the open condition with the key removed from the ignition key cylinder. For vehicles without the smart key system, PASSIVE MODE is the function that sets the theft deterrent system 30 seconds after the driver's door is closed from the open condition with the ignition switch turned from on (IG) to off.	ON/OFF
WARN BY GLS SEN	ON	Function that turns the glass break sensor on/off. This function is only effective for vehicles with glass break sensors.	ON/OFF
DISPLAY (ITEM)	DEFAULT	CONTENTS	SETTING
ENTRY DELAY	14s	Function that changes the entry delay time (period before starting the warning) for the passive mode.	0s/14s/30s
WARNING BY HORN	ON	Function to make the horn warning available.	ON/OFF

LIGHTING SYSTEM

ILLUMINATED ENTRY

LIGHT SPECIFICATION

DISPLAY (ITEM)	DEFAULT	CONTENTS	SETTING
LIGHTING TIME (Lighting Time)	15 s	To change the lighting time after closing the door. (It will quickly fade out in case of turning the ignition on (IG).)	7.5 s / 15 s / 30 s
ILLUMI SYSTEM (Operation of illumination)	ON	Function to turn on the step light, center console light and door inside handle light when one of the following occurs; the ignition turned on (IG), door unlock or door open.	ON / OFF
LIGHT CONTROL (Light control)	ON	Function to turn on the step light and door inside handle light when the ignition switch is turned on (IG) and the shift lever is not in the P position.	ON / OFF
I/L ON / UNLOCK (Interior light ON w/ door key unlock)	ON	Function to turn on the interior light, ignition light and step light when unlocking with the door key cylinder. : Interior light comes on when the interior light switch is in the DOOR position.	ON / OFF
I/L ON / ACC OFF (Illumination system ON with ACC OFF)	ON	Function to turn on the interior light* and door courtesy light when the ignition switch is turned from on (ACC) to off. *: Interior light comes on when the interior light switch is in the DOOR position.	ON / OFF

LIGHT CONTROL

LIGHT SPECIFICATION

DISPLAY (ITEM)	DEFAULT	CONTENTS	SETTING
LIGHT OFF DELAY (Light Auto OFF Delay)	30 s	Function to keep the headlight on for a certain period of time after closing all the doors when turning the ignition switch on (IG) under the condition that the light control switch is in the HEAD or AUTO position with the headlight ON.	OFF / 30 s / 60 s / 90 s
LIGHT CTRL TYPE (Control Type)	CURRENT	To change the control logic when the light control switch is in the AUTO position. Refer to LIGHT SPECIFICATION .	CURRENT / OLD
SENSITIVITY (Turn ON Luminous Intensity)	NORMAL	To adjust the sensitivity of the lighting illumination. Refer to Fig 1 .	DARK2 / DARK1 / NORMAL / LIGHT1 / LIGHT2
DISP EX ON SEN (Display Extinction Luminous Intensity)	NORMAL	To dim the lights such as the indicator light of the combination meter, A/C indicator light, and clock. Refer to Fig 1 .	DARK2 / DARK1 / NORMAL / LIGHT1 / LIGHT2
DISP EX OFF SEN (Display Extinction Release Luminous Intensity)	NORMAL	To cancel to dim the lights such as the indicator light of the combination meter, A/C indicator light, and clock. Refer to Fig 1 .	DARK2 / DARK1 / NORMAL / LIGHT1 / LIGHT2
HINT: Sensitivity adjustment is dependent on the owner's preference. Actual driving by the owner is required.

Table 1

LIGHT SPECIFICATION

Brightness of the surrounding when lighting

Lighting delay

Delay of turning light off

⁽²⁾

OLD

Old logic

6 sec.

3 sec.

CURRENT

New logic⁽¹⁾ ('97/8)

15 sec.

⁽¹⁾	The new system has the ability to light up two times brighter than the old system.

⁽²⁾	Delay time until the headlight is turned on when the outside suddenly gets dark.

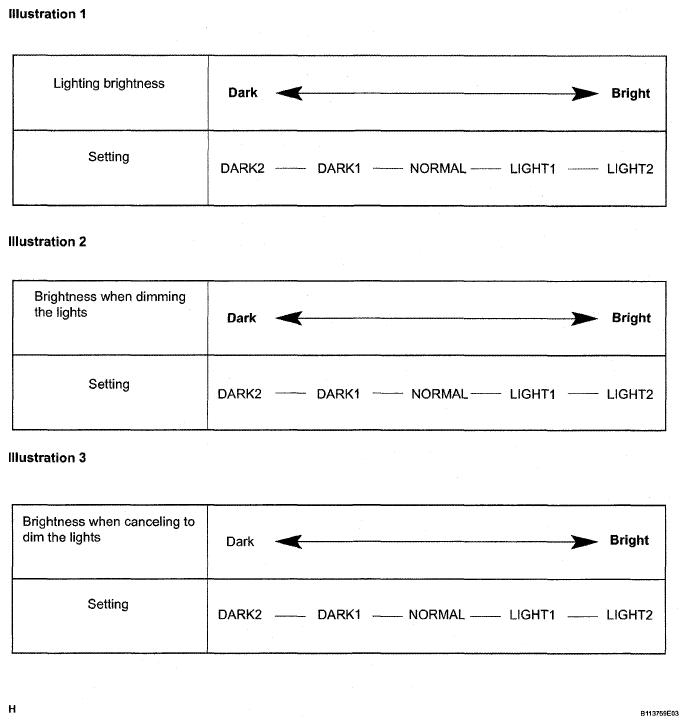

Fig 1: Illumination Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WIRELESS DOOR LOCK CONTROL SYSTEM

WIRELESS DOOR LOCK CONTROL REFERENCE CHART

Display (item)

Default

Function

Setting

OPEN DOOR WARN (Open door warning)

If any door is not completely closed and transmitter lock switch is pressed, this function sounds buzzer for 10 seconds.

ON/OFF

WIRELESS OPER (Wireless door lock control function)

Function that turns wireless door lock function ON/OFF.

ON/OFF

ALARM FUNCTION (⁽¹⁾) (Panic function)

Function that operates theft deterrent system when transmitter panic switch on transmitter is pressed and held for 2.5 seconds.

ON/OFF

UNLOCK/2OPER (Wireless unlock operated twice)

Function that unlocks driver side door when unlock switch on transmitter is pressed once, and unlocks all doors when pressed twice,
if setting is OFF, pressing unlock switch once makes all doors unlock.

ON/OFF

AUTO LOCK DELAY (Auto lock time)

30 s

This function regulates the interval between unlocking and automatic relocking of doors.

30 s/60 s

WIRLS BUZZ RESP (Buzzer answer-back for wireless door lock control)

Function that sounds wireless door lock buzzer for answer-back when lock/unlock switch on transmitter is pressed.

ON/OFF

HAZARD ANS BACK (Hazard answer-back for wireless door lock control)

When lock switch on transmitter is pressed, this function blinks all hazard warning lights once.
When unlock switch is pressed, all hazard warning lights blink twice.

ON/OFF

TRUNK LID OPER (Wireless trunk opener function setting)

0.8 s PR

Changes operation method of transmitter to open trunk.

1 TIME/2 TIMES/0.8 s PR/OFF

⁽¹⁾	This function cannot be turned on or off if the security system is turned off.

WIPER AND WASHER SYSTEM

WIPER

WIPER SPECIFICATION

DISPLAY (ITEM)	DEFAULT	CONTENTS	SETTING
AUTO WIPE (Auto wipe)	AVAIL	Function to operate the wiper automatically when it is raining.	NOT AVAIL / AVAIL
REWIPE CONTROL (Rewipe Control)	SPD MOD	Function to change the time between end of the washer motor operation and start of wiper operation, to prevent streaking from washer fluid.	OFF / 3s / SPD MOD
SPEED MODE (Speed Mode)	AVAIL	Function to change to the intermittent operation mode when the vehicle comes to a stop (0 vehicle speed) from a driving condition where the wiper switch is in the LO position.	NOT AVAIL / AVAIL

POWER DOOR LOCK CONTROL SYSTEM

BODY ECU (Using intelligent tester):

INTELLIGENT TESTER SPECIFICATION

Display (Item)	Default	Contents	Setting
Auto Lock	OFF	Function that locks the doors once when the vehicle speed reaches a certain level.	ON/OFF
Unlk/Key Twice	ON	Functions that unlocks only driver side door when driver side door key cylinder is turned to unlock once and unlocks all the doors when it is turned to unlock twice. In OFF setting, turning it once unlocks all doors.	ON/OFF
All Unlk/Opn-CI	ON		ON/OFF
Unlock/Park	OFF	Function that unlocks doors when lever is shifted to P position from any position other than P while the ignition switch is ON.	ON/OFF

MANUAL SETTING (Switch operation)
1. Close all the doors.
2. Turn the ignition switch on (IG).
3. Within ten seconds after the ignition switch on (IG).
  - To set function (Shift-linked Automatic Door Lock)
    Push and hold the LOCK side of the power door lock switch for five seconds with the shift lever in the P.
  - To set function (Speed-sensitive Automatic Door Lock)
    Push and hold the LOCK side of the power door lock switch for five seconds with the shift lever in any position except P.
  - To set function (Shift-linked Automatic Door Unlock)
    Push and hold the UNLOCK side of the power door lock switch for five seconds with the shift lever in the P.
  - To set function (Opening Driver's Door-linked Automatic Door Unlock)
    Push and hold the UNLOCK side of the power door lock switch for five seconds with the shift lever in any position except P.
  If user wants to cancel a function, repeat the procedure. Each time user perform the procedure, the function is set or cancelled.

SMART KEY SYSTEM

Using intelligent tester.

WIRELESS DOOR LOCK

WIRELESS DOOR LOCK SPECIFICATION

Display (Item)

Default

Contents

Setting

OPEN DOOR WARN (Open door warning)

Function to make the buzzer sound for 10 seconds if the door is open when locking with the wireless door lock function.

ON / OFF

WIRELESS OPER (Wireless door lock control function)

ON / OFF of the wireless door lock function.

ON / OFF

ALARM FUNCTION (⁽¹⁾) (Panic function)

Function to operate the theft deterrent system by keeping pressing the lock button of the transmitter for 2.5 seconds. If there is a panic button, press the panic button instead of the lock button.

ON / OFF

UNLOCK/2 OPER (2 times operation wireless unlock)

Function to unlock the driver's door by pressing the unlock button of the transmitter once and to unlock all the doors by pressing it twice. In the OFF setting, pressing one time makes all the doors unlocked.

ON / OFF

LUGGAGE COMPARTMENT LID OPER (Trunk lid open function type)

0.8 s PR

To change the operation method of opening the luggage compartment by the transmitter.

1 TIME / 2 TIMES / 0.8 s PR / OFF

AUTO LOCK DELAY (Auto lock time)

30 s

To change the time until re-locking after unlocking with the wireless door lock function.

60 s / 30 s

HAZARD AND BACK (Hazard answer back of the wireless)

Function to light up the all turn signal lights once when pressing the transmitter lock button and twice when pressing the unlock button.

ON / OFF

WIRLS BUZZ RESP (Wireless buzzer response)

ON / OFF of the wireless buzzer response function.

ON / OFF

⁽¹⁾	w/ Theft deterrent system

WARNING (COMBINATION METER)

WARNING REFERENCE CHART

Display (Item)	Default	Contents	Setting
SMART WARN3 (Warn a key is taken out by fellow passengers)	ON	Function to warn that a key is taken out by fellow passengers (it means the key is taken out from except the driver's door) when ignition is not OFF.	ON / OFF
KEY LOW-BATT WRN (Warn when the key battery becomes weak)	ON	Setting a warning function for the first time when a key battery becomes weak.	ON / OFF
KEY REMND VOLUM (Key reminder buzzer volume)	LARGE	To change the volume of the key reminder buzzer.	LARGE / MEDIUM / SMALL
KEY REMND SOUND (Key reminder buzzer sound)	NORMAL	To change the frequency of the key reminder buzzer.	NORMAL / FAST / SLOW / 0 s

SMART

SPECIFICATION REFERENCE

Display (Item)	Default	Contents	Setting
SMART IGNITION (SMART ignition available area)	ALL	Function to choose the available area for smart key to start E/G and cancel the Steering Lock.	FRONT / ALL
PARK WAIT TIME (Wait time to permit opening door after locking)	2.5 s	Setting a wait time to permit opening a door after it being locked with SMART entry.	0.5 s / 1.5 s / 2.5 s / 5 s
SMART TRUNK (Luggage compartment opening operation when vehicle is locked)	ON	Function to open a luggage compartment when the driver has the key and press the luggage open button.	ON / OFF
KEY LOW-BATT WRN	ON	Function to set a warning function for the time when a key battery becomes weak.	ON / OFF

Entry Unlock Mode Switching
1. Check that the power source mode is OFF and the LED on the key does not blink. Press all buttons other than LOCK and UNLOCK on the key at the same time for approximately 5 seconds while the key is in the actuation area.
2. Certification ECU receives this signal from the tuner and switches the entry unlock mode.
3. The certification ECU sounds the buzzer of the wireless door lock buzzer and combination meter to inform the user that the mode has been switched.

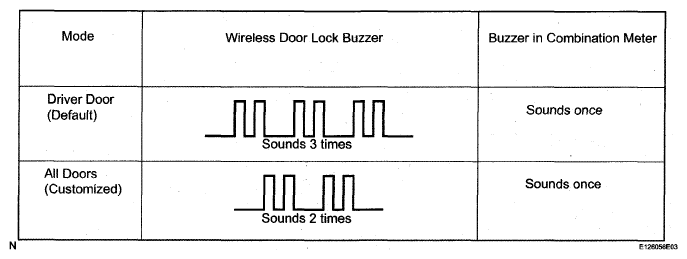

Fig 2: Timing Chart (Wireless Door Lock Buzzer)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:
- The function only switches the entry unlock of the smart key system. It does not switch the unlocking of the wireless door lock remote control.
- The entry unlock mode cannot be changed for 5 seconds after the previous change.
Key Cancel
Key cancel is operated when certain operations are performed with the vehicle in the following conditions.
- A function that allows you to lock / unlock the doors and open the luggage compartment by simply carrying a key.
- A function that causes the vehicle to beep if keys are left inside the vehicle or luggage compartment and a door is closed.
- A function that recalls the position of the driver's seat and side rear view mirrors.
1. The operation procedures are as follows:
  - Unlock twice with the UNLOCK button of the key.
  - Open the driver's door within 5 seconds, from 1) operation.
  - Unlock twice with the UNLOCK button of the key within 5 seconds from 2) operation.
  - Repeat open → close twice for the driver door within 30 seconds, from 3) operation and open again.
    (Driver Door: Open → Close → Open → Close → Open)
  - Unlock twice with the UNLOCK button of the key within 5 seconds, from 3) operation.
  - Repeat open → close once for the driver door within 30 seconds, from 3) operation and open again.
    (Driver Door: Open → Close → Open)
  - Close the driver door within 5 seconds, from 6) operation.
    When key cancel is activated, the wireless door lock buzzer sounds twice.

    To return to the original condition, perform the procedures again. When key cancel is returned, the wireless door lock buzzer sounds once.

METER / GAUGE SYSTEM

BUZZER ON / OFF SETTING

The buzzer ON / OFF setting, which is a setting of the buzzer function of the combination meter, can disable the driver's seat belt buzzer and front passenger's seat belt buzzer.

NOTE: Basically, these buzzers should be set on for safe driving. However, perform the following procedures only if it is necessary to set the buzzer off.

PROCEDURE:

METER / GAUGE PROCEDURE REFERENCE CHART

Steps

Driver's Seat Belt Buzzer

Front Passenger's Seat Belt Buzzer

Turn the ignition switch on (IG).

Press the ODO / TRIP switch until odometer displays "ODO".

Turn the ignition switch off.

Turn the ignition switch on (IG) while depressing the brake pedal.

Press the ODO / TRIP switch immediately (within 6 seconds) and hold it down for 10 seconds or more.

Sit in the front passenger seat. Press the ODO / TRIP switch immediately (within 6 seconds after turning the power switch ON) and hold it down for 10 seconds or more.

Continue holding down the ODO / TRIP switch and fasten the driver's seat belt.

Continue holding down the ODO / TRIP switch and fasten the front passenger's seat belt.

Check that the odometer displays either "b-on" or "b-off". (⁽¹⁾)

Check that the odometer displays either "b-on" or "b-off. (⁽¹⁾)

Press the ODO/TRIP switch to change the display to "b-off".

Turn the ignition switch off.

Turn the ignition switch on (IG) while depressing the brake pedal.

Check that no buzzer sounds.

Check that no buzzer sounds when sitting on the front passenger's seat.

⁽¹⁾

"b-off" indicates that the buzzer is OFF. "b-on" indicates that the buzzer is ON. The buzzer ON / OFF setting will be finished (the odometer will display "ODO") if the ODO / TRIP switch is not operated for 10 seconds or more. In this case, perform step 11 to check that buzzer ON / OFF setting is complete. If it is not complete, start from step 1 again.

NOTE: When either the battery cable or the combination meter connector is disconnected, these buzzers are set on.

CUSTOMIZE PARAMETER (Using a intelligent tester)

WARNING BUZZER:

WARNING BUZZER SPECIFICATION

DISPLAY (ITEM)	DEFAULT	CONTENTS	SETTING
KEY REMND VOLUM	LARGE	Function to change volume of key remind warning buzzer.	Big / Middle / Small
KEY REMND SOUND	900 ms	Function to change cycle of key remind warning buzzer.	600 ms / 900 ms /1,200 ms

TIME ZONE SETTING (w/ Navigation system)

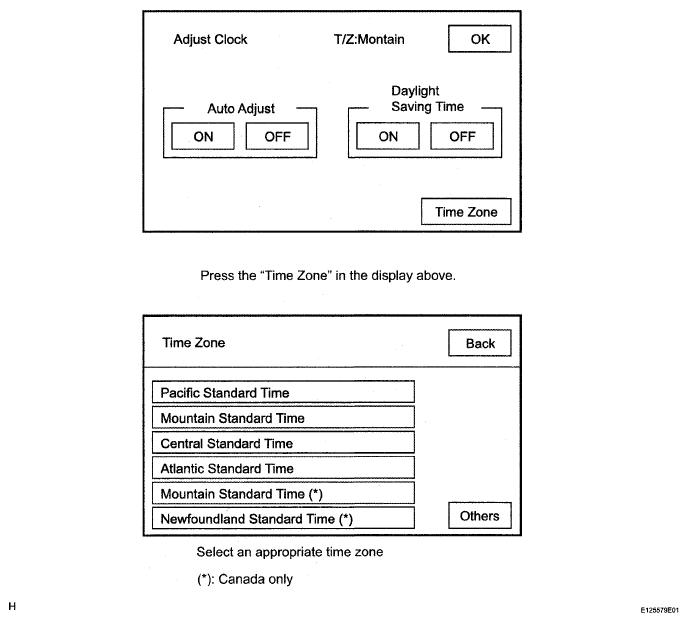

Fig 3: Time Zone Setting Chart (w/ Navigation System)
