Parts Location

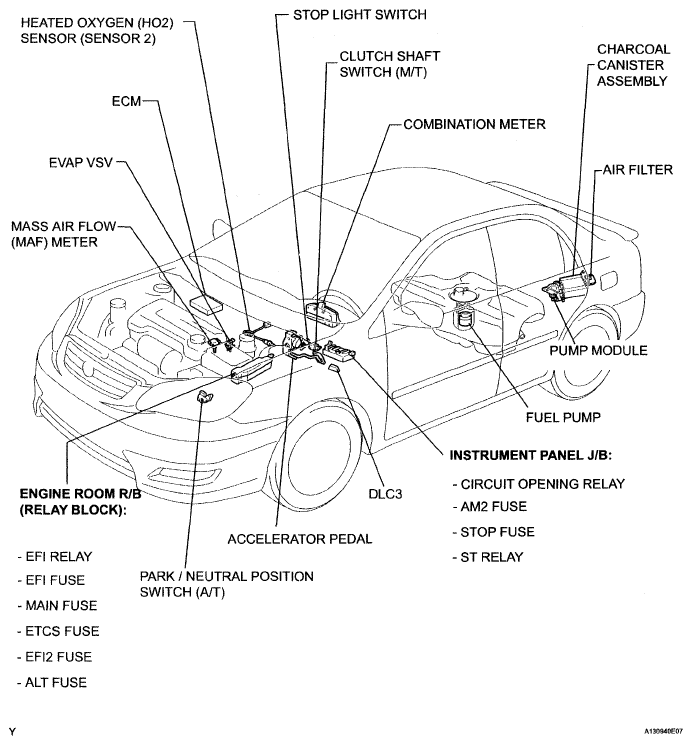

Fig 1: Identifying SFI System Components Location (1 Of 2)
G05192302Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

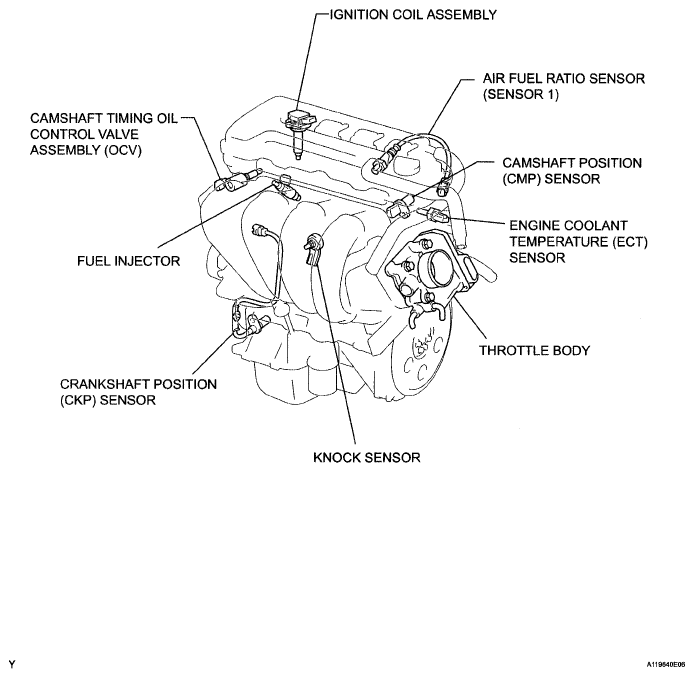

Fig 2: Identifying SFI System Components Location (2 Of 2)
G05192303Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
