Parts Location

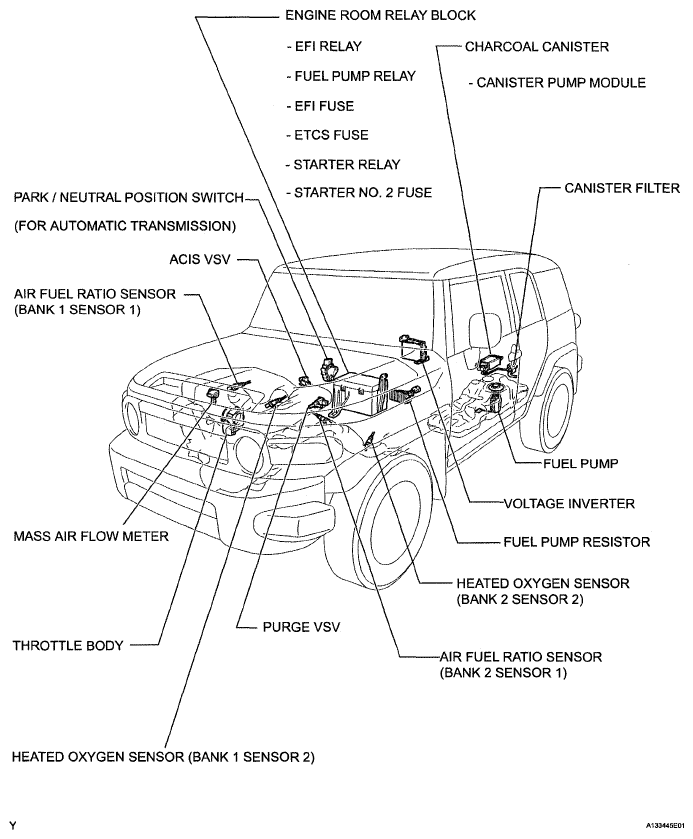

Fig 1: Identifying Engine Control System Replacement Components (1 Of 3)
G05108563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

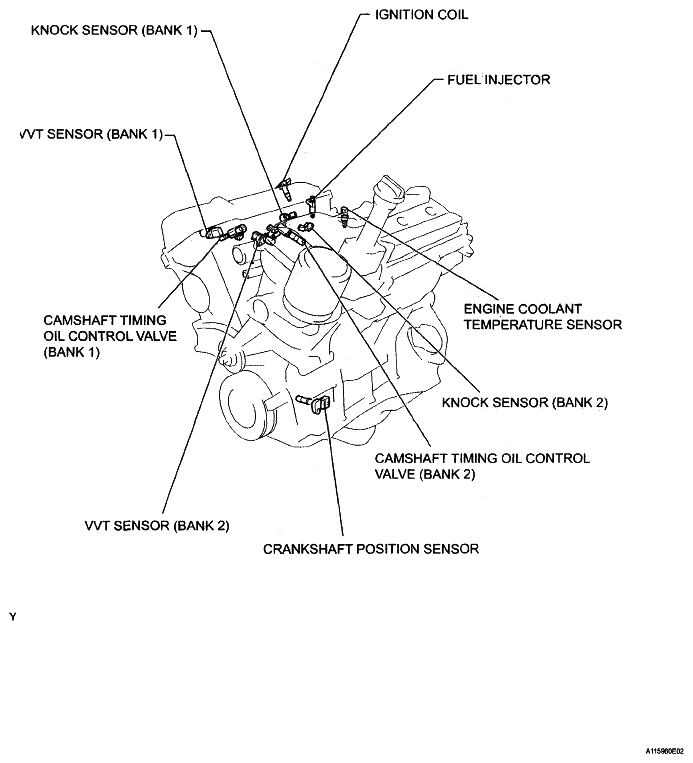

Fig 2: Identifying Engine Control System Replacement Components (2 Of 3)
G05108564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

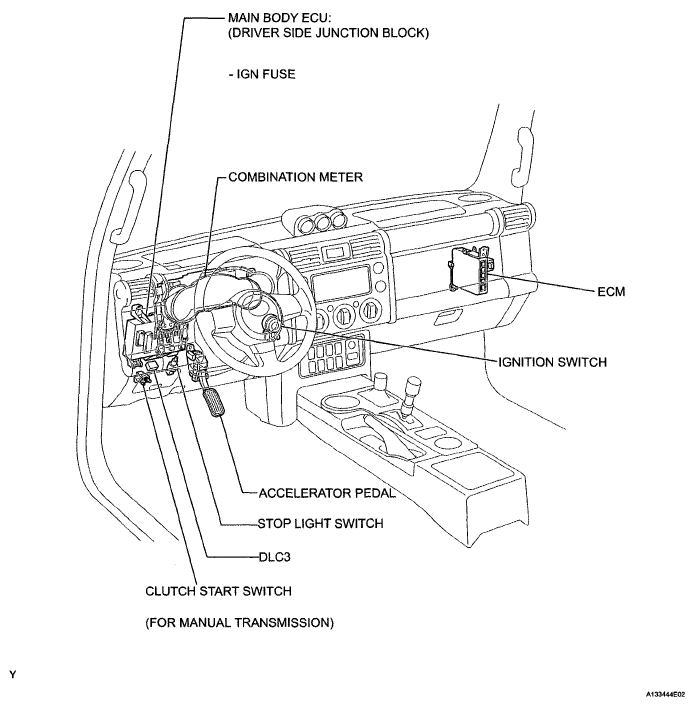

Fig 3: Identifying Engine Control System Replacement Components (3 Of 3)
G05108565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
