EVAP System: Wiring Diagram

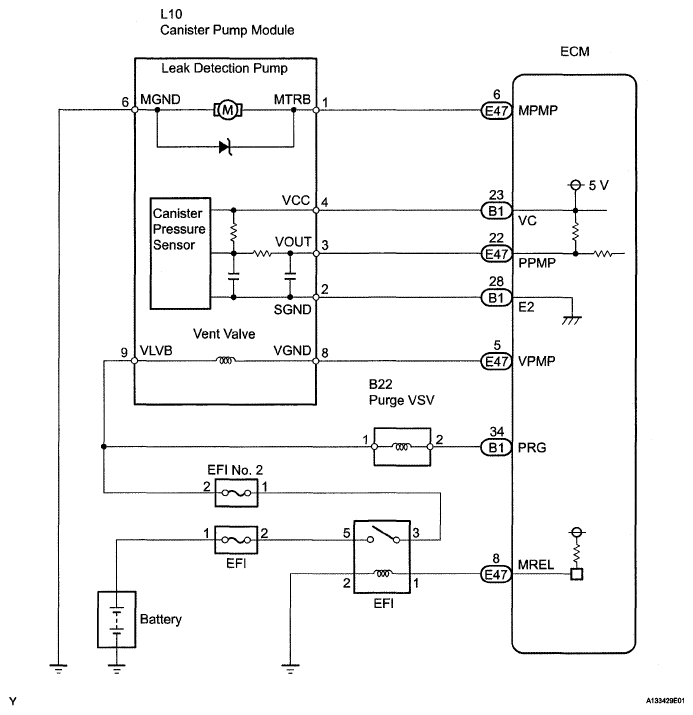

Fig 1: Identifying Canister Pump Module Wiring Diagram
G05108886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
