System Diagram

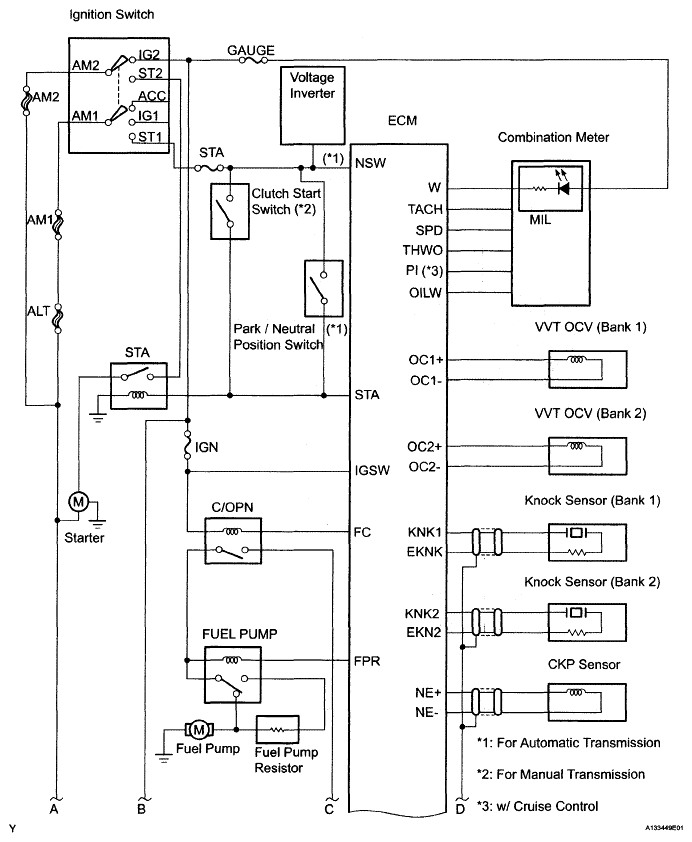

Fig 1: Identifying Engine Control System Diagram (1 Of 5)
G05108566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

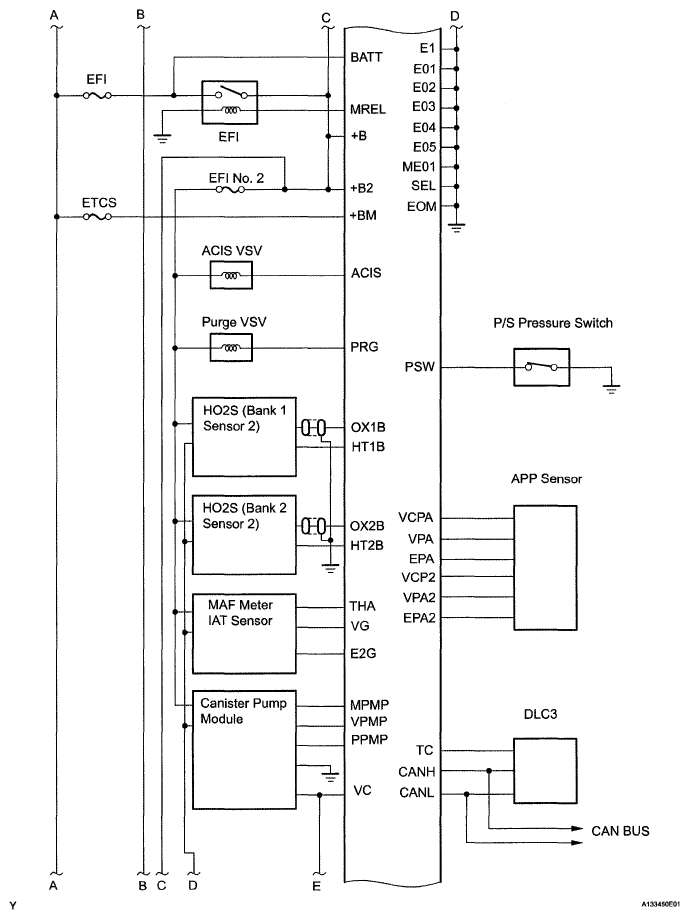

Fig 2: Identifying Engine Control System Diagram (2 Of 5)
G05108567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

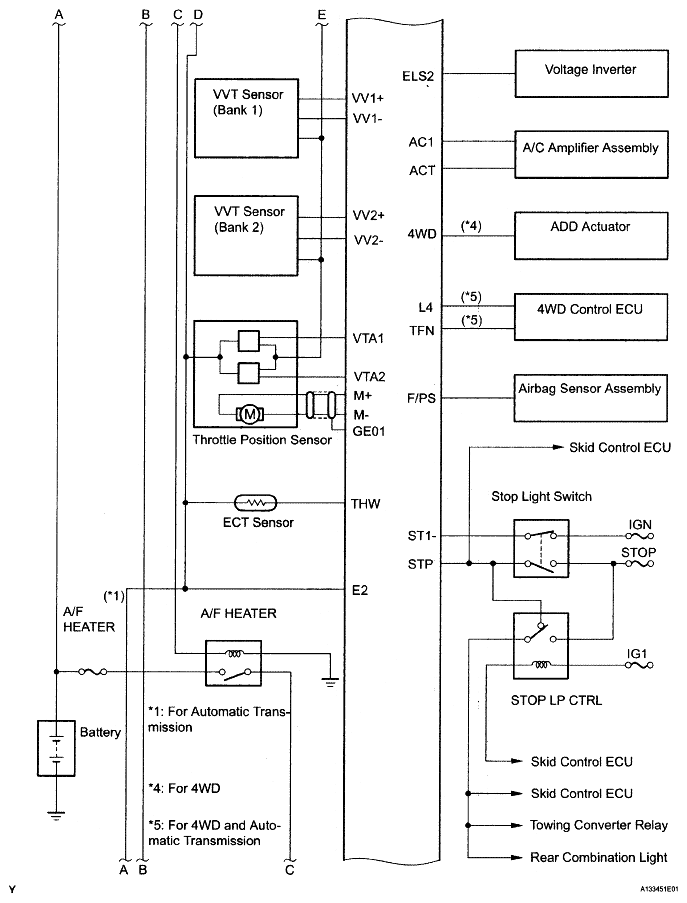

Fig 3: Identifying Engine Control System Diagram (3 Of 5)
G05108568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

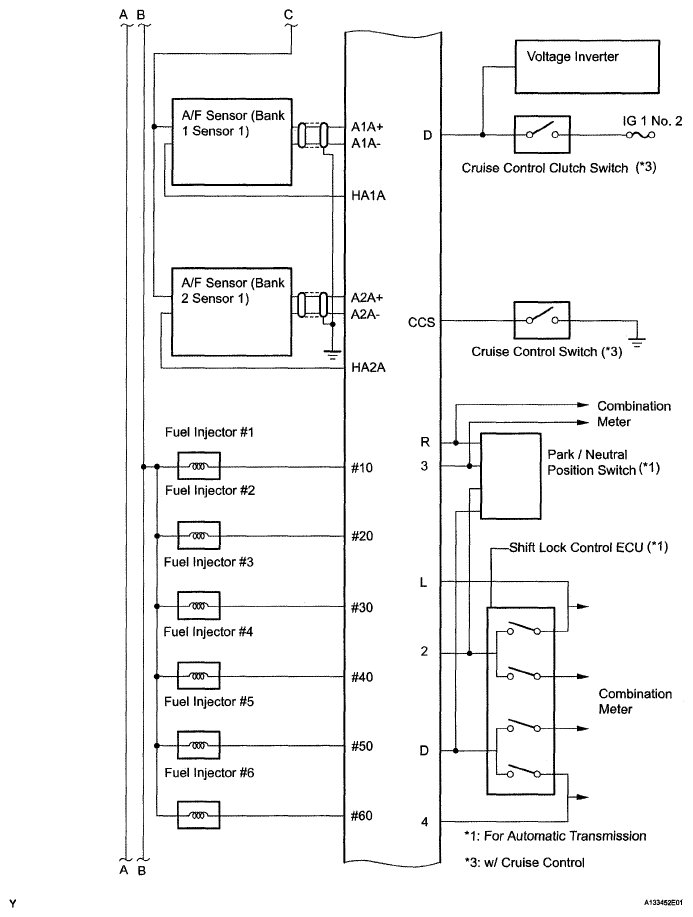

Fig 4: Identifying Engine Control System Diagram (4 Of 5)
G05108569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

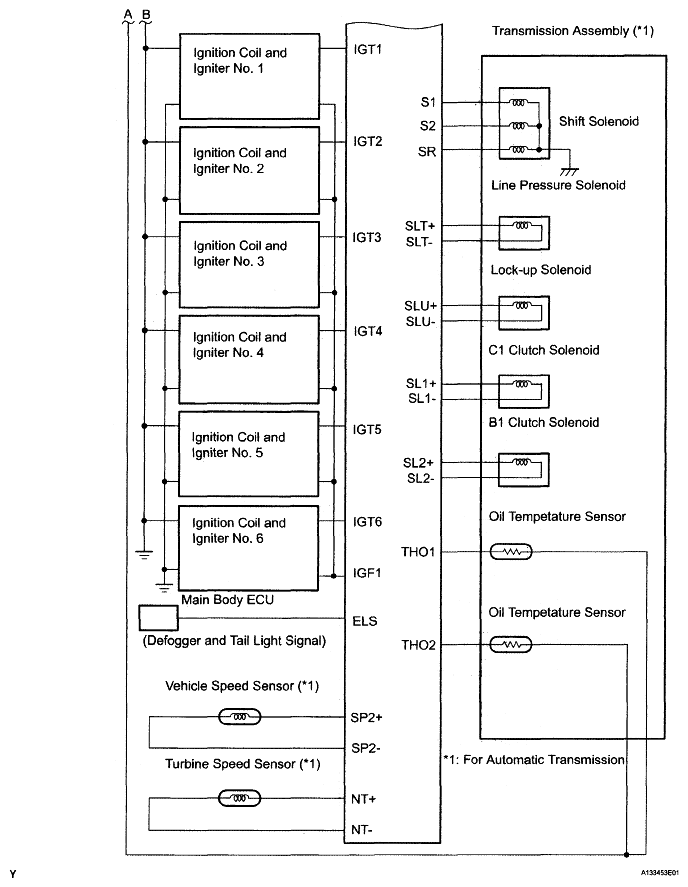

Fig 5: Identifying Engine Control System Diagram (5 Of 5)
G05108570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
