Fuel Injector: Components

Fig 1: Camshaft Replacement Components With Torque Specifications (1 Of 5)
G05108950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Fuel Injector Replacement Components With Torque Specifications (2 Of 3)
G05108951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

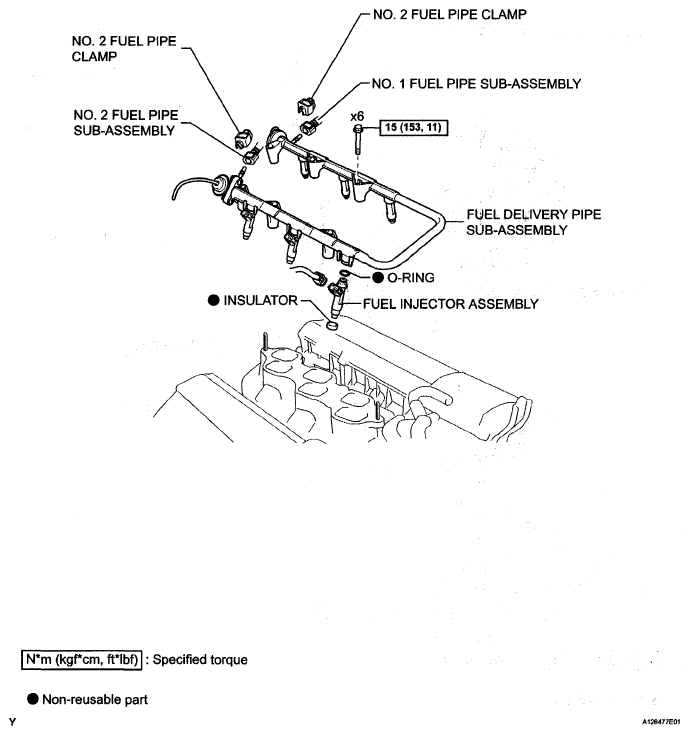

Fig 3: Fuel Injector Replacement Components With Torque Specifications (3 Of 3)
G05109615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
