Driver Side Power Window Motor Circuit: Wiring Diagram

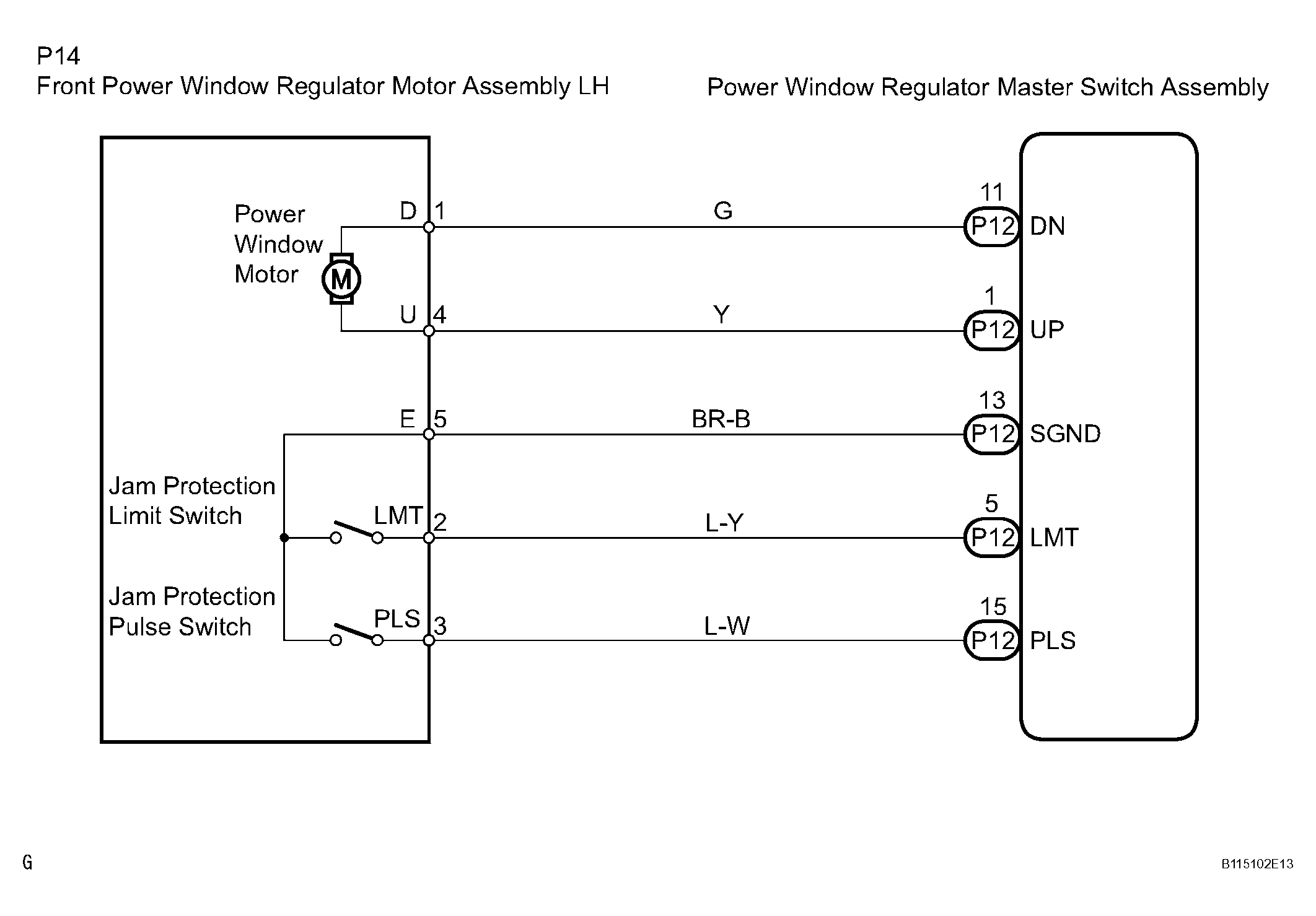

Fig 1: Driver Side Power Window Motor Circuit Wiring Diagram
G04443746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
