Front Passenger Side Jam Protection Limit/Pulse Switch Circuit: Wiring Diagram

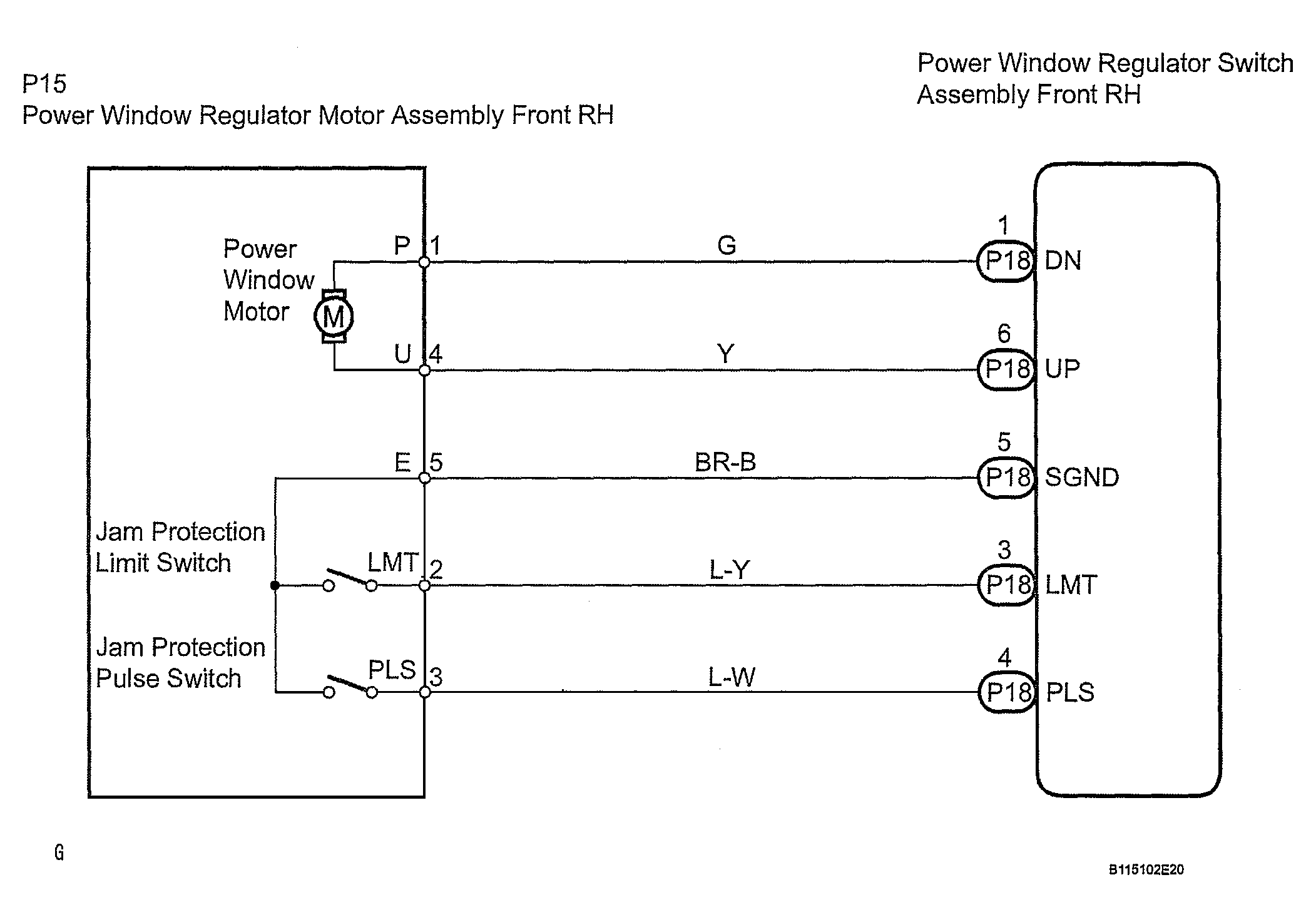

Fig 1: Front Passenger Side Jam Protection Limit/Pulse Switch Wiring Diagram
G00455028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
