Parts Location

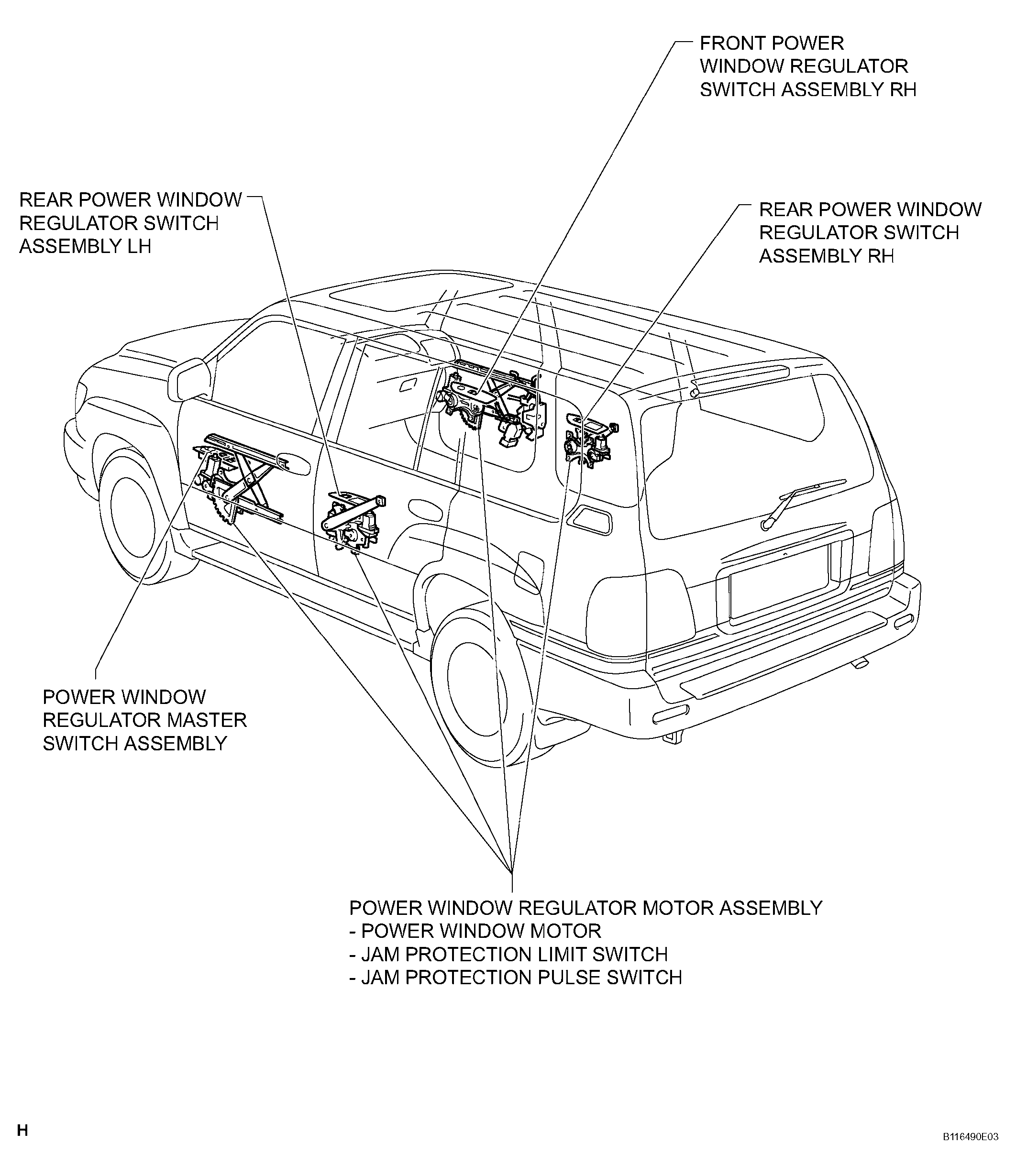

Fig 1: Locating Power Window Control System Parts (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

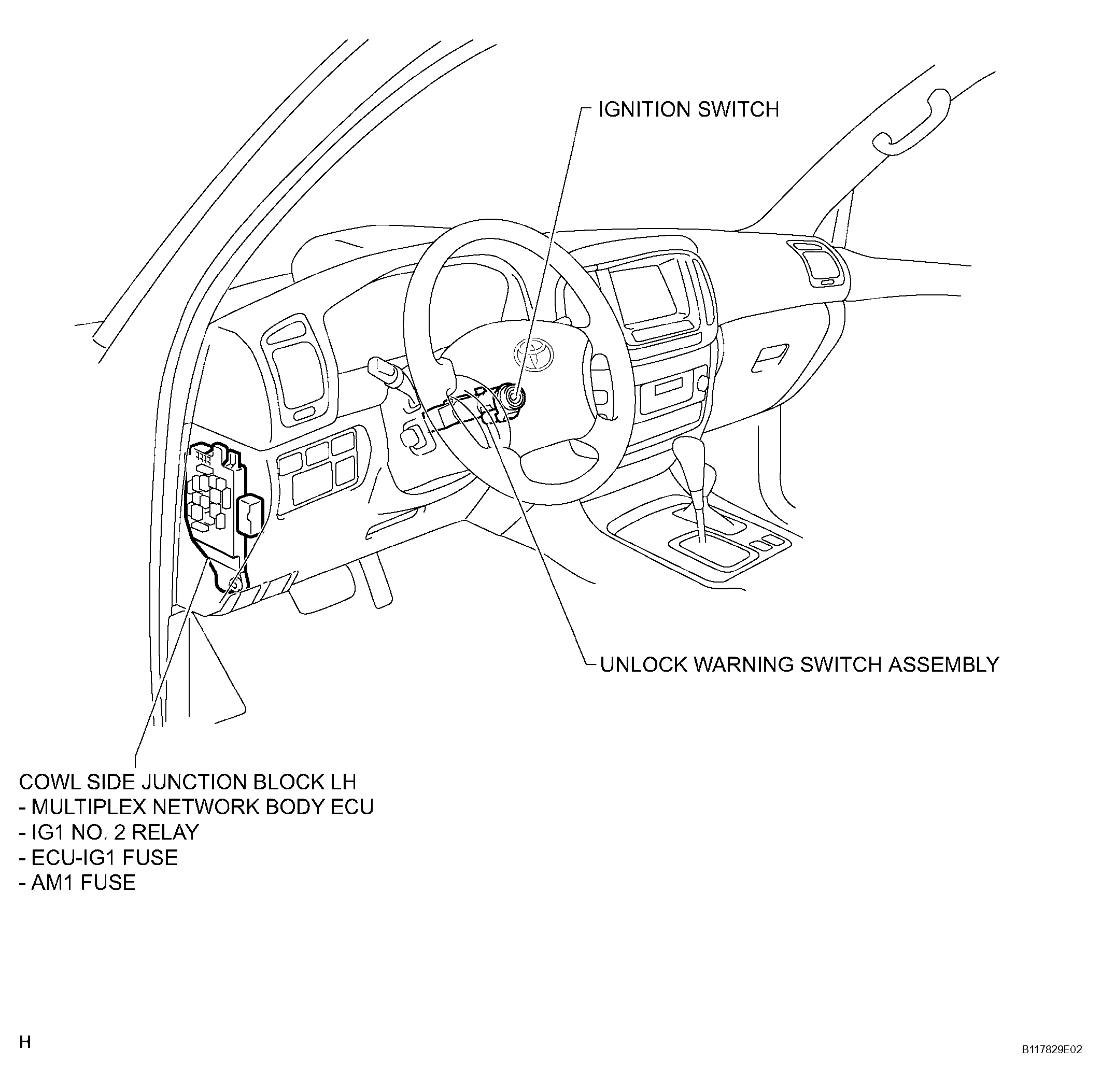

Fig 2: Locating Power Window Control System Parts (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
