Quarter Window Glass: Installation

HINT:

• Use the same procedures for the RH side and LH side.
• A bolt without a torque specification is shown in the standard bolt table (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. INSTALL QUARTER WINDOW LOCK
   1. Install the window lock with the screw.

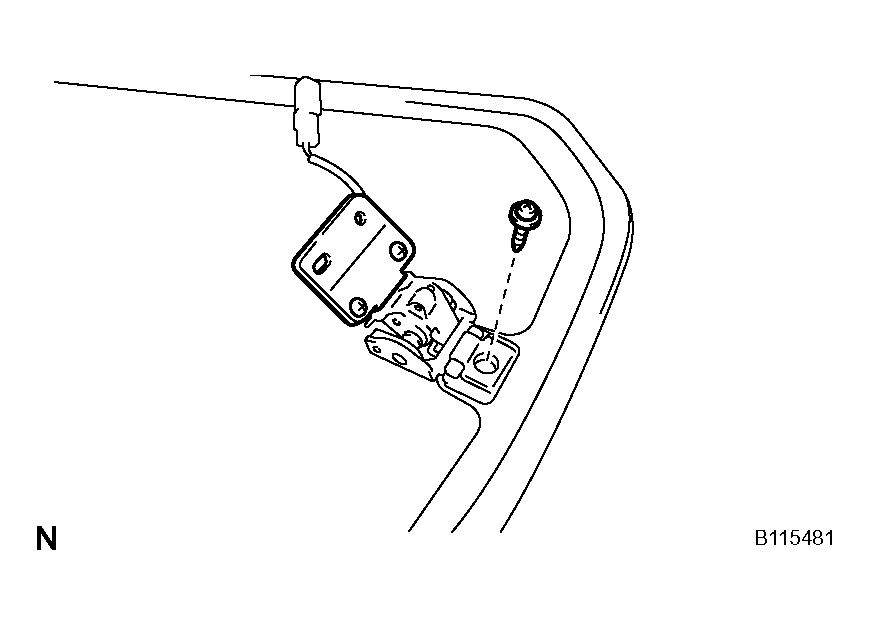

   Fig 1: Installing Window Lock

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL REAR QUARTER WINDOW MOTOR
   1. Install the window motor with the screw.
3. INSTALL QUARTER BELT MOLDING
   1. Install the belt molding.
   2. Install the screw.
4. INSTALL QUARTER WINDOW WEATHERSTRIP
5. INSTALL QUARTER WINDOW GLASS
   1. Install the window glass with the 2 bolts and 2 nuts.
   2. w/Antenna:

      Connect the connector.

   3. Connect the connector.

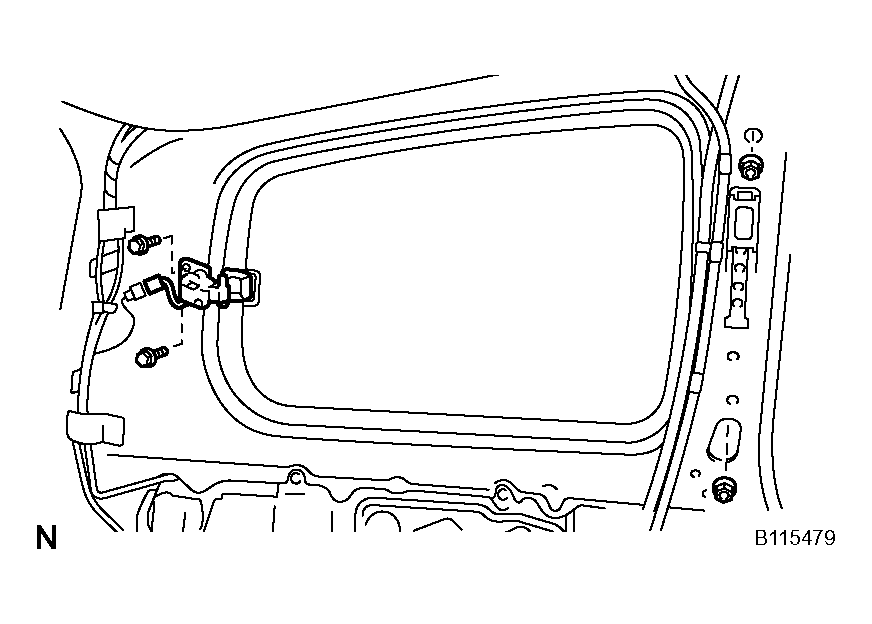

      Fig 2: Installing Window Glass

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL UPPER ROOF SIDE INNER GARNISH
   1. Install the garnish.
   2. Install the assist grip with the 2 screws.
   3. Install the 2 assist grip plugs.

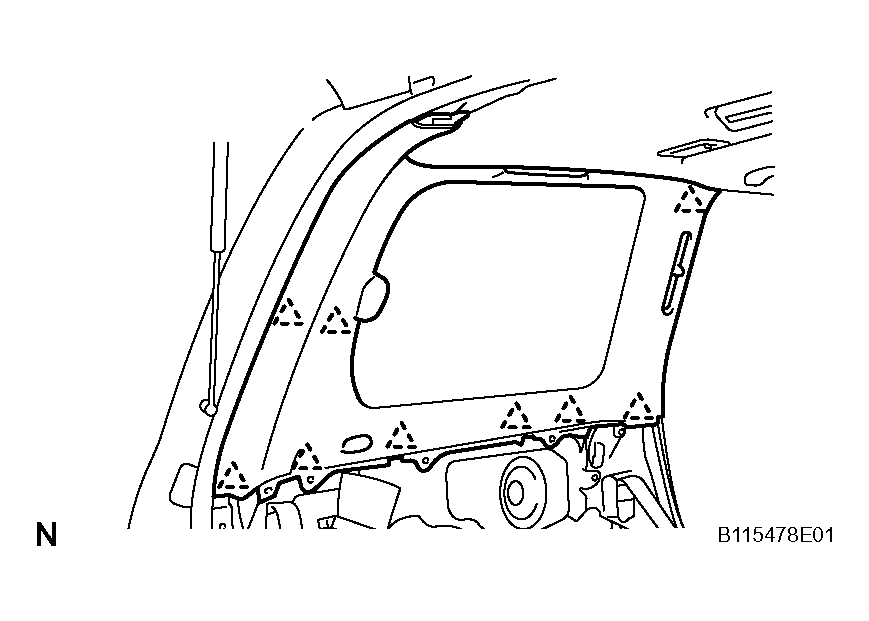

   Fig 3: Installing Upper Roof Side Inner Garnish

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL REAR NO. 1 SEAT OUTER BELT SHOULDER ANCHOR
8. INSTALL REAR NO. 2 SEAT OUTER BELT SHOULDER ANCHOR
9. INSTALL QUARTER TRIM PANEL
   1. Connect the connector.
   2. Install the trim panel.
   3. Install the 2 clips.
   4. Install the trim jack cover.

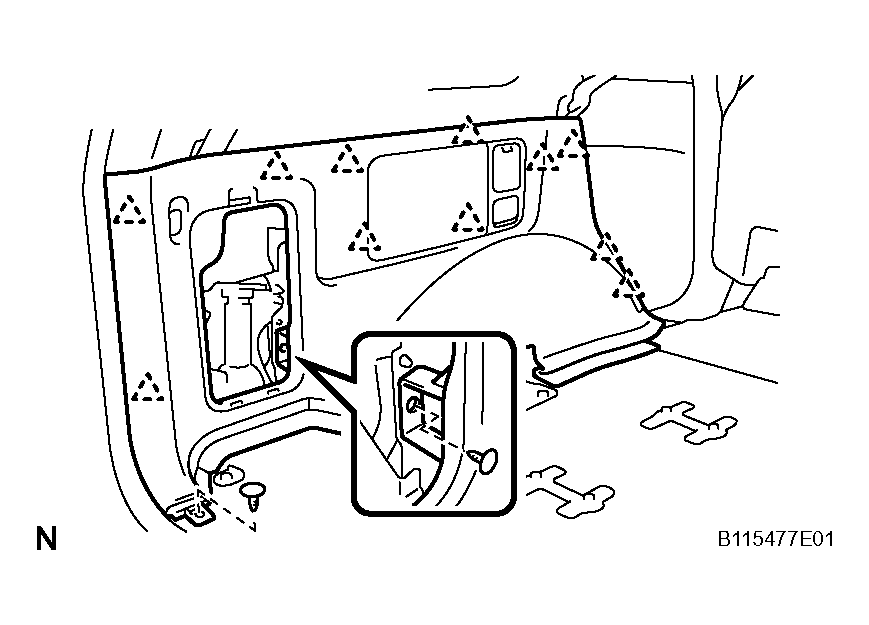

   Fig 4: Installing Trim Jack Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. INSTALL REAR DOOR OPENING TRIM
11. INSTALL REAR DOOR SCUFF PLATE
12. INSTALL REAR NO. 1 SEAT OUTER BELT FLOOR ANCHOR
    1. Install the floor anchor with the bolt.

       Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)

13. INSTALL REAR NO. 2 SEAT OUTER BELT FLOOR ANCHOR
    1. Install the floor anchor with the bolt.

       Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)

14. INSTALL REAR FLOOR CARPET
15. INSTALL STRIKER PLATE
16. INSTALL REAR MAT SET PLATE
    1. Install the set plate with the 5 screws.

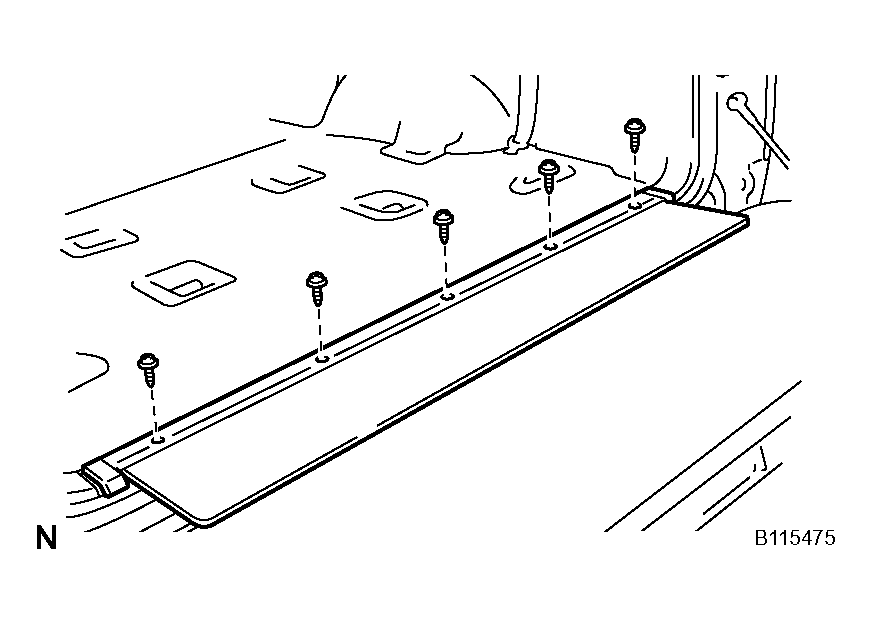

    Fig 5: Installing Set Plate

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
17. INSTALL REAR NO. 2 SEAT
18. INSTALL ROOF HEADLINING REAR TRIM

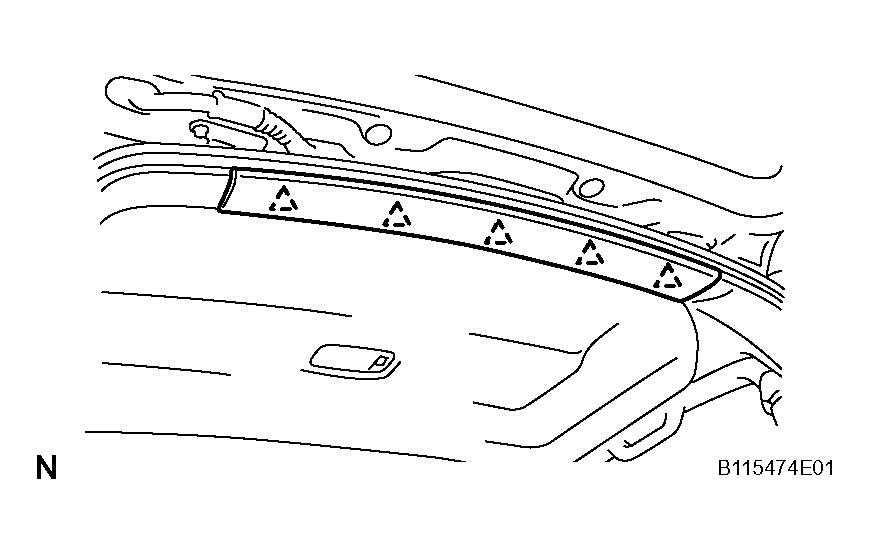

    Fig 6: Installing Roof Headlining Rear Trim

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
19. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
20. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
       NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
