Quarter Window Glass: Removal

HINT:

Use the same procedures for the RH side and LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE ROOF HEADLINING REAR TRIM
   1. Using a screwdriver, remove the roof headlining rear trim.

      HINT:

      Tape the screwdriver tip before use.

   Fig 1: Removing Roof Headlining Rear Trim

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE REAR NO. 2 SEAT
   1. Remove the rear No. 2 seat (see DISASSEMBLY ).
4. REMOVE REAR MAT SET PLATE
   1. Remove the 5 screws.
   2. Using a screwdriver, remove the set plate.

      HINT:

      Tape the screwdriver tip before use.

   Fig 2: Removing Set Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE STRIKER PLATE (See  REMOVAL  )
6. REMOVE REAR FLOOR CARPET
7. REMOVE REAR NO. 2 SEAT OUTER BELT FLOOR ANCHOR
8. REMOVE REAR NO. 1 SEAT OUTER BELT FLOOR ANCHOR
9. REMOVE REAR DOOR SCUFF PLATE
10. REMOVE REAR DOOR OPENING TRIM
11. REMOVE QUARTER TRIM PANEL
    1. Remove the quarter trim jack cover.
    2. Using a clip remover, remove the 2 clips.
    3. Remove the trim panel, and then disconnect the connector.

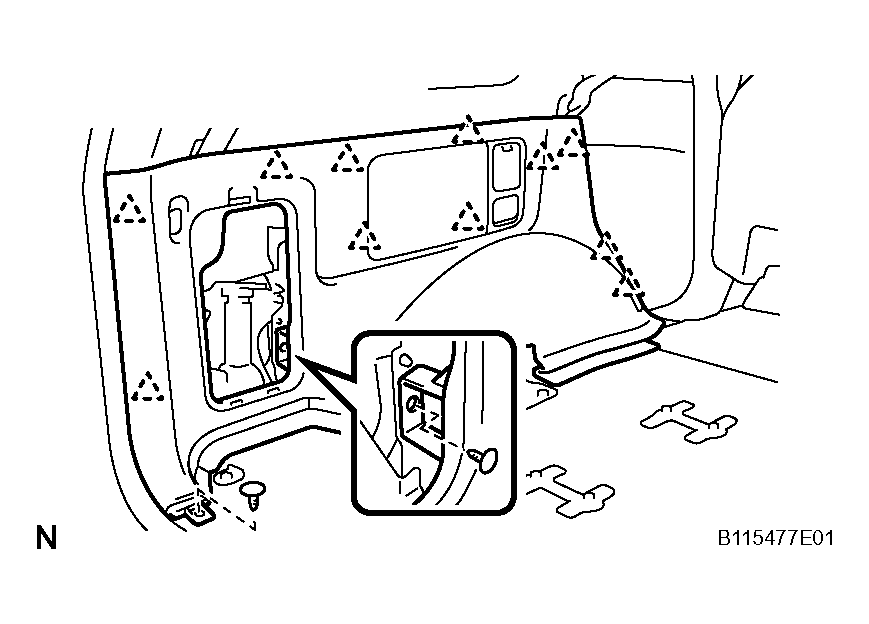

    Fig 3: Removing Quarter Trim Panel

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. REMOVE REAR NO. 2 SEAT OUTER BELT SHOULDER ANCHOR
13. REMOVE REAR NO. 1 SEAT OUTER BELT SHOULDER ANCHOR
14. REMOVE UPPER ROOF SIDE INNER GARNISH
    1. Using a screwdriver, remove the 2 assist grip plugs, then remove the 2 screws and assist grip.

       HINT:

       Tape the screwdriver tip before use.

    2. Using a clip remover, remove the clip.
    3. Using a screwdriver, remove the garnish.

       HINT:

       Tape the screwdriver tip before use.

       Fig 4: Removing Upper Roof Side Inner Garnish

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. REMOVE QUARTER WINDOW GLASS
    1. Disconnect the connector.
    2. w/Antenna:

       Disconnect the connector.

    3. Remove the 2 bolts.
    4. Remove the 2 nuts and window glass.

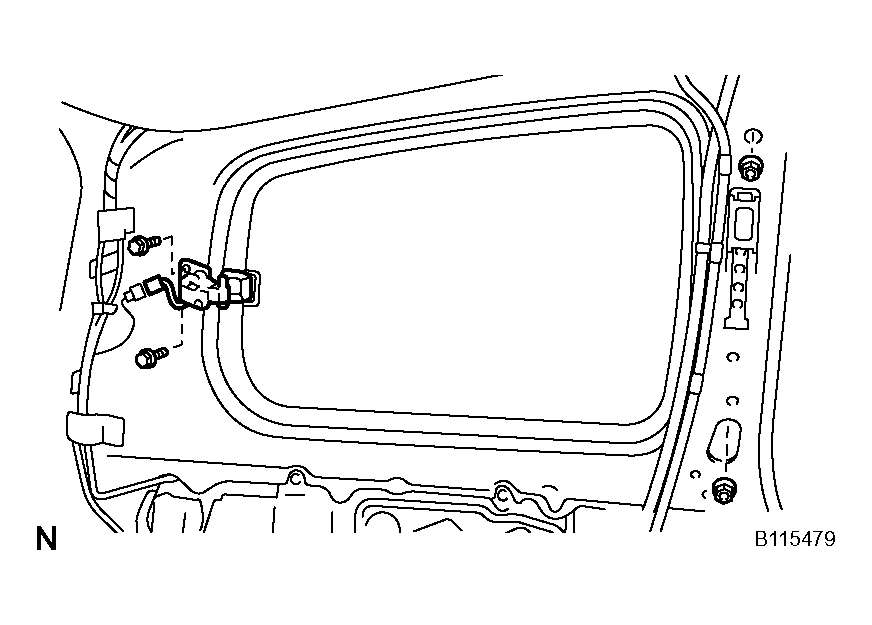

    Fig 5: Removing Quarter Window Glass

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. REMOVE QUARTER WINDOW WEATHERSTRIP
17. REMOVE QUARTER BELT MOLDING
    1. Remove the screw.
    2. Using a screwdriver, remove the molding.

       HINT:

       Tape the screwdriver tip before use.

       Fig 6: Removing Quarter Belt Molding

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
18. REMOVE REAR QUARTER WINDOW MOTOR
    1. Remove the screw and window motor.
19. REMOVE QUARTER WINDOW LOCK
    1. Remove the screw and window lock.
    Fig 7: Removing Window Lock
