Windshield Glass: Components

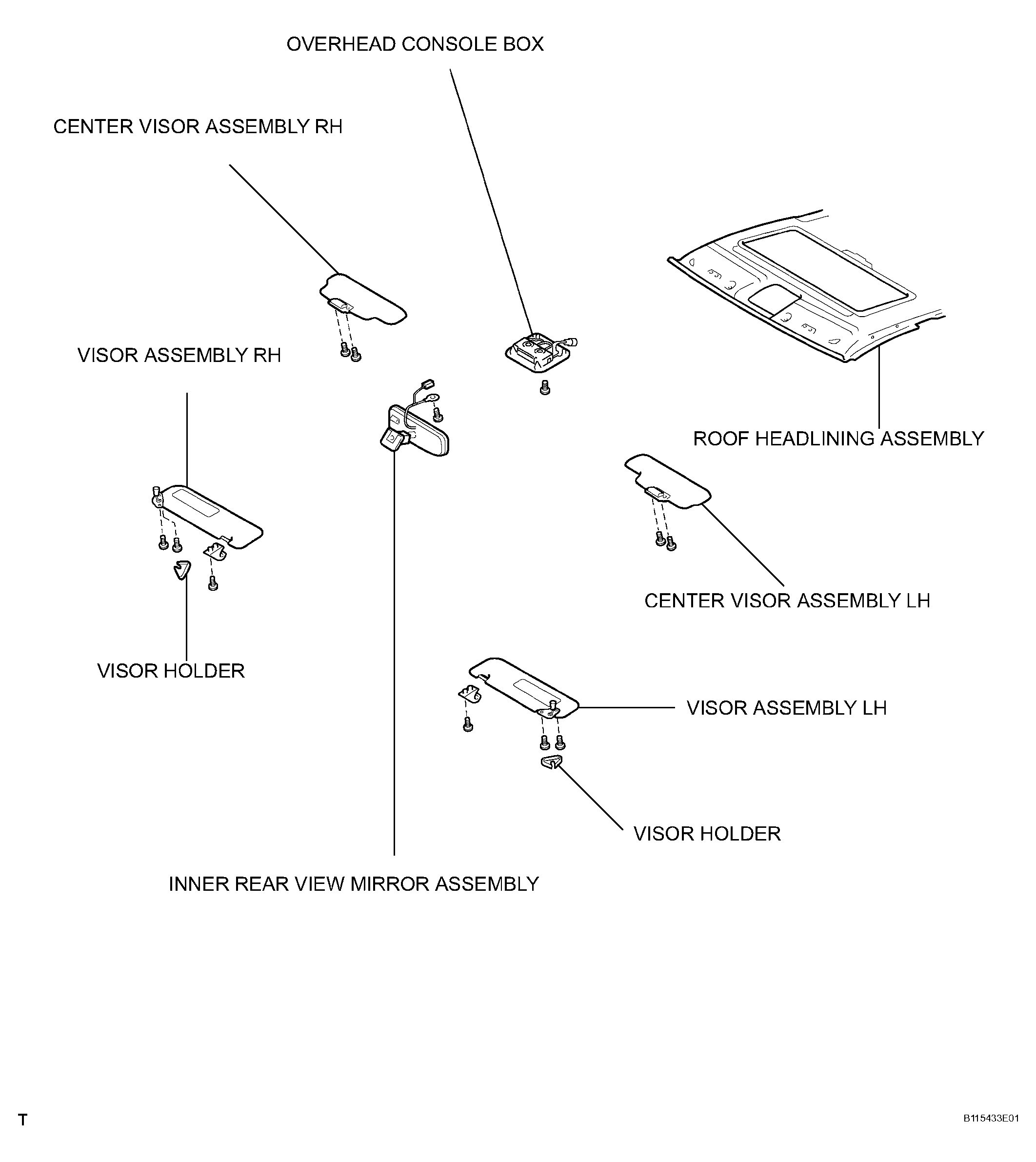

Fig 1: Identifying Windshield Glass Components And Replacements (1 Of 2)
G04443764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

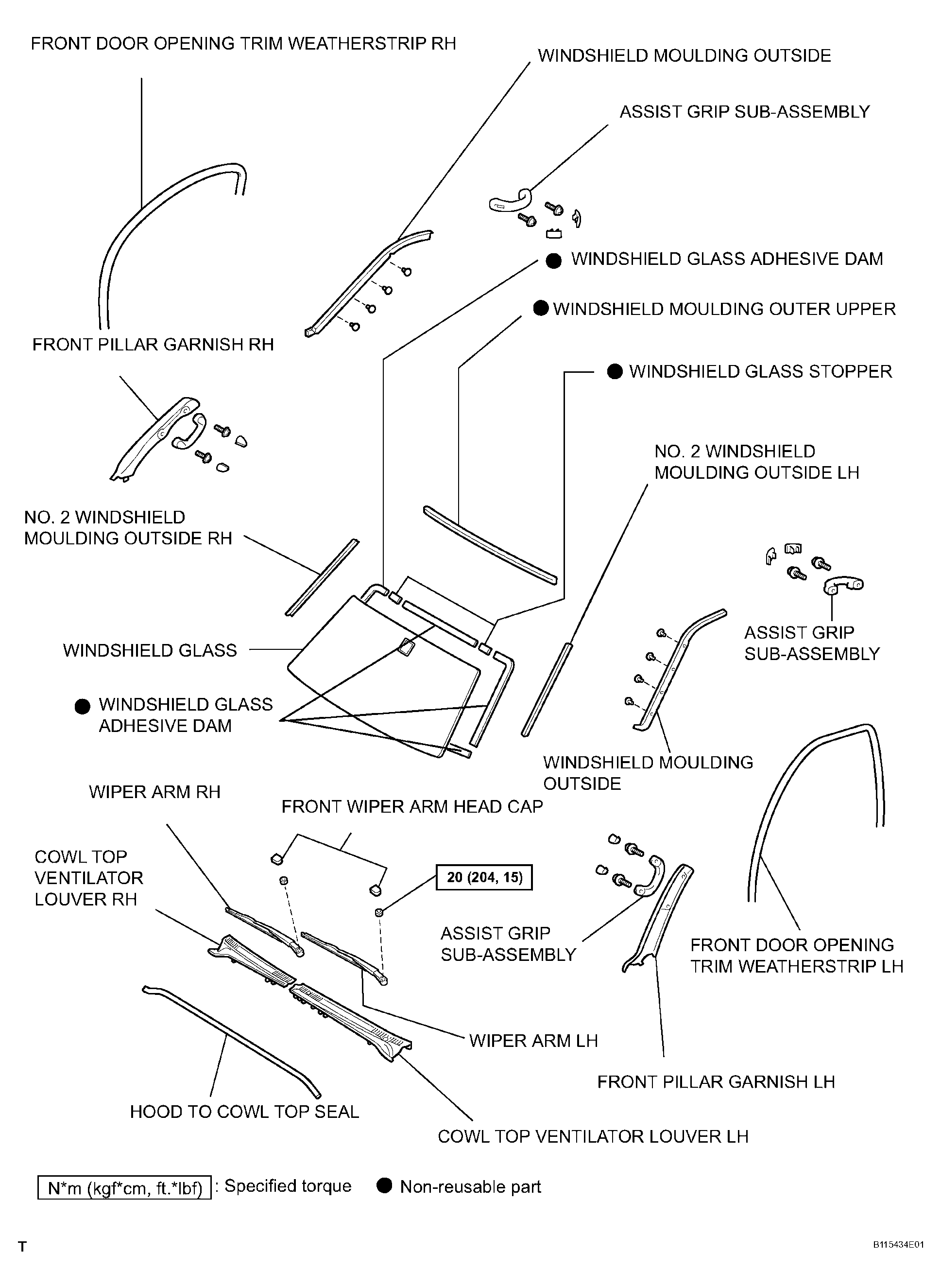

Fig 2: Windshield Glass Replacement Components And Replacements And Torque Specification (2 Of 2)
G04443765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
