Fuel Pump Resistor: Inspection

  1. INSPECT FUEL PUMP RESISTOR
    1. Measure the resistance between the terminals.

      Standard resistance: 0.94 to 1.0 Ω at 20°C (68°F)

      If the resistance is not as specified, replace the resistor.

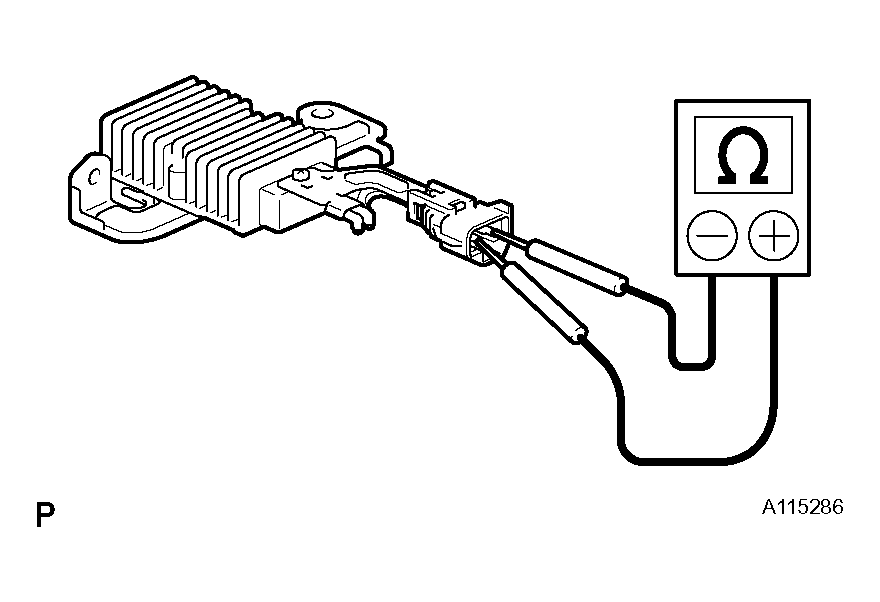

    Fig 1: Inspecting Fuel Pump Resistor
    G04436048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
