Parts Location

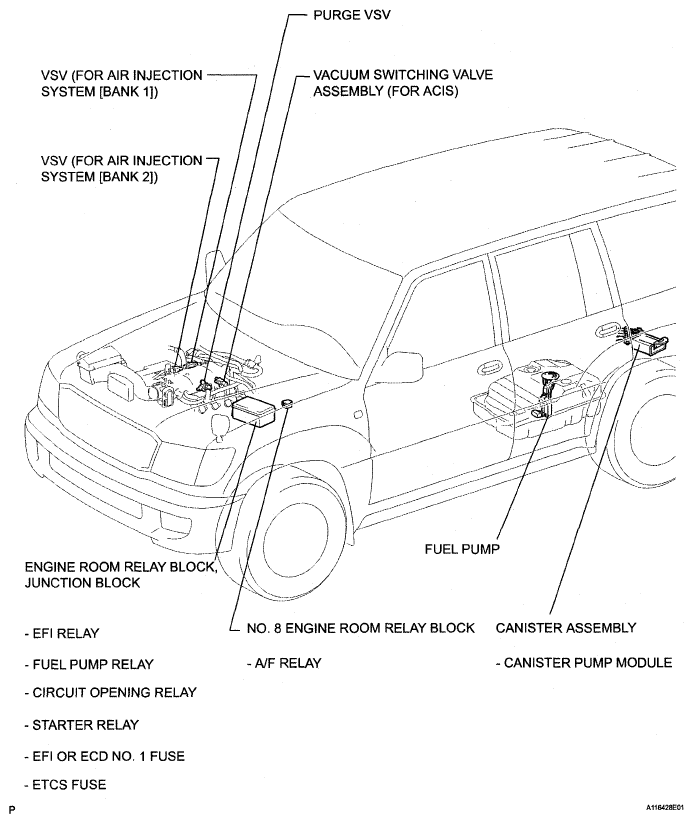

Fig 1: Identifying SFI System Parts Location (1 Of 4)
G05196568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

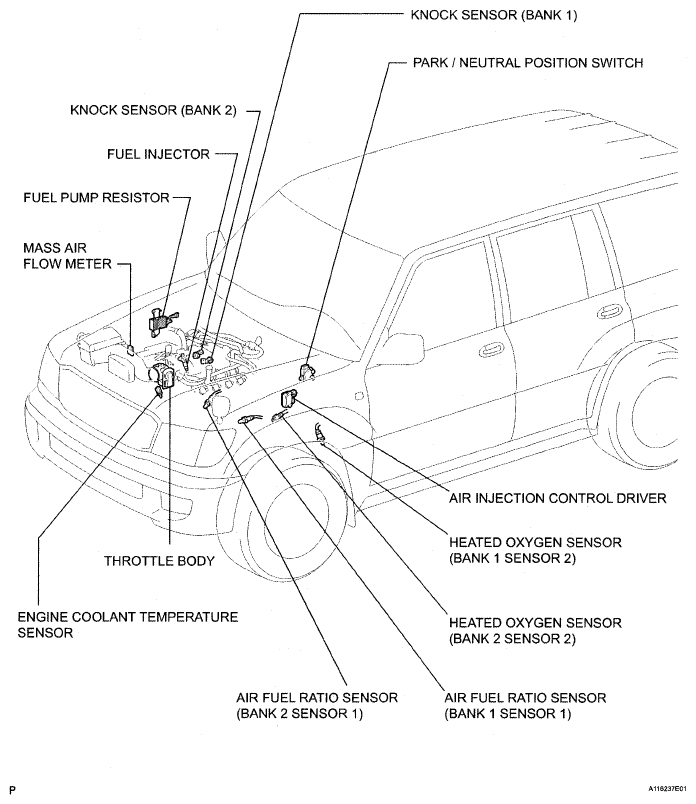

Fig 2: Identifying SFI System Parts Location (2 Of 4)
G05196569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

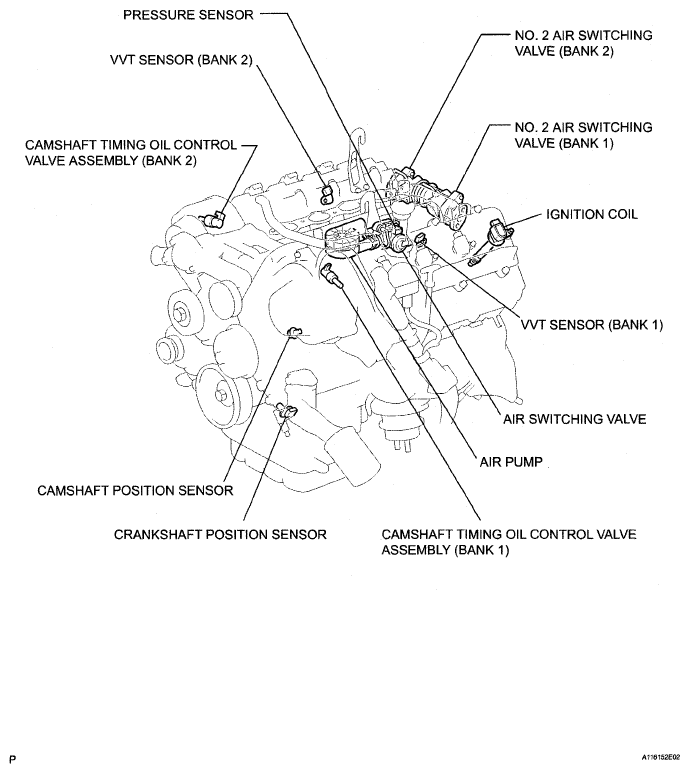

Fig 3: Identifying SFI System Parts Location (3 Of 4)
G05196570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying SFI System Parts Location (4 Of 4)
G05196571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
