Fuel Pressure Regulator: Components

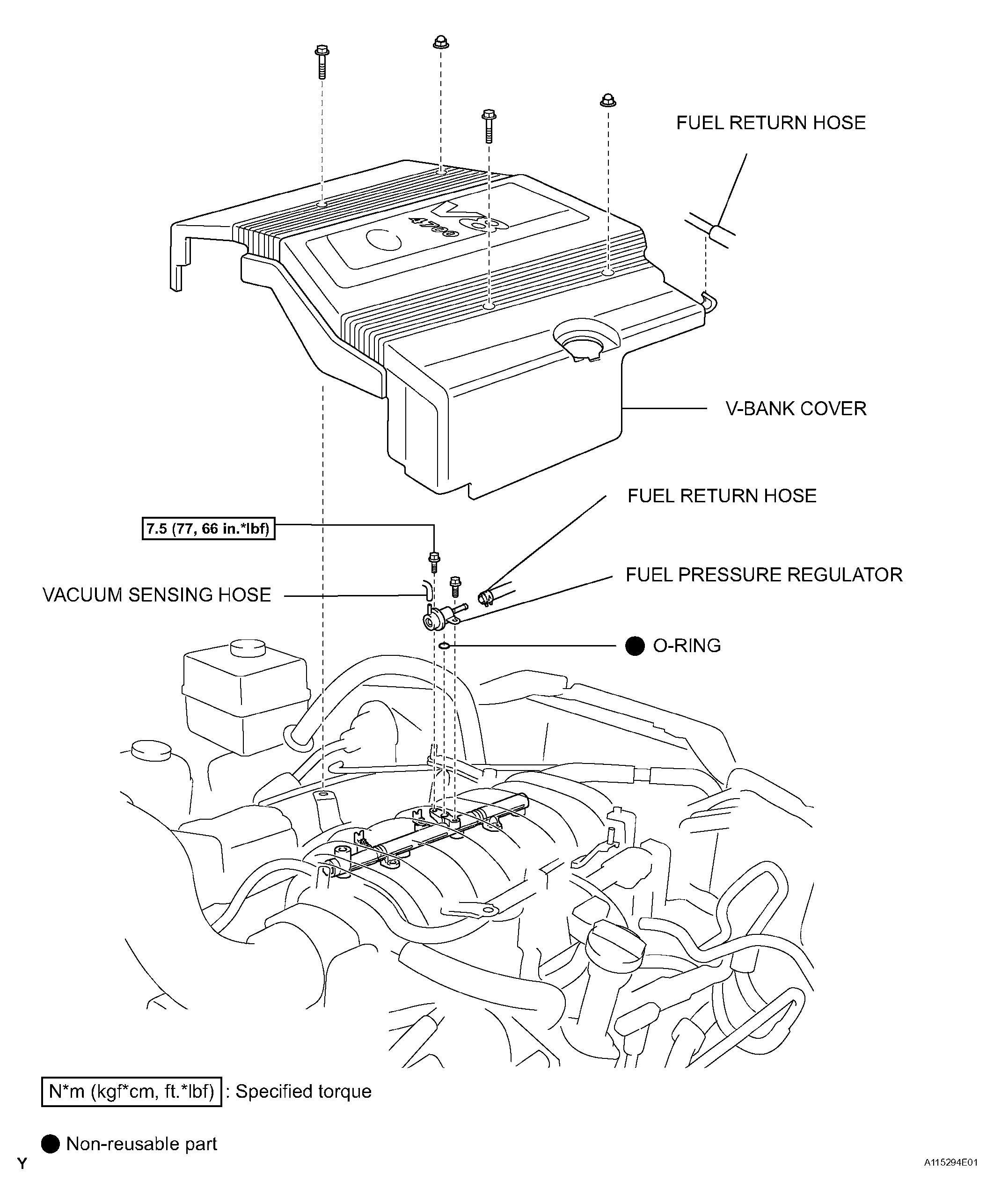

Fig 1: Exploded View Of Fuel Pressure Regulator Components & Replacements
G04436022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
