Fuel Tank: Components

Fig 1: Exploded View Of Fuel Tank Components & Replacements (1 Of 3)
G04436050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exploded View Of Fuel Tank Components & Replacements (2 Of 3)
G04436051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

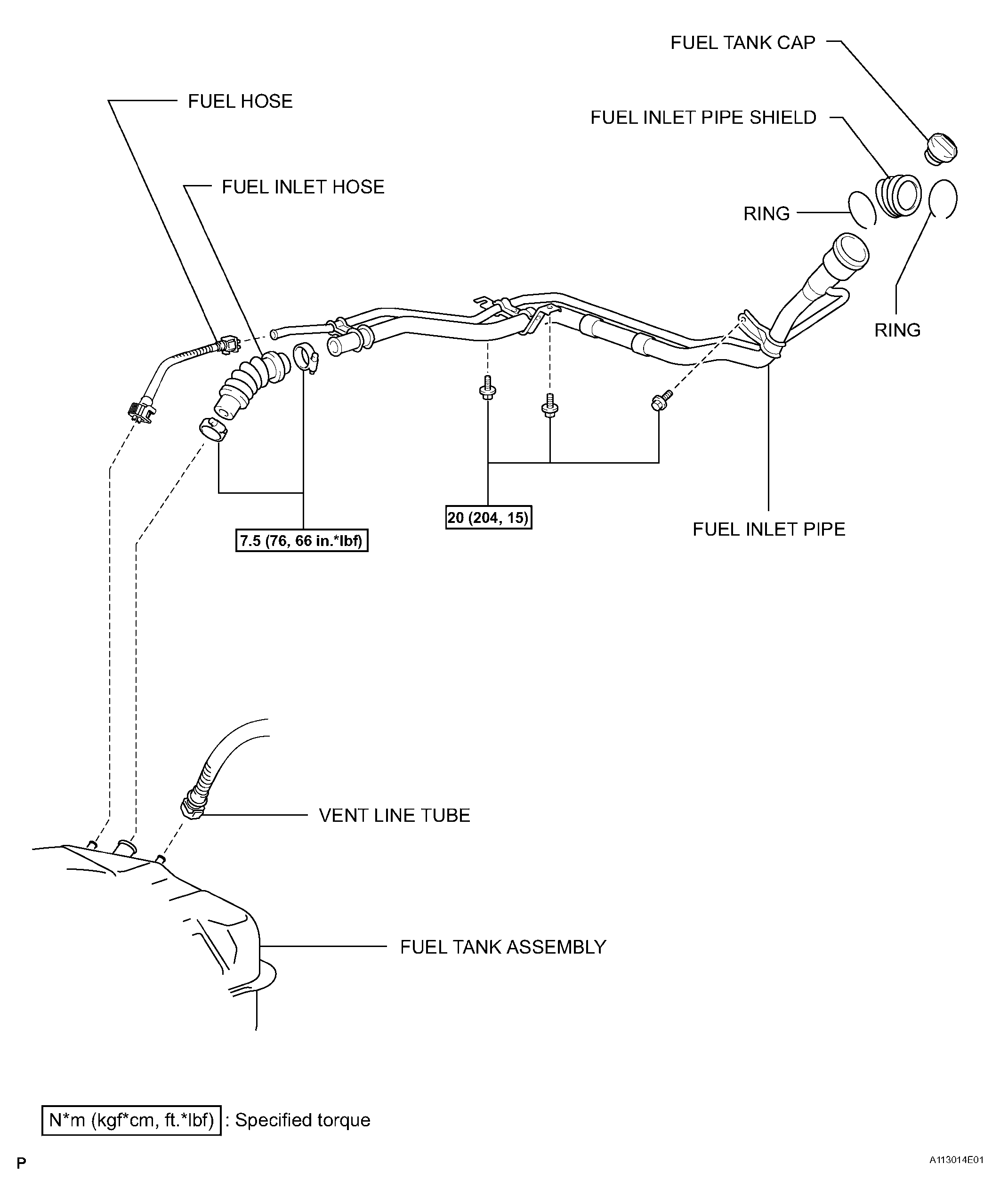

Fig 3: Exploded View Of Fuel Tank Components & Replacements (3 Of 3)
G04436052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
