Fuel Tank: Removal

DISCHARGE FUEL SYSTEM PRESSURE (See REMOVAL )
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
DISCONNECT VENT LINE TUBE
1. Disconnect the vent line tube from the fuel tank.

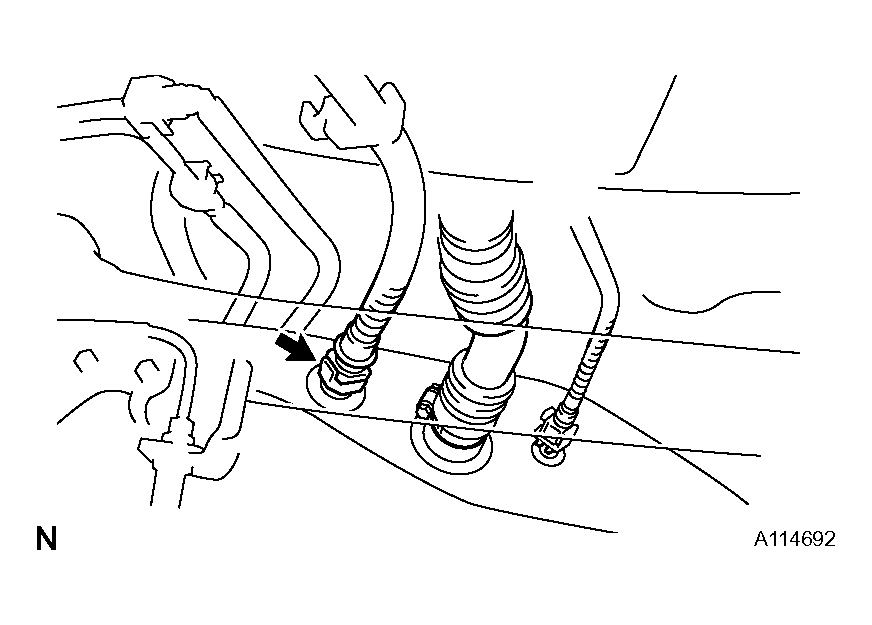

  Fig 1: Disconnecting Vent Line Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT PARKING BRAKE CABLE
1. Remove the bolt and bracket from the fuel tank band.

  Fig 2: Removing Bracket From Fuel Tank Band
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

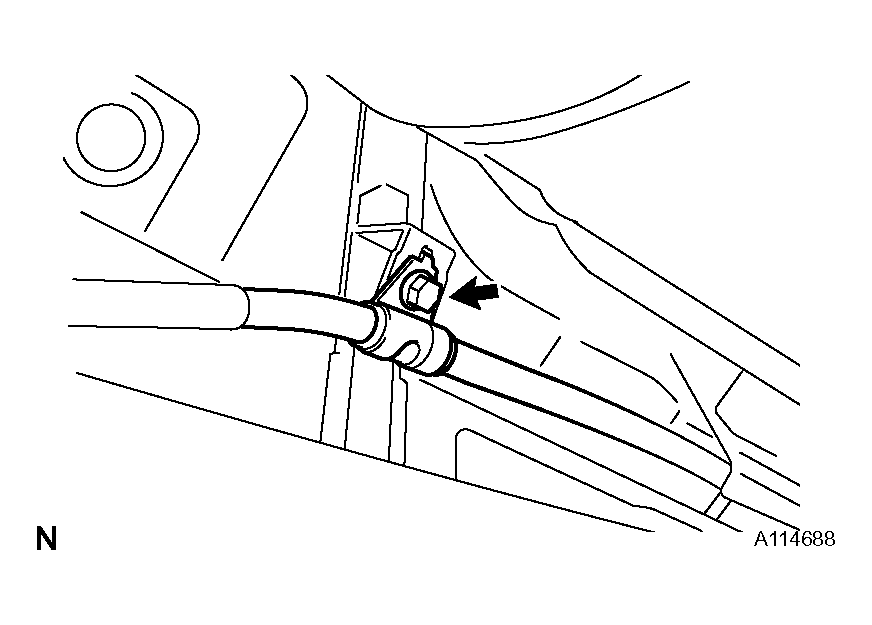

2. Remove the bolt and bracket from the body.

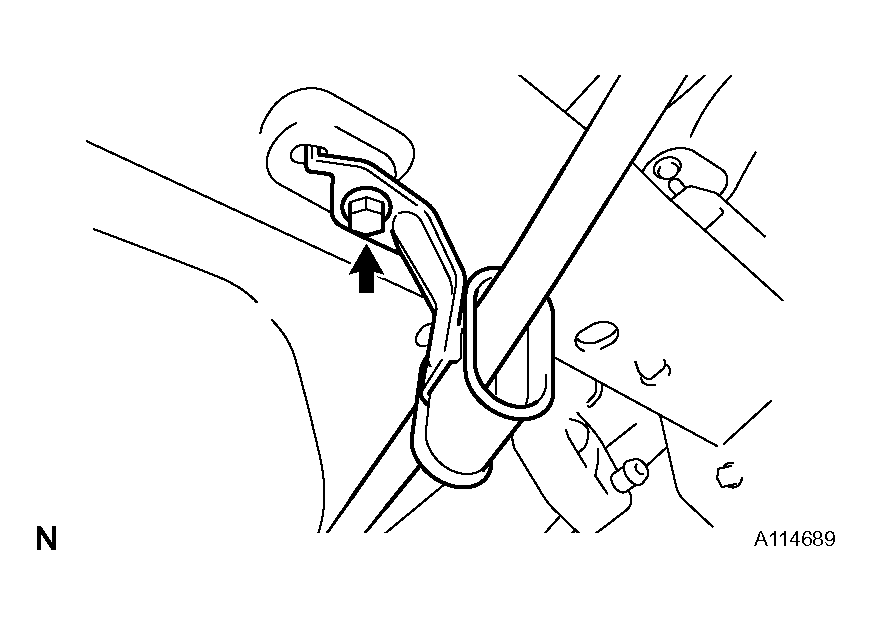

  Fig 3: Removing Bracket From Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL TANK ASSEMBLY
1. Disconnect the fuel main tube, return tube and fuel tube.

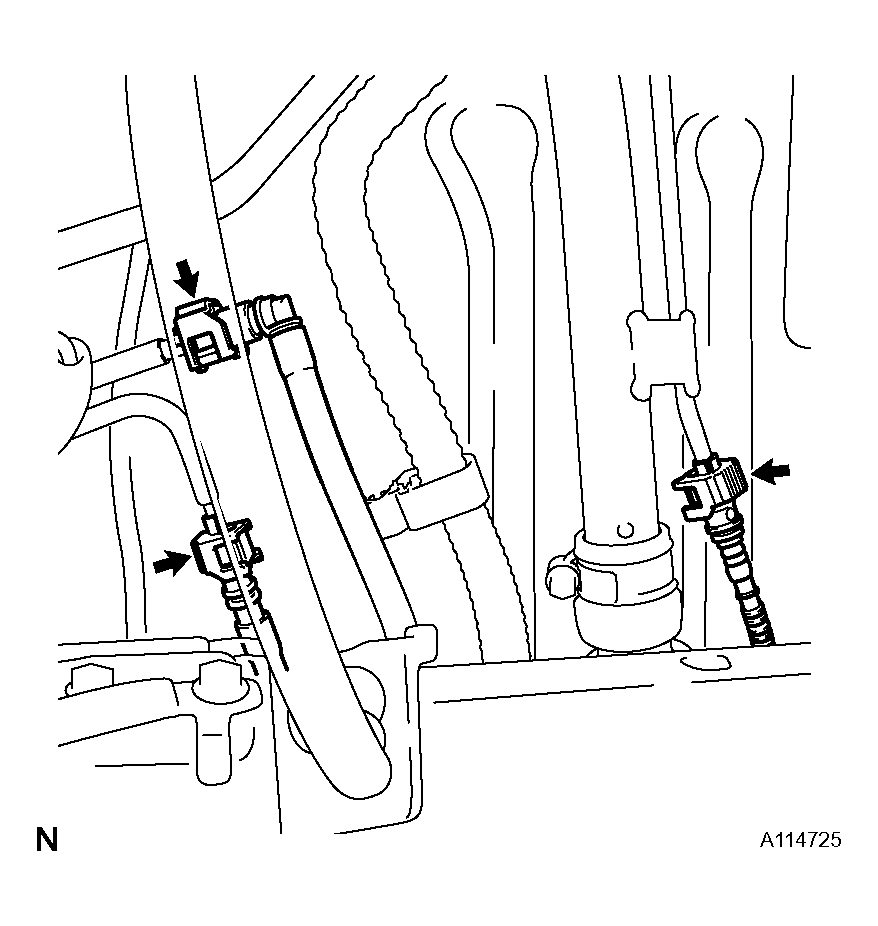

  Fig 4: Disconnecting Fuel Main Tube, Return Tube & Fuel Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. w/ Fuel hose connector cover type:

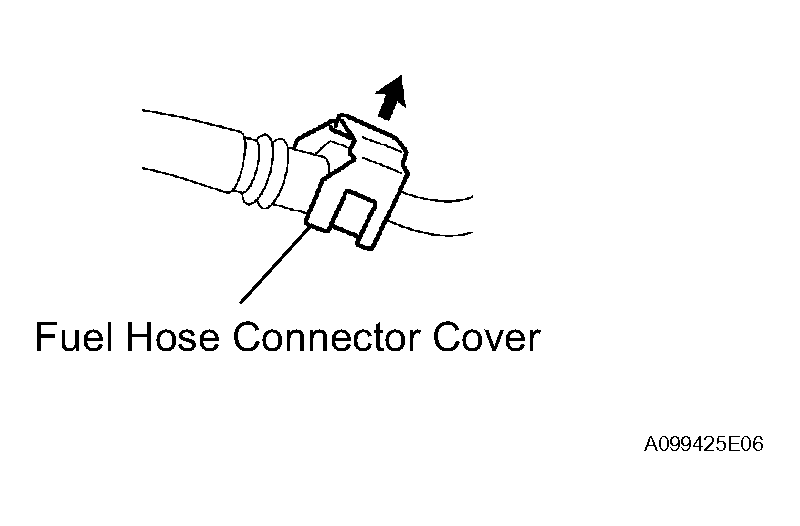

    Disengage the lock claw by lifting up the cover as shown in Fig 5.

    Fig 5: Disengaging Lock Claw By Lifting Up Cover (W/Fuel Connector Cover Type)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Check for dirt or mud on the pipe and around the connector before disconnection. Clean if necessary.
  3. Disconnect the connector and pipe by hand.
  4. If the connector and the pipe stuck, pinch the connector, and push and pull the pipe to disconnect it.

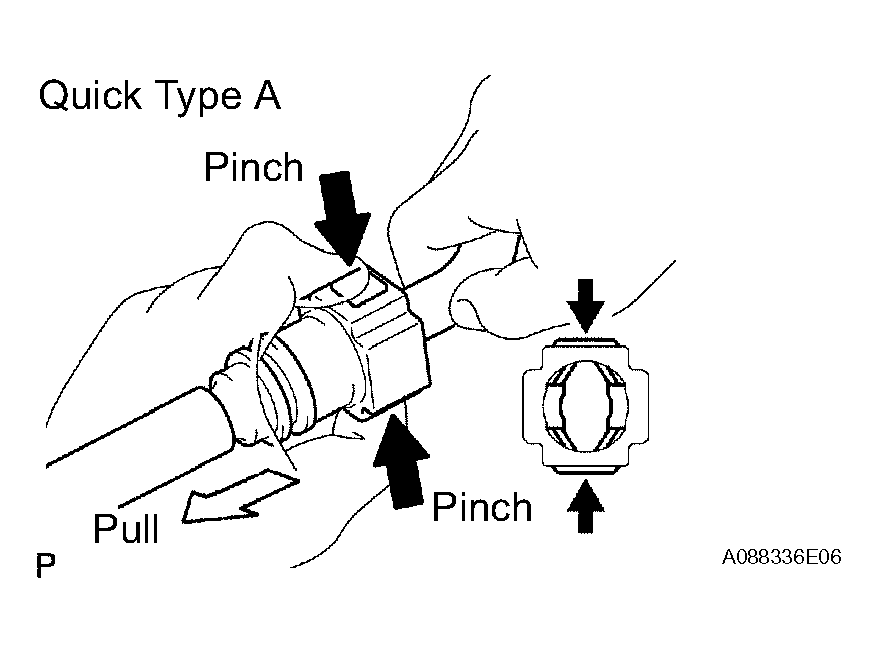

    Fig 6: Pinching Connector And Pushing & Pulling To Disconnect
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NOTE: Do not use any tools.
  5. Check for dirt or mud on the seal surface of the disconnected pipe. Clean if necessary.
  6. To protect the disconnected pipe and connector from damage and contamination, cover it with a plastic bag.

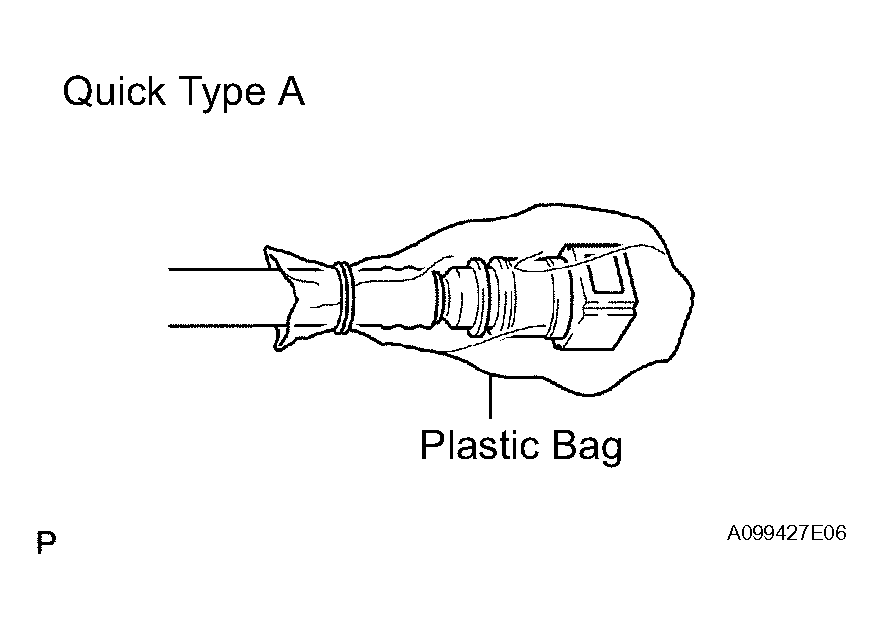

    Fig 7: Covering Fuel Tube Connector With Plastic Bag
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Loosen the bolt of the clamp and disconnect the fuel inlet hose from the fuel inlet pipe.

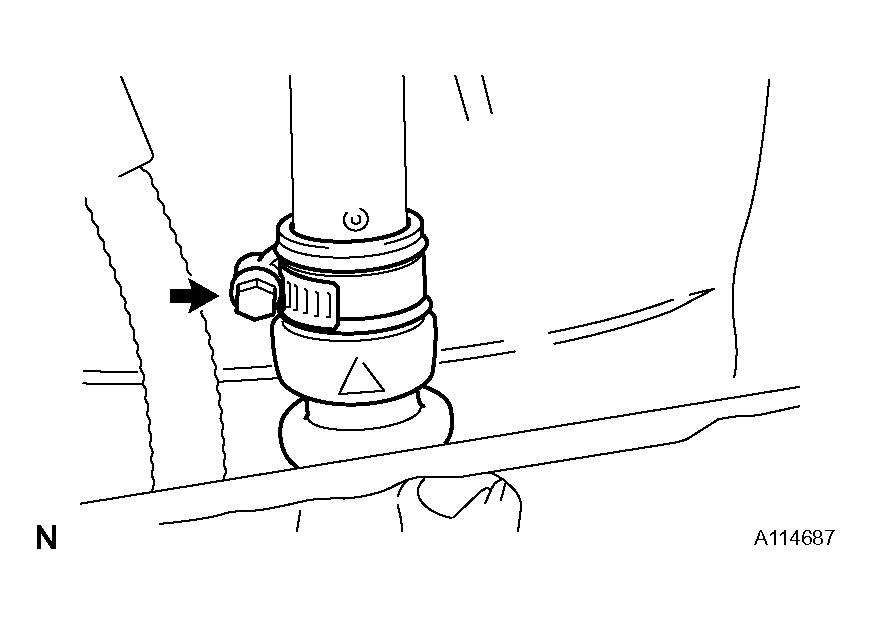

  Fig 8: Disconnecting Fuel Inlet Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Set up a transmission jack under the fuel tank.

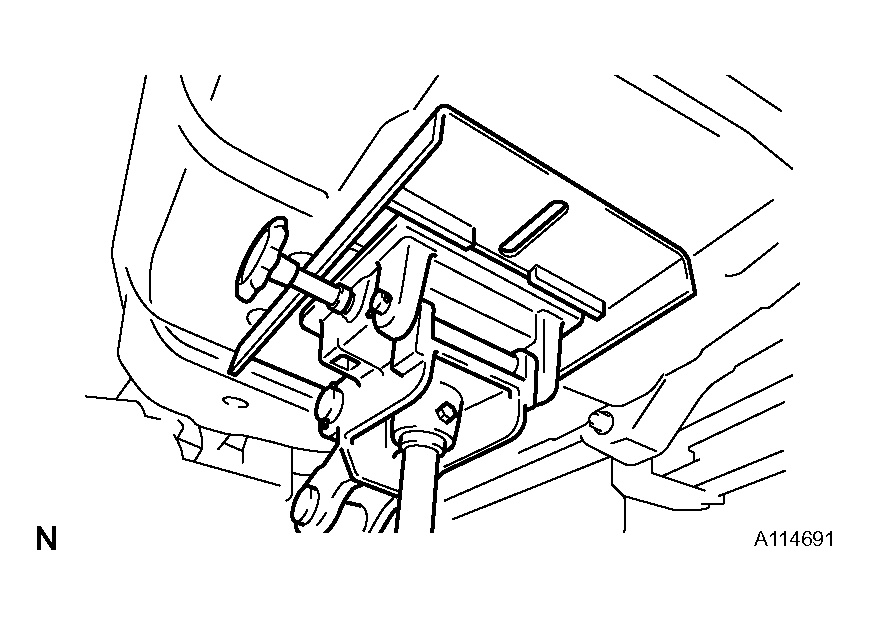

  Fig 9: Placing Transmission Jack Under Fuel Tank
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 2 bolts and disconnect the 2 fuel tank bands from the fuel tank.
5. Slightly lower the mission jack so that the fuel pump and sender gauge connector and 2 clamps can be removed.

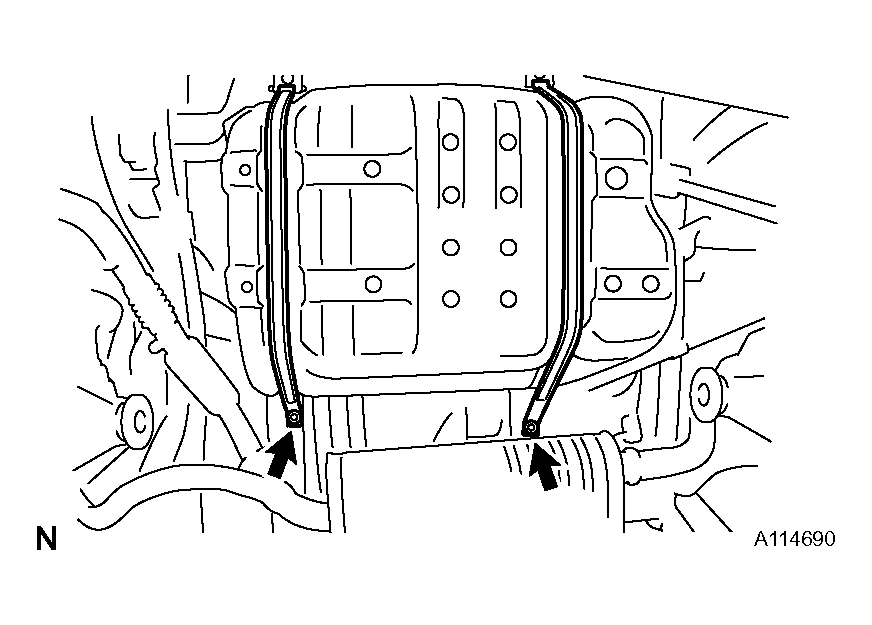

  Fig 10: Removing Fuel Tank Bands Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Do not lower the mission jack excessively as this may damage the connector.
6. Operate the transmission jack and remove the fuel tank.
REMOVE FUEL PUMP AND SENDER GAUGE ASSEMBLY (See REMOVAL )
REMOVE FUEL INLET HOSE
REMOVE FUEL HOSE
