Ignition Coil: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE V-BANK COVER SUB-ASSEMBLY (See  REMOVAL  )
  3. REMOVE INTAKE AIR CONNECTOR PIPE (See  REMOVAL  )
  4. DISCONNECT ENGINE WIRE
    1. Disconnect the 2 engine wire clamps from the cylinder head cover LH side.
  5. REMOVE IGNITION COIL ASSEMBLY
    1. Disconnect the connector.
    2. Remove the bolt and ignition coil.

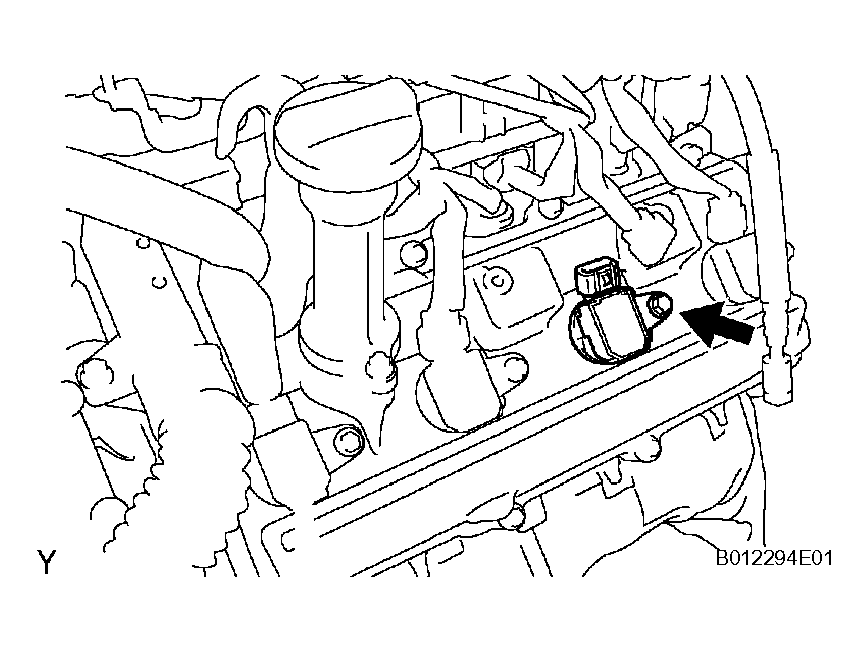

    Fig 1: Removing Ignition Coil
    G04436341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
