On-Vehicle Inspection

NOTE: In this step, the terms "cold" and "hot" refer to the temperature of the coils.
  • "Cold" means approximately -10 to 50°C (14 to 122°F).
  • "Hot" means approximately 50 to 100°C (122 to 212°F).
  1. PERFORM SPARK TEST
    1. Check for DTCs.
      NOTE: If a DTC is present, perform troubleshooting procedures for that DTC.
    2. Check if spark occurs.
      1. Remove the ignition coil.
      2. Remove the spark plug.
      3. Install the spark plugs to the ignition coil and connect the ignition coil connector.
      4. Disconnect the 8 injector connectors.
      5. Ground the spark plug.
      6. Visually check that sparks occur while the engine is being cranked.
        NOTE: To prevent gasoline from being injected from injectors during this test, crank the engine 5 to 10 seconds at a time.
        • Be sure to ground the spark plug when checking.
        • If the ignition coil has been struck or dropped, replace it.
        • Do not crank the engine for more than 2 seconds.
    3. Perform the spark test according to the flowchart below.
      1. Check that the wire harness side connector of the ignition coil with igniter is securely connected.

        Result

        SPARK TEST (1 OF 2)

        Result Proceed to
        NG Connect connector securely.
        OK Go to next step
      2. Perform a spark test on each ignition coil with igniter.
        1. Replace the ignition coil with igniter with a normal one.
        2. Perform the spark test again.

          Result

          SPARK TEST (2 OF 2)

          Result Proceed to
          OK Replace ignition coil with igniter.
          NG Go to next step
      3. Check the power supply to the ignition coil with igniter.
        1. Turn the ignition switch ON.
        2. Check that there is battery voltage at the ignition coil positive (+) terminal.

          Result

          POWER SUPPLY TO IGNITION COIL

          Result Proceed to
          NG Check wiring between engine switch and ignition coil with igniter.
          OK Go to next step
      4. Check the resistance of the camshaft position sensor.

        Standard resistance

        CAMSHAFT POSITION SENSOR (1 OF 2)

        Temperature Specified Condition
        Cold 1,630 to 2,740 Ω
        Hot 2,065 to 3,225 Ω

        Result

        CAMSHAFT POSITION SENSOR (2 OF 2)

        Result Proceed to
        NG Replace camshaft position sensor.
        OK Go to next step
      5. Check the resistance of the crankshaft position sensor.

        Standard resistance

        CRANKSHAFT POSITION SENSOR (1 OF 2)

        Temperature Specified Condition
        Cold 985 to 1,600 Ω
        Hot 1,265 to 1,890 Ω

        Result

        CRANKSHAFT POSITION SENSOR (2 OF 2)

        Result Proceed to
        NG Replace crankshaft position sensor.
        OK Go to next step
      6. Check IGT signal from the ECM.

        Result

        ECM

        Result Proceed to
        NG Check ECM
        OK Repair wiring between ignition coil and ECM.
    4. Using a 16 mm plug wrench, install the 8 spark plugs.

      Torque: 17.5 N*m (178 kgf*cm, 13 ft.*lbf)

    5. Install the ignition coil with the bolt.

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

  2. CHECK SPARK PLUG
    NOTE:
    • Do not use a wire brush for cleaning.
    • Do not attempt to adjust the electrode gap of a used spark plug.
    1. Check the electrode.
      1. Using a megohmmeter, measure the insulation resistance.

        Insulation resistance: 10 MΩ or more

        HINT:

        If a megohmmeter is not available, perform the following simple inspection instead.

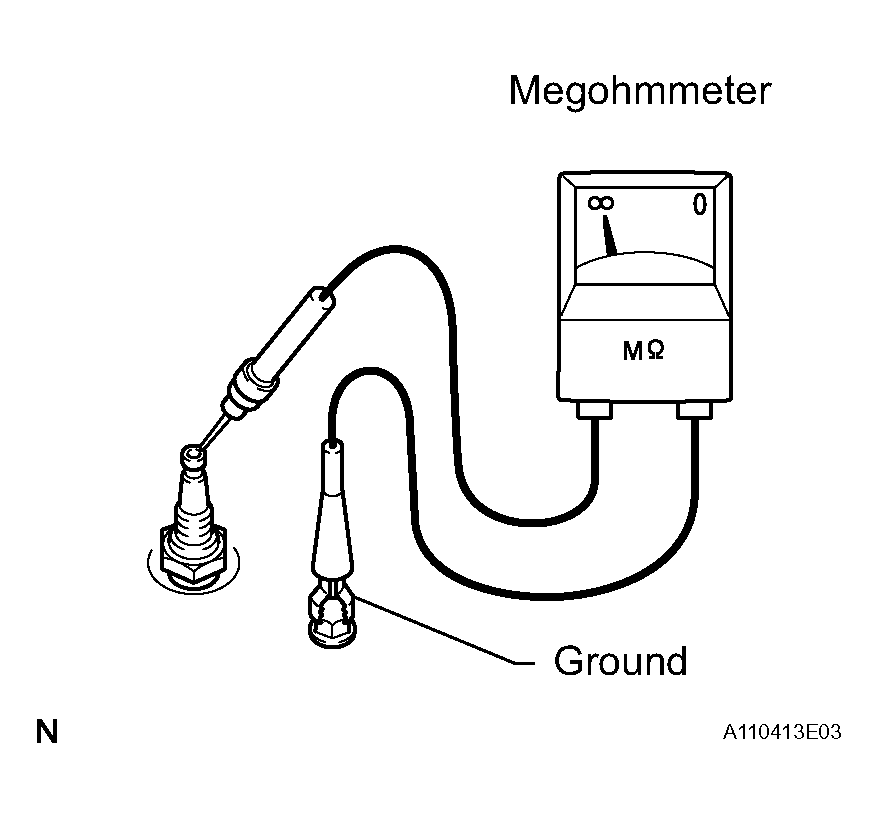

        Fig 1: Checking Electrode
        G04436337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Alternative inspection method:
      1. Quickly accelerate the engine to 4,000 rpm 5 times.
      2. Remove the spark plug.
      3. Visually check the spark plug. If the electrode is dry, the spark plug is functioning properly. If the electrode is damp, proceed to the next step.
    3. Check the spark plug for any damage on its thread and insulator.

      If there is damage, replace the spark plug. If not, reinstall the spark plug.

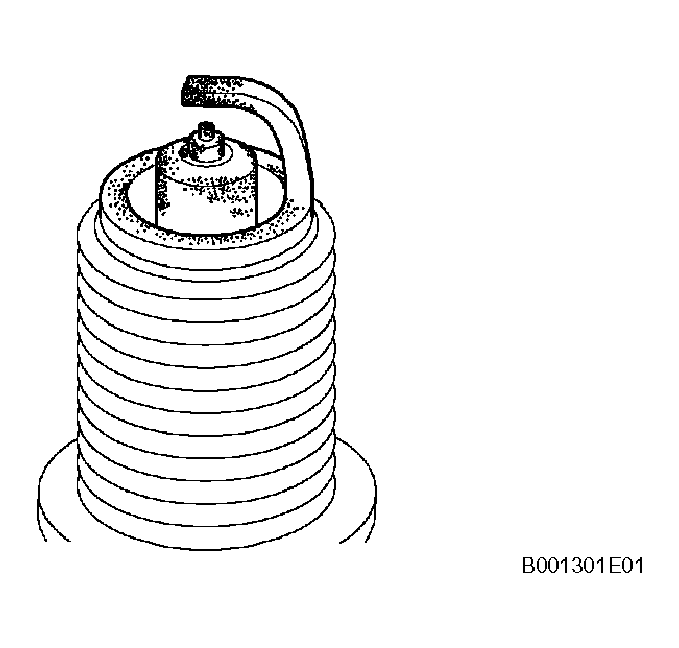

      Fig 2: Inspecting Spark Plug
      G04436338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Recommended spark plug

      SPARK PLUG

      Manufacturer Spark Plug Type
      DENSO SK20R11
      NGK IFR6A11
    4. Check the spark plug electrode gap.

      Maximum electrode gap for used spark plug: 1.3 mm (0.051 in.)

      If the gap is greater than the maximum, replace the spark plug.

      Electrode gap for new spark plug: 1.0 to 1.1 mm (0.039 to 0.043 in.)

      NOTE: When adjusting the gap of a new spark plug, bend only the base of the ground electrode. Do not touch the tip. Never attempt to adjust the gap of a used spark plug.

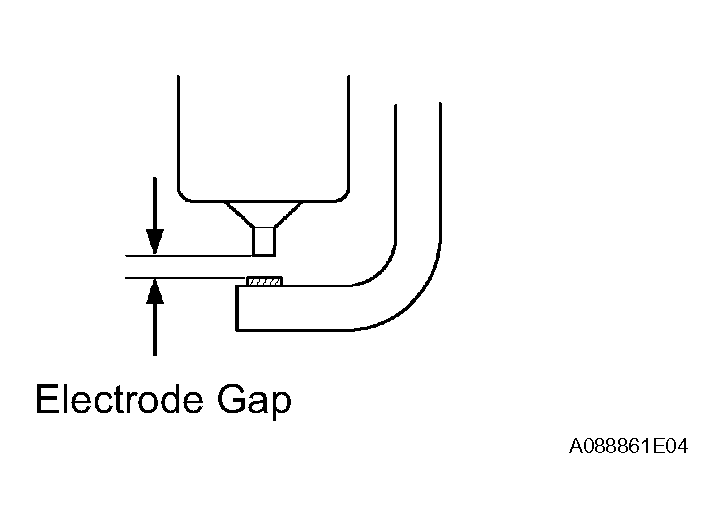

      Fig 3: Checking Spark Plug Electrode Gap
      G04436339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
