Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER

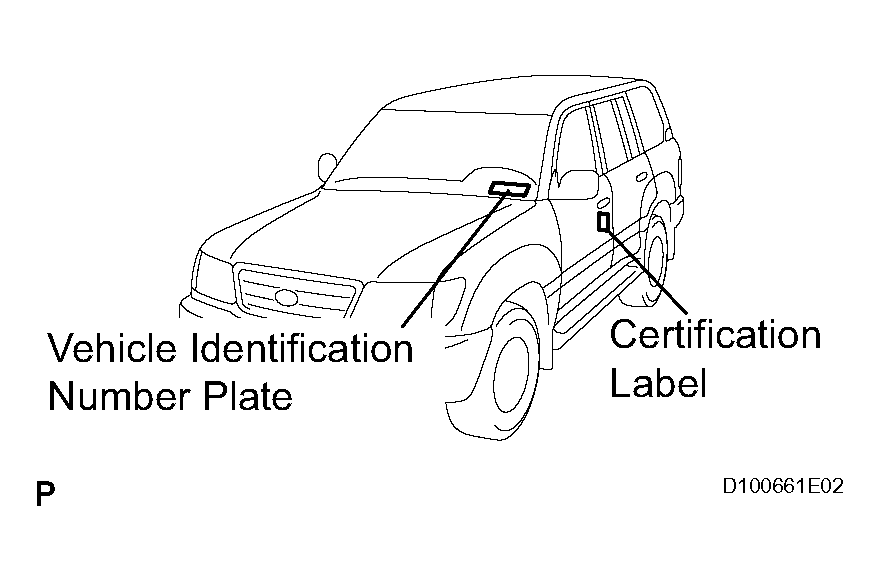

Fig 1: Identifying Vehicle Identification & Serial Numbers Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. The vehicle identification number is stamped on the vehicle identification number plate and on the certification label, as shown.
  1. Vehicle Identification Number Plate
  2. Certification Label
ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine and the transmission serial number is stamped on the housing as shown.
  1. Engine Serial Number

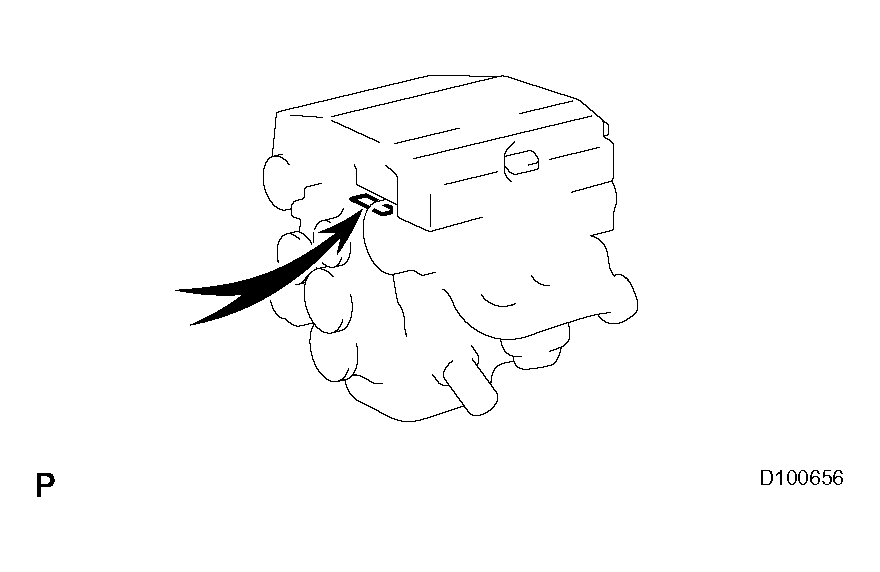

    Fig 2: Identifying Engine Serial Number Location
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Transmission Serial Number

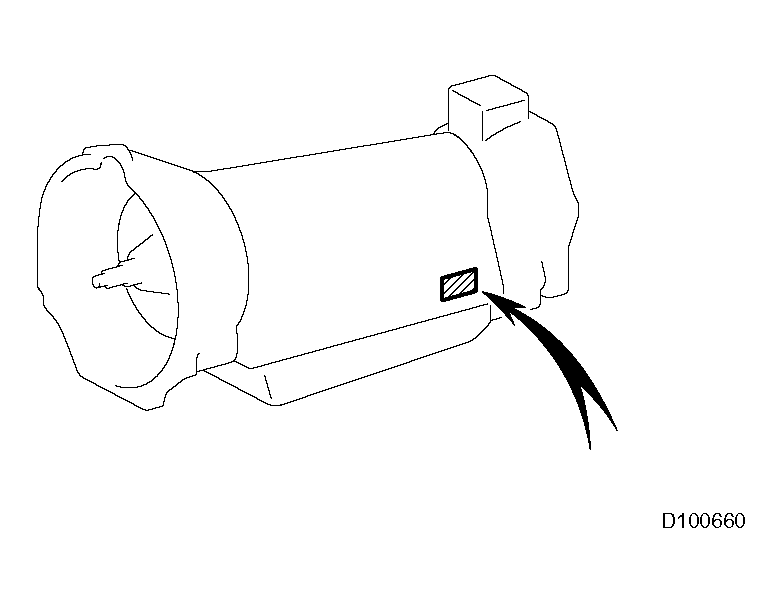

    Fig 3: Identifying Transmission Serial Number Location
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
