Inner Rear View Mirror: Components

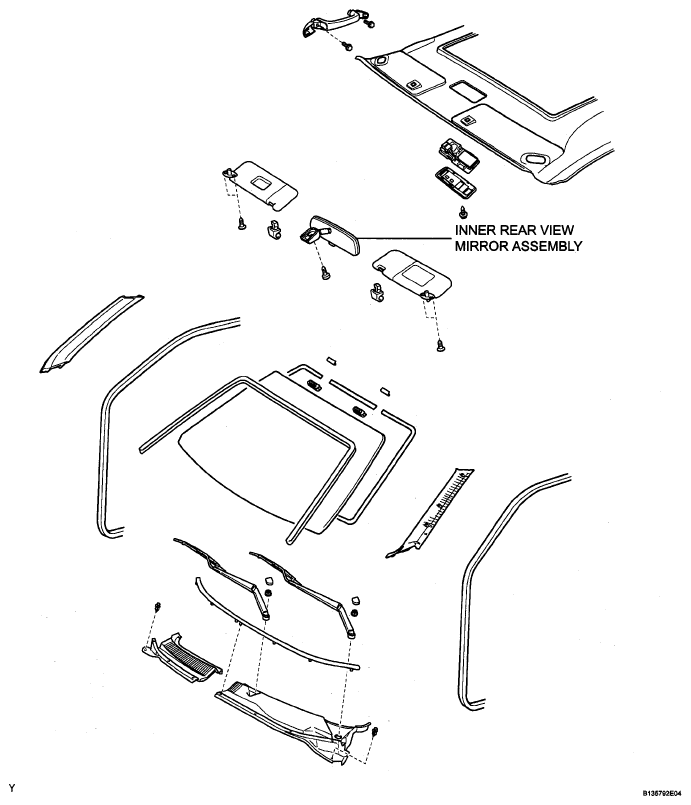

Fig 1: Identifying Inner Rear View Mirror Components
G05237239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
