Outer Rear View Mirror: Components

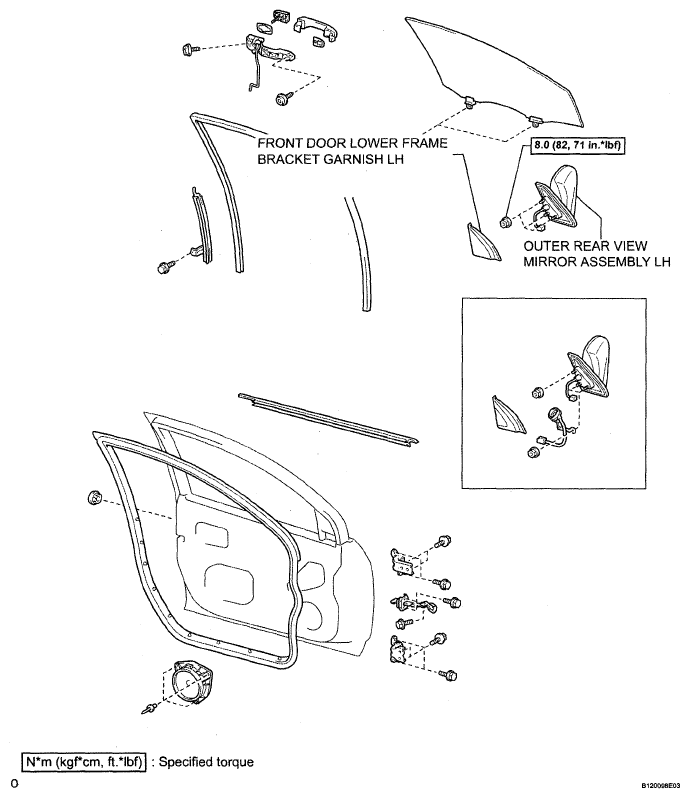

Fig 1: Outer Rear View Mirror Replacement Components With Torque Specifications
G05196280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

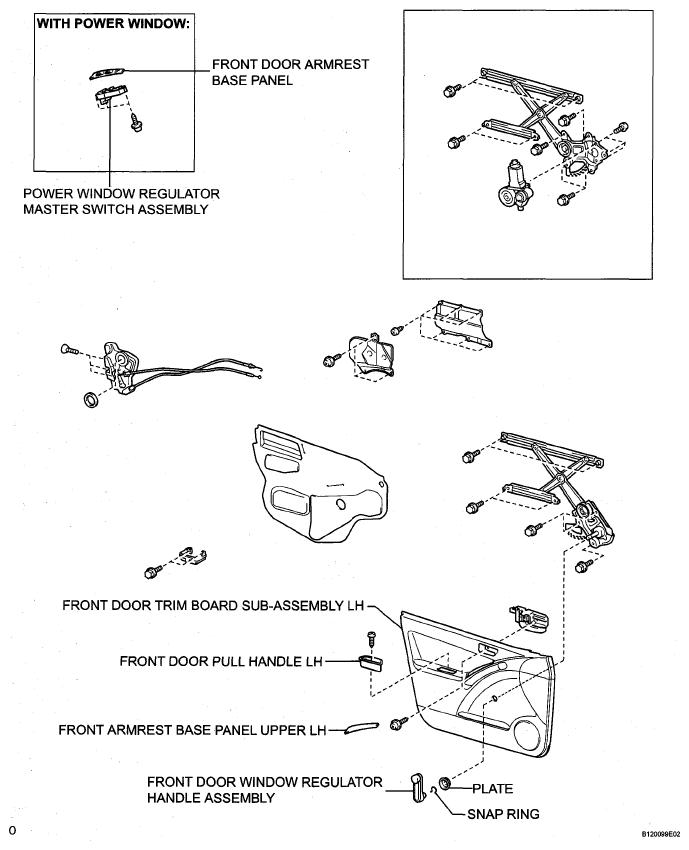

Fig 2: Identifying Outer Rear View Mirror Components With Power Window
G05237245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
