Windshield Glass: Components

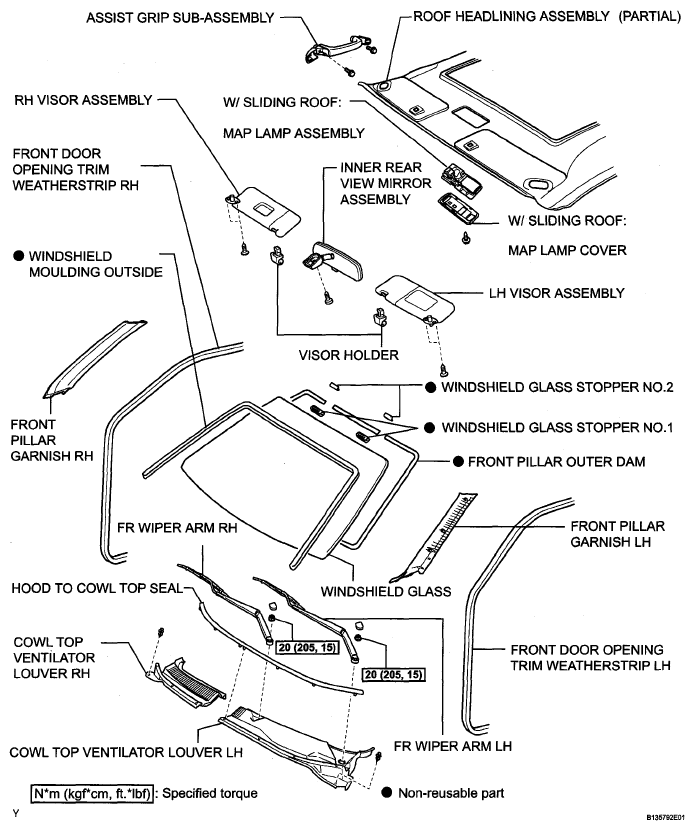

Fig 1: Windshield Glass Replacement Components With Torque Specifications
G05237201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
