Air Conditioning: Notes

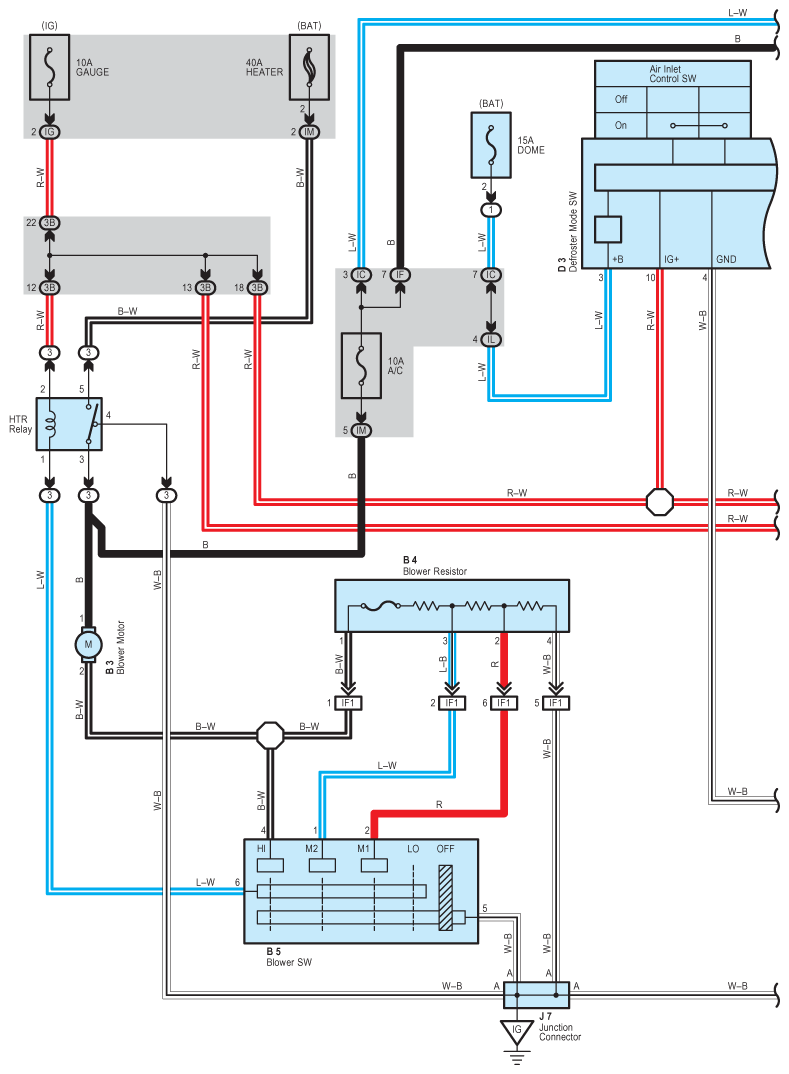

Fig 1: Air Conditioning System Wiring Diagram (1 Of 3)
G08790453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

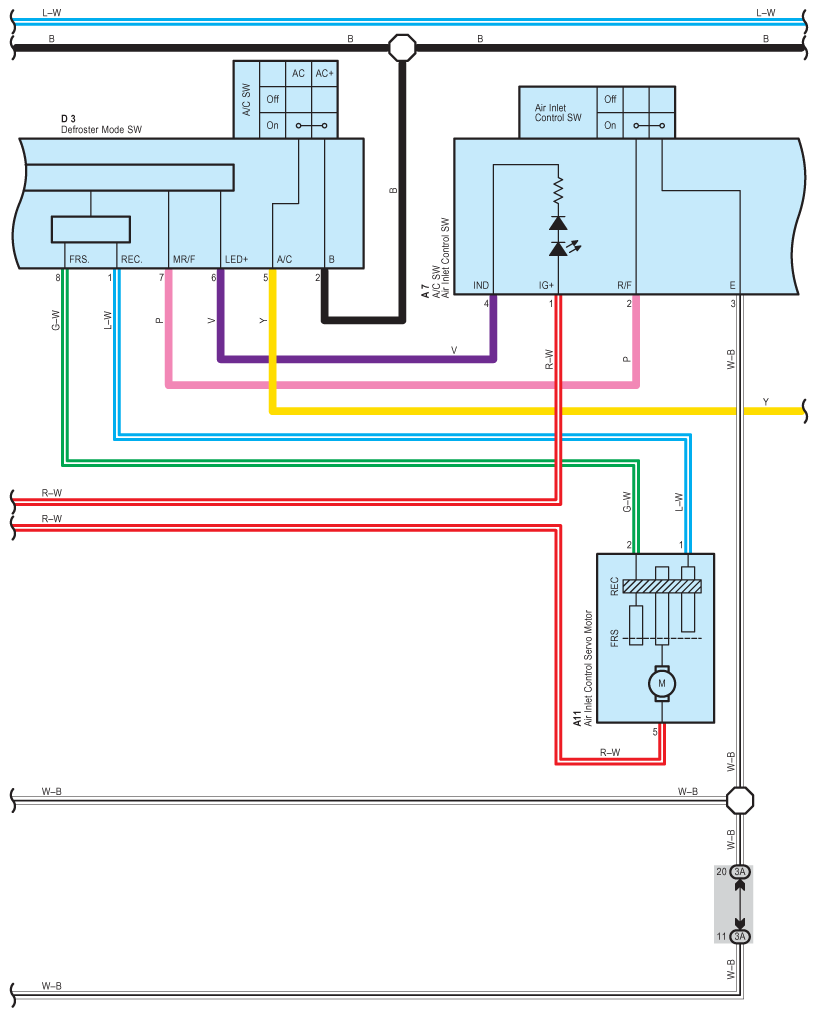

Fig 2: Air Conditioning System Wiring Diagram (2 Of 3)
G08790454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

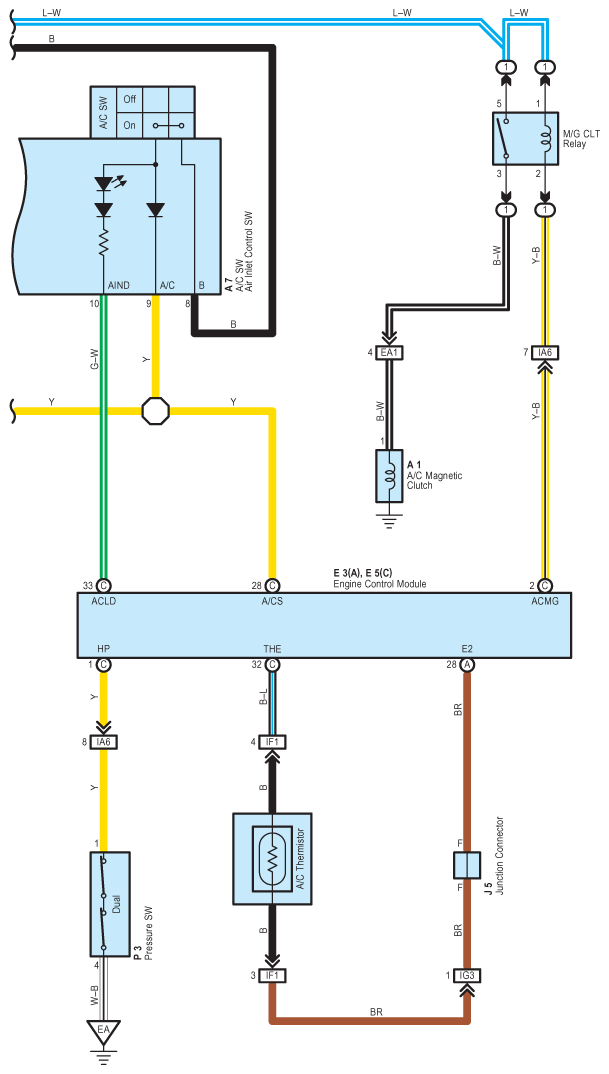

Fig 3: Air Conditioning System Wiring Diagram (3 Of 3)
G08790455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
