Cruise Control: Notes

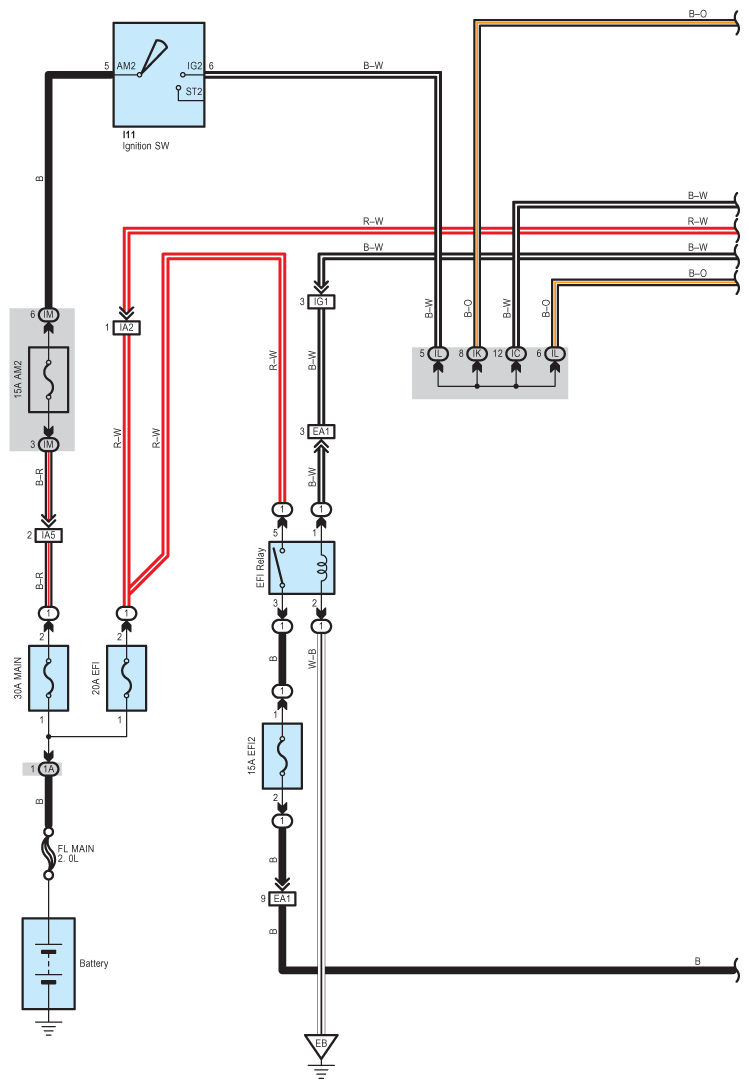

Fig 1: Cruise Control System Wiring Diagram (1 Of 4)
G08790420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

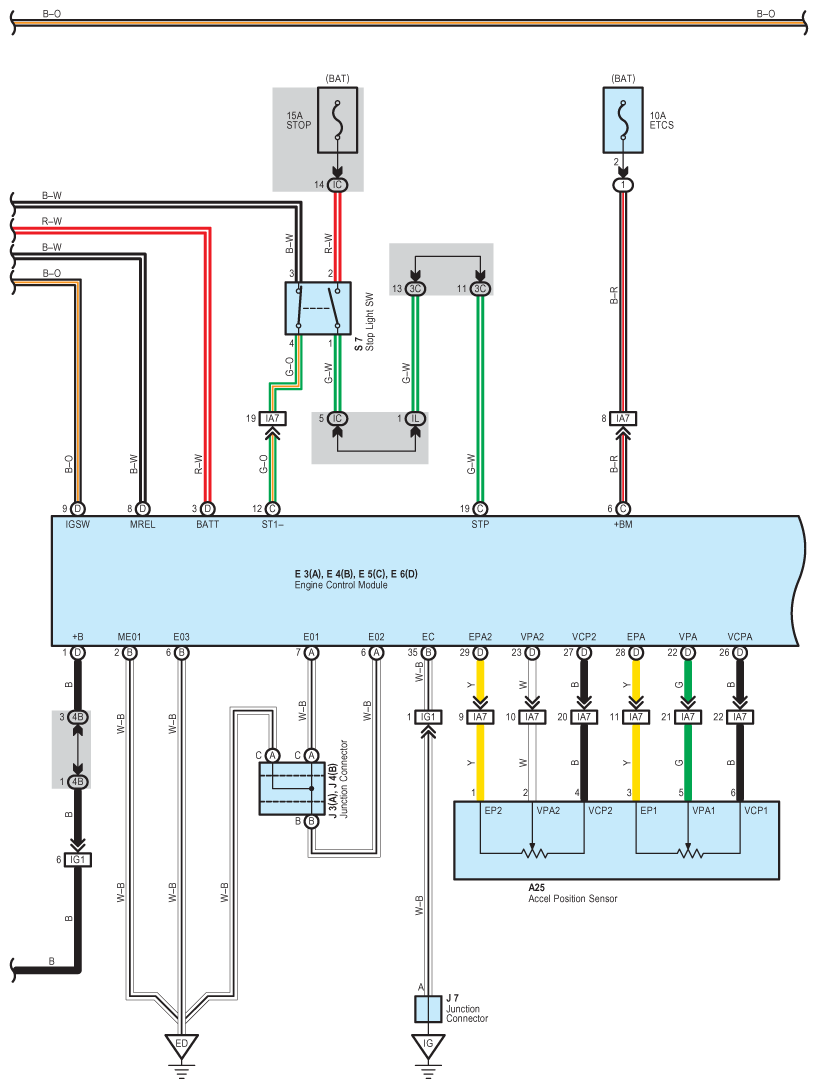

Fig 2: Cruise Control System Wiring Diagram (2 Of 4)
G08790421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

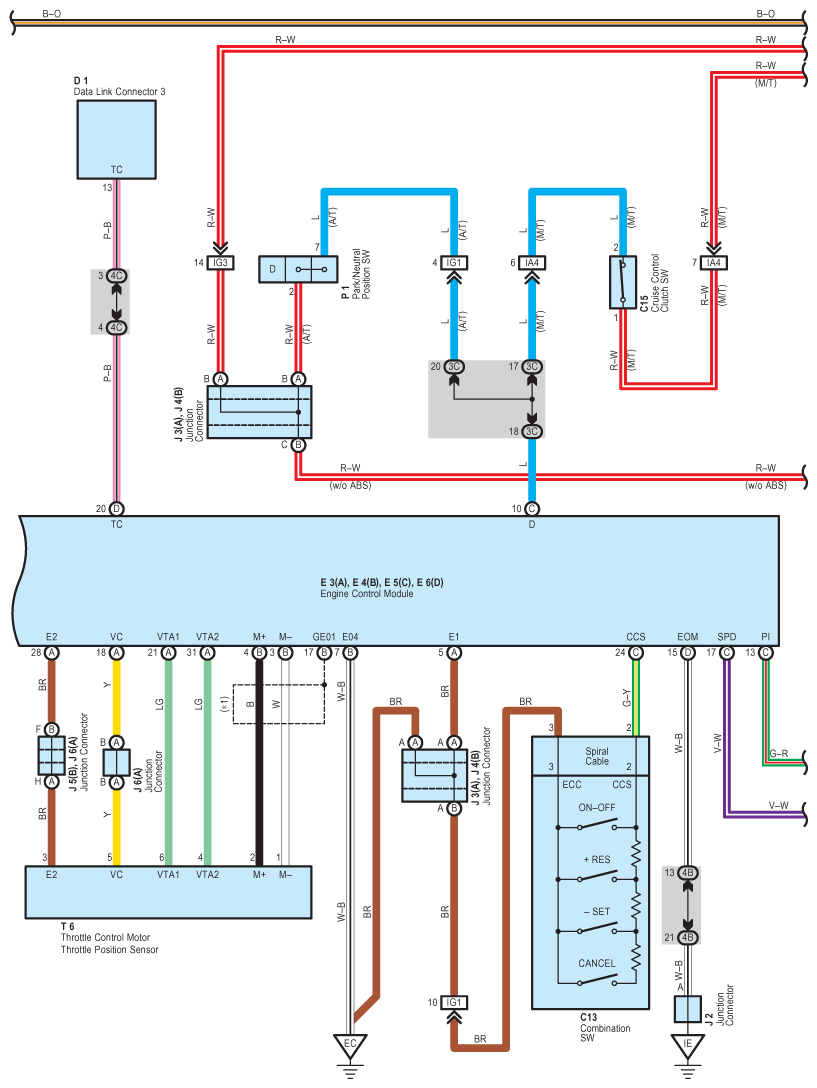

Fig 3: Cruise Control System Wiring Diagram (3 Of 4)
G08790422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

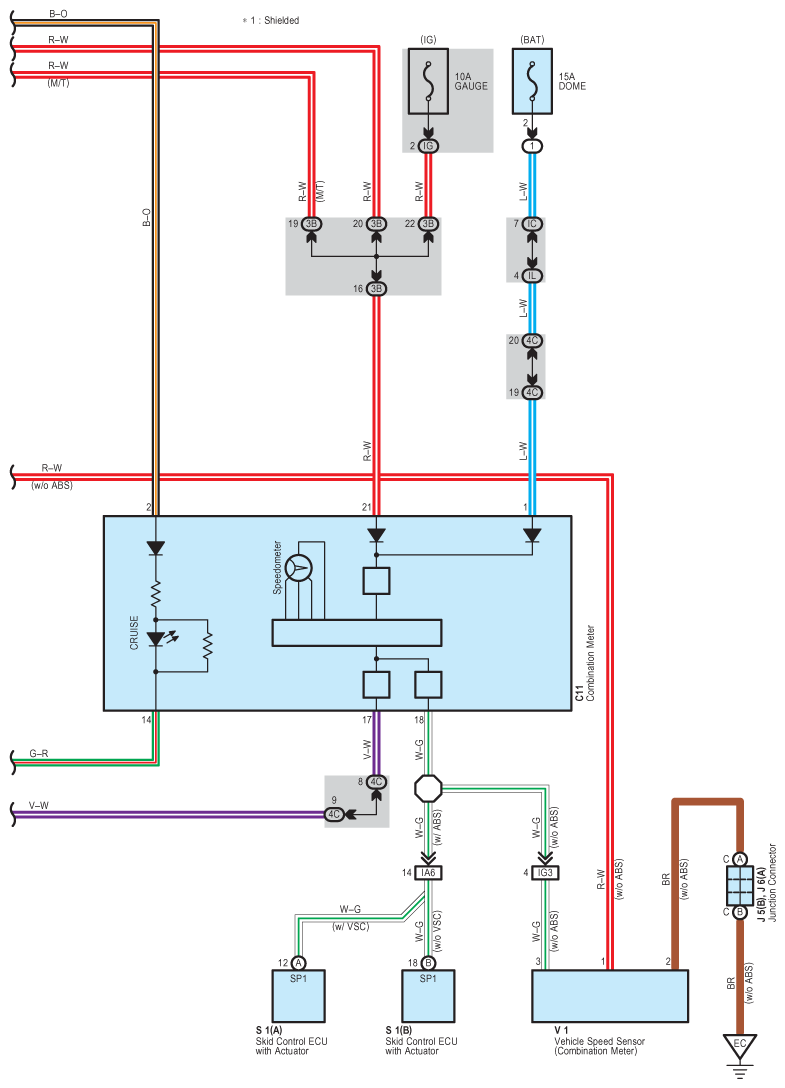

Fig 4: Cruise Control System Wiring Diagram (4 Of 4)
G08790423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
