Engine Immobiliser System: Notes

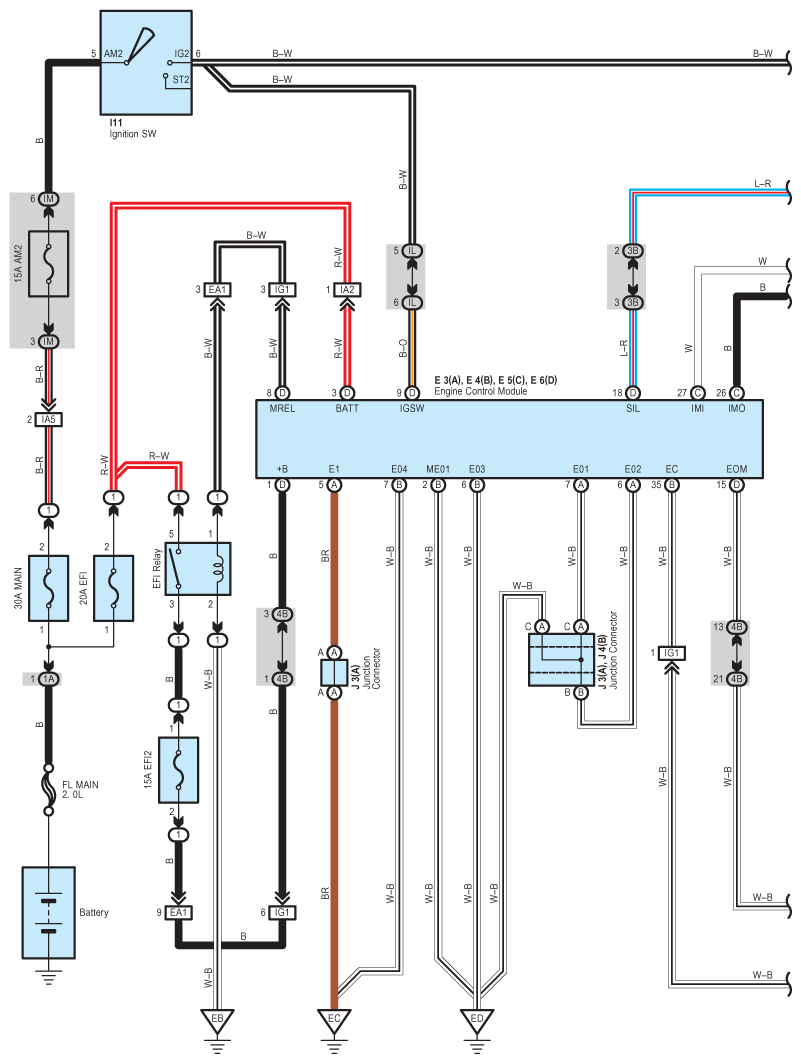

Fig 1: Engine Immobiliser System Wiring Diagram (1 Of 2)
G08790375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

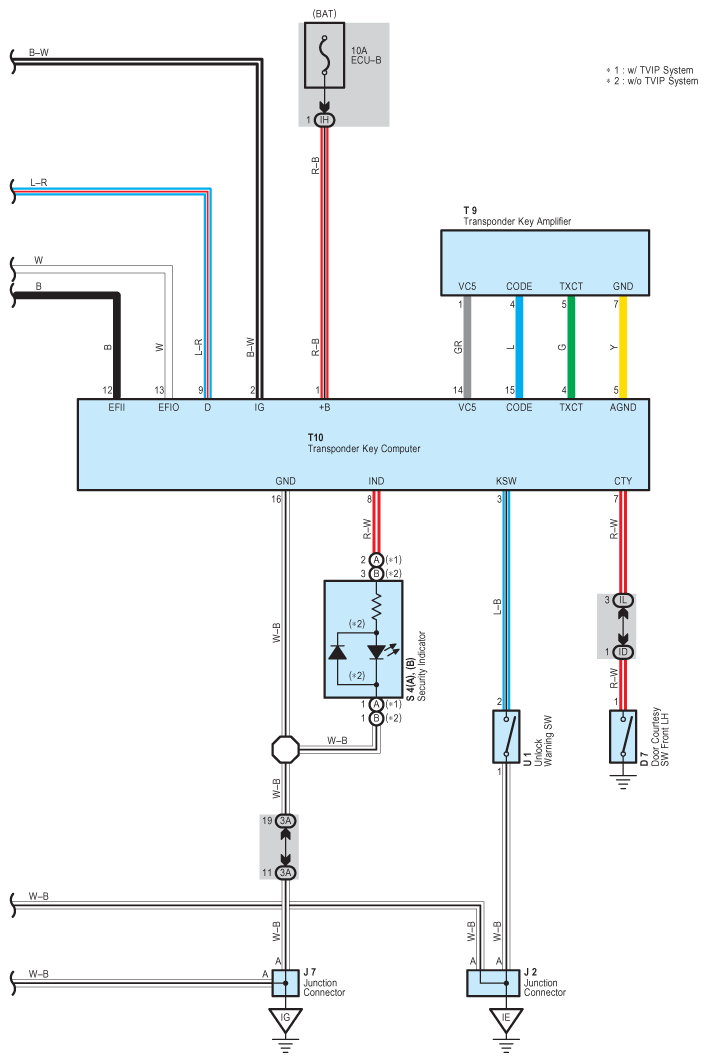

Fig 2: Engine Immobiliser System Wiring Diagram (2 Of 2)
G08790376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
