Key Reminder and Light Reminder: Notes

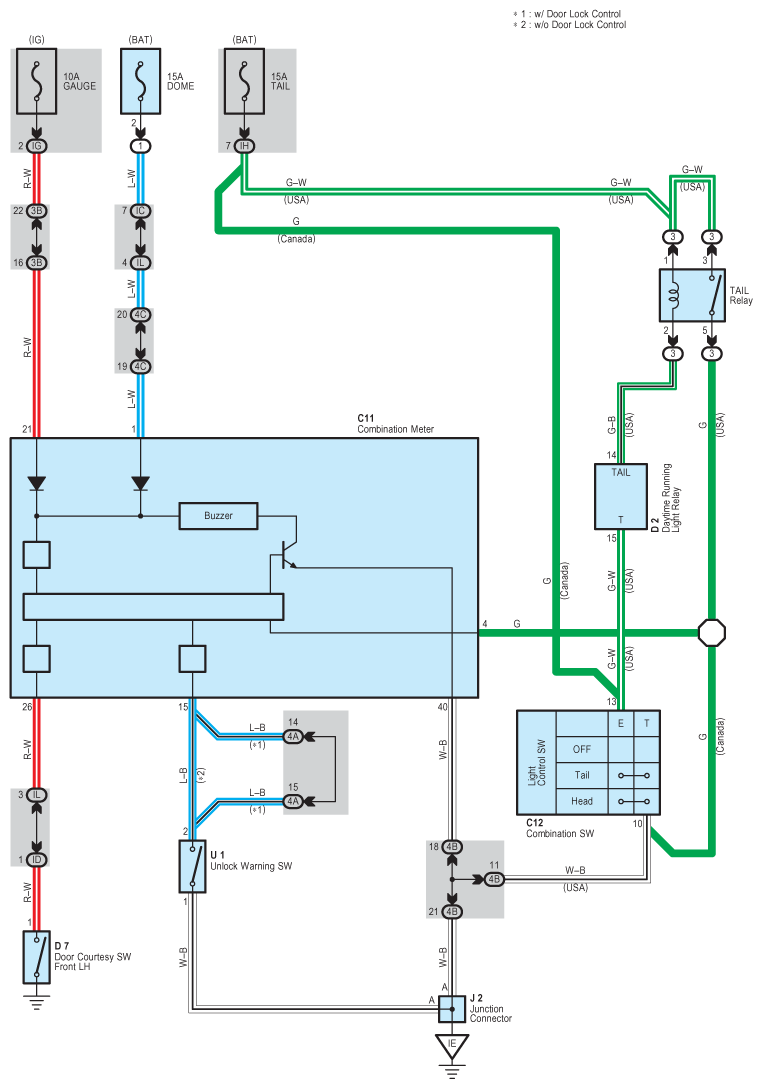

Fig 1: Key Reminder And Light Reminder System Wiring Diagram
G08790437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
