Multiplex Communication System - CAN Bus: Notes

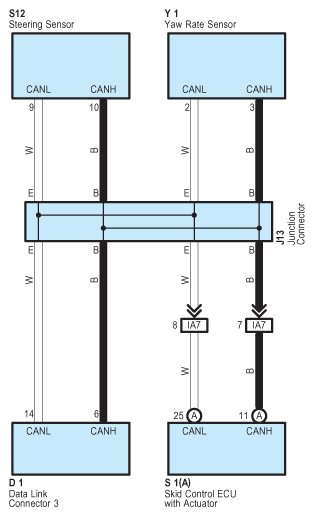

Fig 1: Multiplex Communication System - CAN Bus System Wiring Diagram
G08790377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
