Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

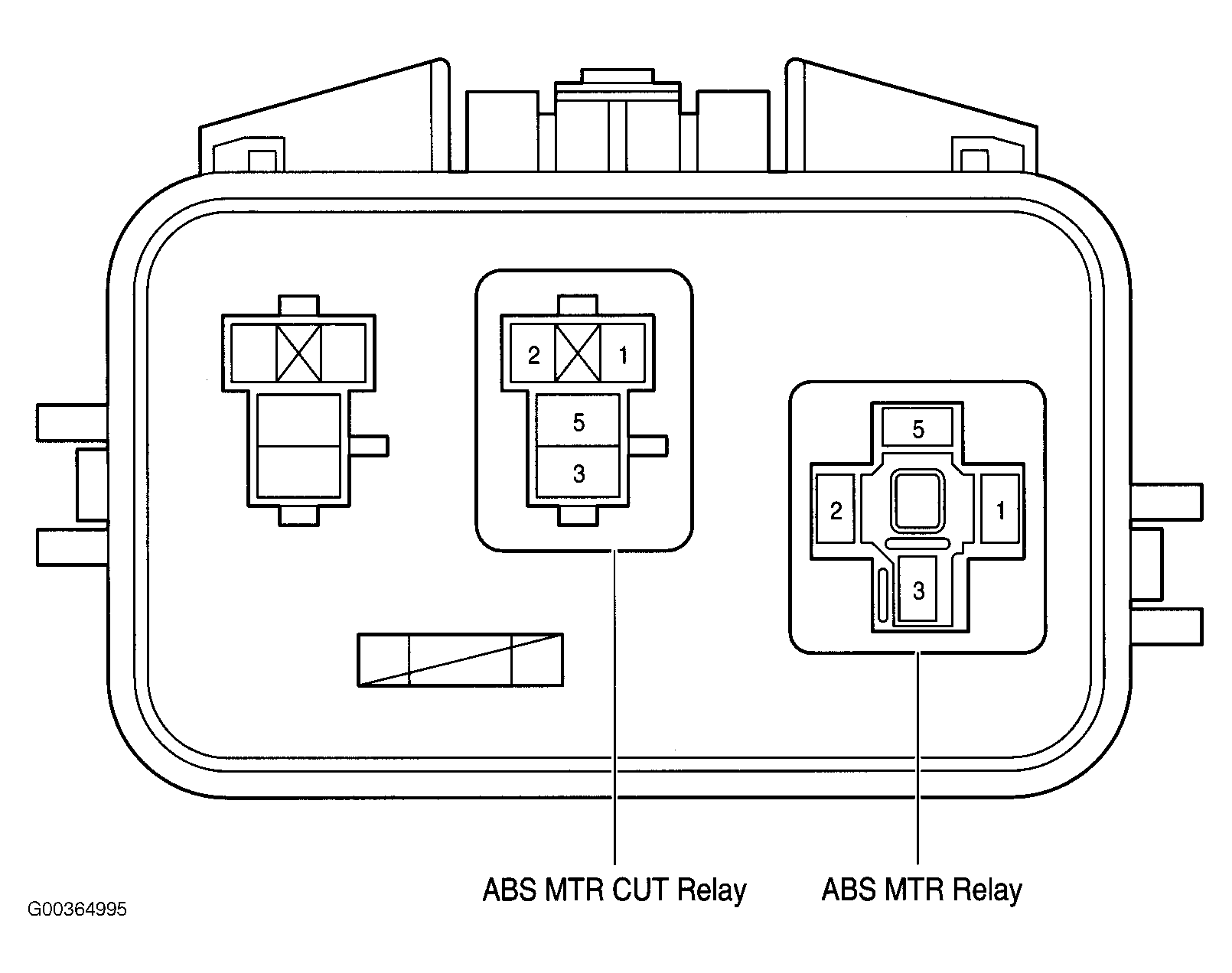

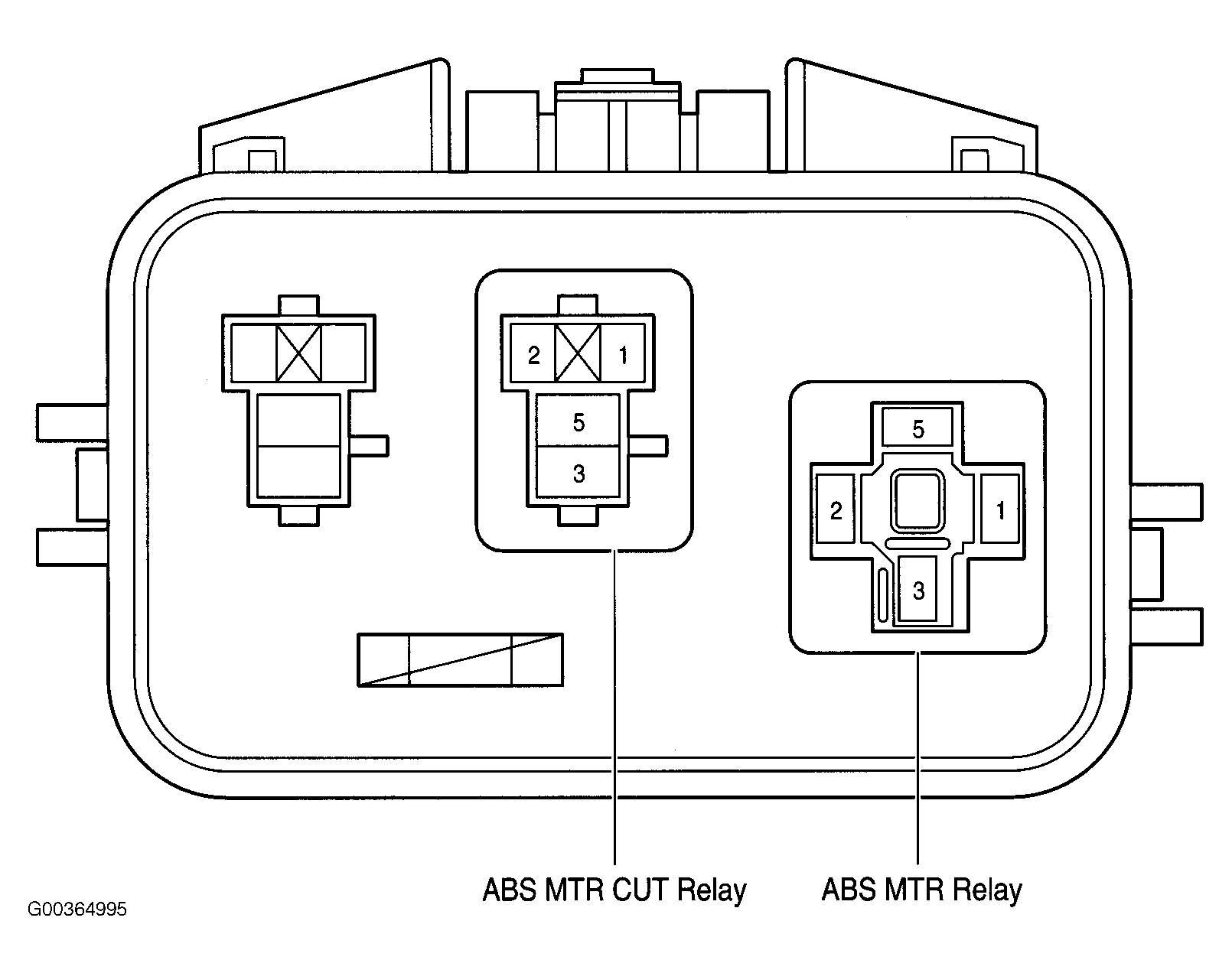

| ABS MTR CUT Relay | In ABS R/B. See Figure. |
| ABS MTR Relay | In ABS R/B. See Figure. |

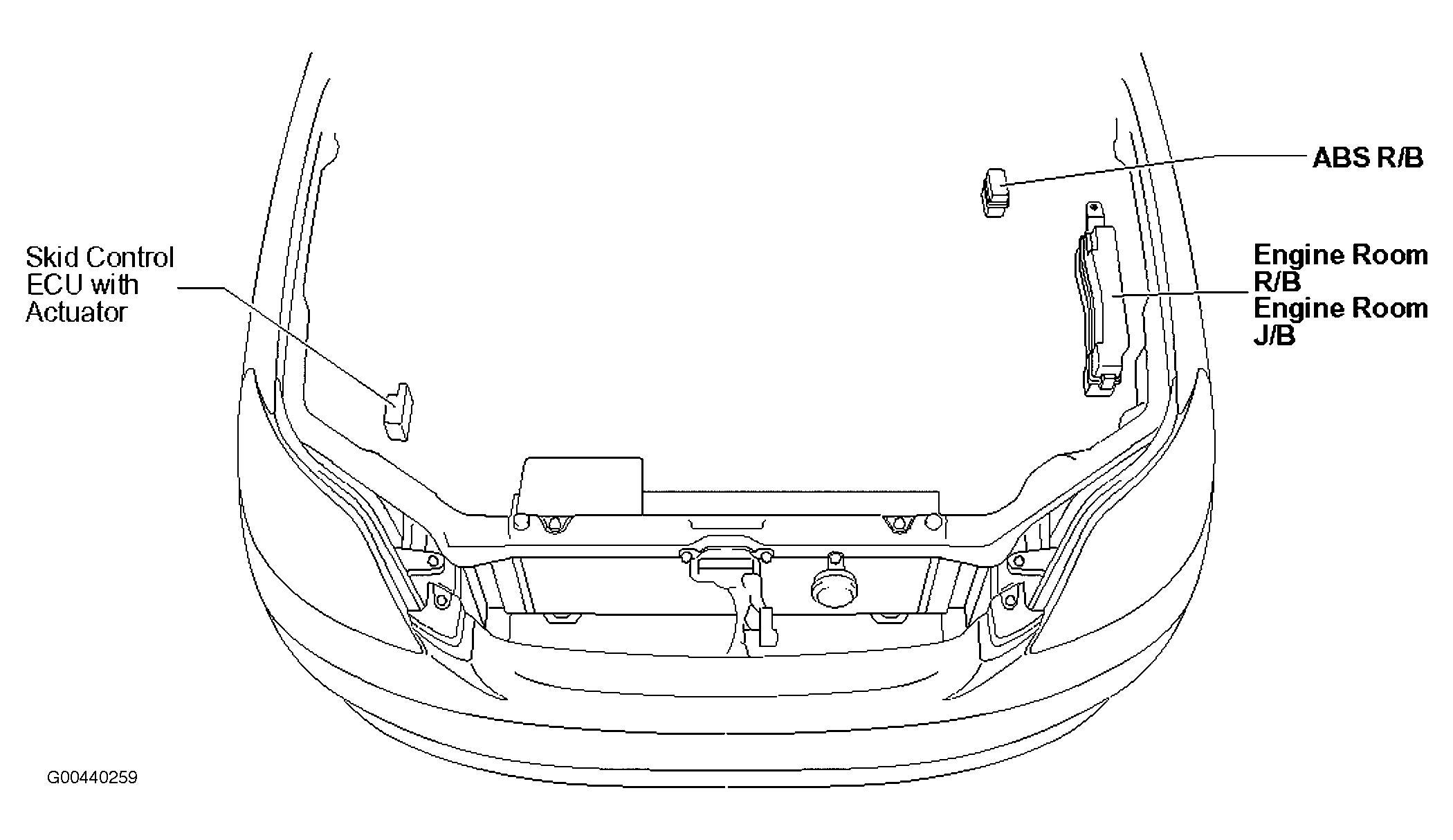

| ABS R/B | On left side of engine compartment. See Figure. |
| Center J/B | Behind left side of dash. See Figure. |
| Engine Room J/B | On left side of engine compartment. See Figure. |
| Engine Room R/B | Integral to engine room J/B. See Figure. |
| Instrument Panel J/B | Behind left side of dash. See Figure. |
| RH J/B | Behind upper right side of dash. See Figure. |
| RH R/B | Integral to RH J/B. See Figure. |
