Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

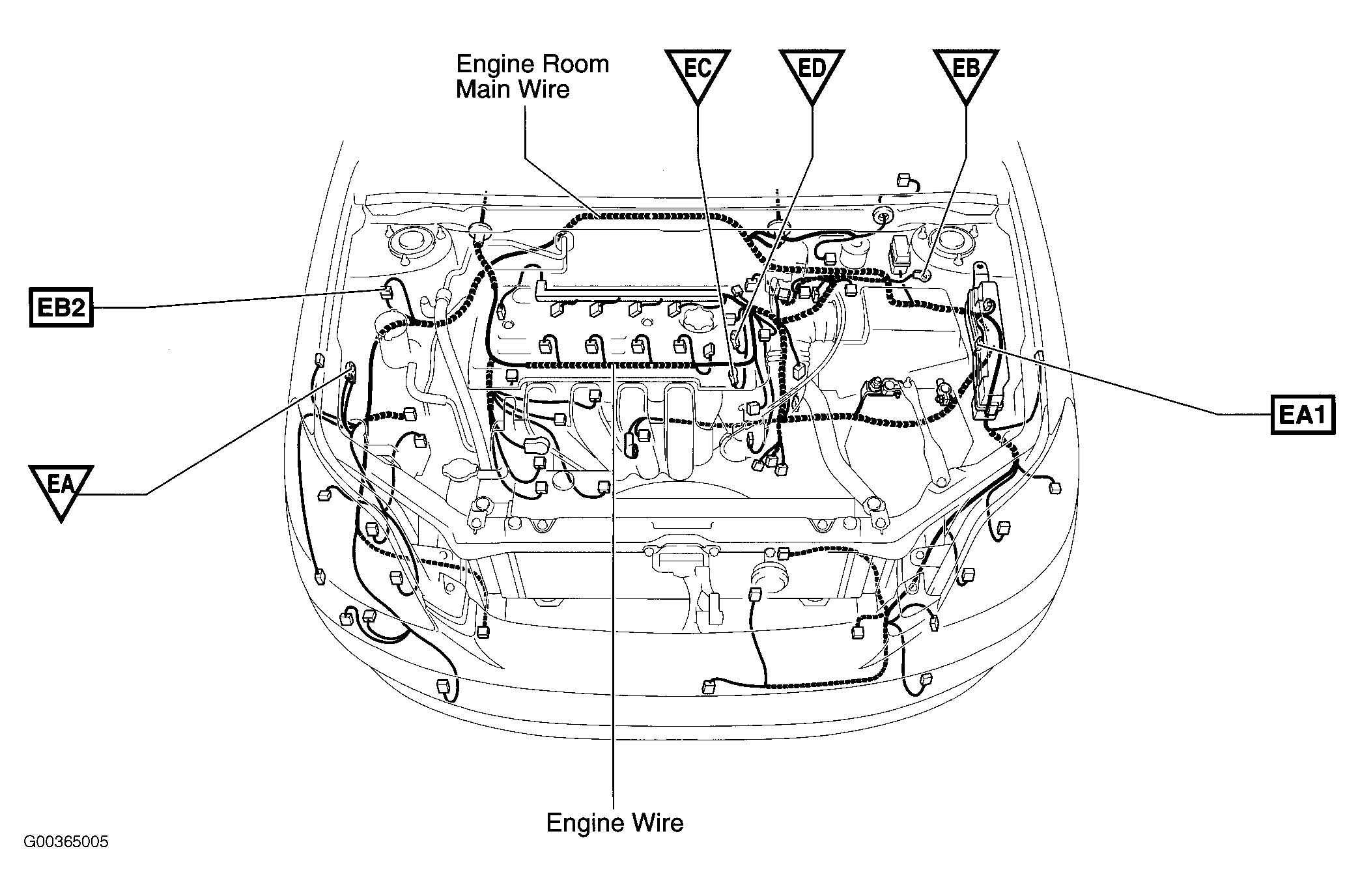

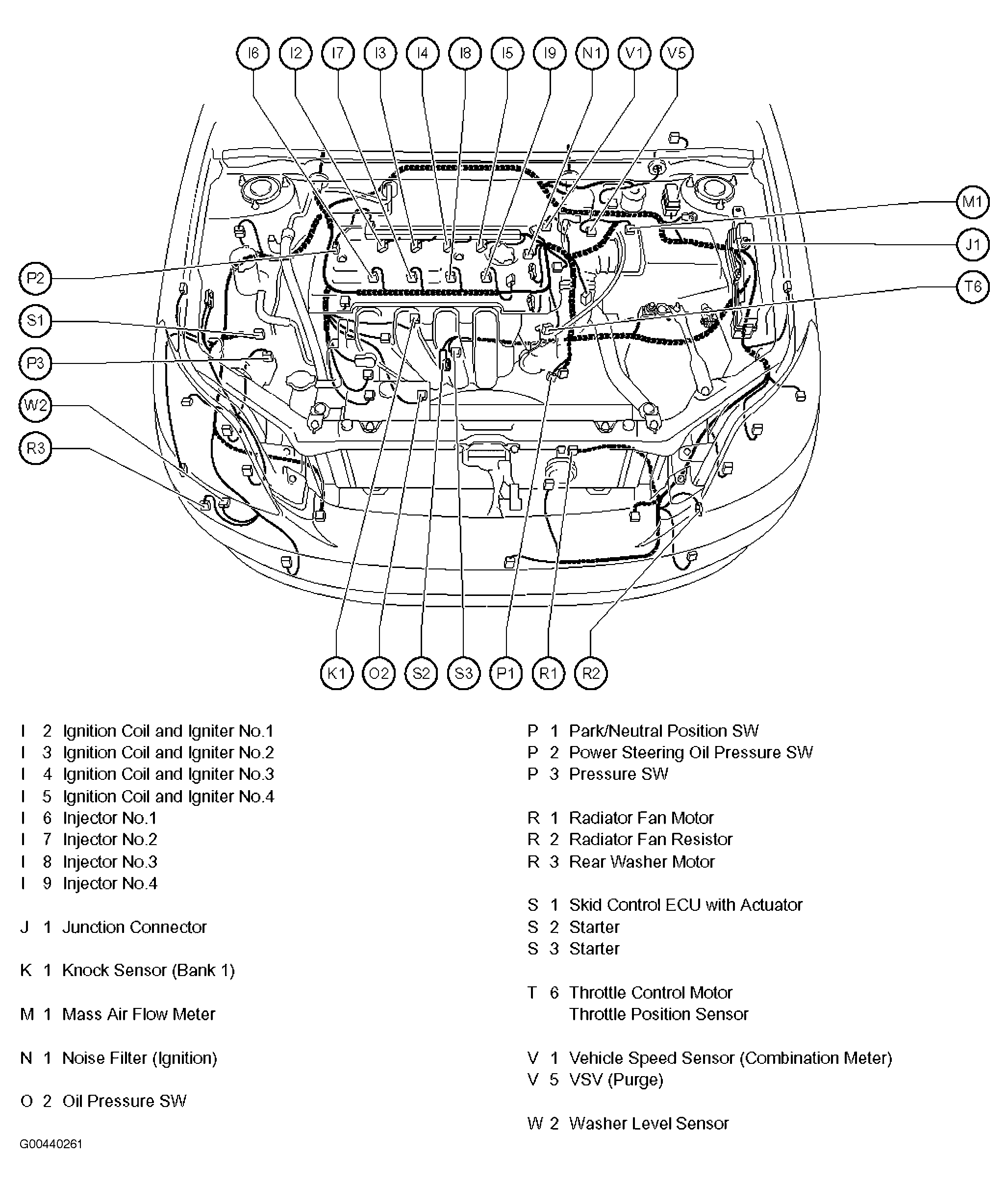

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Engine

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

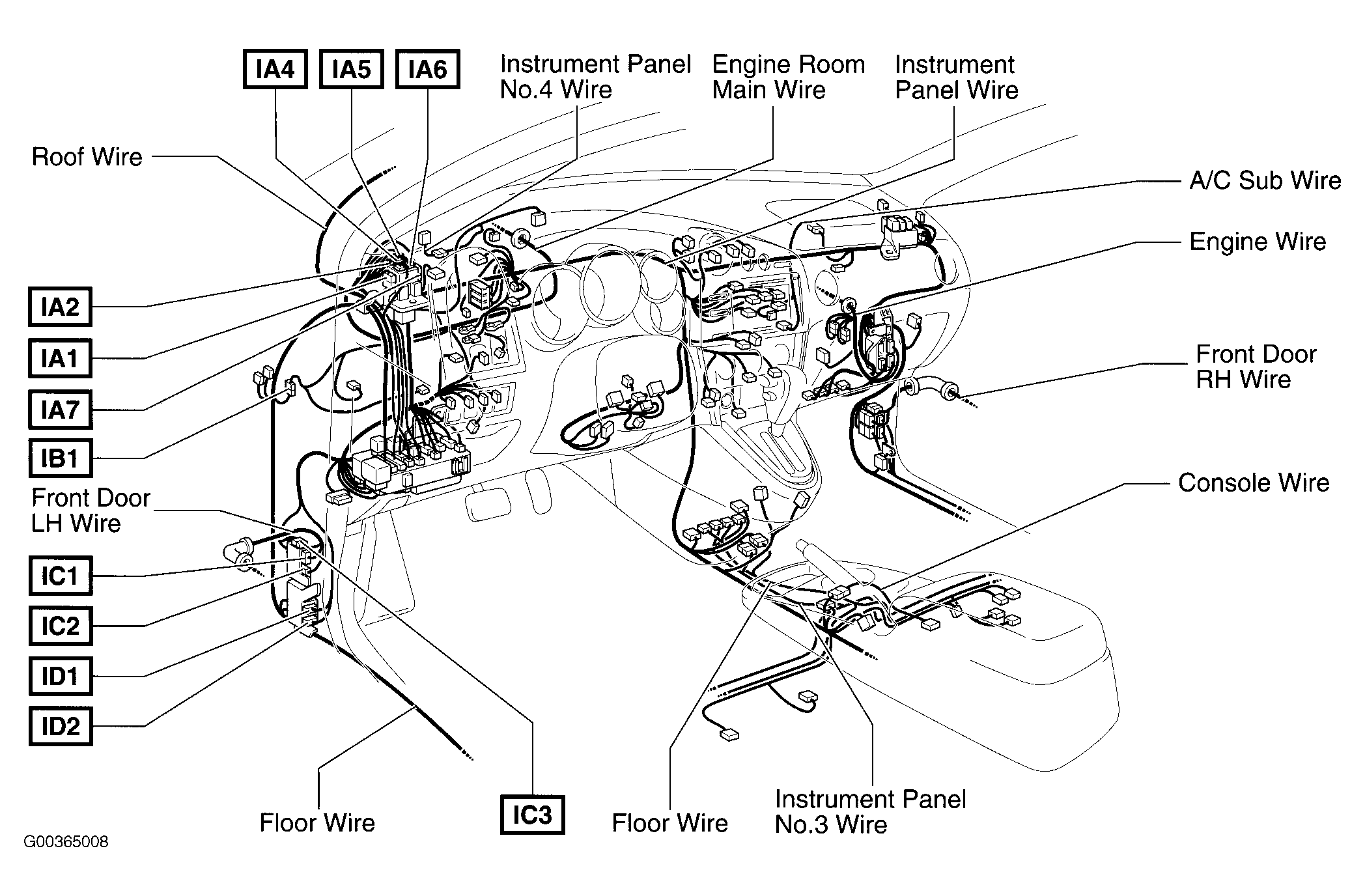

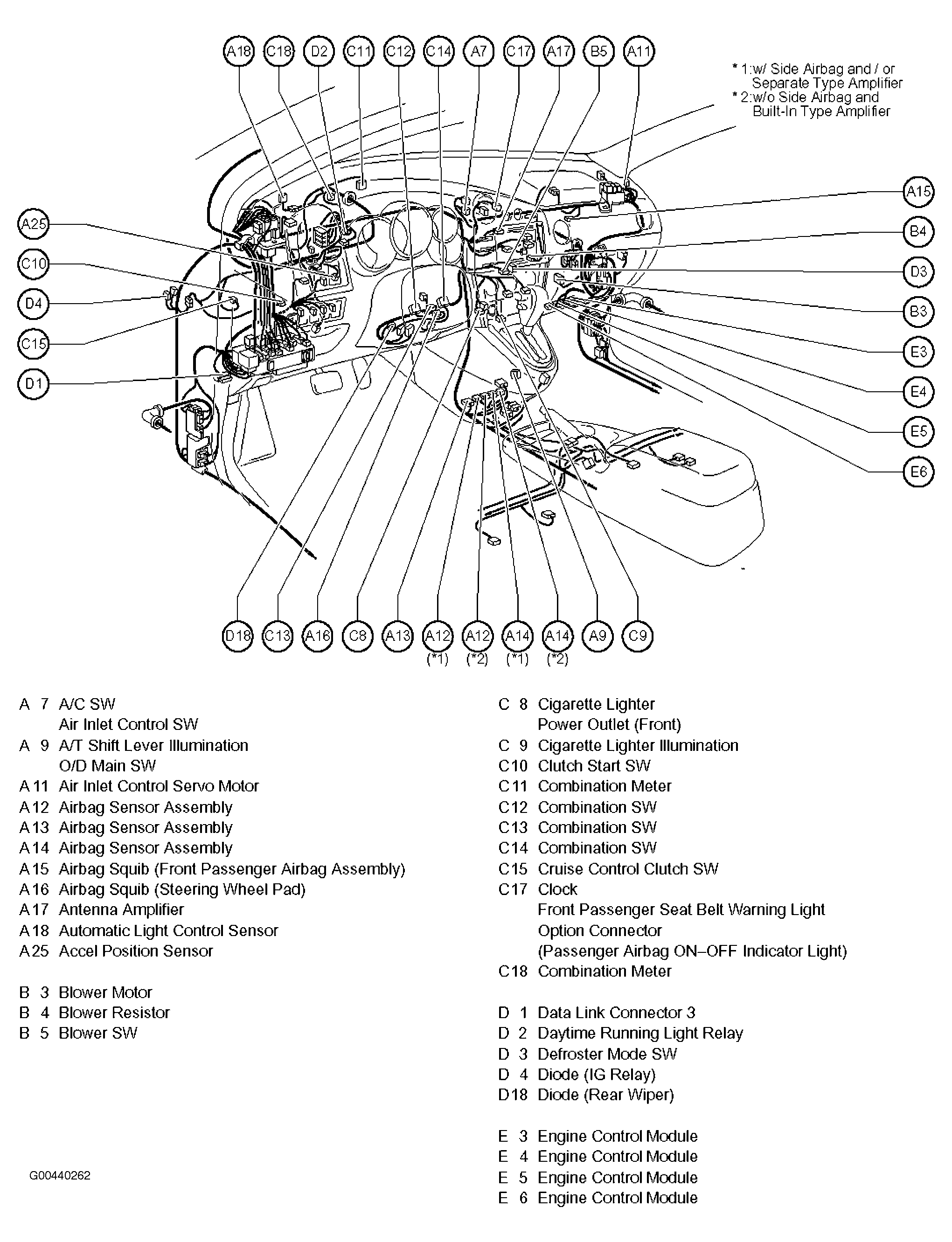

Fig 3: Dash & Center Console

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

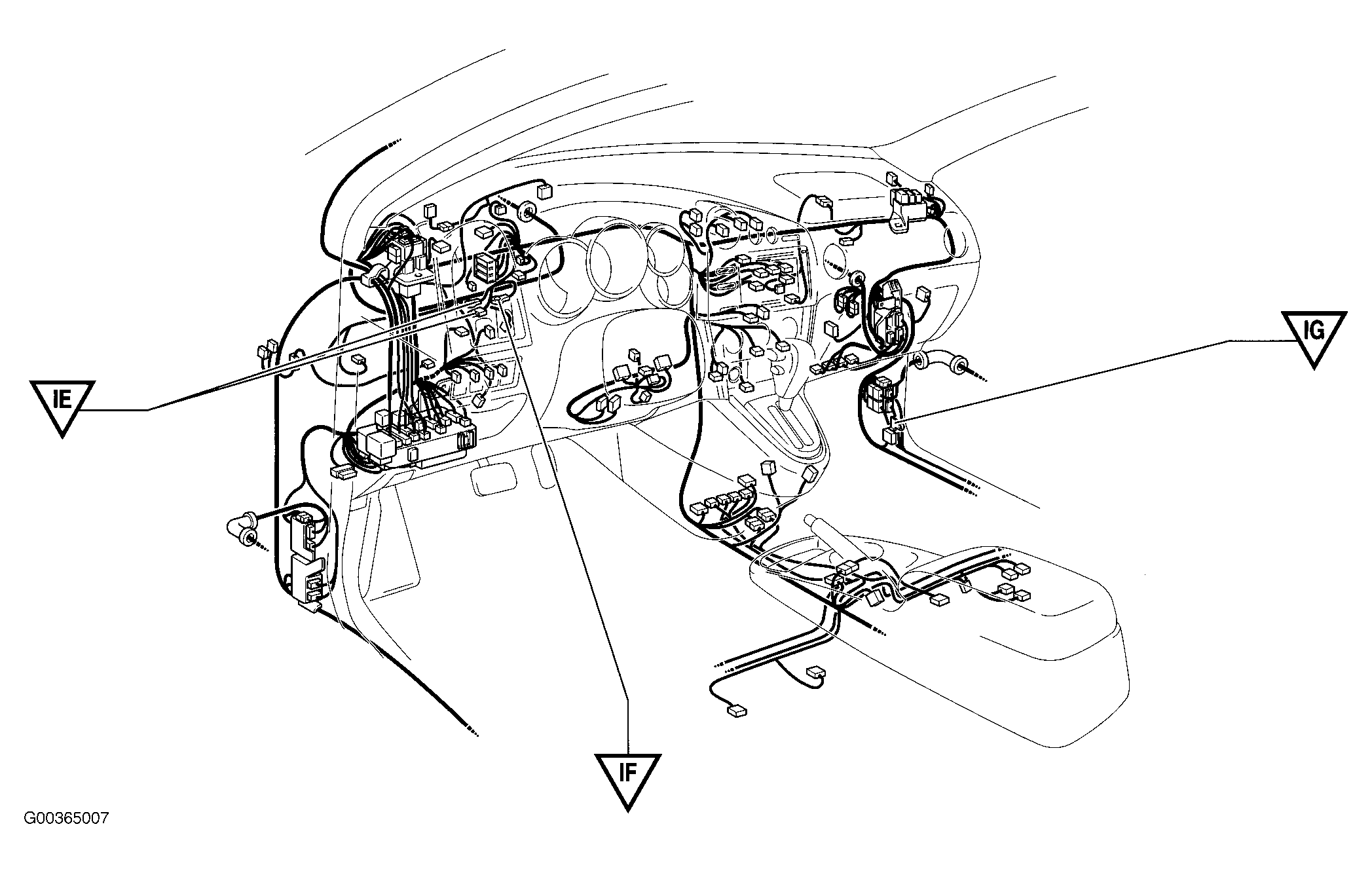

Fig 4: Dash & Center Console

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

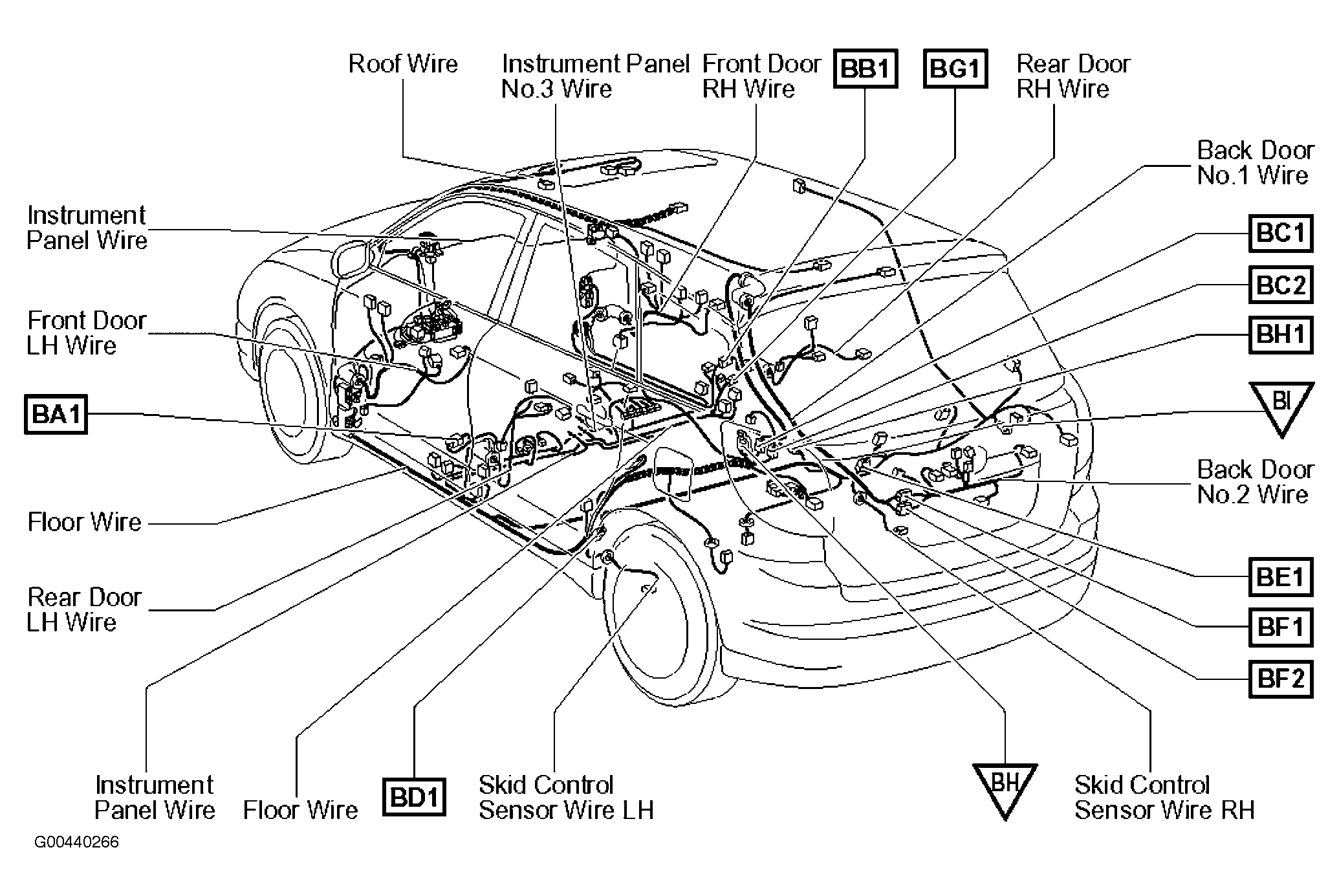

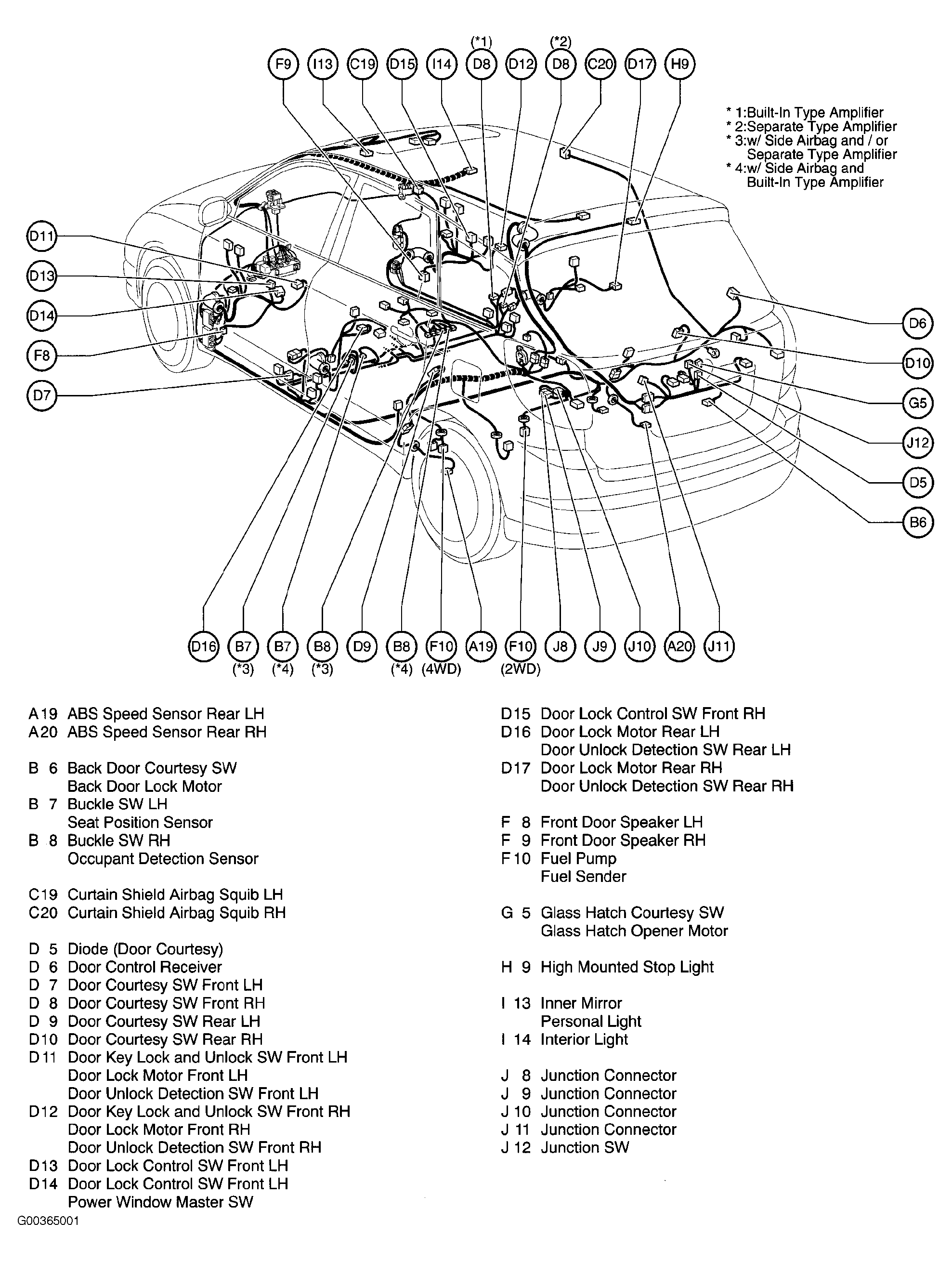

Fig 5: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

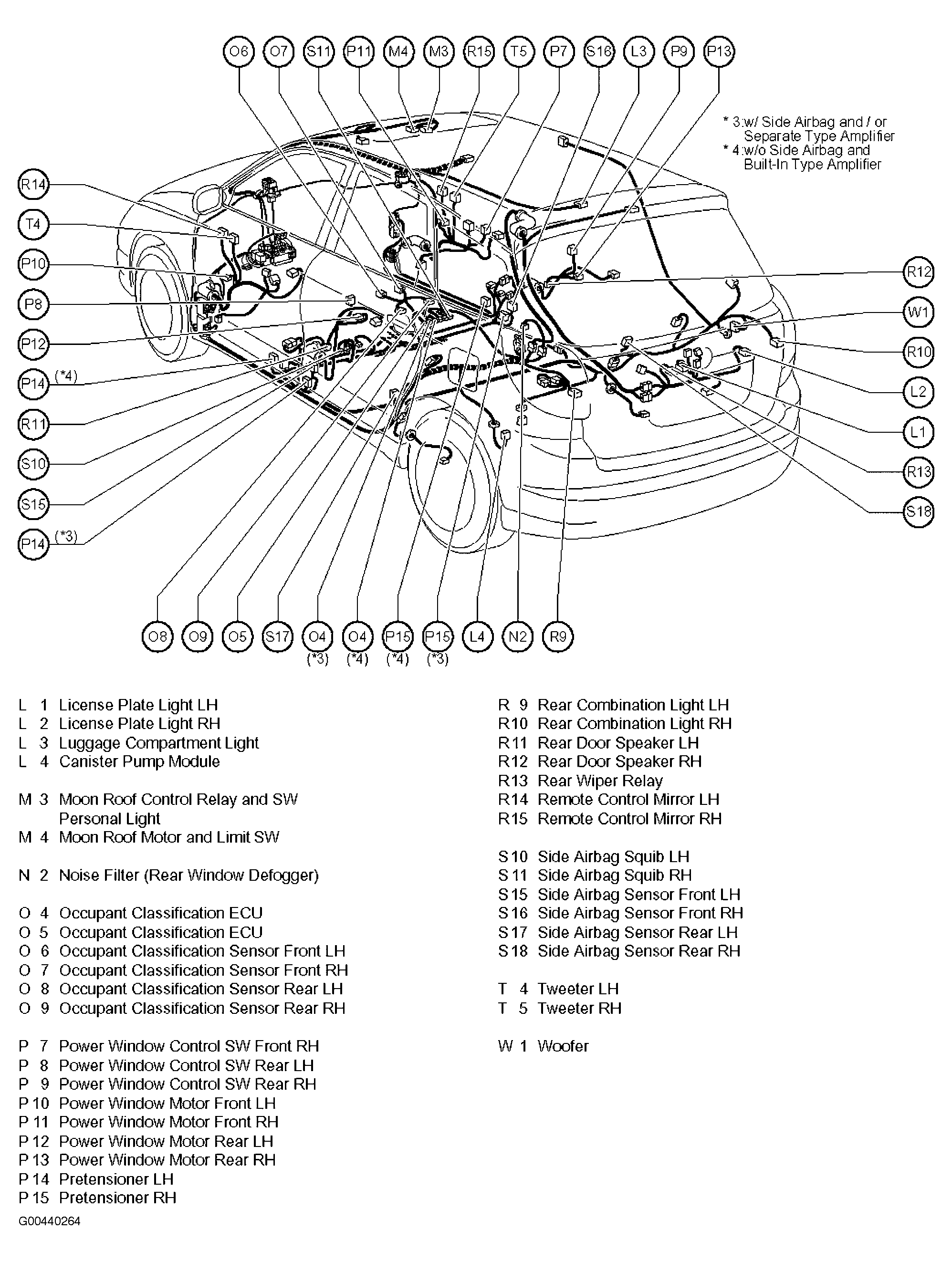

Fig 6: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

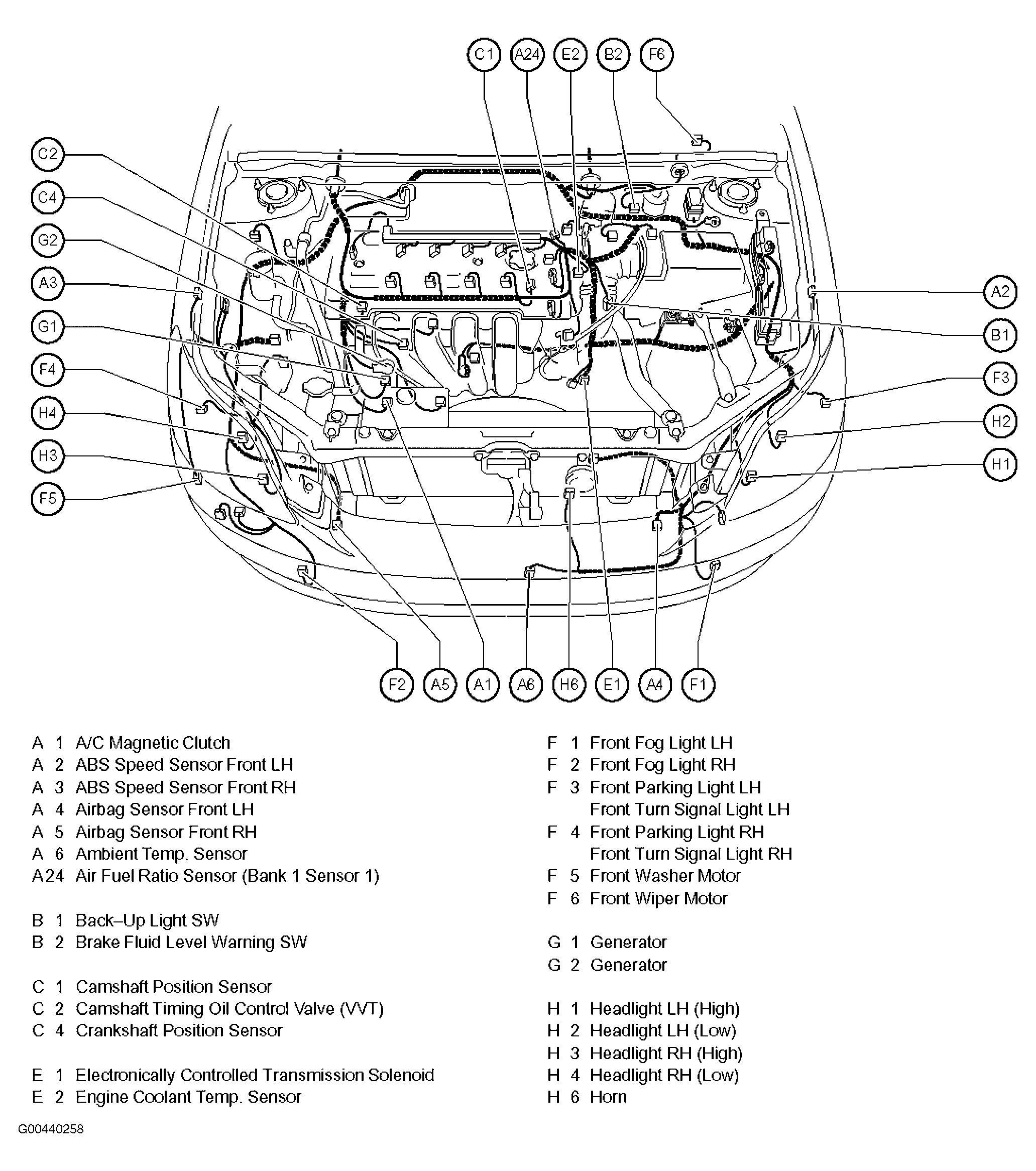

Fig 7: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

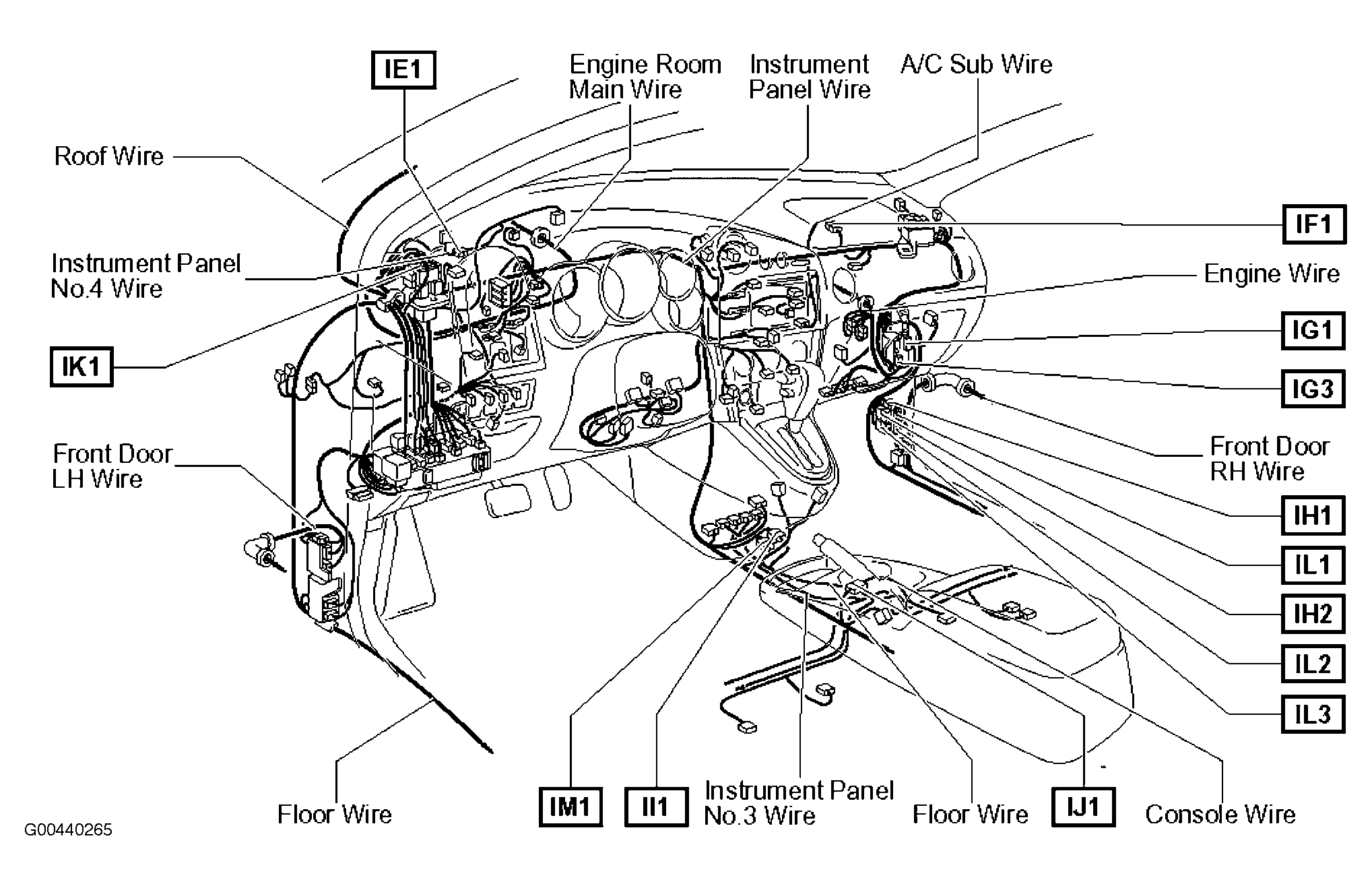

Fig 8: Dash & Center Console

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Dash & Center Console

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

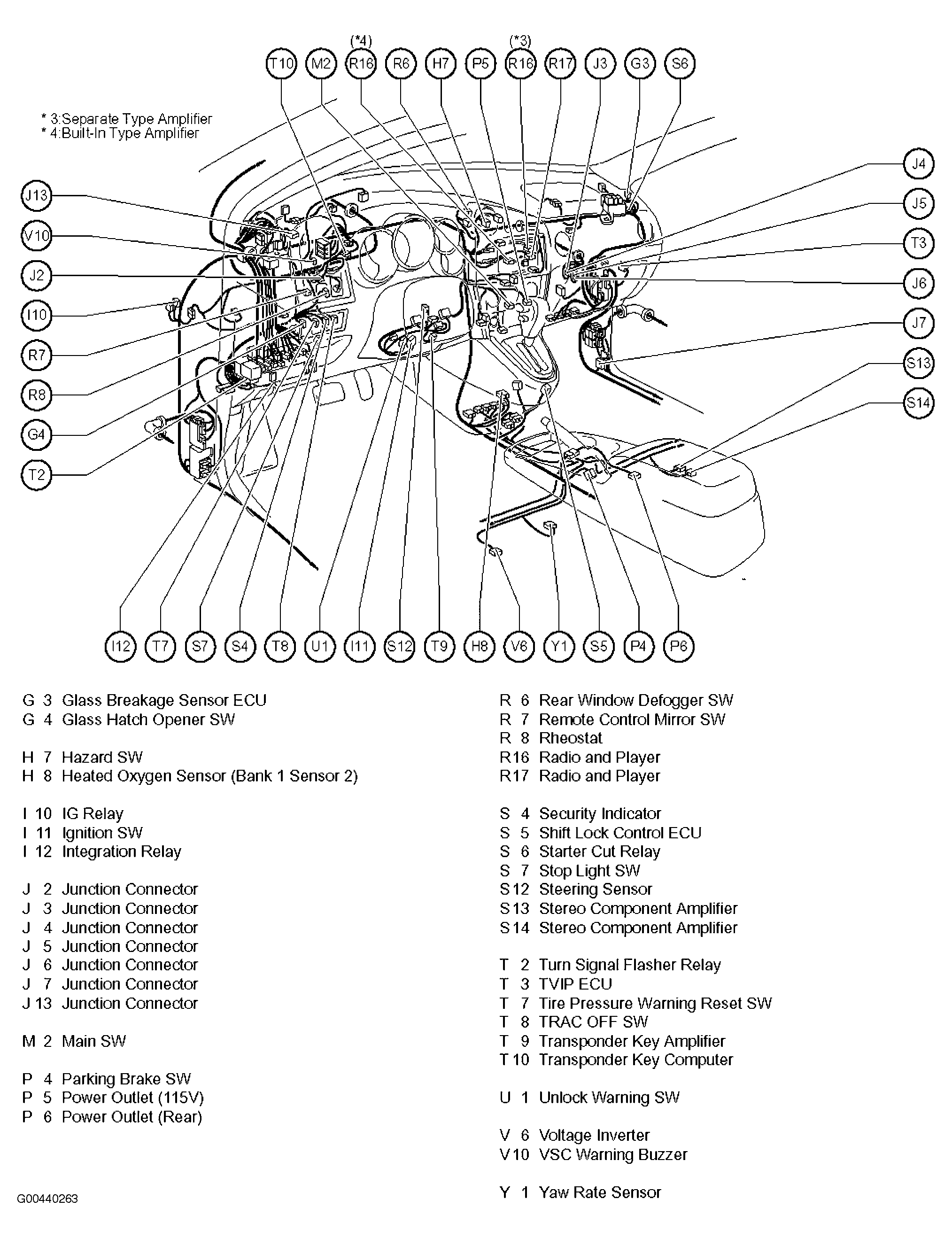

Fig 12: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REAR VEHICLE RELAY IDENTIFICATION

RELAY DESCRIPTION
Moon Roof Control Relay and SW
Rear Wiper Relay

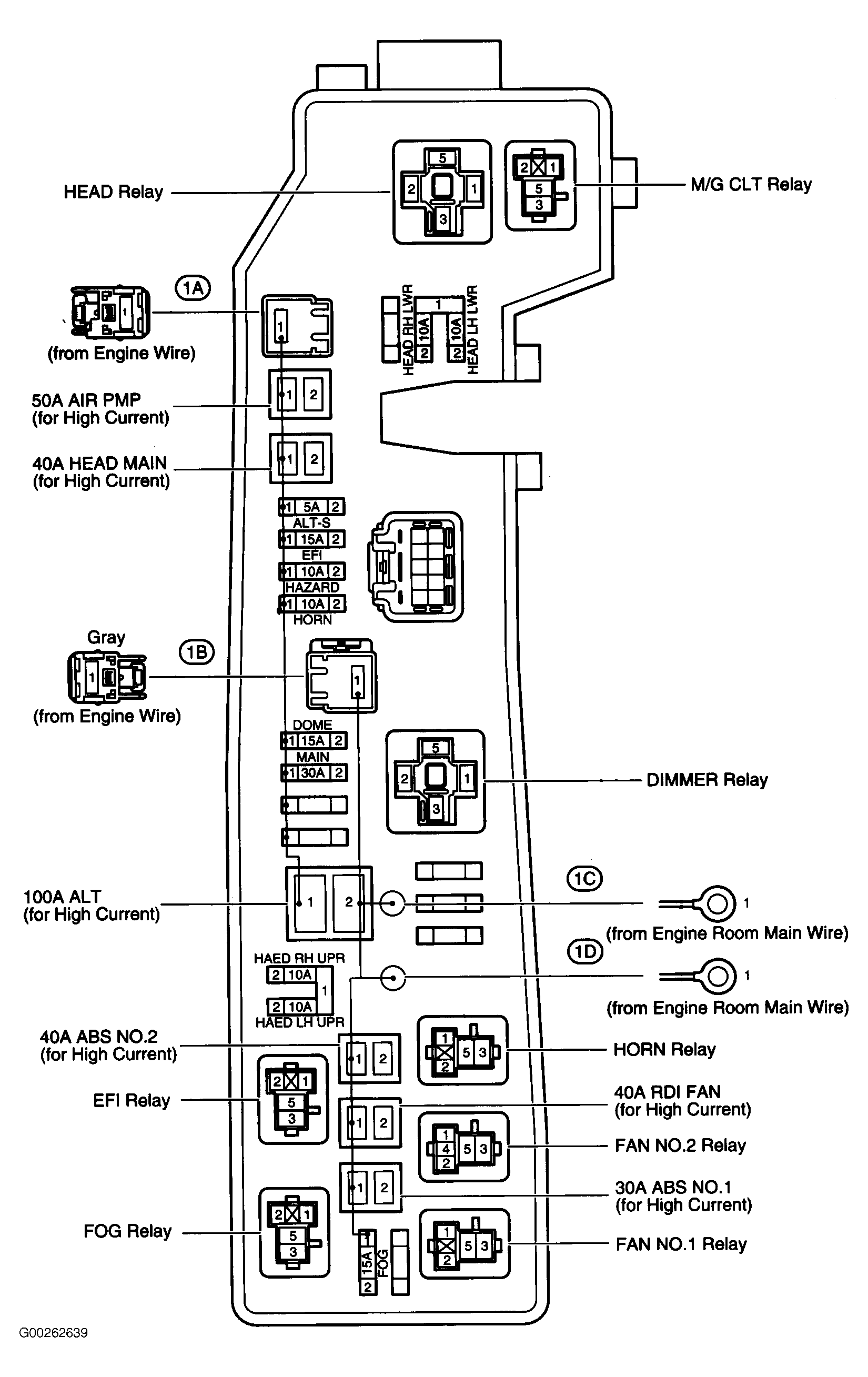

Fig 14: Engine Room R/B

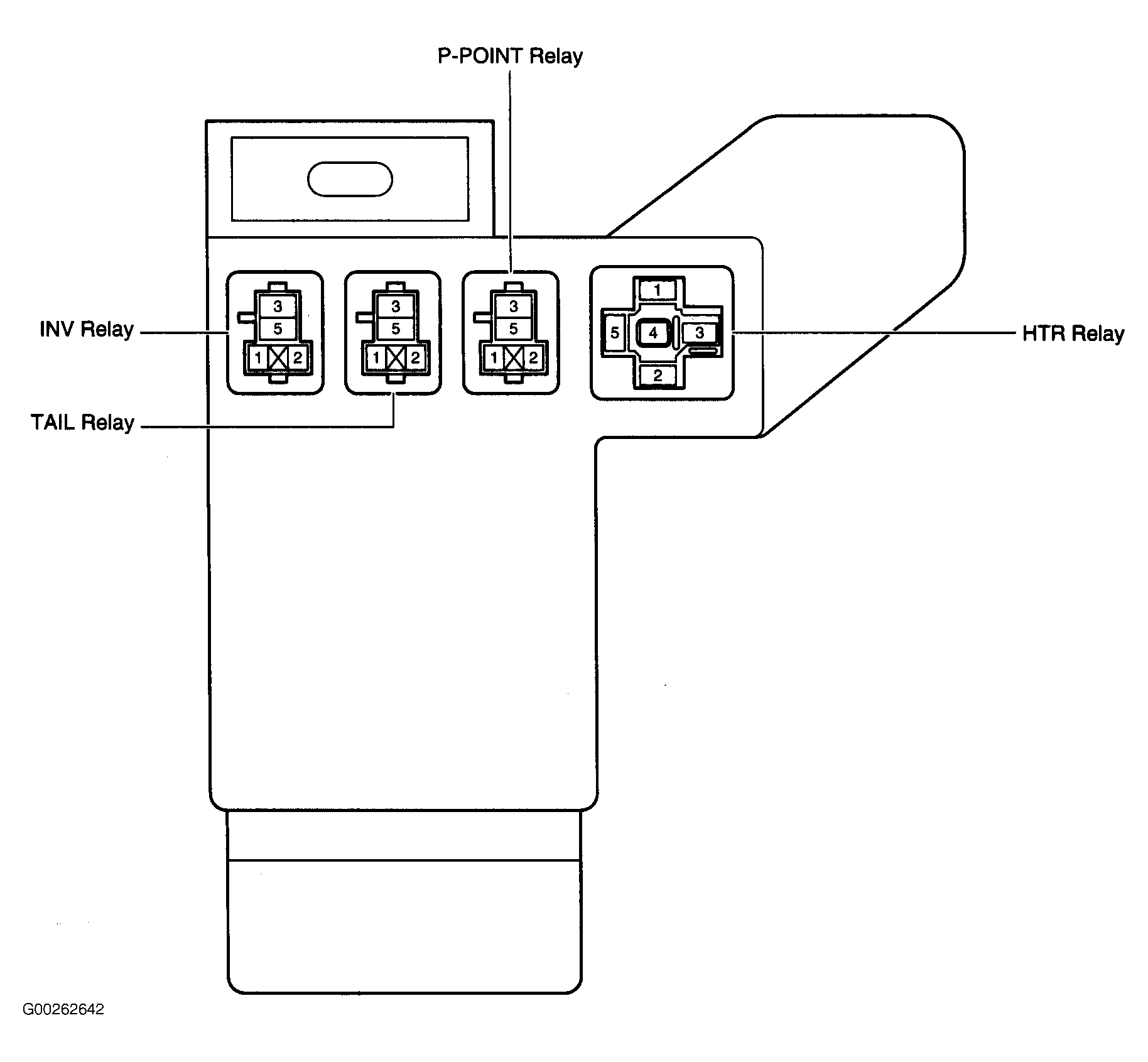

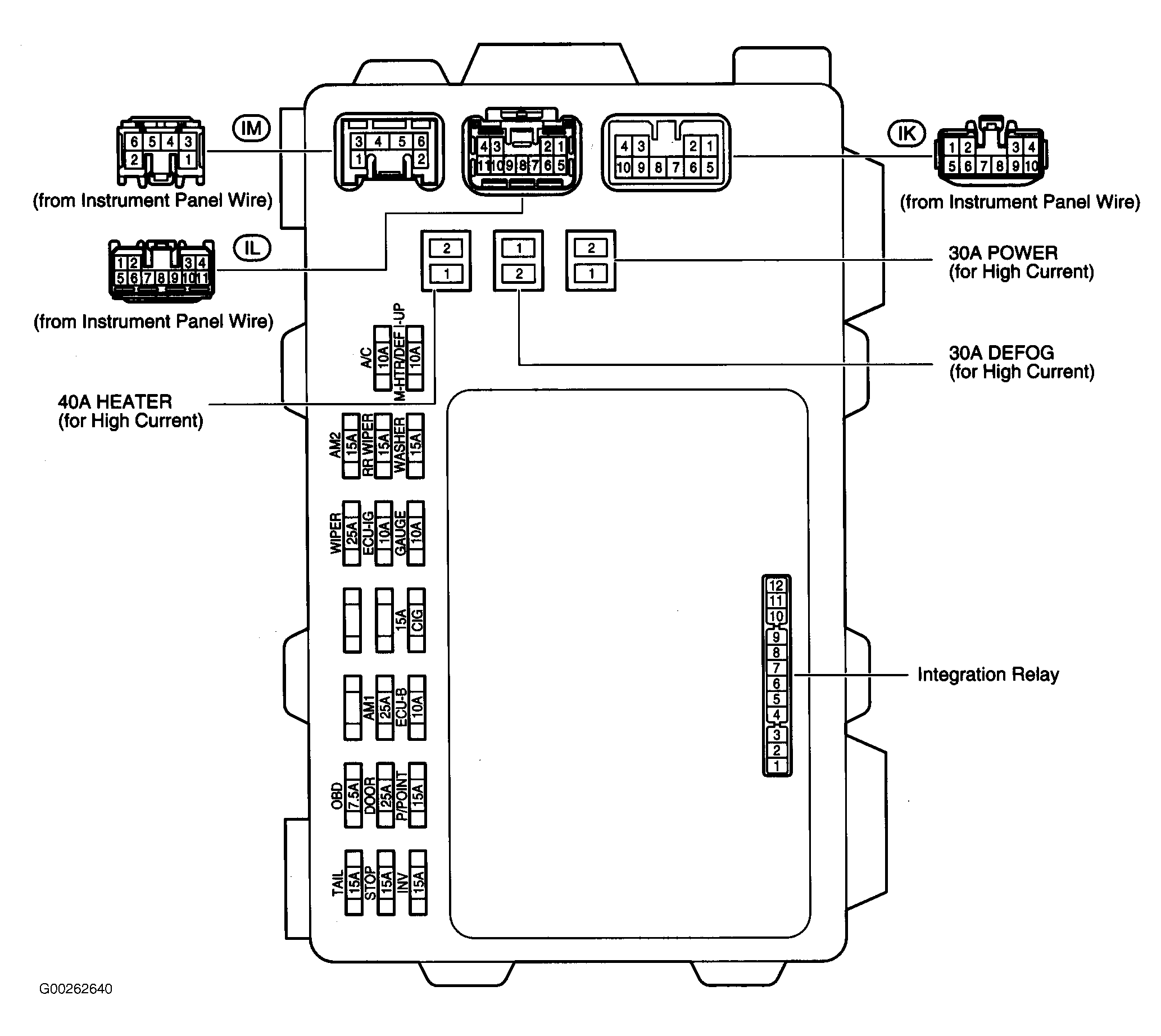

Fig 15: Instrument Panel J/B

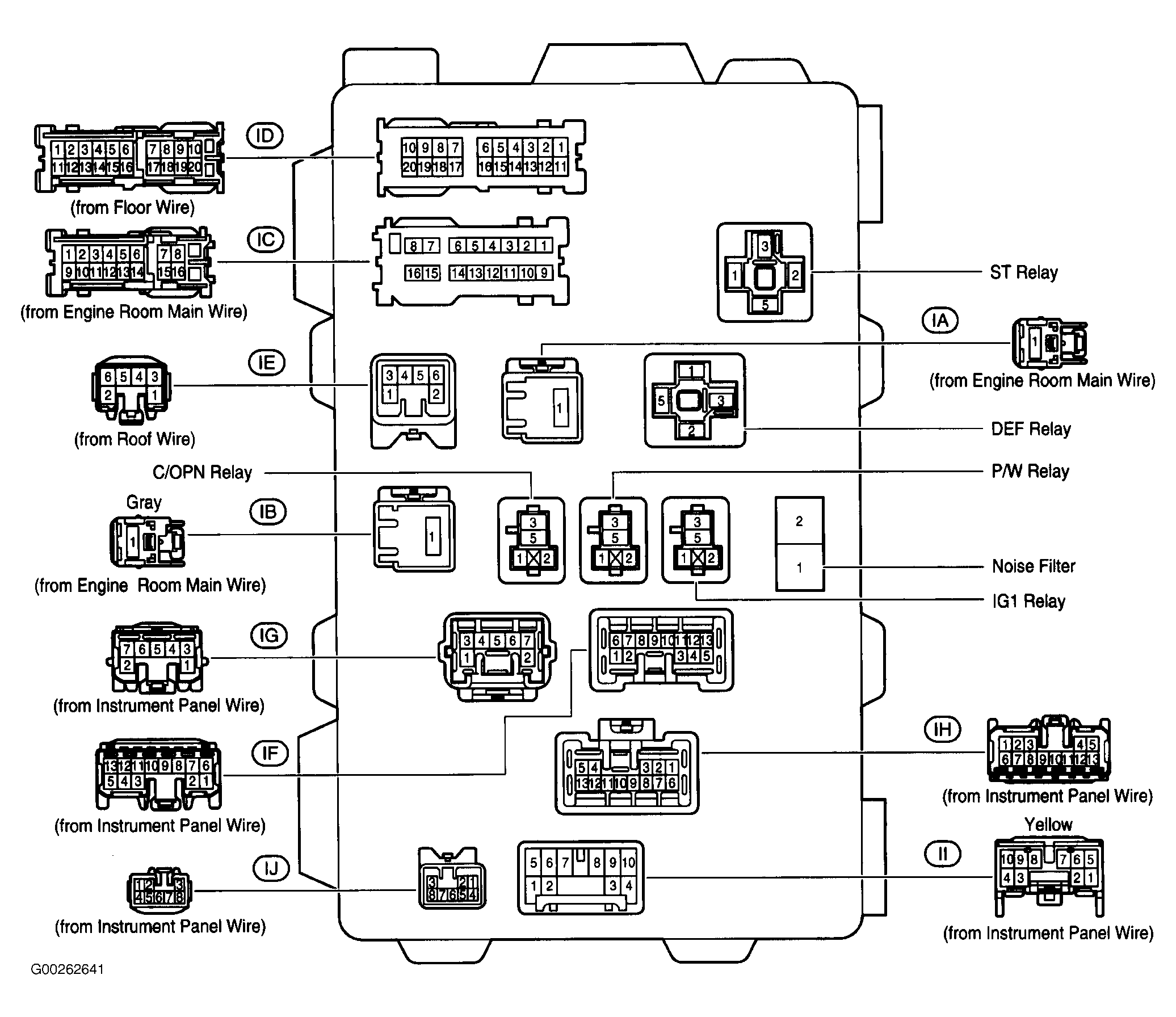

Fig 16: Instrument Panel J/B

Fig 17: RH R/B

Fig 18: Dash

Fig 19: ABS R/B
