Control Units

CONTROL UNITS LOCATION

Component Location

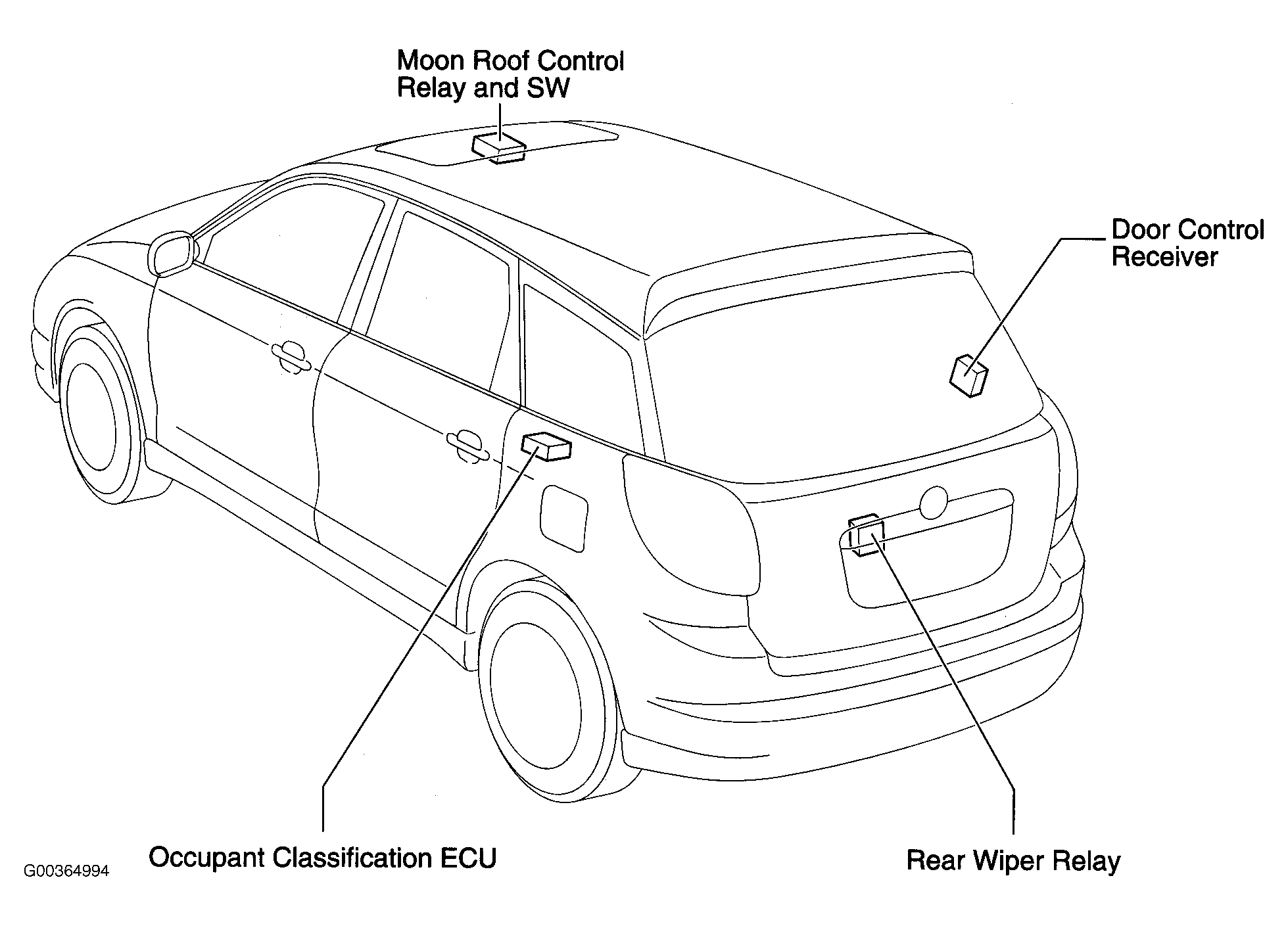

Door Control Receiver At right rear quarterpanel. See Figure.

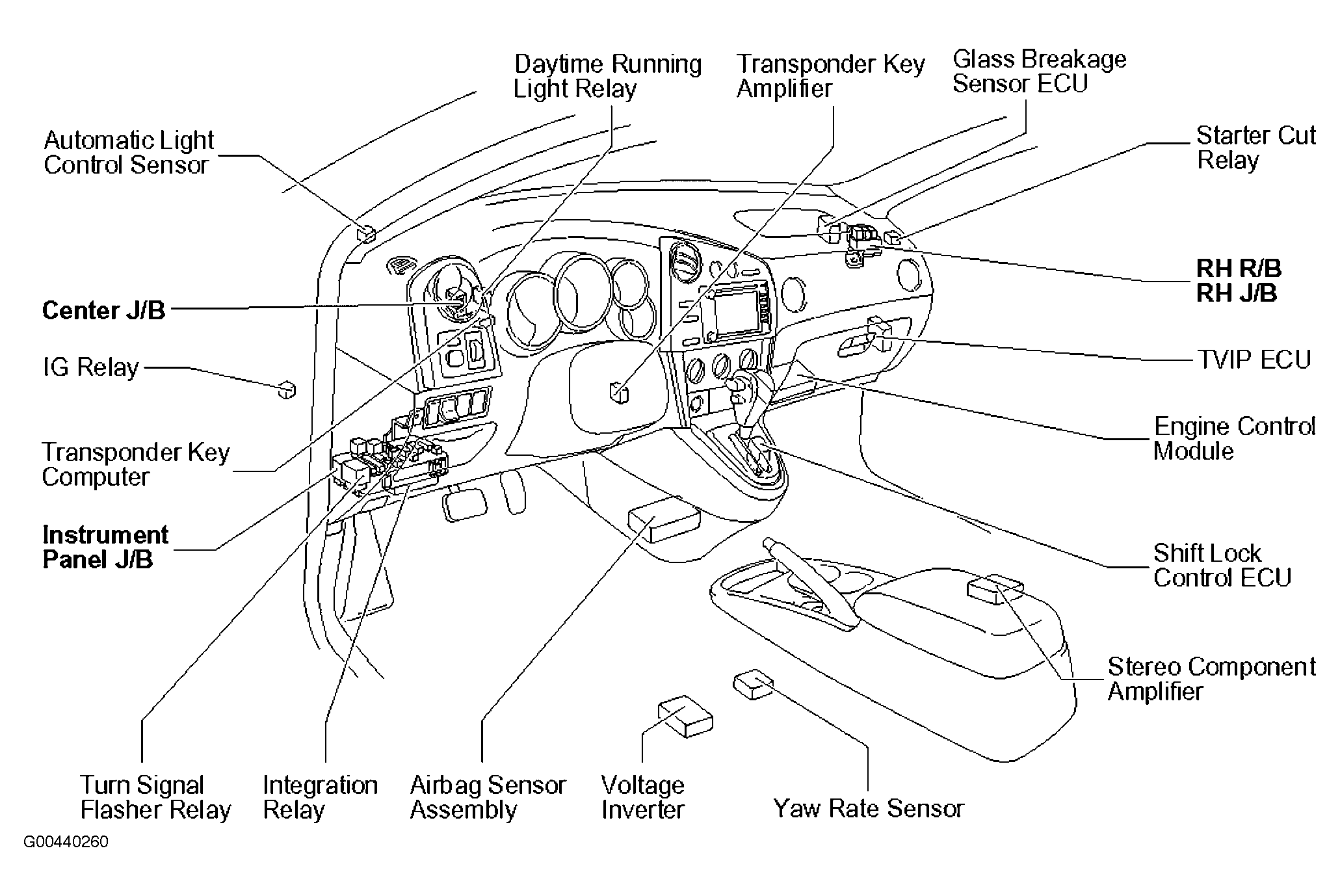

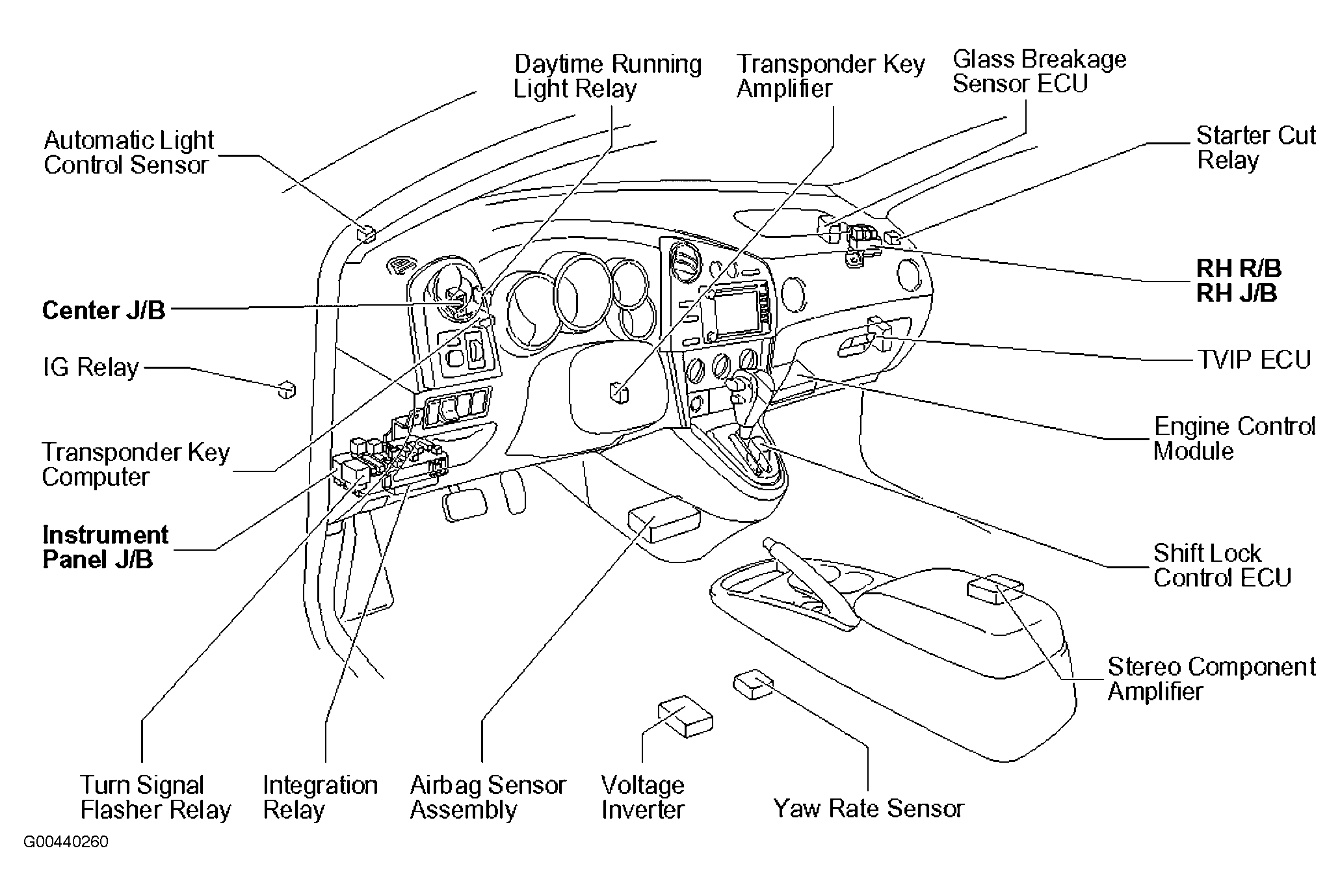

Engine Control Module Behind right side of dash, below glove box. See Figure.
Glass Breakage Sensor ECU Behind upper right end of dash. See Figure.
Occupant Classification ECU Under front passenger seat. See Figure.
Shift Lock Control ECU Below center of dash. See Figure.

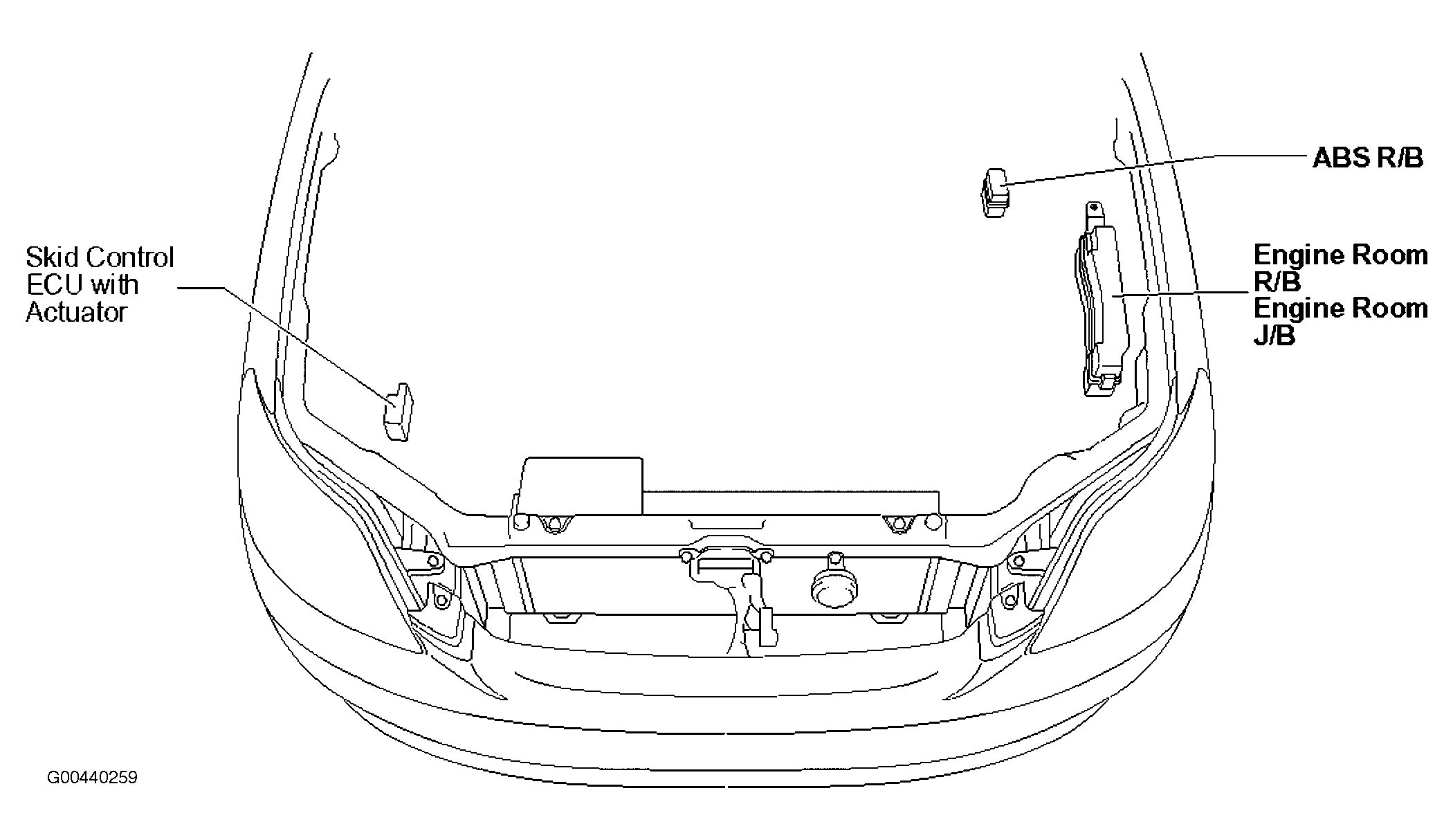

Skid Control ECU With Actuator At right front side of engine compartment. See Figure.
TVIP ECU Behind right end of dash. See Figure.
