Instrument Panel Safety Pad: Components

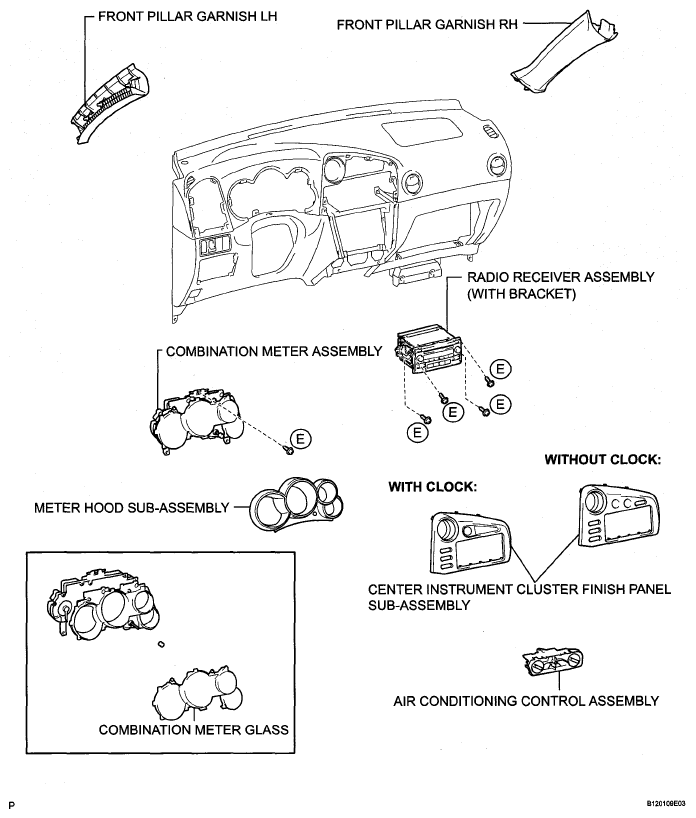

Fig 1: Instrument Panel Safety Pad Replacement Components With Torque Specifications (1 Of 3)
G05237249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

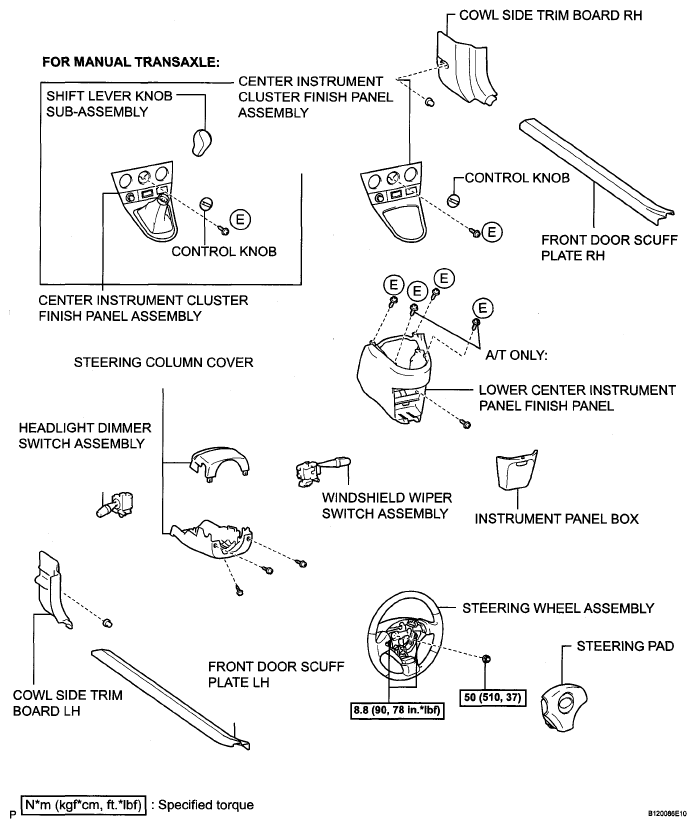

Fig 2: Instrument Panel Safety Pad Replacement Components With Torque Specifications (2 Of 3)
G05237250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

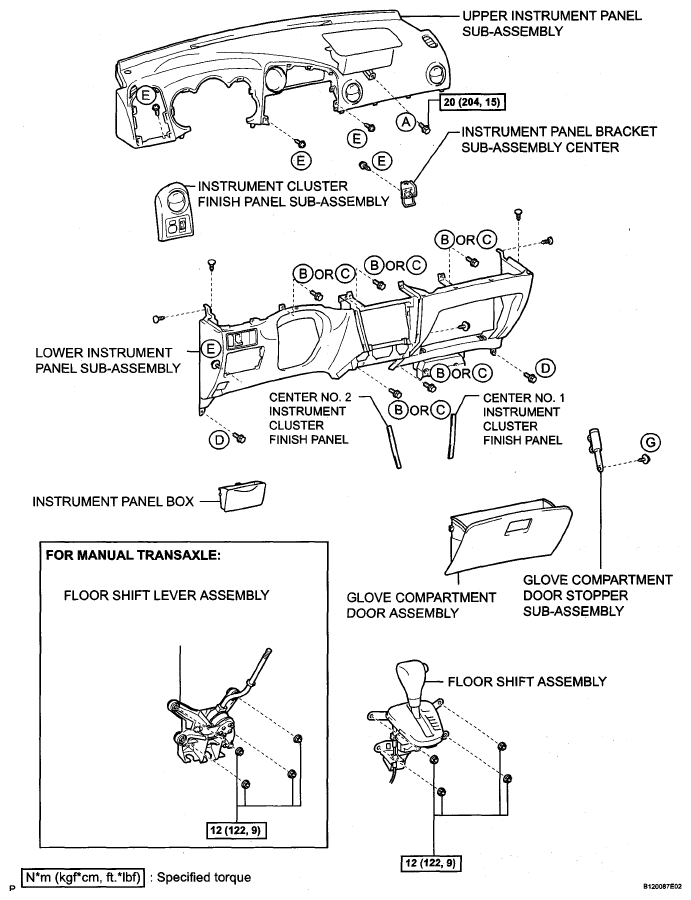

Fig 3: Instrument Panel Safety Pad Replacement Components With Torque Specifications (3 Of 3)
G05237251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
