Inspection Procedure

NOTE: The intelligent tester is required to conduct the following diagnostic troubleshooting procedure.

HINT:

  1. CONFIRM DTC
    1. Turn the ignition switch OFF and wait for 10 seconds.
    2. Turn the ignition switch ON.
    3. Turn the ignition switch OFF and wait for 10 seconds.
    4. Connect the intelligent tester to the DLC3.
    5. Turn the ignition switch ON and press the intelligent tester switch ON.
    6. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DTC INFO / CURRENT CODES.
    7. Confirm DTCs and freeze frame data.

      If any EVAP system DTCs are set, the malfunctioning area can be determined using the table below.

      Fig 1: DTC Reference Chart
      G04828290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: If the reference pressure difference between the first and second checks is greater than the specification, the DTCs corresponding to the reference pressure (P043E, P043F, P0441, P0455, P0456, P2401 and P2420) will all be stored.
  2. PERFORM EVAP SYSTEM CHECK (AUTO OPERATION)
    NOTE:
    • In the EVAP SYSTEM CHECK (AUTO OPERATION), the series of 5 EVAP SYSTEM CHECK steps is performed automatically by the intelligent tester. It takes a maximum of approximately 18 minutes.
    • Do not perform the EVAP SYSTEM CHECK when the fuel tank is more than 90% full because the cut-off valve may be closed and making the leak check of the fuel tank unavailable.
    • Do not run the engine in this step.
    • When the temperature of the fuel is 35°C (95°F) or more, a large amount of vapor forms and any check results become inaccurate. When performing the EVAP SYSTEM CHECK, keep the temperature below 35°C (95°F).
    1. Clear the DTCs (See DTC CHECK / CLEAR  ).
    2. On the intelligent tester, select the following menu items: DIAGNOSIS / ENHANCED OBD II / SYSTEM CHECK / EVAP SYS CHECK / AUTO OPERATION.
    3. After the EVAP SYSTEM CHECK is completed, check for pending DTCs by selecting the following menu items: DIAGNOSIS / ENHANCED OBD II / DTC INFO / PENDING CODES.

      HINT:

      If no pending DTC is displayed, perform the Monitor Confirmation after the repair is completed. After this confirmation, check for pending DTCs. If no DTC is displayed, the EVAP system is normal.

  3. PERFORM EVAP SYSTEM CHECK (MANUAL OPERATION)

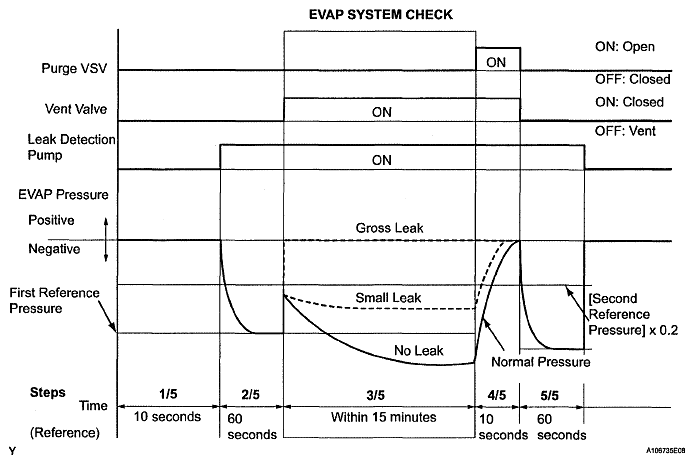

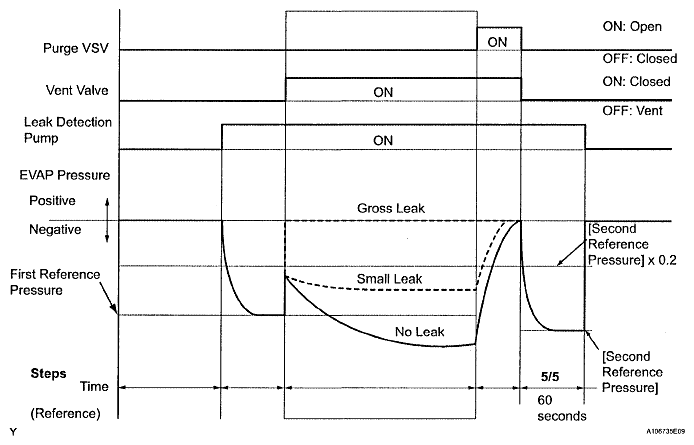

    Fig 2: EVAP Pressure Graph (Manual Operation)
    G04828299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • In the EVAP SYSTEM CHECK (MANUAL OPERATION), the series of 5 EVAP SYSTEM CHECK steps is performed manually by the intelligent tester.
    • Do not perform the EVAP SYSTEM CHECK when the fuel tank is more than 90% full because the cut-off valve may be closed, making the leak check of the fuel tank unavailable.
    • Do not run the engine in this step.
    • When the temperature of the fuel is 35°C (95°F) or more, a large amount of vapor forms and any check results become inaccurate. When performing the EVAP SYSTEM CHECK, keep the temperature below 35°C (95°F).
    1. Clear the DTCs (See DTC CHECK / CLEAR  ).
    2. On the intelligent tester, select the following menu items: DIAGNOSIS / ENHANCED OBD II / SYSTEM CHECK / EVAP SYS CHECK / MANUAL OPERATION.
  4. PERFORM EVAP SYSTEM CHECK (STEP 1/5)

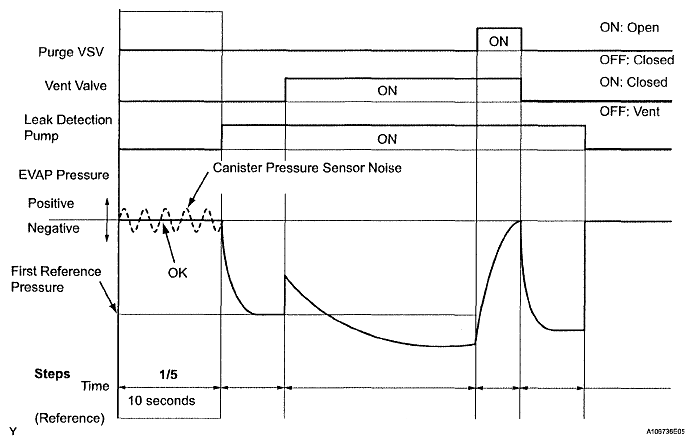

    Fig 3: Checking EVAP System (Step 1/5)
    G04828300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure in step 1/5.

      Result

      DTC RESULT DESCRIPTION

      DTC No. (1) Test Results Suspected Trouble Areas Proceed to
      - Virtually no variation in EVAP pressure Not yet determined A
      P0451 EVAP pressure fluctuates by +-0.3 kPa (2.25 mmHg) or more Pressure sensor noisy B
      (1) The DTCs relating to the EVAP system are displayed on the intelligent tester when checking.

    B: Go to step  29

    A: Go to Next Step

  5. PERFORM EVAP SYSTEM CHECK (STEP 1/5 TO 2/5)

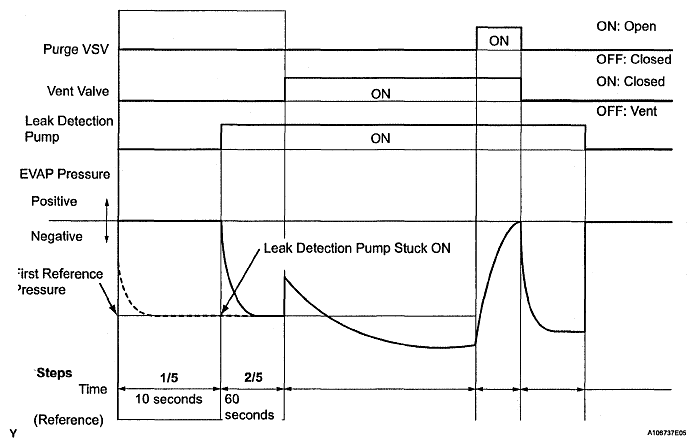

    Fig 4: Checking EVAP System (Step 1/5 To 2/5)
    G04828301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure in step 1/5 and 2/5.

      Result

      DTC RESULT DESCRIPTION

      DTC No. (1) Test Results Suspected Trouble Areas Proceed to
      - Virtually no variation in EVAP pressure during step 1/5. Then decreases to reference pressure(1) Not yet determined A
      P2402 Small difference between EVAP pressures during steps 1/5 and 2/5 Leak detection pump stuck ON B
      (1) These DTCs are already present in the ECM when the vehicle arrives and are confirmed in step 1.

      HINT:

      The first reference pressure is the value determined in step 2/5.

    B: Go to step  22

    A: Go to Next Step

  6. PERFORM EVAP SYSTEM CHECK (STEP 2/5)
    Fig 5: Checking EVAP System (Step 2/5)
    G04828302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Make a note of the pressures checked in the procedure "A" and "B" below.

    1. Check the EVAP pressure 4 seconds after the leak detection pump is activated* (Procedure "A").
    2. Check the EVAP pressure again when it has stabilized. This pressure is the reference pressure (Procedure "B").

      *: The leak detection pump begins to operate as step 1/5 finishes and step 2/5 starts.

      Result

      DTC RESULT DESCRIPTION

      DTCs(1) Test Results Suspected Trouble Areas Proceed To
      - EVAP pressure in step (b) between -4.85 kPa-g and -1.057 kPa-g (-36.4 mmHg-g and -7.93 mmHg-g) Not yet determined A
      P043F and P2401 EVAP pressure in step (b) -1.057 kPa-g (-7.93 mmHg-g) or more
      • Reference orifice high-flow
      • Leak detection pump stuck OFF
      		 B
      P043E EVAP pressure in step (b) below -4.85 kPa-g (-36.4 mmHg-g) Reference orifice clogged C
      P2419 EVAP pressure in step (a) more than -1.057 kPa-g (-7.93 mmHg-g) Vent valve stuck closed D
      (1) These DTCs are already present in the ECM when the vehicle arrives and are confirmed in step 1.

    B: Go to step  11

    C: Go to step  29

    D : Go to step  20

    A: Go to Next Step

  7. PERFORM EVAP SYSTEM CHECK (STEP 2/5 TO 3/5)
    Fig 6: Checking EVAP System (Step 2/5 To 3/5)
    G04828303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure in step 3/5.

      Result

      DTC RESULT DESCRIPTION

      DTC No. (1) Test Results Suspected Trouble Areas Proceed to
      - EVAP pressure Increases by 0.3 kPa (2.25 mmHg) or more within 10 seconds of proceeding from step 2/5 to step 3/5 Not yet determined A
      P2420 No variation in EVAP pressure despite proceeding from step 2/5 to step 3/5 Vent valve stuck open (vent) B
      P0451 No variation in EVAP pressure during steps 1/5 through 3/5 Canister pressure sensor malfunction fixed C
      (1) These DTCs are already present in the ECM when the vehicle arrives and are confirmed in step 1.

    B: Go to step  19

    C: Go to step  29

    A: Go to Next Step

  8. PERFORM EVAP SYSTEM CHECK (STEP 3/5)
    Fig 7: Checking EVAP System Check (Step 3/5)
    G04828304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Wait until the EVAP pressure change is less than 0.1 kPa (0.75 mmHg) for 30 seconds.
    2. Measure the EVAP pressure and record it.

      HINT:

      A few minutes are required for the EVAP pressure to become saturated. When there is little fuel in the fuel tank, it takes up to 15 minutes.

  9. PERFORM EVAP SYSTEM CHECK (STEP 4/5)
    Fig 8: Checking EVAP System (Step 4/5)
    G04828305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure in step 4/5.

      Result

      DTC RESULT DESCRIPTION

      DTC No. (1) Test Results Suspected Trouble Areas Proceed to
      - EVAP pressure Increases by 0.3 kPa (2.25 mmHg) or more within 10 seconds of proceeding from step 3/5 to step 4/5 Not yet determined A
      P0441 EVAP pressure Increases by 0.3 kPa (2.25 mmHg) or more within 10 seconds of proceeding from step 3/5 to step 4/5 Problems in EVAP hose between purge VSV and throttle body B
      P0441 Variation in EVAP pressure less than 0.3 kPa (2.25 mmHg) for 10 seconds, after proceeding from step 3/5 to step 4/5 Purge VSV stuck closed C
      (1) These DTCs are already present in the ECM when the vehicle arrives and are confirmed in step 1.

    B: Go to step  15

    C: Go to step  12

    A: Go to Next Step

  10. PERFORM EVAP SYSTEM CHECK (STEP 5/5)
    Fig 9: Checking EVAP System (Step 5/5)
    G04828306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure in step 5/5.
    2. Compare the EVAP pressure in step 3/5 and the second reference pressure standard (step 5/5).

      Result

      DTC RESULT DESCRIPTION

      DTC No. (1) Test Results Suspected Trouble Areas Proceed to
      - EVAP pressure (step 3/5) lower than the second reference pressure (step 5/5) Not yet determined (No leafage from EVAP system) A
      P0441 and P0455 EVAP pressure (step 3/5) higher than [second reference pressure (step 5/5) x 0.2]
      • Purge VSV stuck open
      • EVAP gross leak
      		 B
      P0456 EVAP pressure (step 3/5) higher than second reference pressure (step 5/5) EVAP small leak B
      (1) These DTCs are already present in the ECM when the vehicle arrives and are confirmed in step 1.

    A: Go to step  35

    B: Go to step  12

  11. PERFORM EVAP SYSTEM CHECK (STEP 3/5)
    Fig 10: Checking EVAP System (Step 3/5)
    G04828307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure in step 3/5.

      Result

      DTC RESULT DESCRIPTION

      DTC No. (1) Test Results Suspected Trouble Areas Proceed to
      P043F and P2401 EVAP pressure less than [reference pressure] measure at 2/5 Reference orifice high-flow A
      P043F and P2401 EVAP pressure almost same as [reference pressure] measured at 2/5 Leak detection pump stuck OFF B
      (1) These DTCs are already present in the ECM when the vehicle arrives and are confirmed in step 1.

      HINT:

      The first reference pressure is the value determined in step 2/5.

    A: Go to step  29

    B: Go to step  22

  12. PERFORM ACTIVE TEST BY INTELLIGENT TESTER (PURGE VSV)
    1. On the intelligent tester, select the following menu items: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / EVAP VSV.
    2. Disconnect the hose (connected to the canister) from the purge VSV.
    3. Start the engine.
    4. On the tester, turn off the purge VSV (EVAP VSV: OFF).
    5. Use your finger to confirm that the purge VSV has no suction.
    6. Using the tester, turn on the purge VSV (EVAP VSV: ON).
      Fig 11: Disconnecting Hose (Connected To Canister) From Purge VSV
      G05192654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Use your finger to confirm that the purge VSV has suction.

      Result

      DTC RESULT DESCRIPTION

      Test Results Suspected Trouble Areas Proceed to
      No suction when purge VSV turned OFF, and suction applied when turned ON Purge VSV normal A
      Suction applied when purge VSV turned OFF Purge VSV stuck open B
      No suction when purge VSV turned ON
      • Purge VSV stuck closed
      • Problems with EVAP hose between purge VSV and throttle body
      		 C
    8. Reconnect the hose.

    B: Go to step  14

    C: Go to step  15

    A: Go to Next Step

  13. CHECK FUEL TANK CAP ASSEMBLY
    1. Check that the fuel tank cap is correctly installed.
    2. Confirm that the fuel tank cap is tightened until a few click sounds are heard.

      HINT:

      If an EVAP tester is available, check the fuel tank cap using the tester.

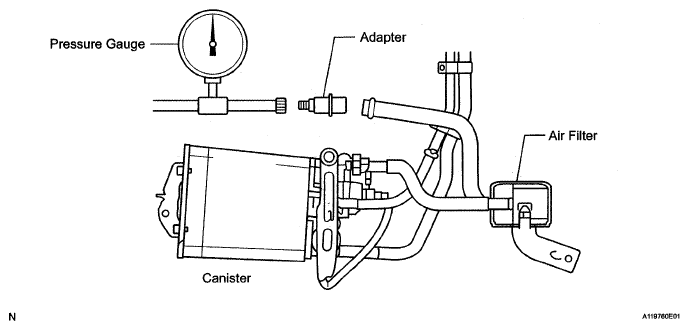

      1. Remove the fuel tank cap and install it onto a fuel tank cap adaptor.
      2. Connect an EVAP tester pump hose to the adaptor, and pressurize to 3.2 to 3.7 kPa (24 to 28 mmHg) using an EVAP tester pump.
      3. Seal the adaptor and wait for 2 minutes.
      4. Check the pressure. If the pressure is 2 kPa (15 mmHg) or more, the fuel tank cap is normal.
      5. Reinstall the fuel tank cap.

        Result

        DTC RESULT DESCRIPTION

        Test Results Suspected Trouble Areas Proceed to
        Fuel tank cap correctly Installed - A
        Fuel tank cap loose
        • Fuel tank cap Improperly Installed
        • Defective fuel tank cap
        • Fuel tank cap does not meet OEM specifications
        		 B
        No fuel tank cap - C

    A: Go to step  28

    B: Go to step  26

    C: Go to step  27

  14. INSPECT VACUUM SWITCHING VALVE ASSEMBLY NO.1
    1. Turn the ignition switch to OFF.
    2. Disconnect the purge VSV connector.
    3. Disconnect the hose (connected to the canister) from the purge VSV.
    4. Start the engine.
    5. Use your finger to confirm that the purge VSV has no suction.

      Result

      DTC RESULT DESCRIPTION

      Test Results Suspected Trouble Areas Proceed to
      No suction ECM A
      Suction applied Purge VSV B
      Fig 12: Disconnecting Hose (Connected To Canister) From Purge VSV
      G05192654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Reconnect the purge VSV connector.
    7. Reconnect the hose.

    A: Go to step  34

    B: Go to step  30

  15. CHECK EVAP HOSE (PURGE VSV - THROTTLE BODY)
    1. Disconnect the hose (connected to the throttle body) from the purge VSV.
    2. Start the engine.
    3. Use your finger to confirm that the hose has suction.

      Result

      DTC RESULT DESCRIPTION

      Test Results Suspected Trouble Areas Proceed to
      Suction applied EVAP hose between purge VSV and throttle body normal A
      No suction
      • Throttle body
      • EVAP hose between purge VSV and throttle body
      		 B
      Fig 13: Checking EVAP Hose (Purge VSV - Throttle Body)
      G05192656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Reconnect the hose.

    B: Go to step  25

    A: Go to Next Step

  16. INSPECT VACUUM SWITCHING VALVE ASSEMBLY NO.1 (PURGE VSV)
    1. Remove the purge VSV.
    2. Apply battery voltage to the terminals of the purge VSV.
    3. Using an air gun, confirm that air flows from port A to port B.

      Result

      DTC RESULT DESCRIPTION

      Test Result Suspected Trouble Area Proceed to
      Air flowed Purge VSV normal A
      No air flow Purge VSV B
    4. Install the purge VSV.
      Fig 14: Inspecting Vacuum Switching Valve Assembly No.1 (Purge VSV)
      G05192657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    B: Go to step  30

    A: Go to Next Step

  17. CHECK HARNESS AND CONNECTOR (POWER SOURCE OF PURGE VSV)
    1. Disconnect the V5 Purge VSV connector.
    2. Turn the ignition switch ON.
    3. Measure the voltage between terminal 1 of the V5 connector and the body ground.

      Result

      DTC RESULT DESCRIPTION

      Test Results Suspected Trouble Areas Proceed to
      Between 11 V and 14 V Normal A
      Other than result above Wire harness or connectors between purge VSV and ECM B
    4. Reconnect the purge VSV connector.

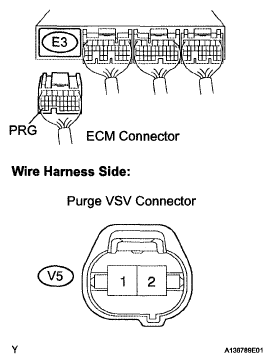

      Fig 15: Identifying V5 Purge VSV Connector Terminals
      G05232910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    B: Go to step  31

    A: Go to Next Step

  18. CHECK HARNESS AND CONNECTOR (PURGE VSV - ECM)
    1. Disconnect the E3 ECM connector and the V5 purge VSV connector.
    2. Check the resistance.

      Standard resistance

      RESISTANCE SPECIFICATIONS

      Tester Connection Specified Condition
      E3-34(PRG)-V5-1 Below 1 Ω
      E3-34 (PRG) - Body ground 10 kΩ or higher
      V5-2 - Body ground 10 kΩ or higher
    3. Reconnect the purge VSV connector.
    4. Reconnect the ECM connector.

    OK : Go to step  34

    NG: Go to step  31

    Fig 16: Checking Harness And Connector (Purge VSV - ECM)
    G05232911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. PERFORM ACTIVE TEST BY INTELLIGENT TESTER (FOR VENT VALVE)
    1. Turn the ignition switch to ON.
    2. On the intelligent tester, select the following menu items: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / VENT VALVE (ALONE).
    3. Measure the voltage between terminal VPMP of the ECM connector and the body ground when the vent valve is turned ON (close) and OFF (vent) using the tester.
      Fig 17: Identifying E3 ECM Connector Terminals
      G05192660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      DTC RESULT DESCRIPTION

      Test Results Suspected Trouble Areas Proceed to
      Between 9 V and 14 V when OFF
      Below 3 V when ON
      • Wire harness between vent valve and ECM
      • Vent valve
      • ECM
      		 A
      Below 3 V when OFF and ON ECM B

    B: Go to step  31

    A: Go to Next Step

  20. INSPECT PUMP MODULE (VENT VALVE OPERATION)
    1. Turn the ignition switch to OFF.
    2. Disconnect the canister connector.
    3. Apply the battery voltage to terminals 9 and 8 of the pump module.
    4. Touch the pump module to confirm the vent valve operation.

      Result

      DTC RESULT DESCRIPTION

      Test Results Suspected Trouble Areas Proceed to
      Operating Wire harness between vent valve and ECM A
      Not operating Vent valve B
      Fig 18: Inspecting Pump Module (Vent Valve Operation)
      G05232913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Reconnect the canister connector.

    B: Go to step  29

    A: Go to Next Step

  21. CHECK HARNESS AND CONNECTOR (ECM - CANISTER PUMP MODULE)
    1. Turn the ignition switch OFF.
    2. Disconnect the L4 canister connector and E3 ECM connector.
    3. Measure the resistance between terminal 8 of canister pump module connector and 27 of E3 ECM connector.

      Result

      DTC RESULT DESCRIPTION

      Test Results Suspected Trouble Areas Proceed to
      Below 1 Ω ECM A
      10 kΩ or higher Wire harness between ECM and canister pump module B
    4. Reconnect the ECM connector.
    5. Reconnect the canister pump module connector.

    A: Go to step  34

    B: Go to step  31

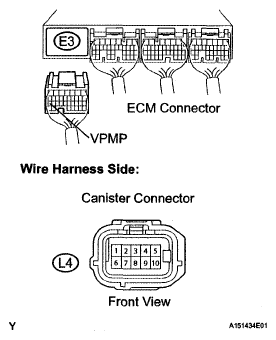

    Fig 19: Identifying L4 Canister Connector And E3 ECM Connector
    G05232914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. PERFORM ACTIVE TEST BY INTELLIGENT TESTER (FOR PUMP MODULE (VACUUM PUMP))
    1. On the intelligent tester, select the following menu items: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / VACUUM PUMP (ALONE).
    2. Measure the voltage between MPMP terminal of ECM connector and the body ground when the vacuum pump is turned ON and OFF using the tester.

      Result

      DTC RESULT DESCRIPTION

      Test Results Suspected Trouble Areas Proceed to
      Between 0 V and 3 V when OFF
      Between 9 V and 14 V when ON      		 ECM normal A
      Between 9 V and 14 V when OFF
      Between 0 V and 3 V when ON      		 ECM B
      Fig 20: Identifying E6 ECM Connector Terminals
      G05192663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    B: Go to step  24

    A: Go to Next Step

  23. CHECK HARNESS AND CONNECTOR (PUMP MODULE - GROUND)
    1. Disconnect the L4 canister connector.
    2. Turn the engine switch to OFF.
    3. Check the resistance between terminal 6 of the canister connector and the body ground.

      Result

      DTC RESULT DESCRIPTION

      Test Result Suspected Trouble Area Proceed to
      Below 1 a Leak detection pump A
      10 kΩ or higher Wire harness between vacuum pump and body ground B
      Fig 21: Identifying L4 Canister Connector Terminals
      G05232916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Reconnect the canister connector.

    A: Go to step  29

    B: Go to step  31

  24. CHECK HARNESS AND CONNECTOR (PUMP MODULE - ECM)
    1. Turn the ignition switch OFF.
    2. Disconnect the L4 canister connector and E3 ECM connector.
    3. Measure the resistance between terminal 8 of canister pump module connector and 27 of E3 ECM connector.

      Result

      DTC RESULT DESCRIPTION

      Test Results Suspected Trouble Areas Proceed to
      Below 1 Ω ECM A
      10 kΩ or higher Wire harness between ECM and canister pump module B
    4. Reconnect the ECM connector.
    5. Reconnect the canister pump module connector.

    A: Go to step  34

    B: Go to step  31

    Fig 22: Identifying L4 Canister Connector And E3 ECM Connector
    G05232914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSPECT THROTTLE BODY ASSEMBLY
    1. Stop the engine.
    2. Disconnect the EVAP hose from the throttle body.
    3. Start the engine.
    4. Use your finger to confirm that the port of the throttle body has suction.

      Result

      DTC RESULT DESCRIPTION

      Test Results Suspected Trouble Areas Proceed to
      Suction applied EVAP hose between throttle body and purge VSV A
      No suction Throttle body B
    5. Reconnect the EVAP hose.

    A: Go to step  32

    B: Go to step  33

  26. CORRECTLY REINSTALL OR REPLACE FUEL TANK CAP

    HINT:

    • When reinstalling the fuel tank cap, tighten it until a few click sounds are heard.
    • When replacing the fuel tank cap, use a fuel tank cap that meets OEM specifications, and tighten it until a few click sounds are heard.

    NEXT: Go to step  36

  27. REPLACE FUEL TANK CAP ASSEMBLY

    HINT:

    When installing the fuel tank cap, tighten it until a few click sounds are heard.

    NEXT: Go to step  36

  28. REPAIR EVAP LEAK PART
    1. Disconnect the vent hose.

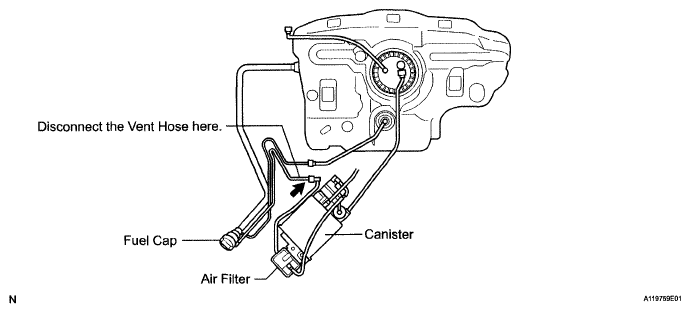

      Fig 23: Identifying Fuel System Components
      G05192666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the EVAP pressure tester tool to the canister with the adapter.
      Fig 24: Connecting EVAP Pressure Tester Tool To Canister With Adapter
      G05232919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pressurize the EVAP system by 3.2 to 3.7 kPa (24 to 28 mmHg).
    4. Apply soapy water to the piping and the connecting parts of the EVAP system.
    5. Look for areas where bubbles appear. This indicates leak point.

    NEXT: Go to step  36

  29. REPLACE CHARCOAL CANISTER ASSEMBLY

    NEXT: Go to step  36

  30. REPLACE VACUUM SWITCHING VALVE ASSEMBLY NO.1 (PURGE VSV)
    1. Disconnect the connector and hoses from the purge VSV.
    2. Remove the purge VSV.
    3. Install a new purge VSV.
    4. Reconnect the connector and hoses.

    NEXT: Go to step  36

    Fig 25: Identifying Purge VSV
    G05192668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REPAIR OR REPLACE HARNESS AND CONNECTOR

    HINT:

    In case that the exhaust tail pipe is removed, go to the next step before installing it.

    NEXT: Go to step  36

  32. REPLACE EVAP HOSE (THROTTLE BODY - PURGE VSV)

    NEXT: Go to step  36

  33. INSPECT THROTTLE BODY ASSEMBLY
    1. Remove the throttle body (See REMOVAL  ).
    2. Check that there is no clog in the EVAP purge port of the throttle body. If necessary, replace the throttle body.

    NEXT: Go to step  36

  34. REPLACE ECM
    1. Replace the ECM (See REMOVAL  ).

    NEXT: Go to step  36

  35. REPAIR OR REPLACE PARTS AND COMPONENTS INDICATED BY OUTPUT DTCS
    1. Repair the malfunctioning areas indicated by the DTCs that had been confirmed when the vehicle was brought in.
  36. PERFORM EVAP SYSTEM CHECK (AUTO OPERATION)
    NOTE:
    • In the EVAP SYSTEM CHECK (AUTO OPERATION), the series of 5 EVAP SYSTEM CHECK steps are performed automatically by the intelligent tester. It takes a maximum of approximately 18 minutes.
    • Do not perform the EVAP SYSTEM CHECK when the fuel tank is more than 90% full because the cut-off valve may be closed, making the leak check of the fuel tank unavailable.
    • Do not run the engine in this step.
    • When the temperature of the fuel is 35°C (95°F) or more, a large amount of vapor forms and any check results become inaccurate. When performing an EVAP SYSTEM CHECK, keep the temperature below 35°C (95°F).
    1. Clear the DTCs (See DTC CHECK / CLEAR  ).
    2. On the intelligent tester, select the following menu items: DIAGNOSIS / ENHANCED OBD II / SYSTEM CHECK / EVAP SYS CHECK / AUTO OPERATION.
    3. After the SYSTEM CHECK is completed, check for pending DTCs by selecting the following menu items: DIAGNOSIS / ENHANCED OBD II / DTC INFO / PENDING CODES.

      HINT:

      If no pending DTC is found, the repair has been successfully completed.

    NEXT: COMPLETED

scientia non olet · About LEMON Manuals
