Mode 6 - TOYOTA: Matrix

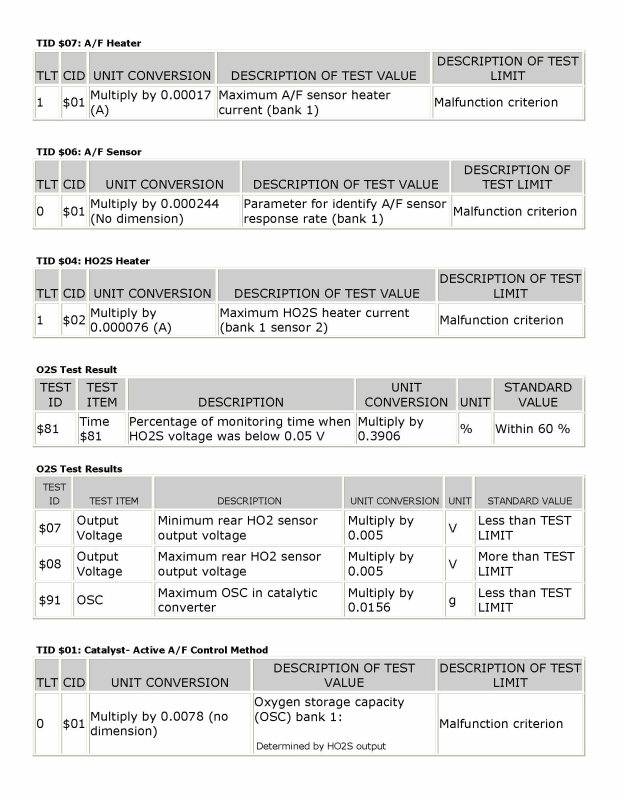

Fig 1: Mode 6 Data For Matrix (1 Of 3)
G00526015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

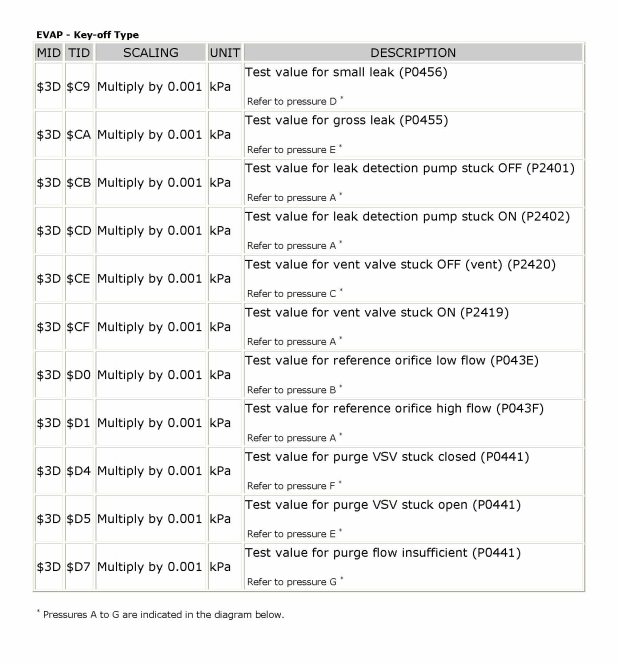

Fig 2: Mode 6 Data For Matrix (2 Of 3)
G00526016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Mode 6 Data For Matrix (3 Of 3)
G00526017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
