2GR-FE 3.5L

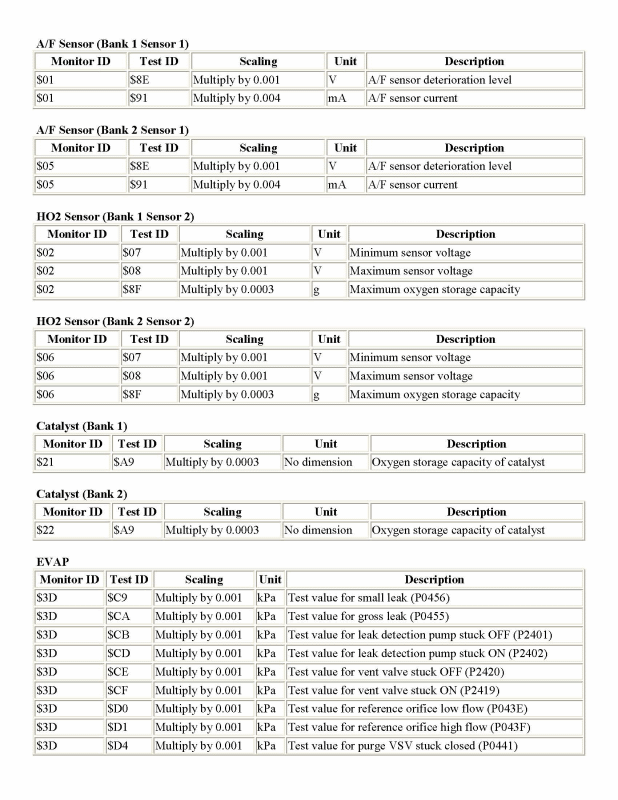

Fig 1: Mode 6 Data For RAV4 V6 (1 Of 4)
G00526032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

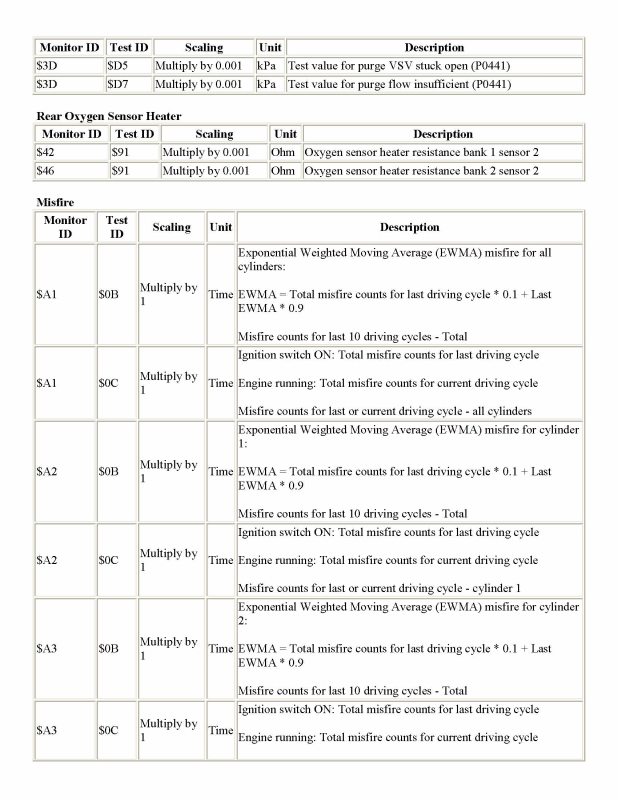

Fig 2: Mode 6 Data For RAV4 V6 (2 Of 4)
G00526033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

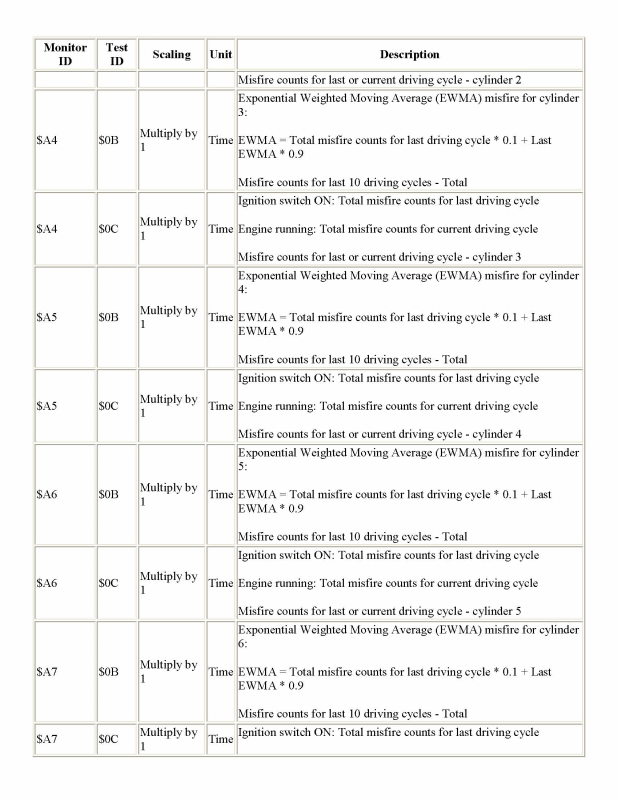

Fig 3: Mode 6 Data For RAV4 V6 (3 Of 4)
G00526034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

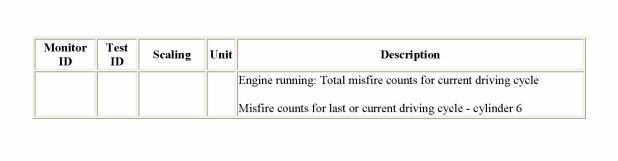

Fig 4: Mode 6 Data For RAV4 V6 (4 Of 4)
G00526035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
