Mode 6 - TOYOTA: Sequoia

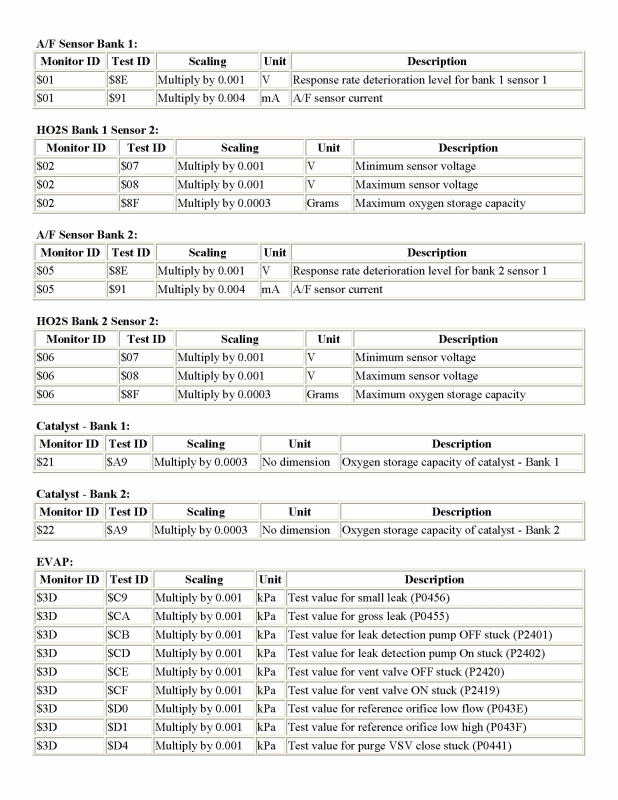

Fig 1: Mode 6 Data For Sequoia (1 Of 4)
G00526036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

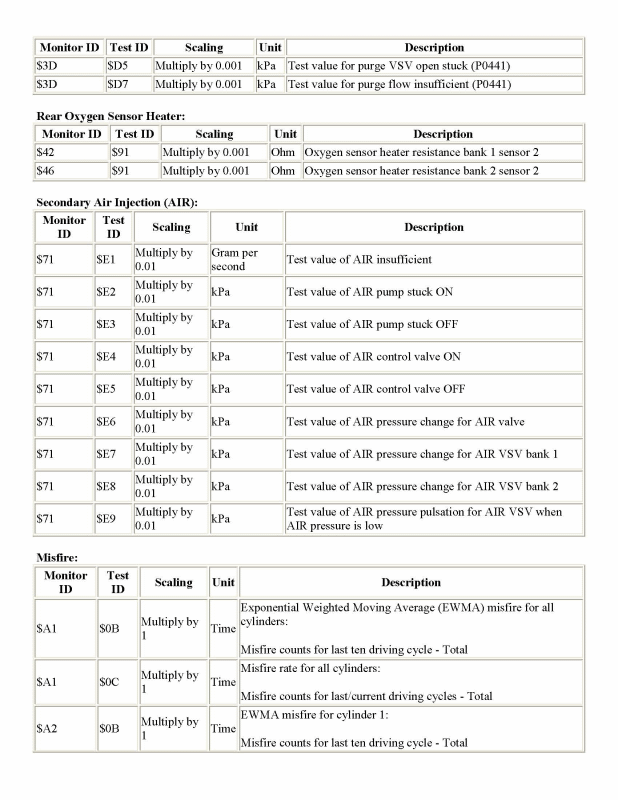

Fig 2: Mode 6 Data For Sequoia (2 Of 4)
G00526037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

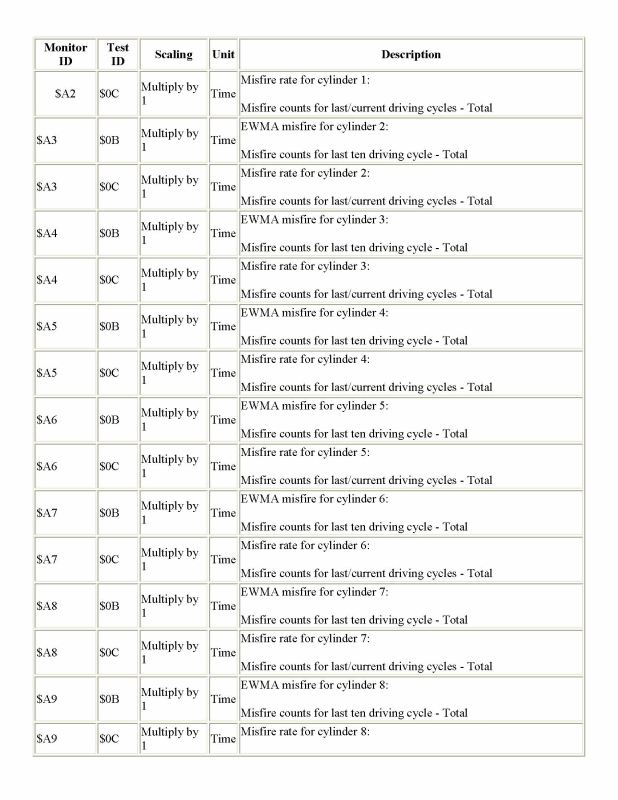

Fig 3: Mode 6 Data For Sequoia (3 Of 4)
G00526038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Mode 6 Data For Sequoia (4 Of 4)
G00526039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
