Rear Axle Beam: Components

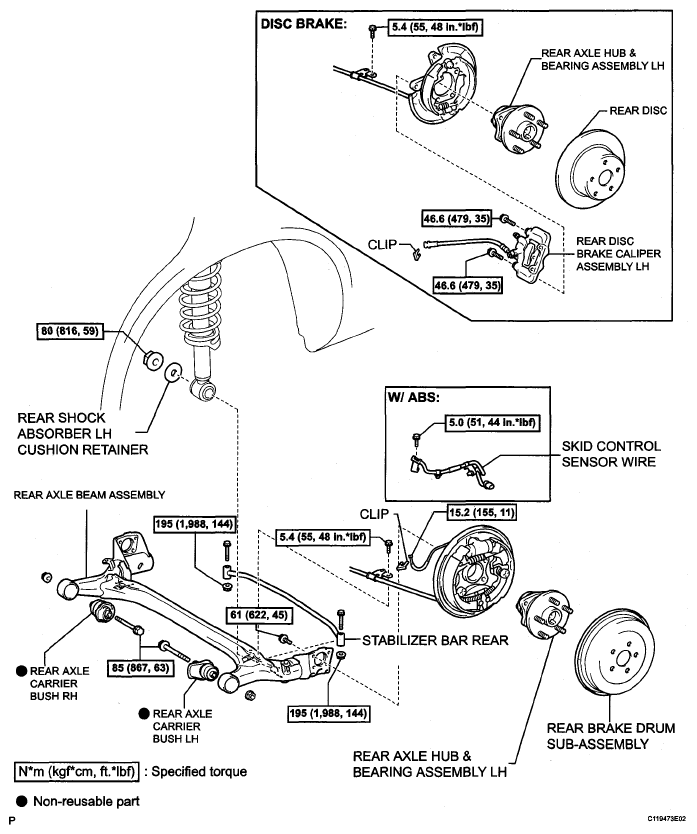

Fig 1: Rear Axle Beam Replacement Components With Torque Specifications
G05235043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
