Rear Axle Beam: Reassembly

INSTALL REAR AXLE CARRIER BUSHING LH
1. Align the matchmarks on the rear axle beam assembly with the 2 notches of a new bushing and temporarily install the bushing to the rear axle beam assembly.

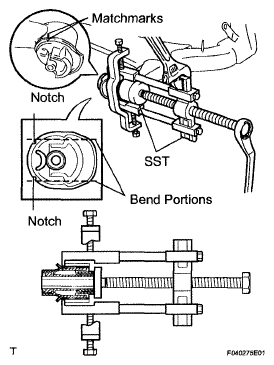

  Fig 1: Removing Bushing From Axle Beam
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, install the bushing to the axle beam.
  SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04020, 09955-04051, 09957-04010, 09958-04011), 09950-60010 (09951-00620), 09710-04101
  NOTE:
  - Hang the claw of SST to the bushing deeply and firmly.
  - Do not scratch the rubber portion of the bushing.
  - Do not deform the bushing rib.

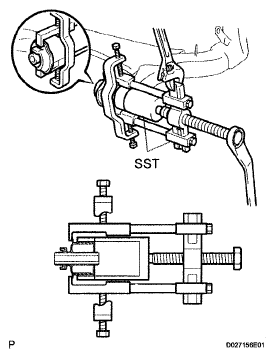

    Fig 2: Installing Bushing To Axle Beam
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
